Rod end / Iseki SXG19/SXG323/SXG326/SXG327 / 1705-436-300-00

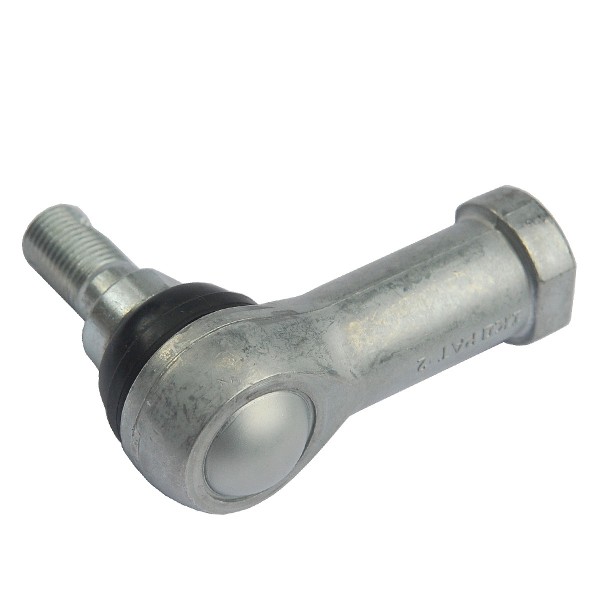

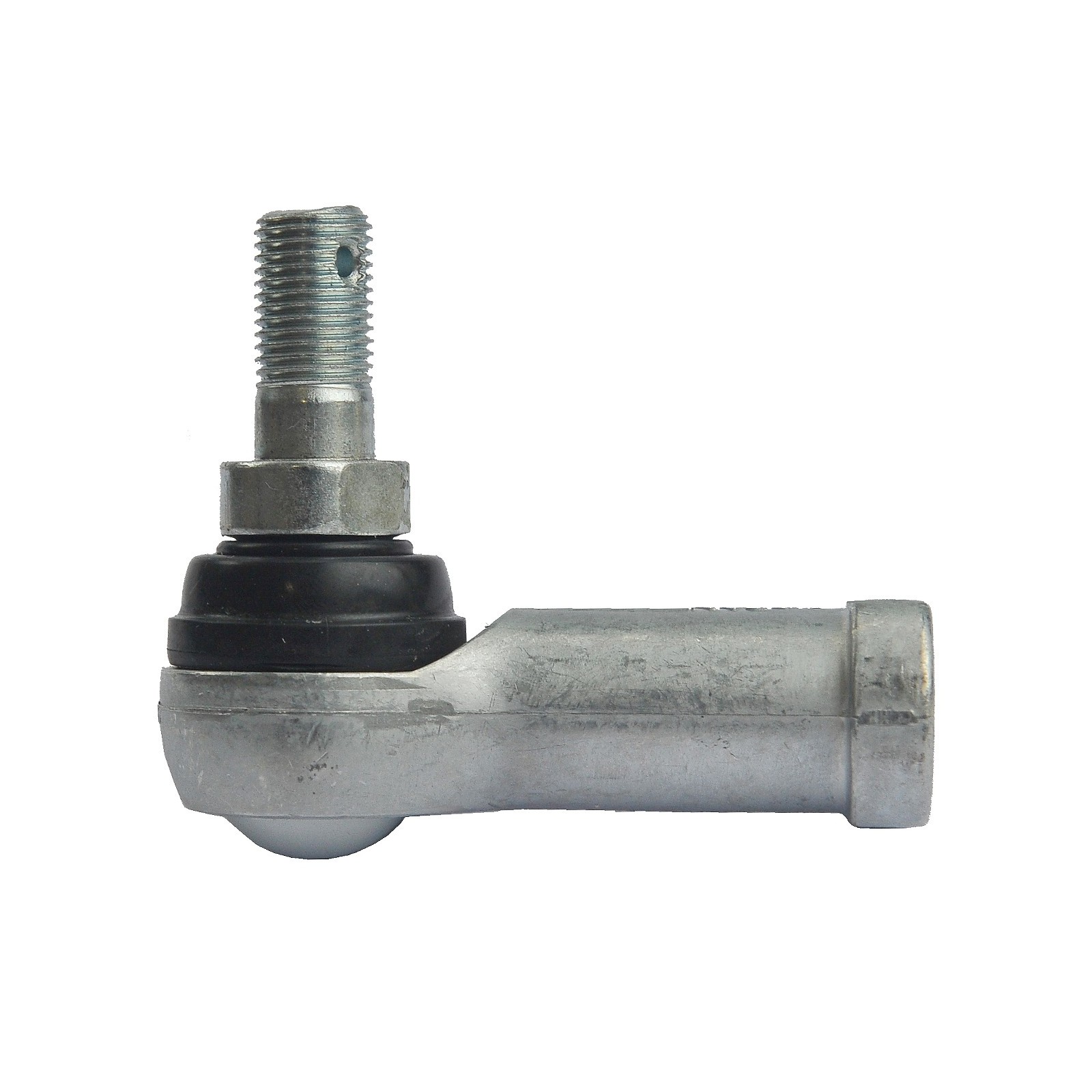

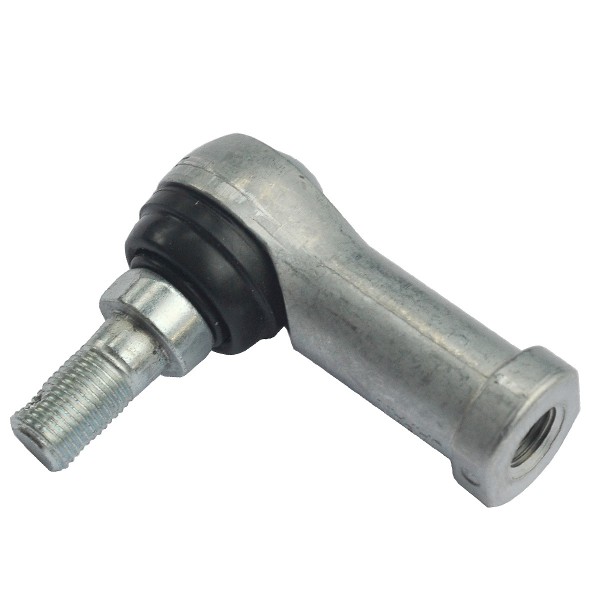

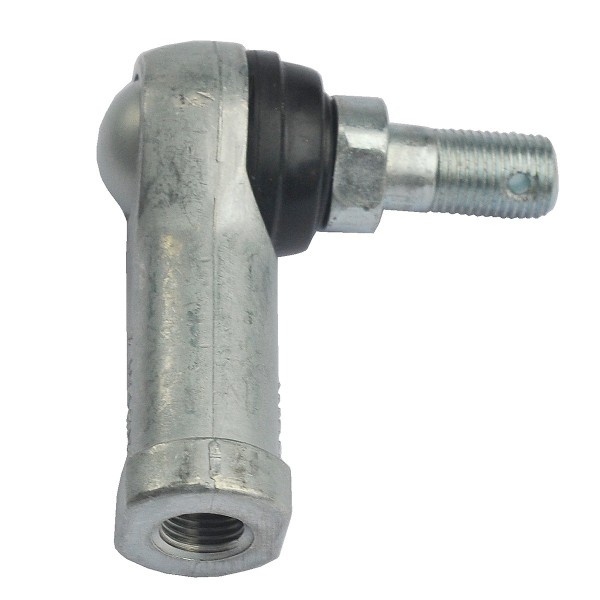

LEFT rod end ( V328-262-112-00 nut) with a total length of 80 mm and a total head height of 63.50 mm for Iseki lawn tractors , seki SXG19, Iseki SXG323 series, Iseki SXG326, Iseki SXG327 series and others.

The tie rod end is the steering component that connects the wheels to the steering gear. Correct installation of this element directly affects the road angle of the wheels and, consequently, the driving characteristics of the vehicle itself. The most common visible signal and the need to replace the steering rack are play in the steering system or visible unnatural abrasion of the tires. The good condition of the tie rod ends affects driving safety and extends the life of the tyres.

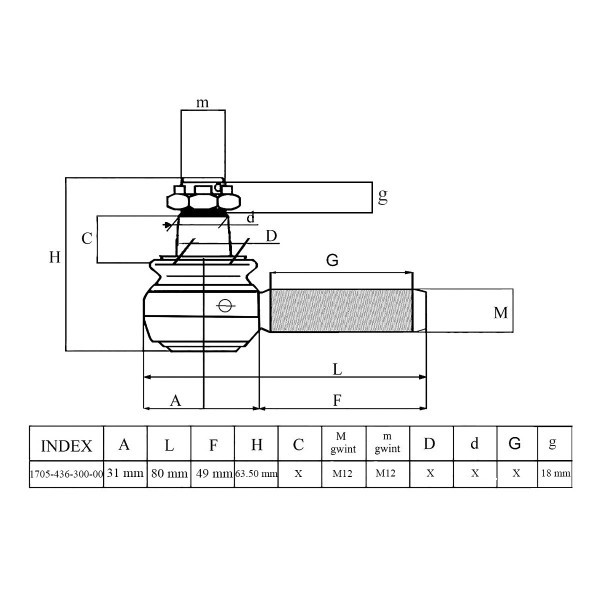

Dimensions :

• total length: 80 mm.
• height: 63.50mm.
• head diameter: 31mm.
• thread length: 18mm.
• cone height: 36 mm,
• thread: M12 x 1.25 / M12 x 1.25,
• part numbers; 1705-436-300-00.

Mower models :

Iseki:

• Iseki SXG19,
• Iseki SXG323,
• Iseki SXG326,
• Iseki SXG327

The first signs of wear on the tie rod end are play in the steering wheel, steering wheel vibration, delayed reaction of the steering wheels to slight steering movements. The wear or damage of the tie rod ends is often caused by other malfunctioning components or improper driving and operation of the tractor.
