Available
stan

Condition

New

moc2

Power (HP/HP)

24

naped

Drive

4x4 4WD

wspomaganie

Power steering

YES

waga

Weight (kg)

595

wishlist

Kubota B2420 4x4 - 24KM + LAD-3 TUR front loader + excavator for LW-5 4FARMER tractor

KUBOTA_B2420/TUR/LW-5
zł88,150.00
Tax included PL 23%

71666,67 netto

  • Dostępność (1 Quantity): stock
wishlist

Do you have any questions?

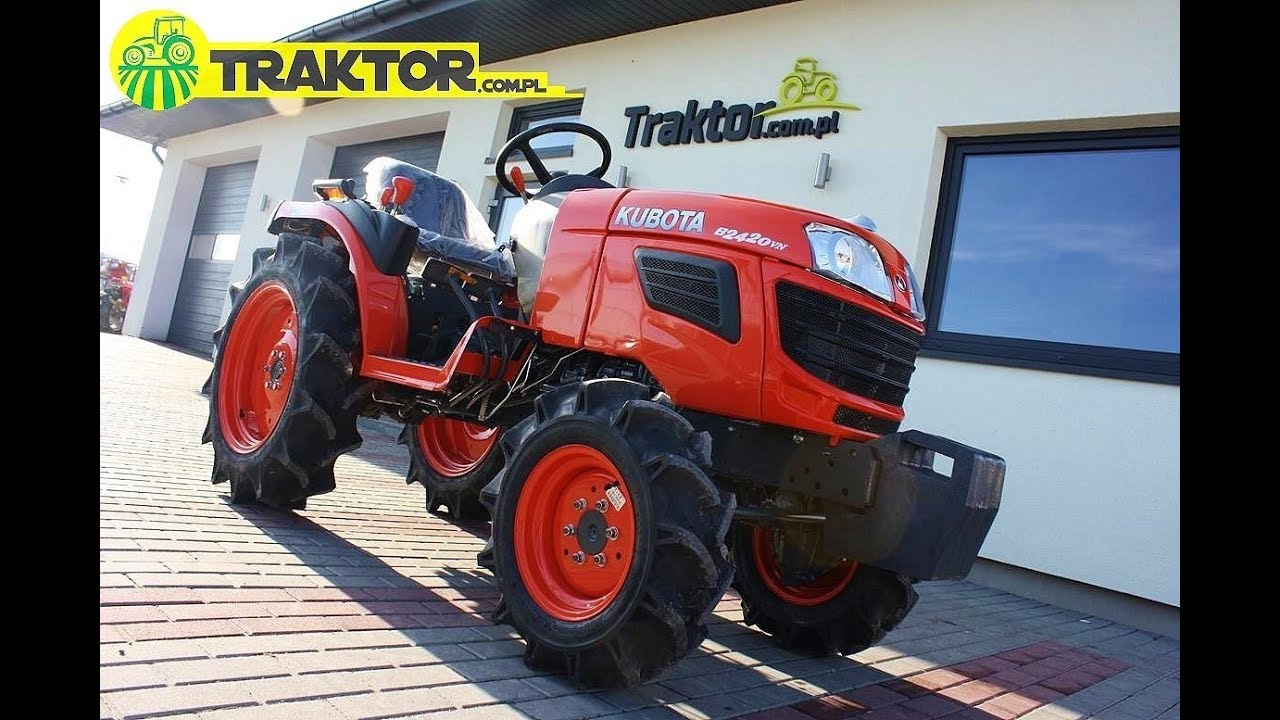

Watch the video

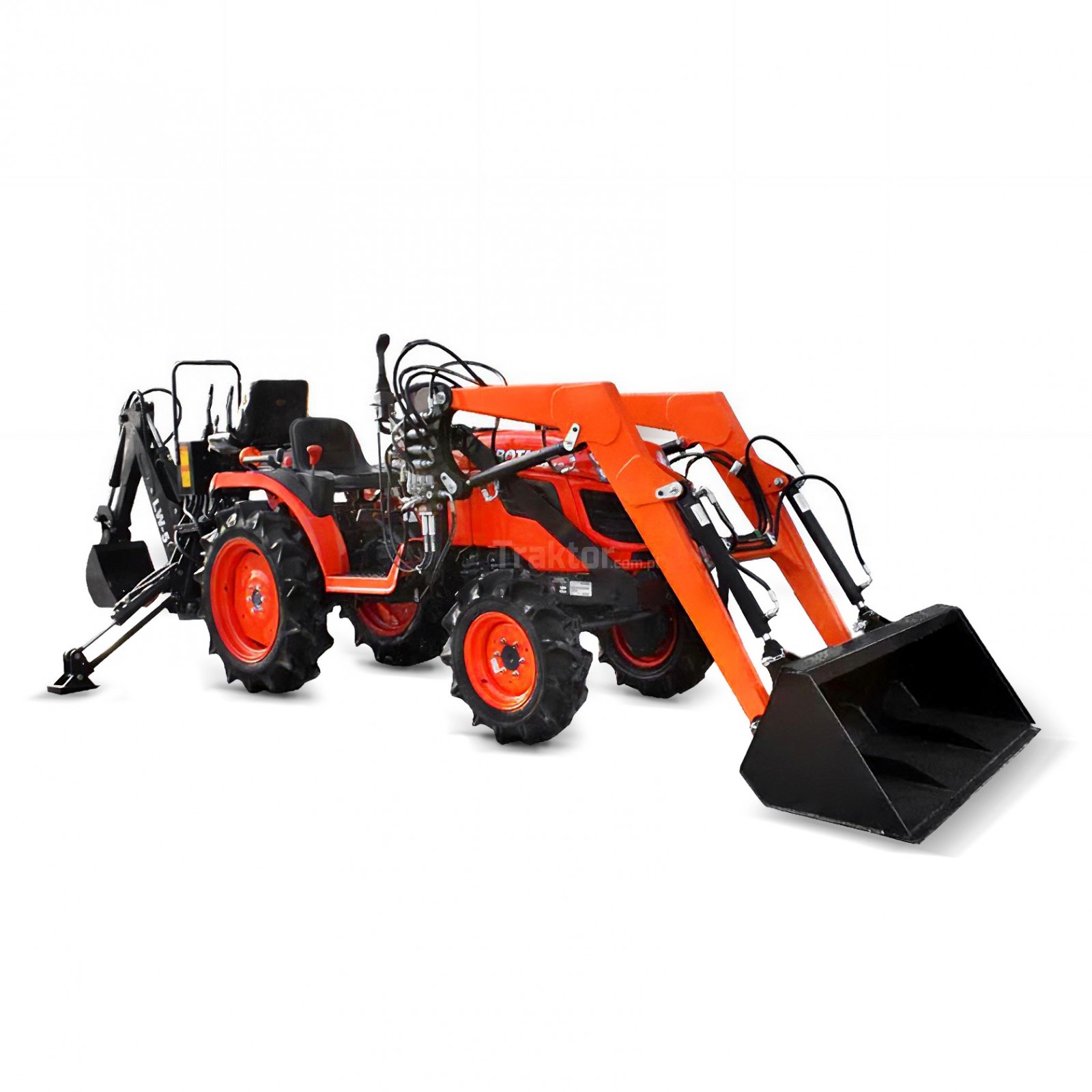

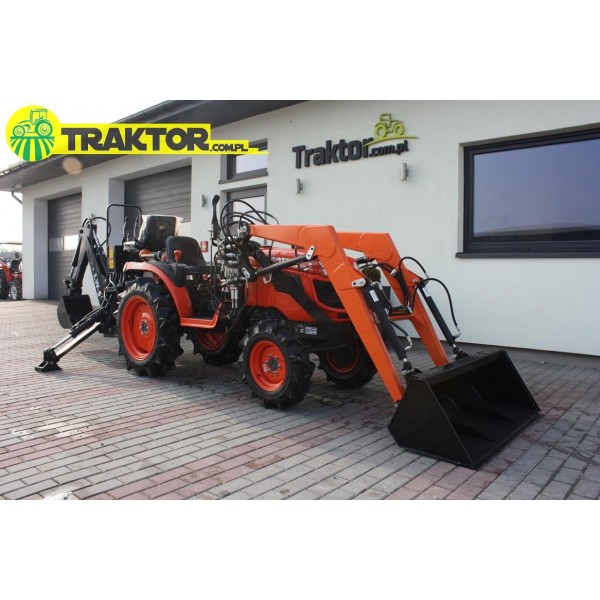

Kubota B2420 4x4 - 24KM + LAD-3 TUR front loader + excavator for LW-5 4FARMER tractor

Kubota B series tractors are the most technologically advanced Kubota products in the class of mini agricultural and municipal tractors.

Kubota B series machines meet standards regarding exhaust emissions, vibration levels and safety. In its tractors, the manufacturer of Kubota B series machines guarantees stable and high engine performance and extremely high comfort of use. Optimal working and operating conditions are possible thanks to the use of extremely high-quality raw materials and components for their production. The agricultural industry in different countries differs from each other and each market has its own characteristics, which means that the demand for appropriate agricultural equipment varies from country to country. Kubota B series tractors meet the expectations of customers on global markets, which is why Kubota products are very highly rated by consumers in various parts of the world.

Kubota B2420 is a 4x4 tractor with a power of 24 HP with a 3-cylinder DIESEL engine, Kubota D1105 -E2-D22i, while the output power of the PTO / PTO shaft is 17.4 kW (23.6 HP) at 2600 rpm. The tractor has a three-point rear three-point linkage Cat I and a manual gearbox with 9 forward gears and 3 reverse gears. The maximum speed that the Kubota B2420 can achieve is 18.8 km/h. The tractor is very compact, as evidenced by its small dimensions (length 2410 mm, width 1015 mm , height to the handlebar: 1280 mm). The wheelbase is 1,563 mm and the weight of the tractor without accessories is only 740 kg .

The TUR front loader with which the tractor is equipped is the basic version of LAD3. Polish-made front loader with quick assembly, Euro frame, joystick control. Load capacity depending on the tractor weight from 250-400 kg .

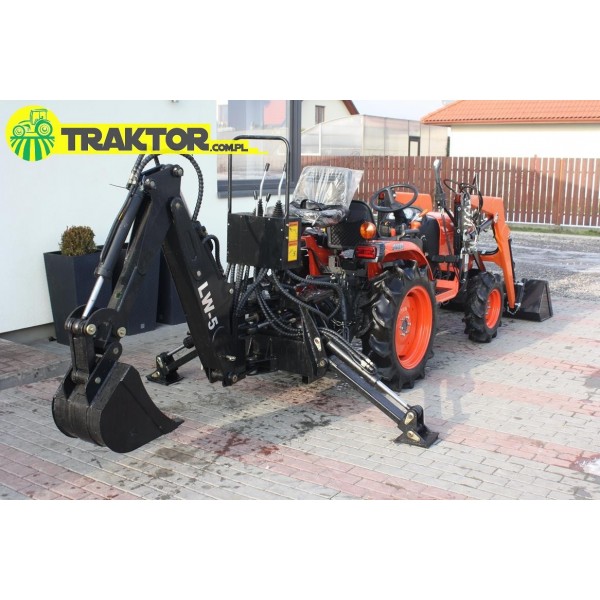

The excavator attached to a tractor with a 3-point three-point hitch is the LW-5 model and is the smallest version of the LW series excavator. The excavator is intended for mini tractors and small tractors with lower power, but not less than 20 HP . The excavator has its own oil pump connected to the tractor's PTO and its own oil tank, which ensures very good cooling of the hydraulic oil. The weight of the excavator is approximately 550 kg , the maximum digging depth is 1650 mm and the maximum digging radius is 2300 mm.

Specification

Condition
New
Equipment
Excavator
Front loader TUR
Engine
Liquid-cooled 3-cylinder diesel
Engine model
Kubota D1105-E2-D22T
Power (HP/HP)
24
Engine capacity (cc/cc)
1,123
Drive
4x4 4WD
Number of forward/reverse gears
9 / 3
Driving speed (km/h)
max 18,8 km/h
Power steering
YES
Split brakes
YES
Differential lock
YES
PTO / PTO
540 / 760 (rpm)
PTO/PTO power (kW)
17,4 kW (23,6HP)
NEXT DOOR
3 point
KAT I
Lifting capacity of three-point linkage at ball ends (kg)
615
Tire type
Agricultural
Length / width / height to handlebar (mm)
2410 / 1015 / 1280
Wheelbase (mm)
1563
Tire size front/rear
7-12 / 8.3-20
turning radius (mm)
2100
Weight (kg)
595
Clutch
Dry, single disc
Brakes
Wet

Kubota is one of the leading manufacturers of heavy agricultural equipment based in Osaka. The company was established in 1890 by Gonshiro Kubota. For several years, it produced tractors under license from FIAT.

It was only in 1978 that the company released its first tractor entirely on its own components to the market. In 2010 , Kubota announced production of 3.5 million tractors. Nowadays, Kubota is one of the global concerns employing approximately 25,000 people around the world.
From the beginning of its activity, it has been cooperating with the best suppliers and manufacturers of parts and components, which results from cooperation with Fiat and Nissan. The company has 34 representative offices around the world, mainly in Europe: Germany, Great Britain, France, Spain, Poland, the United States and Canada.


Kubota is a company that is known for its long life and high quality of workmanship, which is why it is currently very popular among many users around the world.

Their wide range of agricultural tractors allows each user to choose a model tailored to their individual needs and preferences.
