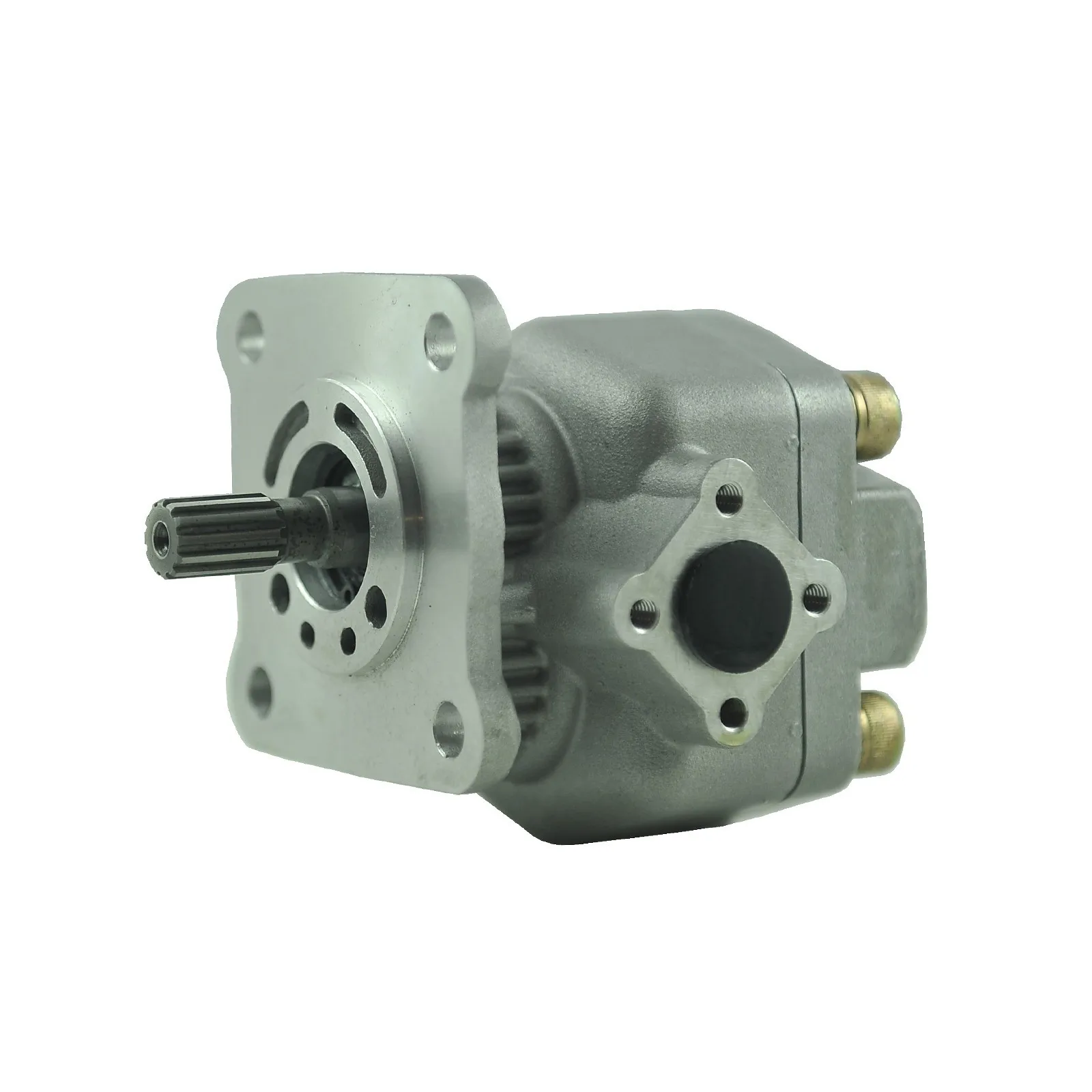

12T hydraulic pump with dimensions 100 x 100 x 100 mm for Kubota tractors of the Kubota L235, Kubota L275, Kubota L2202, Kubota L2402, Kubota L2602, Kubota L4202 series and others.
A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.
Technical data :
- dimensions: 100 x 100 x 100 mm,
- shaft diameter (12T): 11 mm (measured between cutter teeth), 13.50 mm (measured together with cutter),
- mounting screw hole spacing: 64 mm (measured from each other), 90 mm (measured diagonally),
- diameter of mounting screw holes: 9 mm,
- spacing of mounting holes for hydraulic outlets: 35 mm (measured diagonally), 25 mm (measured from each other),
- diameter of holes for mounting screws of hydraulic outlets: 5 mm,
- shaft diameter: 11 mm (measured between the cutter teeth), 13.50 mm (measured together with the cutter),
- pressure: -,
- rotational speed: -,
- flow: 10 l/min,
- direction of rotation: LEFT,
- INLET/OUTLET diameter: 16 mm,
- original part numbers: ,
- reference numbers: 19669-83801,
- part numbers: 38240-76100 .
Tractor models :
- Kubota L235,
- Kubota L275,
- Kubota L2202,
- Kubota L2402,
- Kubota L2602,
- Kubota L4202.
The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.
Warehouse: K18 E16; K18 H19
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
