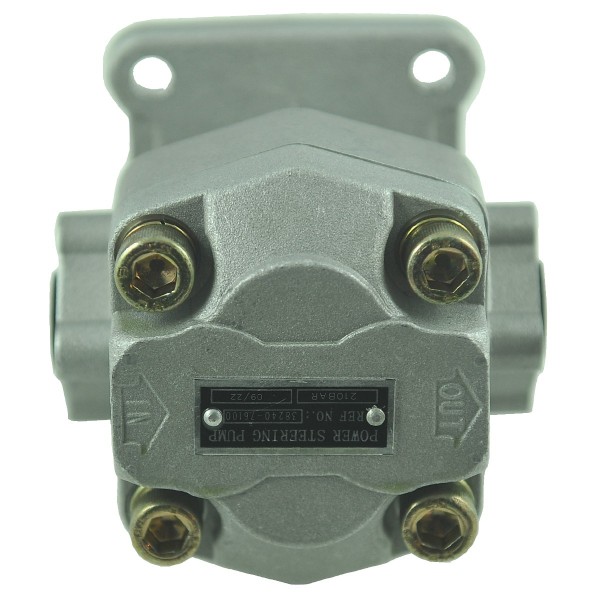

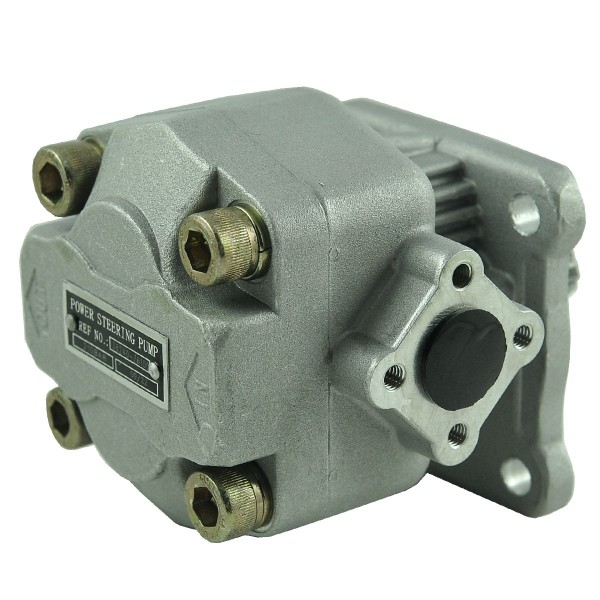

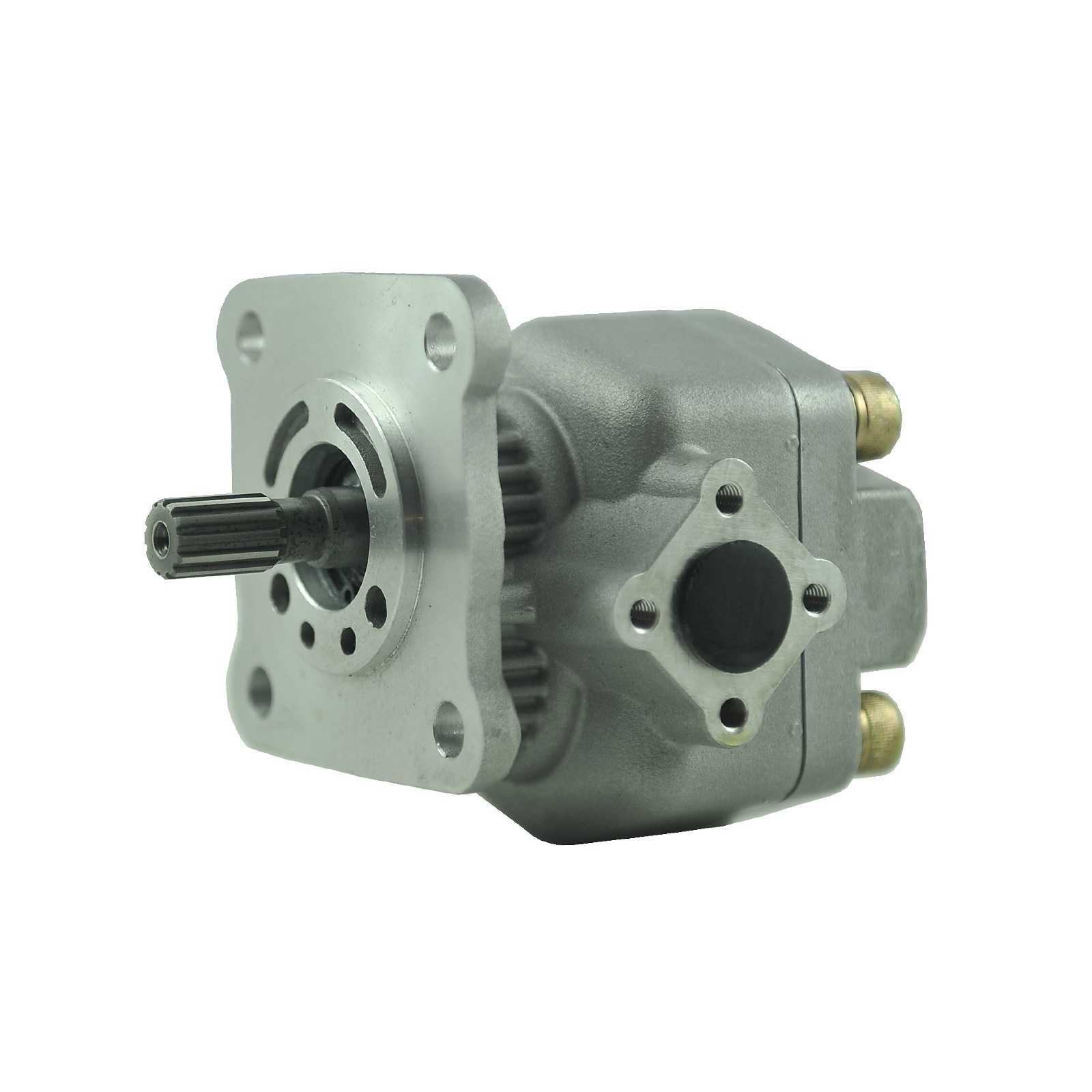

Hydraulic pump / 12T / Kubota L235 L275 L2202 L2402 L2602 L4202 / 38240-76100
12T hydraulic pump with dimensions 100 x 100 x 100 mm for Kubota tractors of the Kubota L235, Kubota L275, Kubota L2202, Kubota L2402, Kubota L2602, Kubota L4202 and other series.
The gear hydraulic pump is a device responsible for the operation of the rear linkage, additional hydraulically operated equipment, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump, we can control additional functions of an agricultural trailer, flail mower, tiller or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g. crankshaft). Hydraulic oil pumped into the pump goes to the high pressure regulating valve, where the excess returns to the gearbox and then goes to the main distributor. Some hydraulic pumps may have additional sections that supply oil under increased pressure to the steering system.
Technical data :
- dimensions: 100 x 100 x 100 mm,

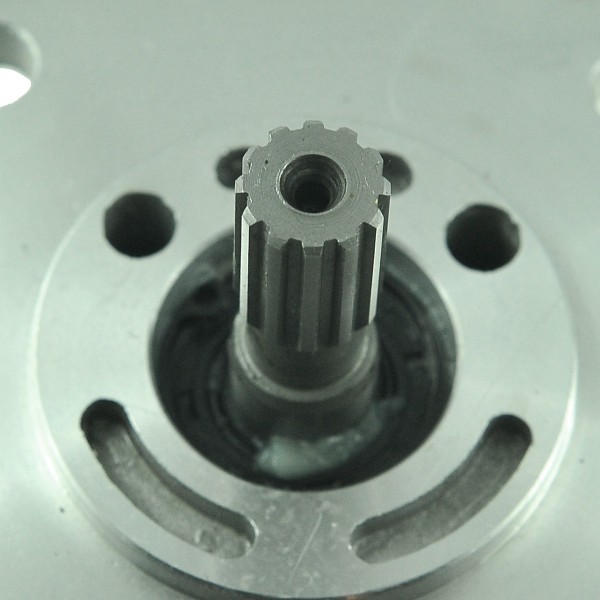

- shaft diameter (12T): 11 mm (measured between the cutter teeth), 13.50 mm (measured together with the cutter),
- spacing of holes for mounting screws: 64 mm (measured from each other), 90 mm (measured diagonally),
- diameter of holes for mounting screws: 9 mm,
- spacing of hydraulic outlet mounting holes: 35 mm (measured diagonally), 25 mm (measured from each other),
- diameter of holes for mounting screws of hydr outlets: 5 mm,
- shaft diameter: 11 mm (measured between the cutter teeth), 13.50 mm (measured together with the cutter),
- pressure: -.
- rotation speed: -.
- flow: 10 l/min.
- direction of rotation: LEFT,
- INLET/OUTLET diameter: 16 mm,
- original part numbers: ,
- comparison numbers: 19669-83801,
- part numbers: 38240-76100 .
Tractor models :
Kubota :
- Kubota L235,
- Kubota L275,
- Kubota L2202,
- Kubota L2402,
- Kubota L2602,
- Kubota L4202.
The first signs of a hydraulic pump failure are the lift falling too quickly or problems with trailer control. Most often, the control valve or pump seals fail, and in both cases the pumps can be successfully regenerated.
