Pin with lock / 31 x 220 mm / Kubota DH225E/DH226E / Kubota L4708 / W9573-54622 / W9543-52101 / 5-25-130-23

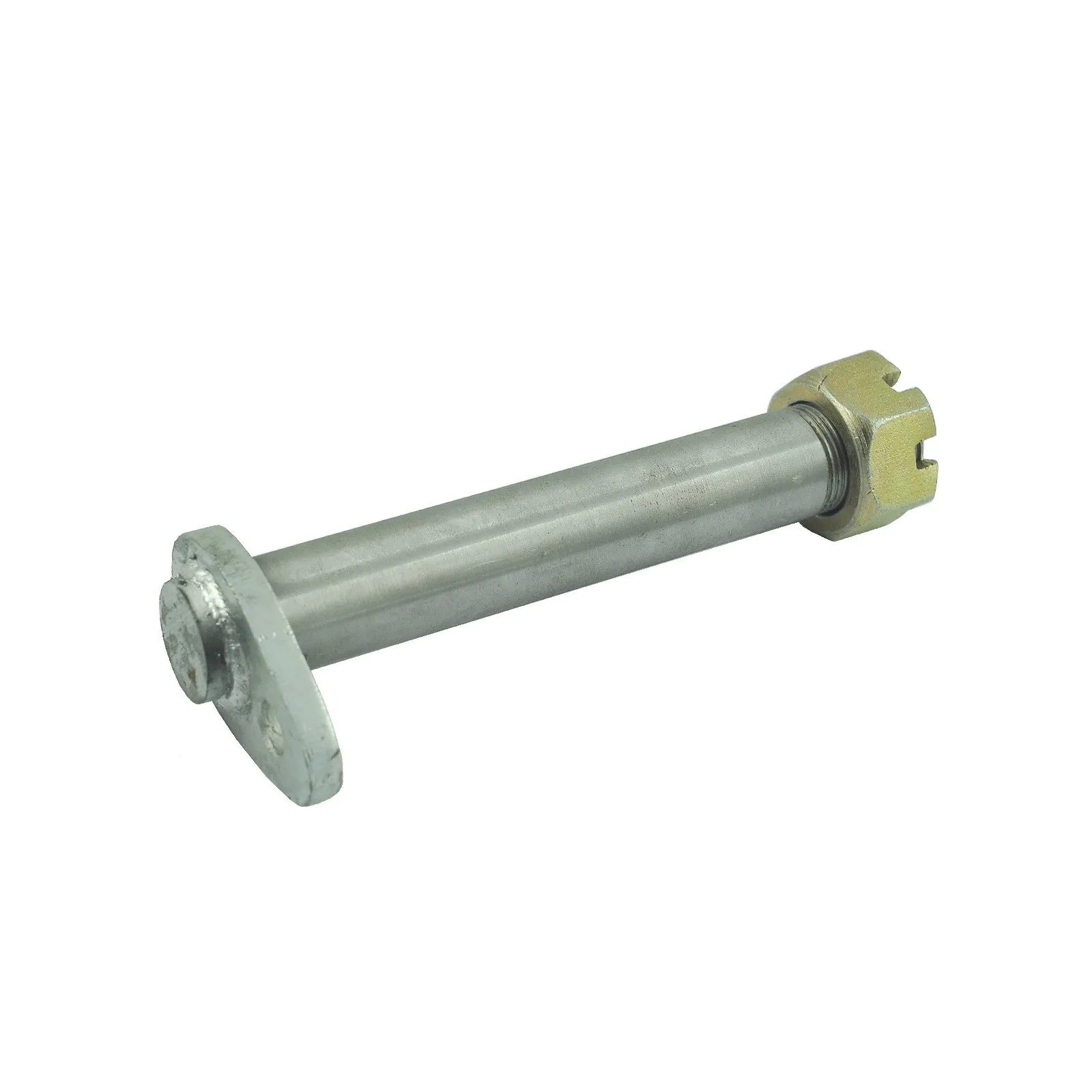

Teardrop disc harrow pin with nut, total length 220 mm , diameter 31 mm for Kubota harrows of the Kubota DH225E, Kubota DH226E series and others.

A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common:

• without a head,
• nasal,
• with cylindrical head,
• with threaded pin,
• with lock.

Dimensions :

• total length: 220 mm,
• diameter: 31 mm,
• thread: M30 x 2.00,
• original part numbers: W9573-54622 (pin), W9543-52101 (nut),
• part numbers: 5-25-130-23.

Tractor models :

• Kubota L4708.

Machine models :

Kubota :

• Kubota DH225E,
• Kubota DH226E.

Warehouse :
M01:A63:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
