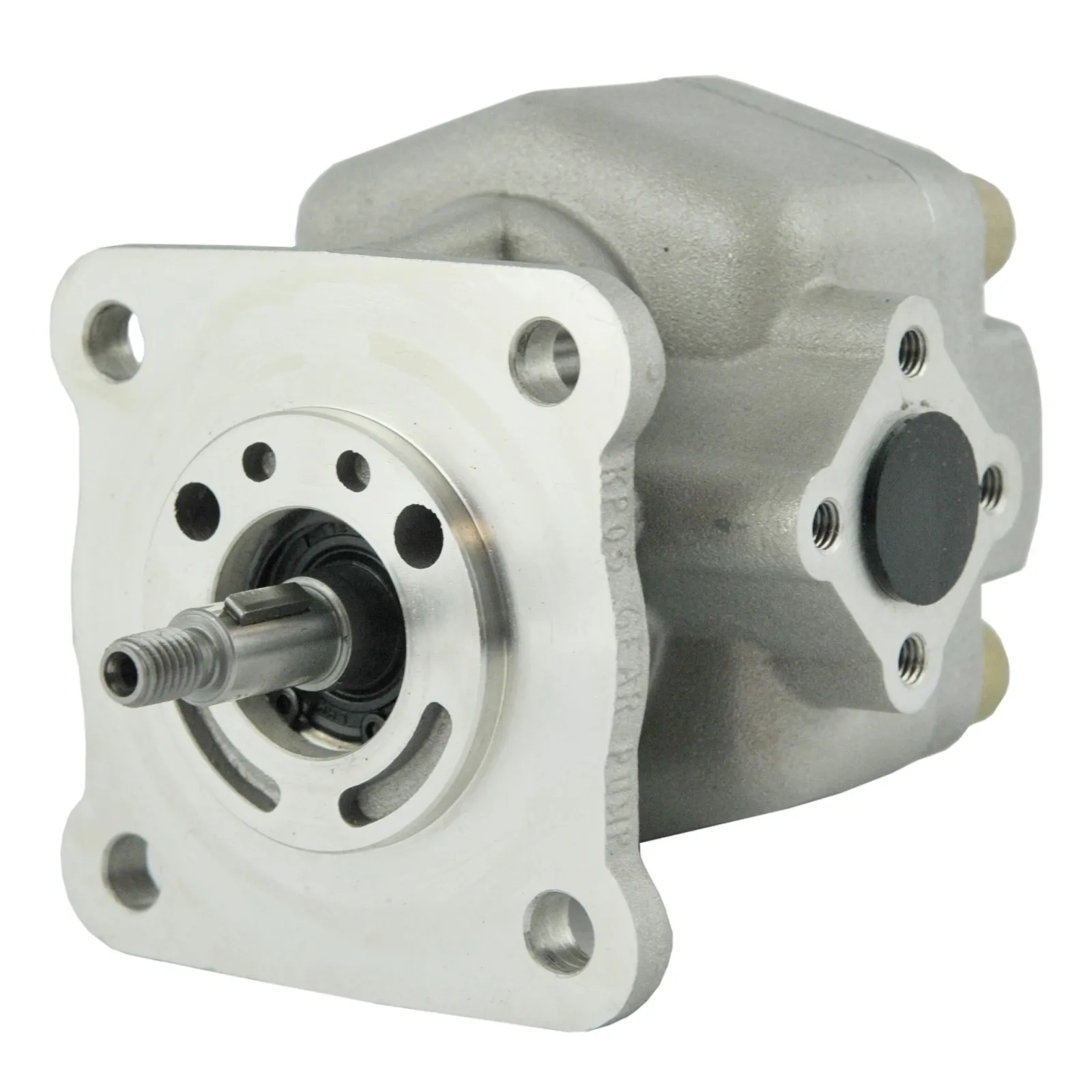

Hydraulic pump (counterclockwise shaft rotation) with M8 x 1.25 thread mounting (repair kit 9-07-102-02 , shaft seal 31381-76190 ) with dimensions 95 x 105 x 100 mm for Iseki tractors of the Iseki TL2100, Iseki TL2300, Iseki TL2500, Iseki TL2700, Iseki TS1610, Iseki TS1700, Iseki TS1901, Iseki TS1910, Iseki TS2205, Iseki TS2210, Iseki TS2220, Iseki TS2510, Iseki TS2810, Iseki series TS3110, Iseki TS3510 and others.
A hydraulic gear pump is responsible for the operation of the rear linkage, additional hydraulically operated implements, and in modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of an agricultural trailer, flail mower, tiller, or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.
Dimensions :
- dimensions: 100 x 105 x 100 mm.
- thread: M8 x 1.25,
- direction of rotation: LEFT,
- mounting bolt spacing: 63 mm (measured from each other), 90 mm (measured diagonally),
- spacing of mounting bolts of hydraulic outlets: 25 mm (measured from each other), 35 mm (diagonally).
- pressure: -,
- rotational speed: -,
- flow: 10 l/min,
- comparison numbers: %C5% 9Bci-do-iseki/2097-power steering pump-iseki-ts1610ts2510-kp0588cgss.html">KP0588CGSS ,
- original part numbers: -,
- part numbers: 9-96-100-01.
Tractor models :
- Iseki TL2100,
- Iseki TL2300,
- Iseki TL2500,
- Iseki TL2700,
- Iseki TS1610,
- Iseki TS1700,
- Iseki TS1901,
- Iseki TS1910,
- Iseki TS2205,
- Iseki TS2210,
- Iseki TS2220,
- Iseki TS2510,
- Iseki TS2810,
- Iseki TS3110,
- Iseki TS3510.
The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.
Magazine: K18:E16
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
