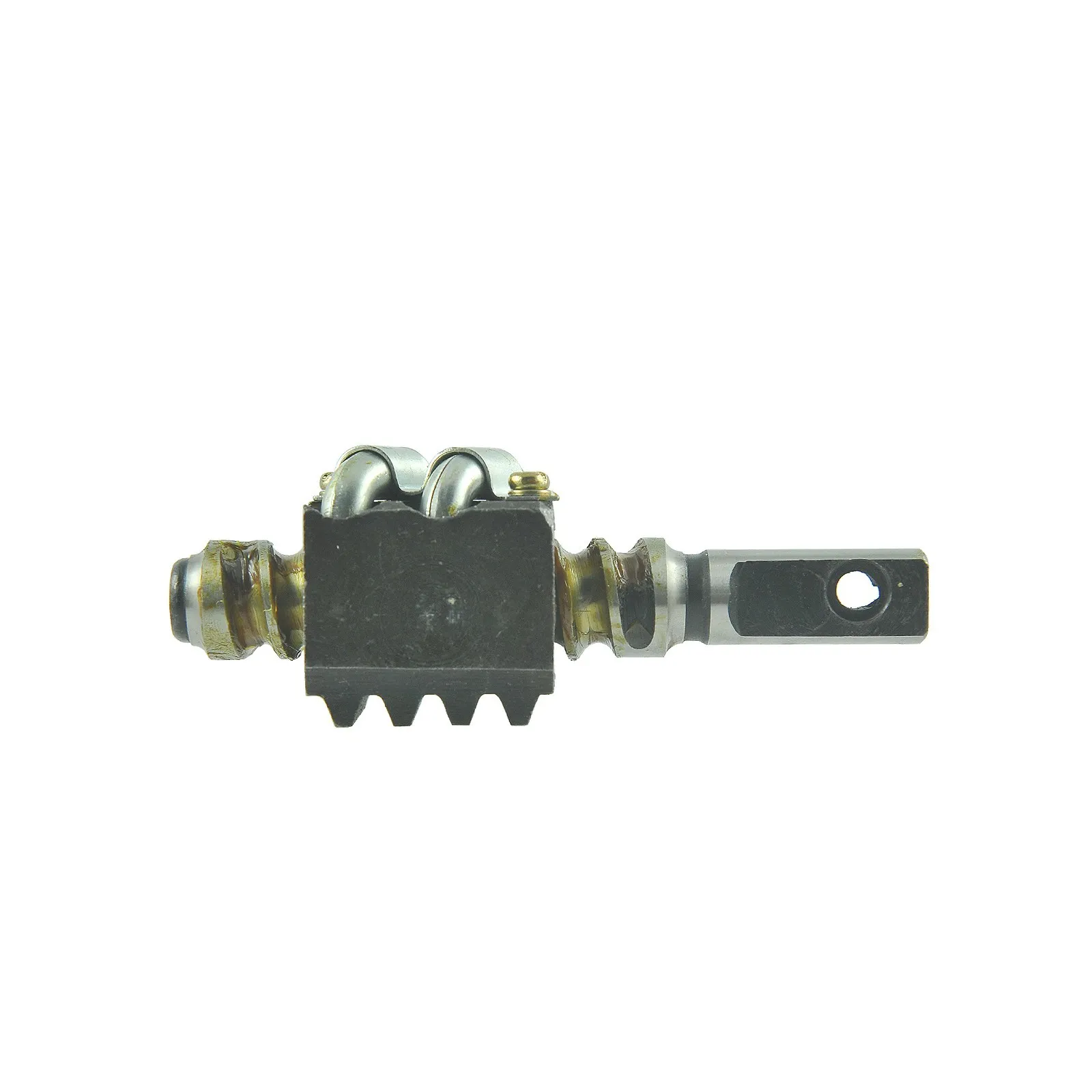

Steering gear shaft worm end (bearing %C5% BCysko-19x38x11-mm-kubota-b1600b5000b6000-iseki-tx1300-66591-41140-66591-41141-1427-406-007-00.html">66591-41140 ) with a total length of 125 mm for Kubota tractors of the following series: Kubota A13, Kubota A14, Kubota A15, Kubota A17, Kubota A19, Kubota A-155, Kubota A-175, Kubota A-195, Kubota B40, Kubota B52, Kubota B1-14, Kubota B1-15, Kubota B1-16, Kubota B1-17, Kubota B1600, Kubota B1702, Kubota B1902, Kubota CX13, Kubota CX14, Kubota CX15, Kubota CX16, Kubota CX17, Kubota CX18 and others.
The steering column worm gear is a component of the steering system, sometimes called the rack and pinion, responsible for steering the tractor. The shaft is directly bolted to the steering wheel on one end, while its worm section on the other moves the steering rods connected to the front axle's steering rods during steering wheel rotation. The worm gear is a component of the steering column, which consists of a shaft with a worm gear, responsible for steering the tractor.
Dimensions :
- length: 125 mm,
- cube dimensions: 40 x 36 x 32 mm (length x width x height),
- tip dimensions: 9.80 x 15.70 mm
- original part numbers: 67111-41202 , 67111-41203,
- comparative numbers: - ,
- part numbers: KUSS-402.
Tractor models :
- Kubota A13,
- Kubota A14,
- Kubota A15,
- Kubota A17,
- Kubota A19,
- Kubota A-155,
- Kubota A-175,
- Kubota A-195,
- Kubota B40,
- Kubota B52,
- Kubota B1-14,
- Kubota B1-15,
- Kubota B1-16,
- Kubota B1-17,
- Kubota B1600,
- Kubota B1702,
- Kubota B1902,
- Kubota CX13,
- Kubota CX14,
- Kubota CX15,
- Kubota CX16,
- Kubota CX17,
- Kubota CX18.
The worm shaft is responsible for transferring the steering wheel's movement to the tie rod ends, and then to the steering wheels. This connection should be as smooth and free of play as possible. At the end of the shaft is a so-called steering column worm with a screw-like thread, directly integrated into which is a gear or other surface connected to the tie rod ends.
Warehouse: K04
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
