Pierścień segera / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / nr 40265558

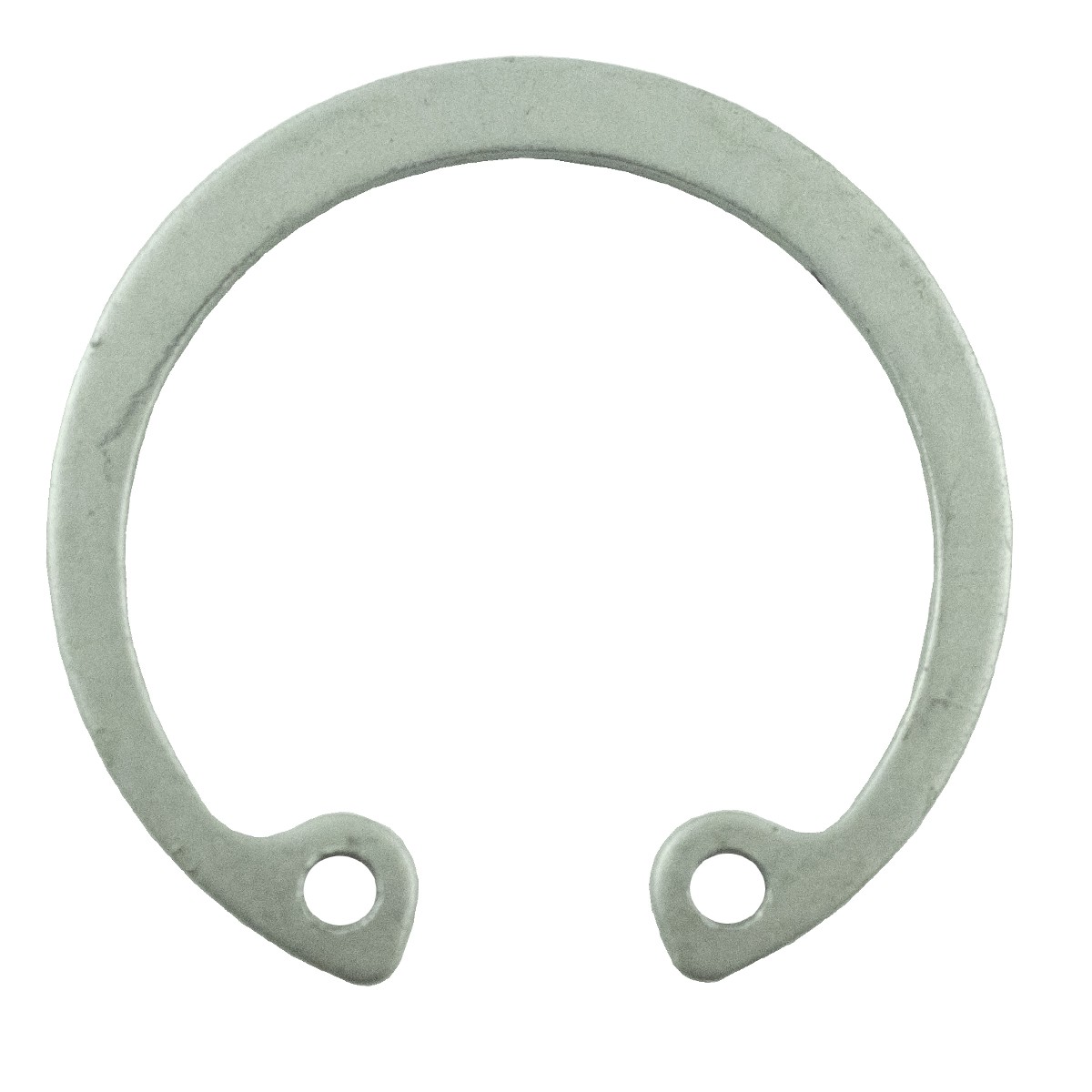

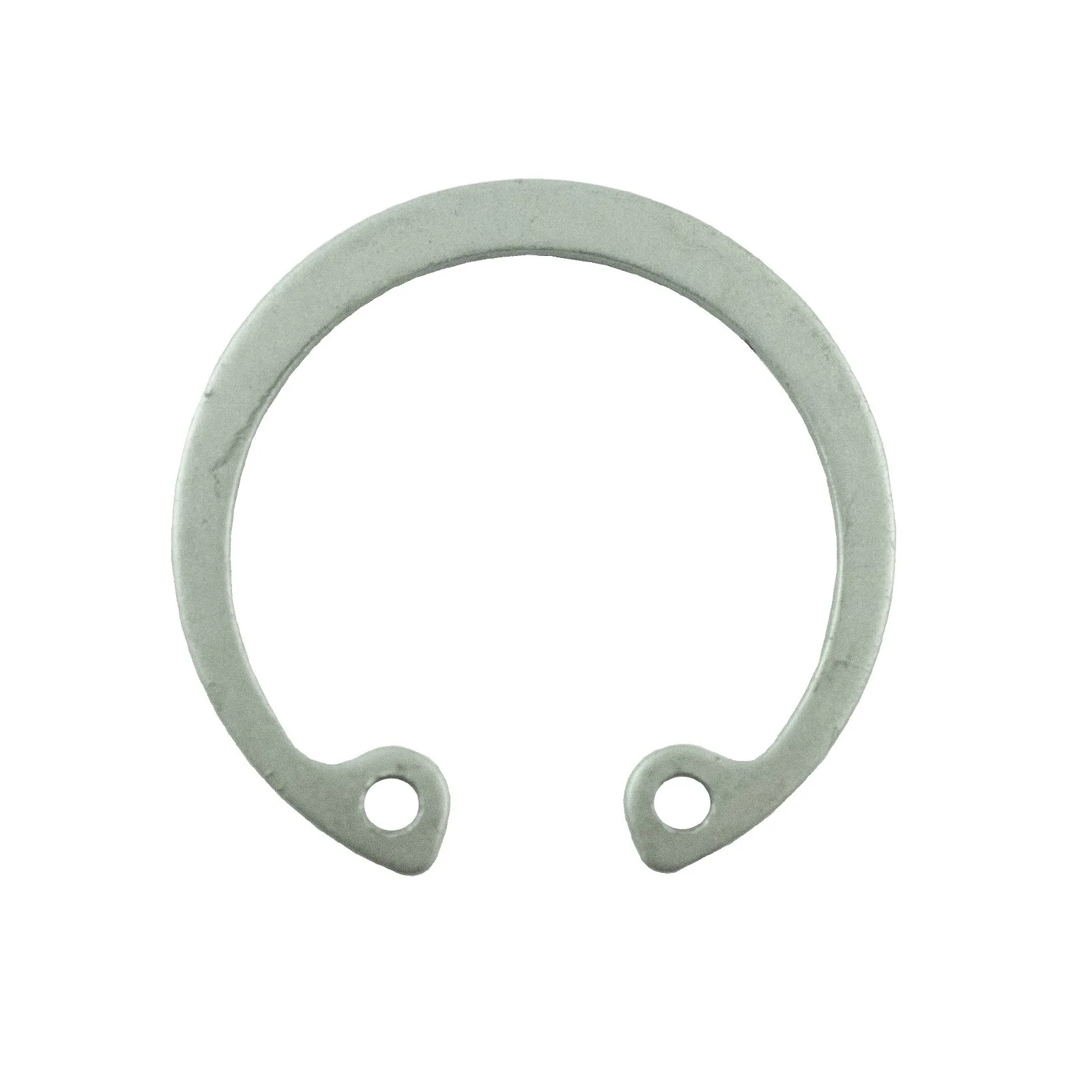

Internal circlip, with ring latch , internal diameter 28 mm , external diameter 33.30 mm , height 32 mm and thickness 1.20 mm for LS Tractors series LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 and others for:

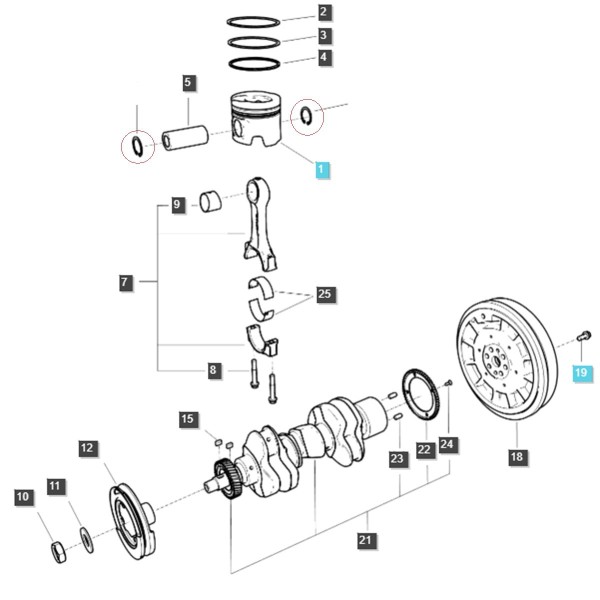

• connecting rod pin locking,
• piston pin locking.

Internal spring ring called a snap ring after the name of the company that first patented its invention. A snap ring is an element of a mechanical system that is mounted to prevent movement of moving elements or machine parts. Bearings, bushings, gears are placed on the shaft and axles and unsecured with snap rings can be subjected to axial displacement. Snap rings are divided into two groups, for shafts, pins and for holes and they differ from each other in the shape of the mounting holes.

Dimensions:

• inner diameter: 28 mm,
• outer diameter: 33.30 mm,
• height: 32 mm,
• diameter of holes: 2.50 mm,
• thickness: 1.20 mm,
• part numbers: 40265558.

Tractor models:

LS Tractors :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LSMT3.60.

Magazine : L01:B153

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
