Knuckle joint / LS MT3.35 / LS MT3.40 / LS MT3.50 / LS MT3.60 / EGQ120 / 40265559

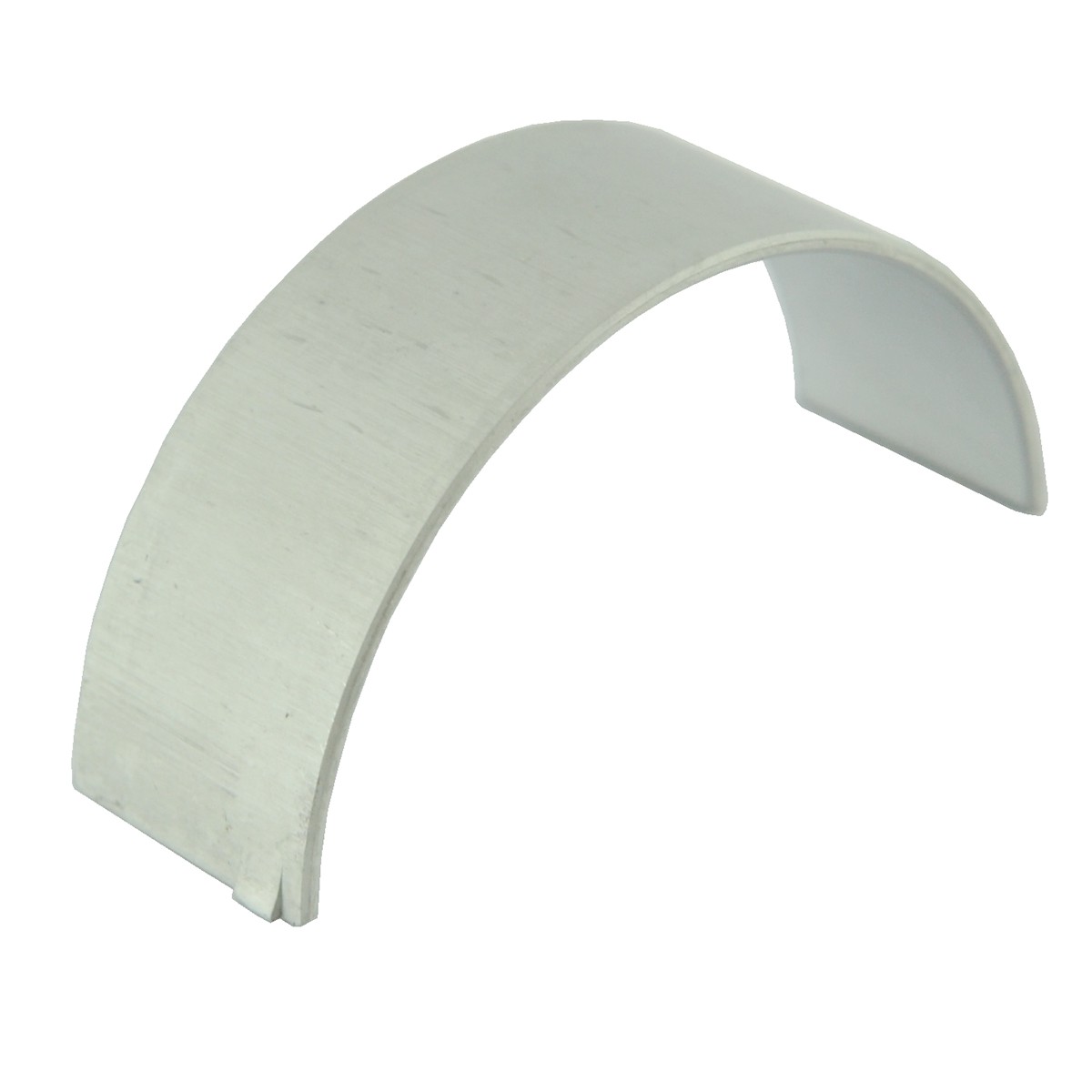

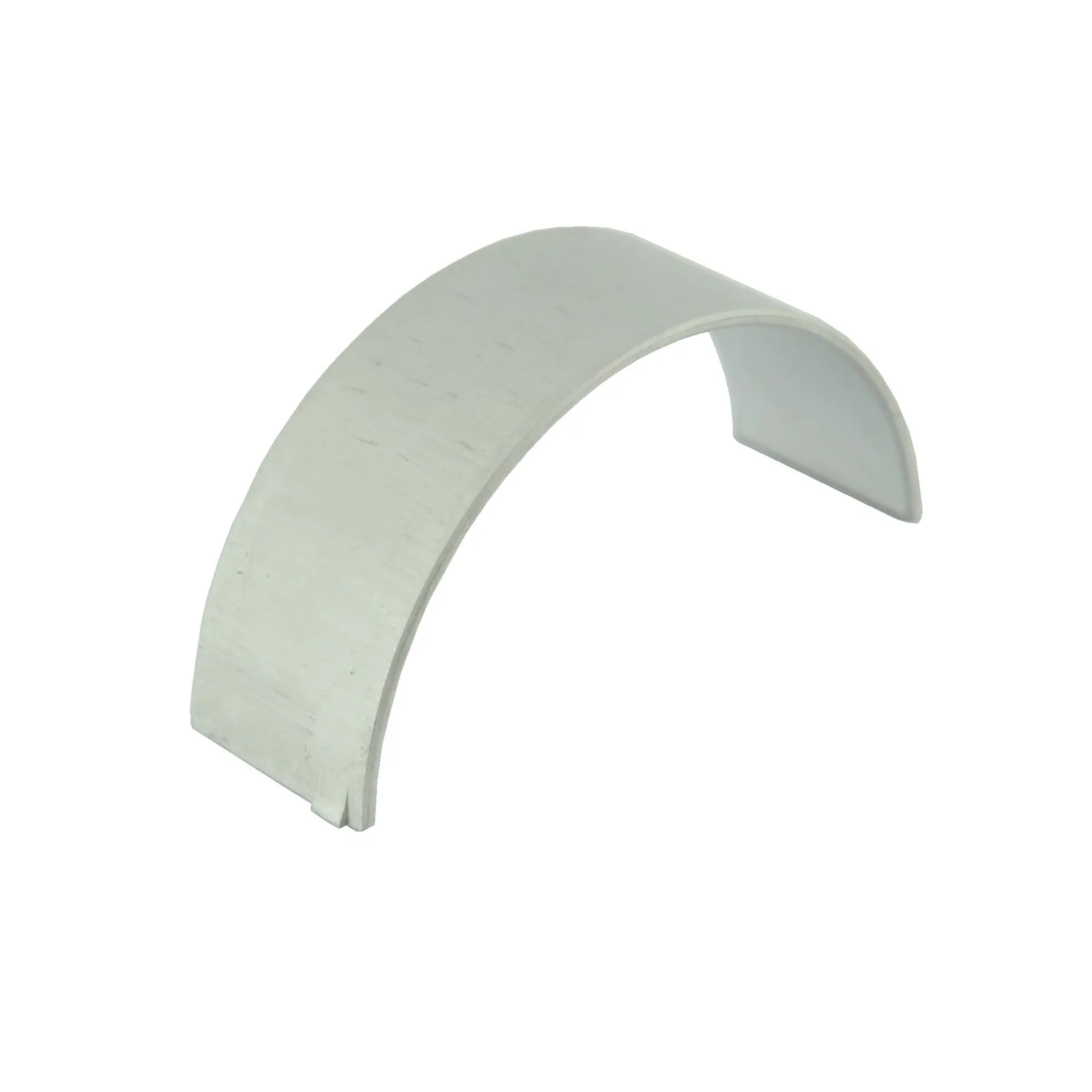

Connecting rod bearing with a width of 20.50 mm , length of 62 mm and height of 30 mm for tractors and mini tractors of the LS Tractor brand of the LS MT3.35, LS MT3.40, LS MT3.50, LS MT3.60 series and others .

Connecting rod bearings are elements whose main task is to reduce friction at the point of connection of the connecting rod to the crankshaft. Bearings are two separable, semicircular elements that, when installed, create a circle. Bearings (though not all types) also have a small groove or cut through which the lubricant is distributed. The most common reasons for rapid wear of connecting rod bearings are:

• using oil with incorrect viscosity parameters,
• incorrect installation of bearing shells,
• failure to comply with oil change intervals,
• low engine oil level,
• overloading the engine, which has not reached the correct temperature,

Dimensions :

• width: 20.50 mm,
• thickness: 1.50 mm,
• diameter: 62 mm.
• part numbers: 40265559.

Tractor models :

LS Tractor :

• LS MT3.35,
• LS MT3.40,
• LS MT3.50,
• LS MT3.60.

The first signs of wear of connecting rod bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine : L01:E213

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
