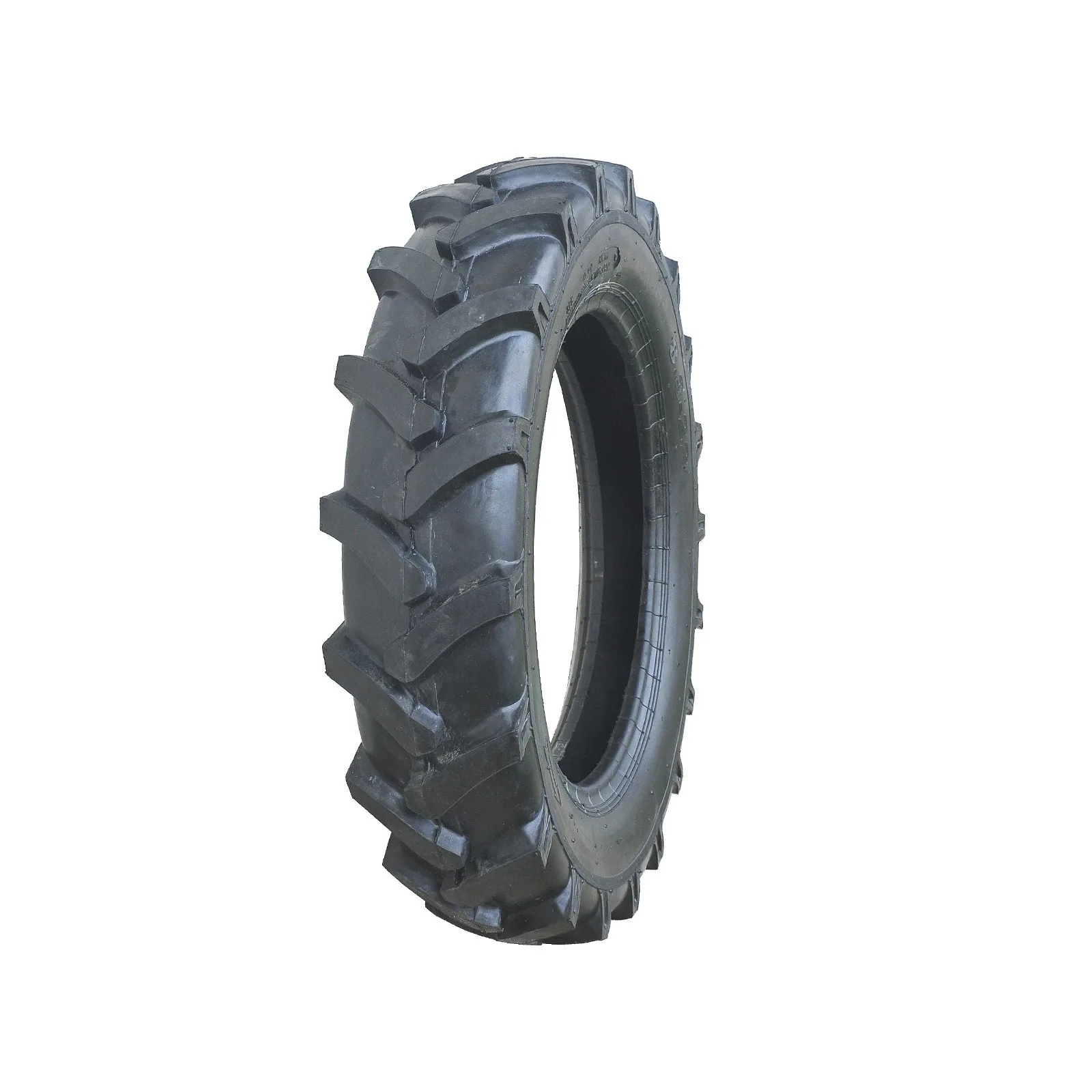

Agricultural tire 8.3-22 / 8PR / R3 / FIR

Agricultural tire with an external diameter of 910 mm , an internal diameter of 570 mm and a width of 190 mm .

Properly selected tires allow for maximum use of the tire's driving properties and translate into better use of the tractor's power. A properly selected agricultural tire should be in contact with the ground with the entire tread face. Low-profile tires are recommended for large tractors used mainly for transport on even and long sections, while high-profile tires are recommended for small and medium-sized tractors where the characteristics of the crop require the use of small-width tires. Agricultural tires are divided into two main groups:

• Radial tires / R / (carcass fibers relative to the tire side reinforcement at a right angle). The tire is resistant to mechanical damage, but is more durable and more economical to operate the tractor. An agricultural tire with a larger contact area can operate at reduced and increased pressure and compacts the soil less. It allows you to change the tractor's field tasks.
• Diagonal tires /D/ (carcass fibers relative to the reinforcement of the tire sides at an acute angle). The tire is very resistant to mechanical damage, requires high pressure, and compacts the soil more. Agricultural tire designed to operate in difficult terrain conditions and with constant air pressure.

What size agricultural tire?

Agricultural tire sizes are most often given in inches (inch; abbreviation or symbol: in or ″) and are a series of numbers and letters indicating the tire width, profile height and construction type, tread type and rim diameter. The 8.3-22 agricultural tire is a tire:

• 8.30 - width 8.30 inches,
• 22 - rim diameter,
• 8PR - number of canvases.

Additionally, the tire contains information about the number of X PR canvases, the speed index, e.g. TT , and the maximum tire load in kg or lbs.

Dimensions :

• outer diameter: 910 mm (+/- 10 mm),
• inner diameter: 570 mm,
• width: 190 mm (+/- 25 mm),
• number of canvases: 8PR,
• load capacity: 975 kg,
• pressure: 210 KPa,
• weight: 23 kg,
• tire size: 8.3-22, 9.50-22.

Improperly selected tires for a tractor may damage the tire or tractor or create a danger for people and animals, and may affect the comfort of work and operation, e.g. fuel consumption. Maintaining the proper pressure of agricultural tires allows for optimal use of the tires' driving properties and tractor power and extends their service life.
