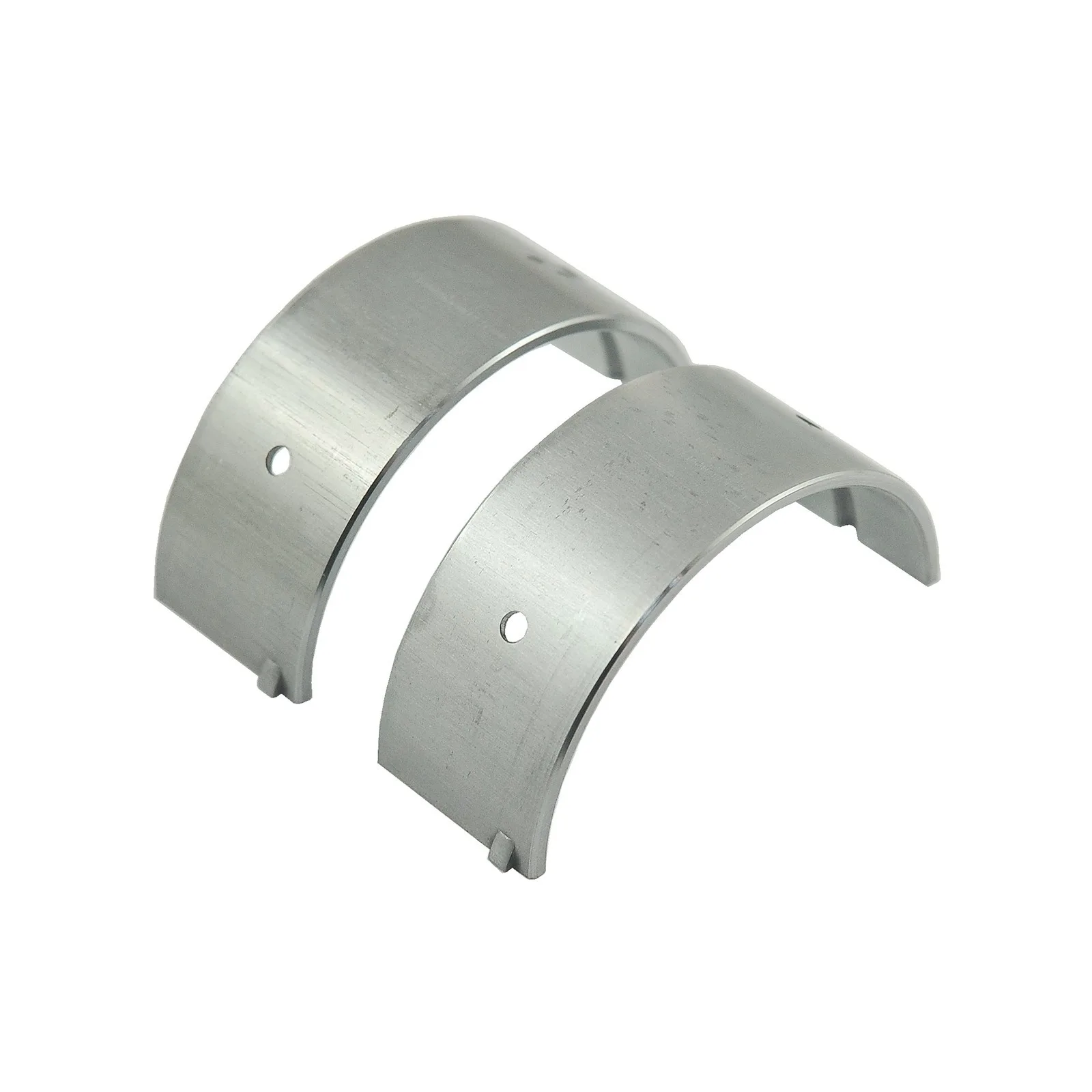

Main bearings / STD + 0.25 / Kubota D1105 / Kubota B21 / B1700 / B2410 / B2710 / B3200 / B7500 / 6-07-100-43

Main shaft spacer bearings in size STD + 0.25 (first cut bearings), (shaft housing 16261-07040, 16261-07050, 16261-07057, 16292-07090, 16292-07097, main shaft %C5% 82-crank-kubota-d1105- %C3% B8-48-mm-16261-23010.html">16261-23010 , 1J030-23012, 16231-23013) with a length of 57 mm , a height at the top of 28 mm , a width of 21.75 mm and a thickness of 2.00 mm to Kubota tractors of the Kubota B21, Kubota B1700, Kubota B2410, Kubota B2710, Kubota B3200, Kubota B7500 series with Kubota D1005, Kubota D1105, Kubota V1305 engines and others.

Main engine bearings are semicircular rings that are mounted in special grooves (holders) in the engine block, between the crankshaft (main shaft) and the engine block (applies to the central shaft journals) to eliminate play that occurs during engine operation. Main bearings support the shaft, ensuring proper shaft positioning relative to the engine block for the smoothest possible power transfer. The first signs of bearing wear include a rattling noise during engine start-up.

Dimensions :

• length: 57 mm,
• height: 28 mm,
• width: 21.75 mm,
• thickness: 2.05 mm,
• original part numbers: 16241-23490, 16292-23493, 16292-23494,
• comparative numbers: -,
• part numbers: 6-07-100-43.

Tractor models :

Kubota :

• Kubota B21,
• Kubota B1700,
• Kubota B2410,
• Kubota B2710,
• Kubota B3200,
• Kubota B7500.

Engine models :

Kubota :

• Kubota D1005,
• Kubota D1105,
• Kubota V1305.

Worn bearings must be replaced with new ones as soon as possible; replacing the faulty element too late may cause serious damage to the shaft, connecting rod or engine.

Warehouse :
K18:F16:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
