Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
- Kubota B7000
- Kubota B7001
Kubota B6001
Number of teeth (pcs/T-teeth)
36T
Diameter (mm)
19
Overall length (mm)
515
Go to full specification >
wishlist

Steering column shaft 19 x 515 mm / 36T / Kubota /B6001/B7000/B7001 / 66611-41201

KUSS-413
zł488.00
Tax included PL 23%

396,75 netto

  • Dostępność (28 Quantity): stock
wishlist

Do you have any questions?

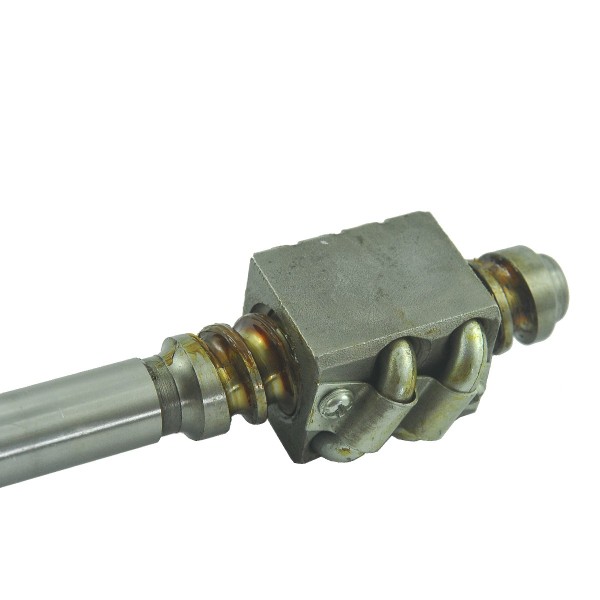

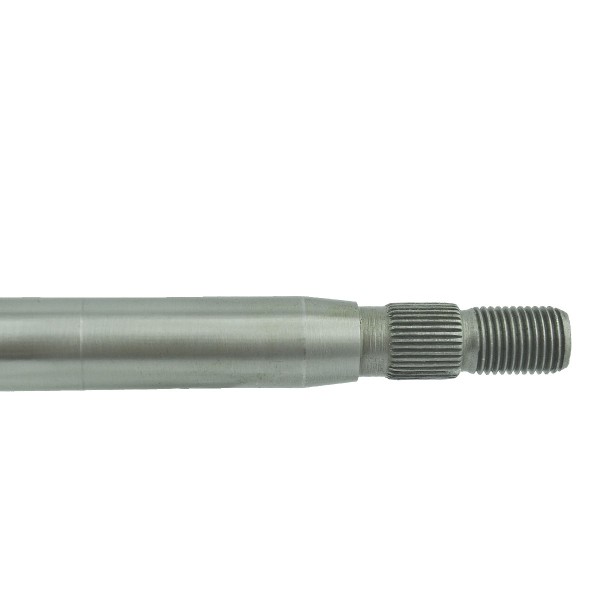

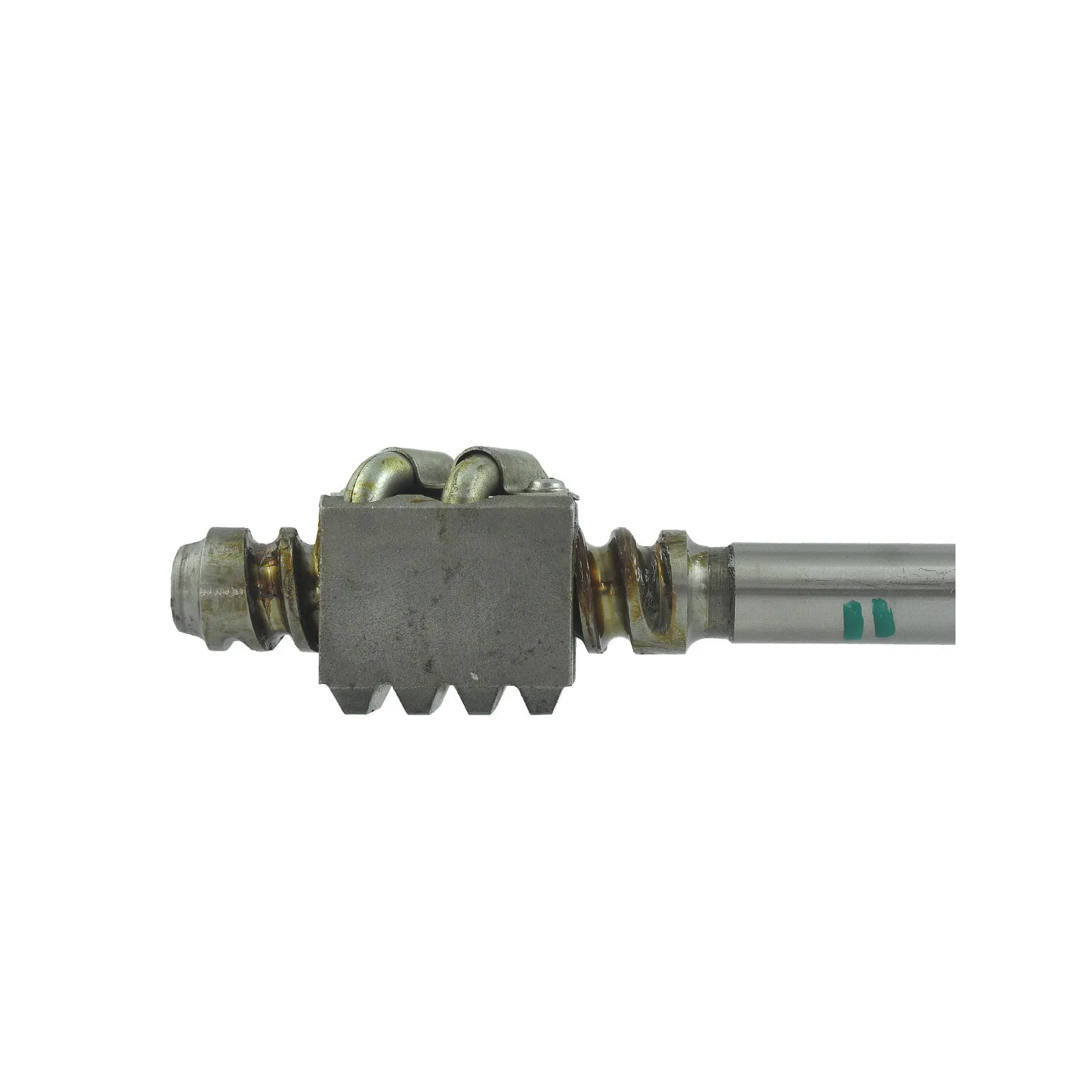

Steering column shaft 19 x 515 mm / 36T / Kubota /B6001/B7000/B7001 / 66611-41201

Steering gear shaft with a total length of 515 mm and a diameter of 19 mm for Kubota tractors of the series, Kubota B6001 (serial number 0-10230), Kubota B7000 , Kubota B7001 (serial number 0-10030) and others.

The worm with the shaft of the steering column is an element of the steering system, the steering column, sometimes called the mangle, and is responsible for the steering of the tractor. The shaft on the one hand is directly screwed to the steering wheel, and its worm part on the other hand sets the column rods connected to the steering rods of the front axle in motion, while the steering wheel rotates. The worm gear is an element of the steering column responsible for steering the tractor, the element of which is a shaft with a worm. The worm shaft is responsible for translating the movement of the steering wheel to the ends of the rod and then to the steering wheels. This connection should be as smooth and free as possible. At the end of the shaft is mounted the so-called. a steering column worm with a thread resembling a helical thread into which a gear or other surface is directly integrated with the tie rod ends.

Dimensions :

  • length: 515mm,
  • shaft diameter: 19 mm,
  • cube dimensions: 45 x 40 x 36 mm (L x W x W),
  • number of teeth: 36T.
  • thread: M13 x 1.5,
  • thread length: 18 mm,
  • original part numbers: 66611-41201,
  • comparative numbers: ,
  • part numbers: KUSS-413.

Tractor models :

Kubota ;

  • Kubota B6001 (serial number 0-10230),
  • Kubota B7000,
  • Kubota B7001 (serial number 0-10030).

Warehouse :
K04

Specification

Magazyn: K04
Condition
New
Production
Substitute
Parts
Steering system
Tractor models
- Kubota B7000
- Kubota B7001
Kubota B6001
Number of teeth (pcs/T-teeth)
36T
Diameter (mm)
19
Overall length (mm)
515
Dimensions (mm)
45 x 40 x 36mm (cube)
Thread(s) length (mm)
18
Thread
M13x1.5
Original Part Number (OEM)
66611-41201
Part number
KUSS-413
