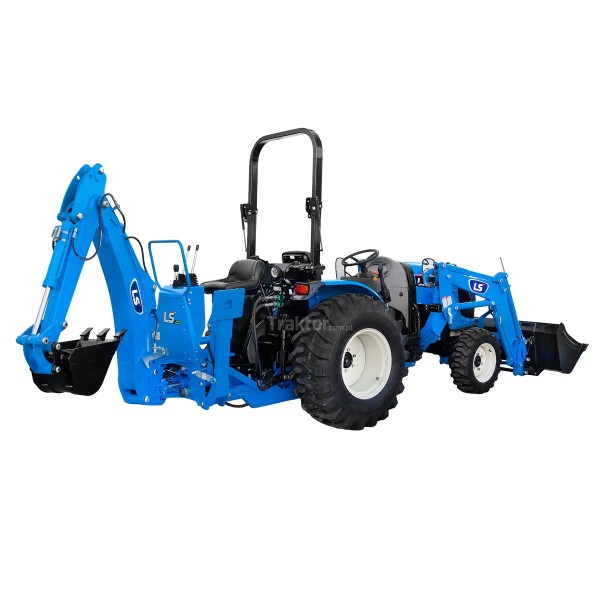

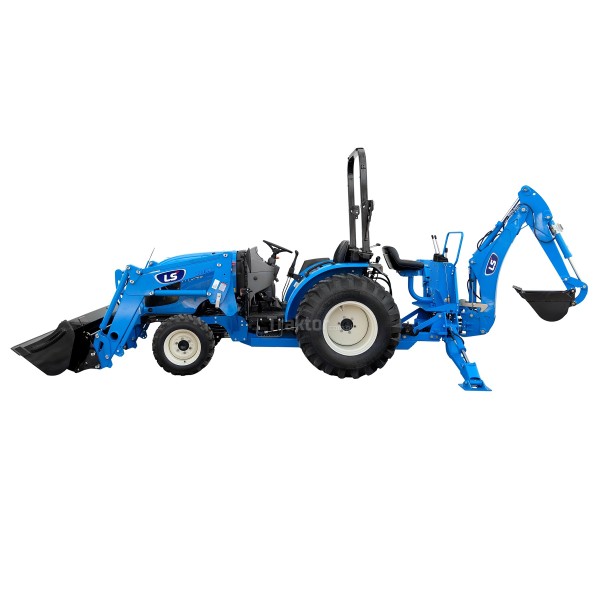

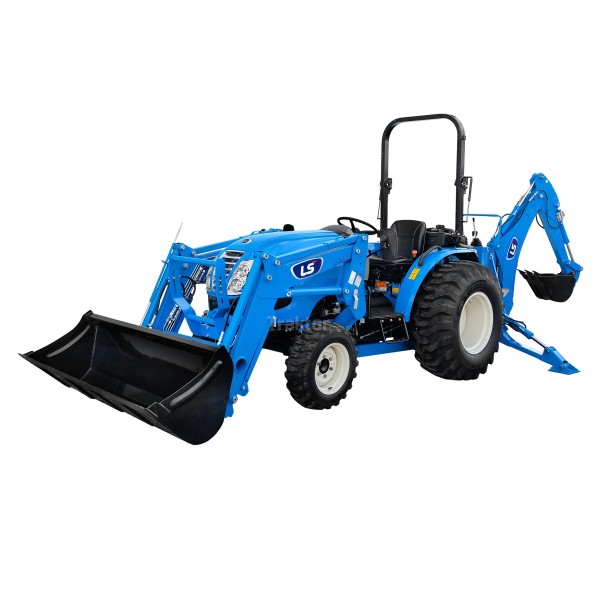

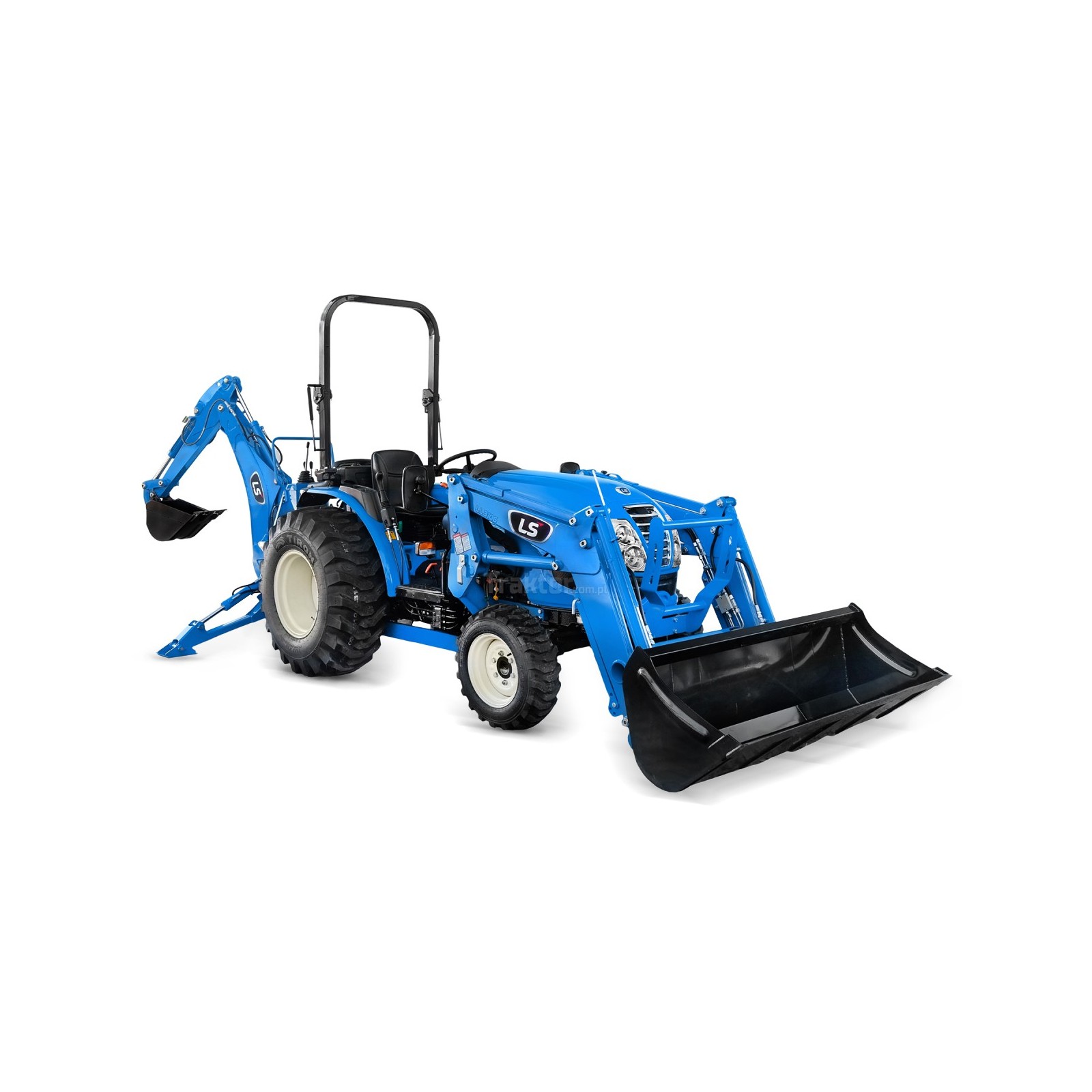

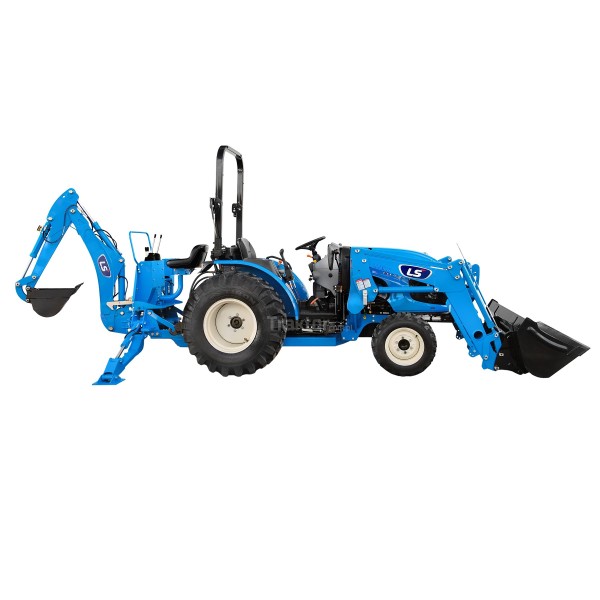

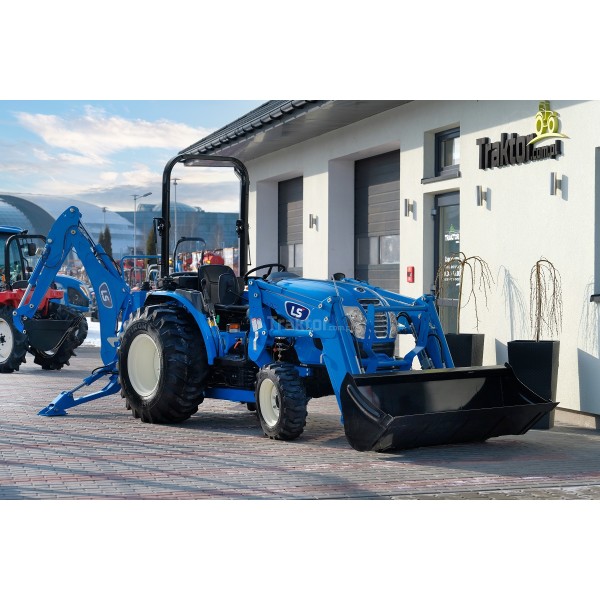

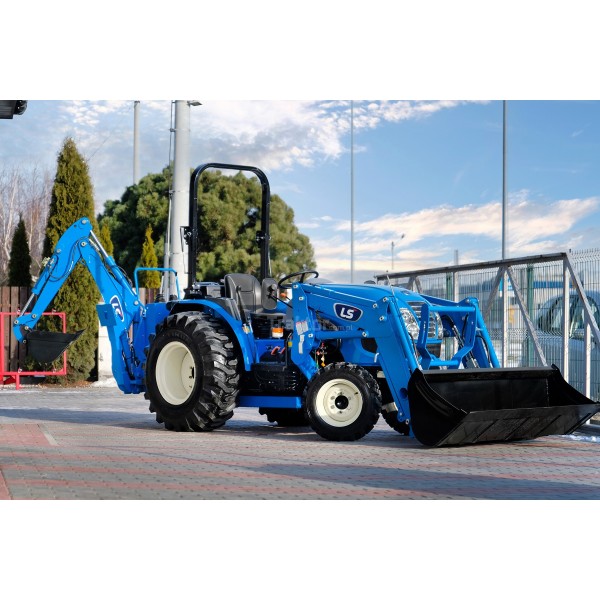

LS Tractor MT3.40 HST 4x4 - 40 HP / IND + LS LL3106 front loader + LB2100 tractor excavator

Power = Possibilities

The MT3.40 model is a Premium class tractor. Under the hood of this machine there is a powerful 3-cylinder L3CRV-T4 diesel engine with a power of 40 HP. It guarantees very good operating parameters and high efficiency. Additionally, 8 hydraulic outputs allow you to connect a wide range of accessories to the tractor.

The MT3.40 model is equipped with a 3-point linkage Cat I with a lifting capacity of 820 kg and an independent PTO shaft allowing for versatile use of the tractor. 4-wheel drive and power steering make the MT3.40 model the perfect machine, created to your preferences. The MT3.40 model is equipped with a hydrostatic gearbox, which allows for exceptional convenience and comfort during work. It is operated by two pedals F3 and R3, by pressing the appropriate one we change the driving direction - forward or backward.

LS Tractor MT3.40 is a model with exceptional versatility that allows you to work with a variety of equipment:

• Front-end loader ,
• trailed tractor excavator ,
• specialized tires.

LS Tractor tractors are modern, high operator comfort and the highest quality of workmanship.

By choosing the LS MT3.40 model, you choose not only high quality of workmanship, but also comfort and safety.

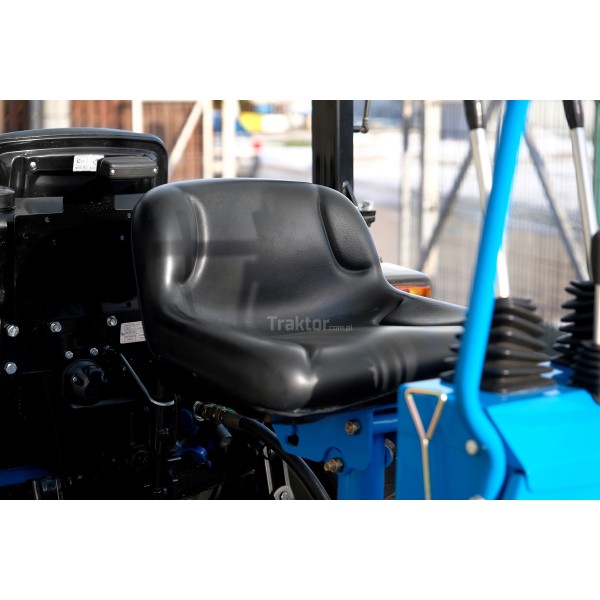

LS Tractor has equipped this unique machine with a comfortable, adjustable seat with a high backrest, armrests and shock absorption, which, together with ergonomically placed levers, ensure pleasant operation of the machine.

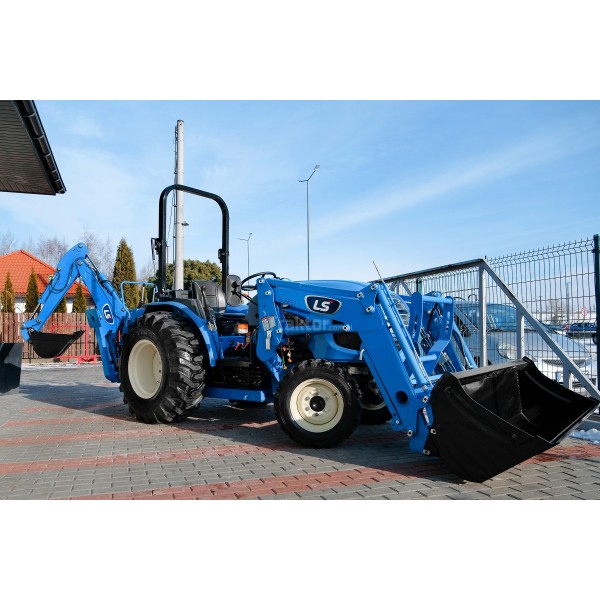

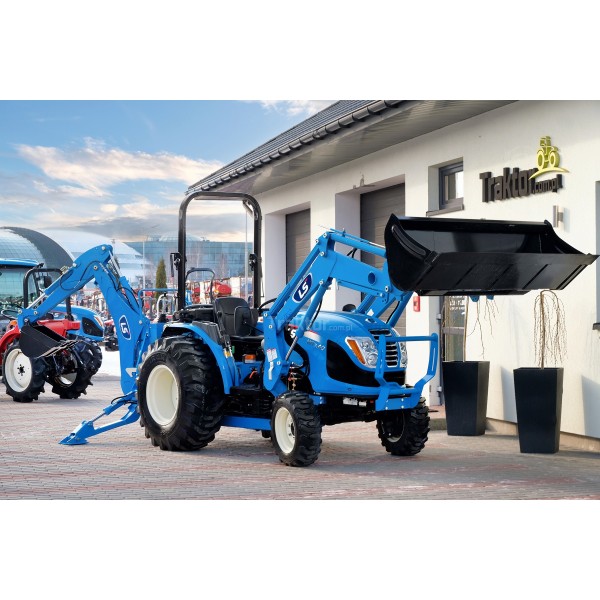

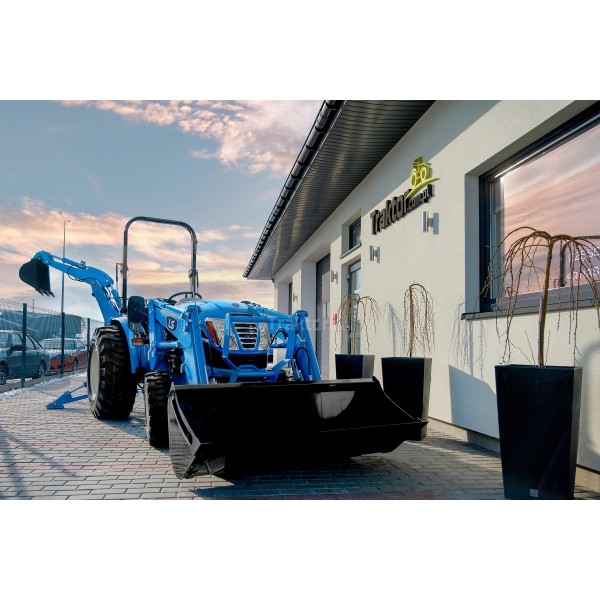

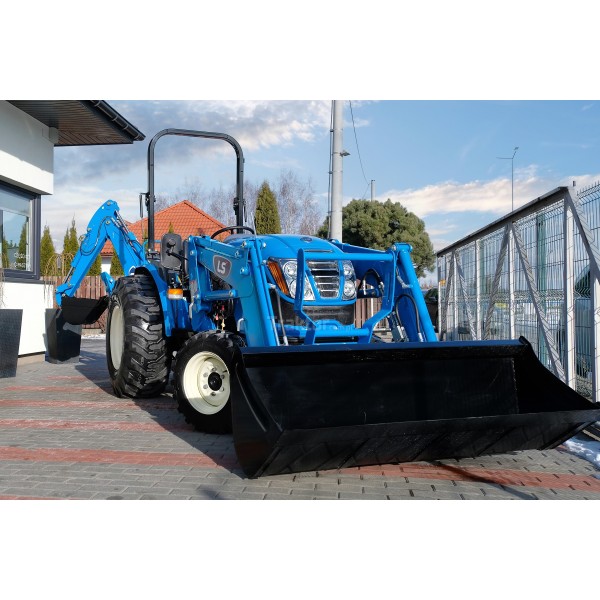

LS Tractor MT3.40 tractor with original front loader

The front loader with the symbol LL3106 is an original, standard front loader dedicated to LS MT3.35 and LS MT3.40 tractors. The so-called front loader TUR, thanks to its very durable construction and well-thought-out construction, is able to carry much greater weight than other tractors of similar size and power. One of the many advantages of this loader is its quick assembly and disassembly, which is possible thanks to, among others: quick hydraulic connectors, euro frame and special storage supports. Quick assembly and disassembly also applies to the bucket itself, the loader can be removed by pulling out two pins, and the operation itself does not require the use of tools.

Safety and comfort of work

The LS front loader has a safety valve that prevents the load from being lifted higher if the loader is overloaded. Automatic bucket adjustment is another convenience and improves the quality of work, the automation is intended to regulate the position of the bucket while the loader arm is moving. Tractors equipped with a hydraulic distributor with a floating section have a bucket protection function; the function automatically folds the bucket when it encounters too large an obstacle.

The loader is standardly equipped with a cover to protect the grill from damage.

The most important features of the LL3106 loader

• Load capacity: 990 kg,
• Mounting type: EURO,
• Bucket width: 1676 mm,
• Maximum lifting height: 2357 mm, 2067 mm (bucket in horizontal position), 1553 mm (bucket fully lowered,
• Bucket capacity: 0.34 m3,
• Lifting time to maximum height without load: 3.7 s,
• Descent time from maximum height: 3.7 s,
• Maximum bucket tipping time: 2.3 s,
• Time for maximum unscrewing of the bucket to the horizontal position: 3.2 s.

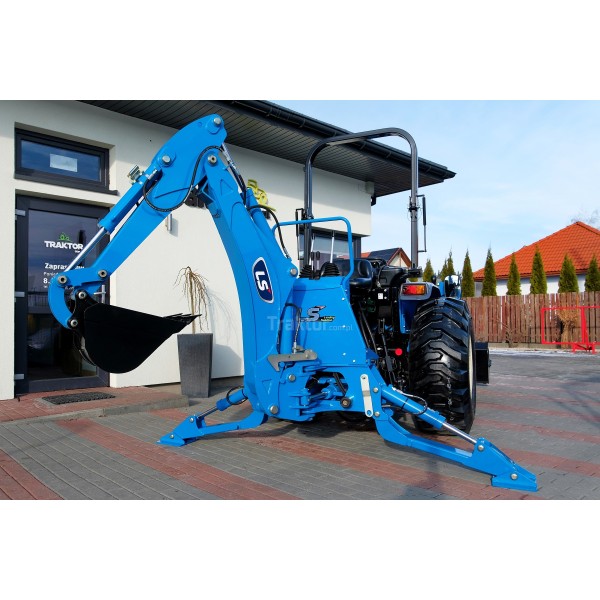

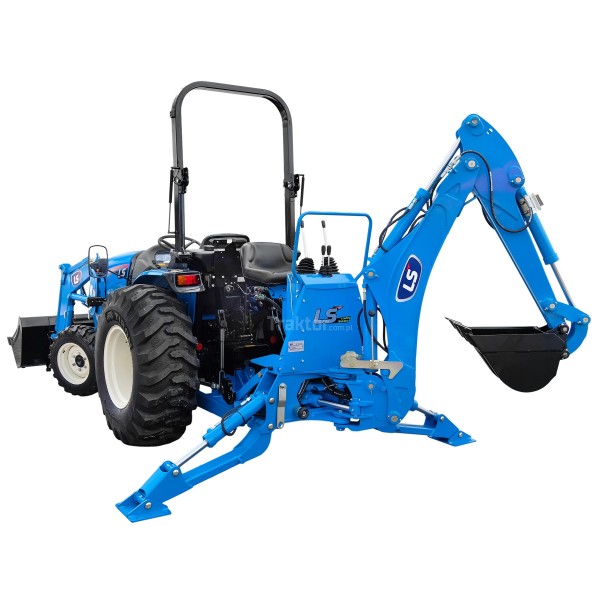

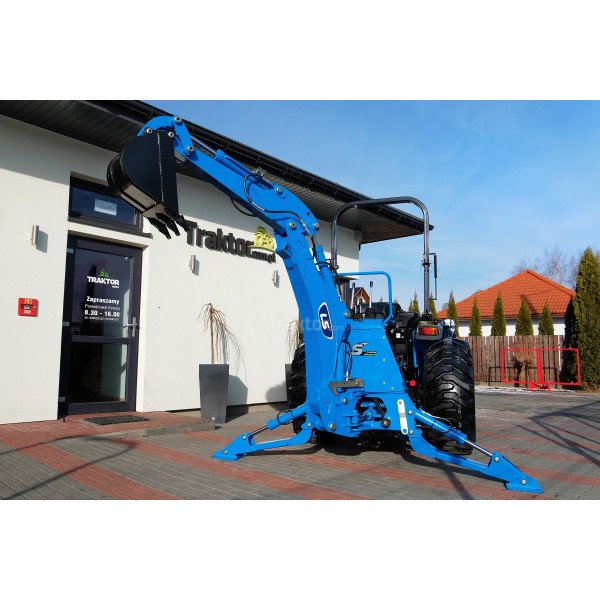

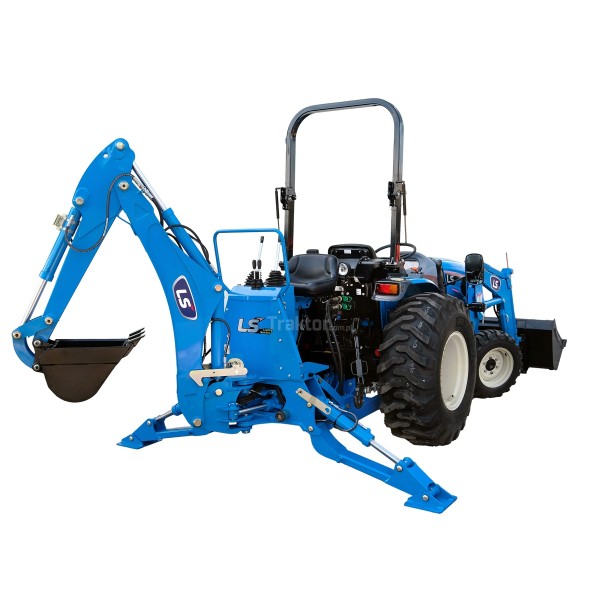

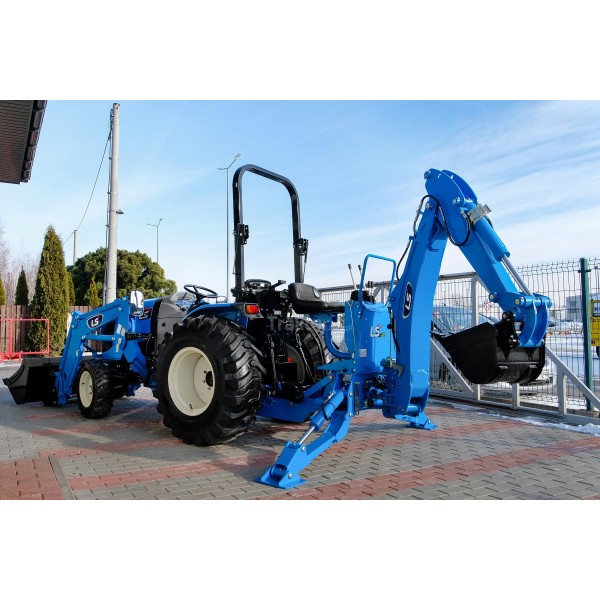

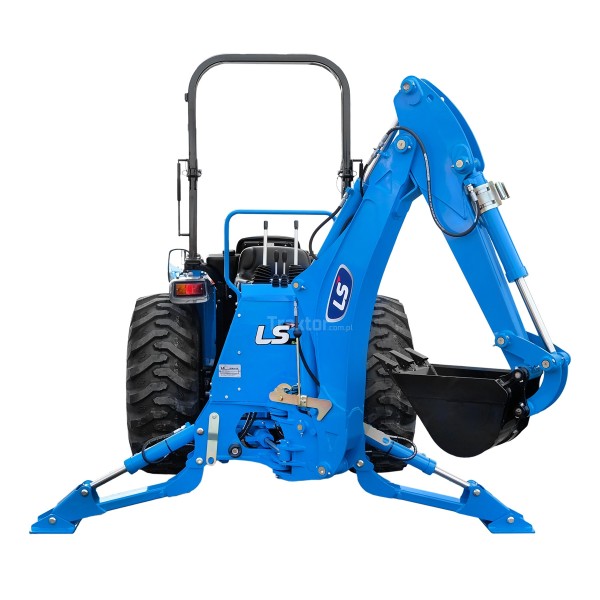

LB2100 tractor excavator for the LS Tractor MT3 tractor - allow yourself even more possibilities

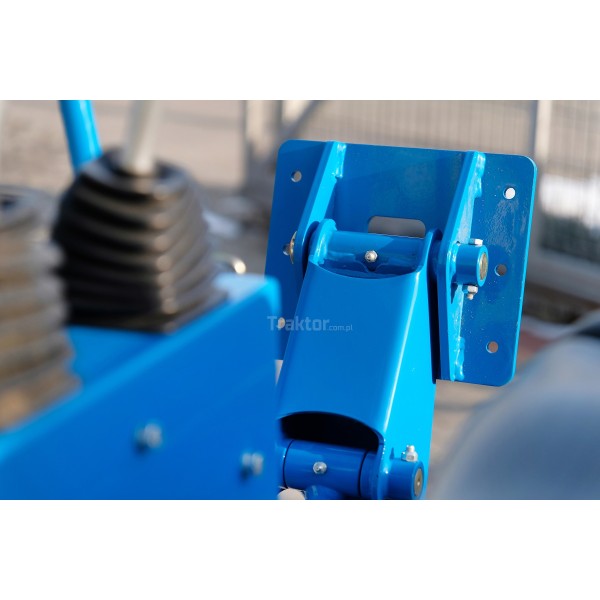

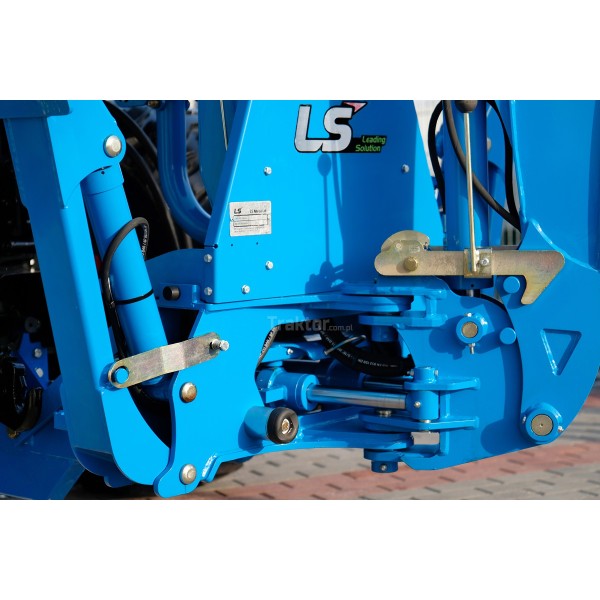

A mini tractor excavator mounted on a 3-point hitch, three-point linkage Cat I, is an ideal tool designed to work with LS MT3 series tractors. The design, dimensions and weight of the excavator allow it to be used in situations where the operation of a large machine is impossible or when the terrain does not allow the use of heavier equipment.

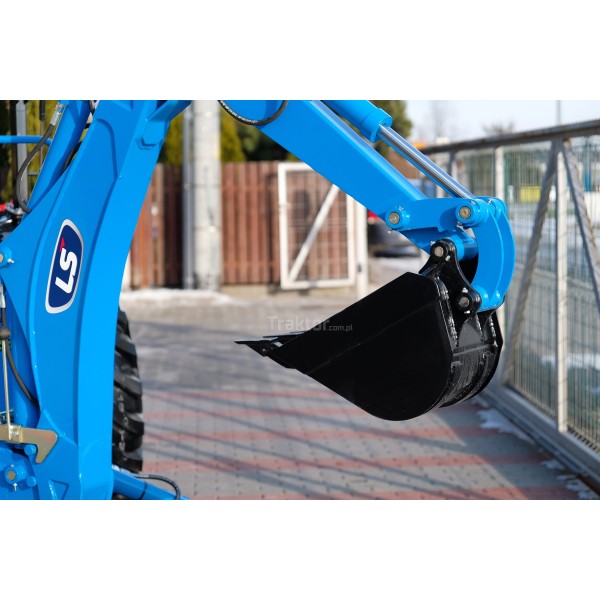

The LB2100 tractor excavator has a very durable construction. Thanks to it, we can not only perform deep excavations up to a maximum of 2280 mm, but also easily transport the load by lifting the arm to a height of up to 1840 mm.

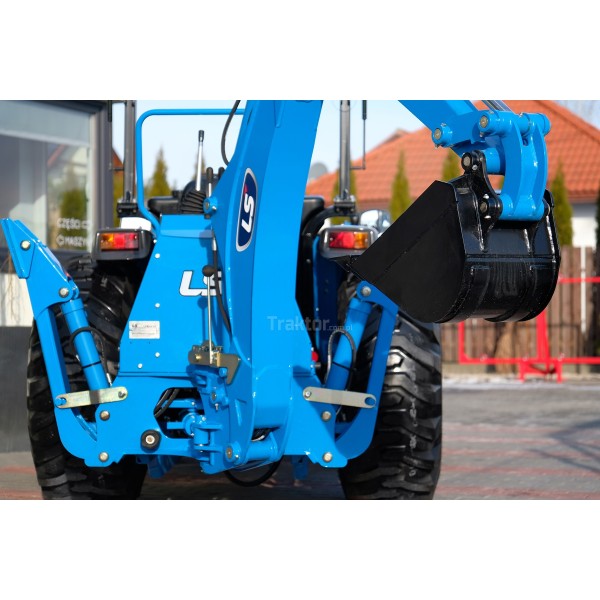

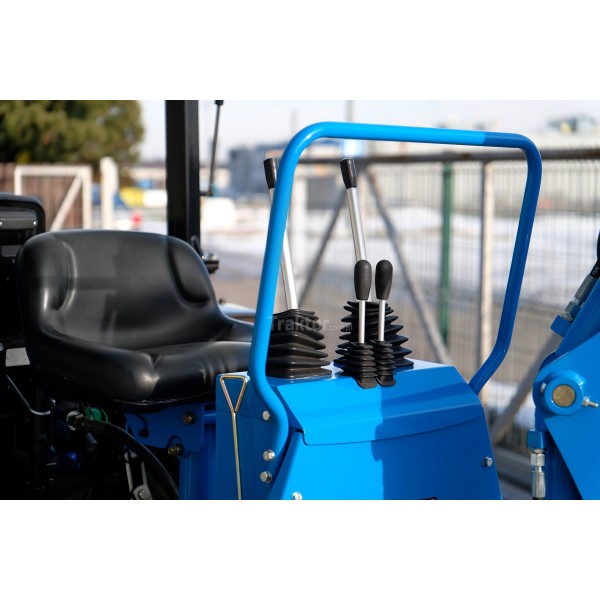

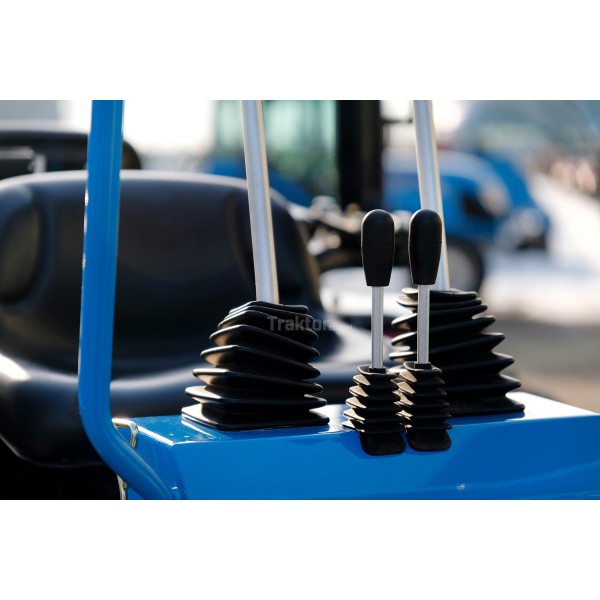

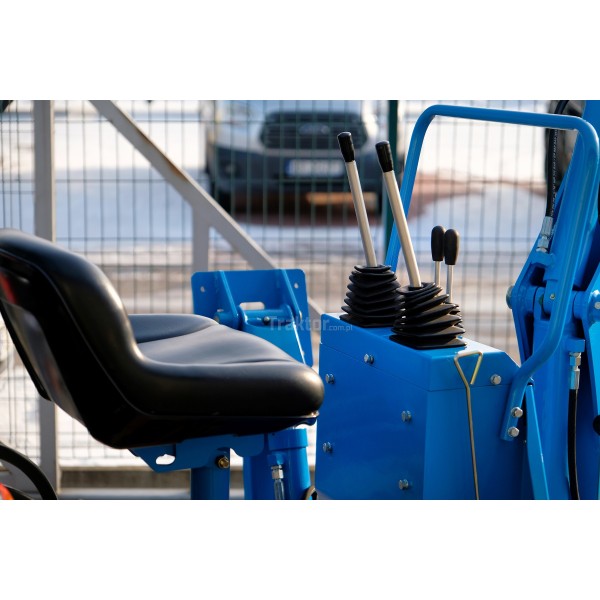

The fully hydraulically powered tractor excavator is equipped with opening stabilizers, an efficient hydraulic pump, and during work, the operator uses the tractor seat by turning it backwards. The maximum possible discharge of the LB2100 excavator with the bucket positioned at an angle of 60 degrees is 1,840 mm.
