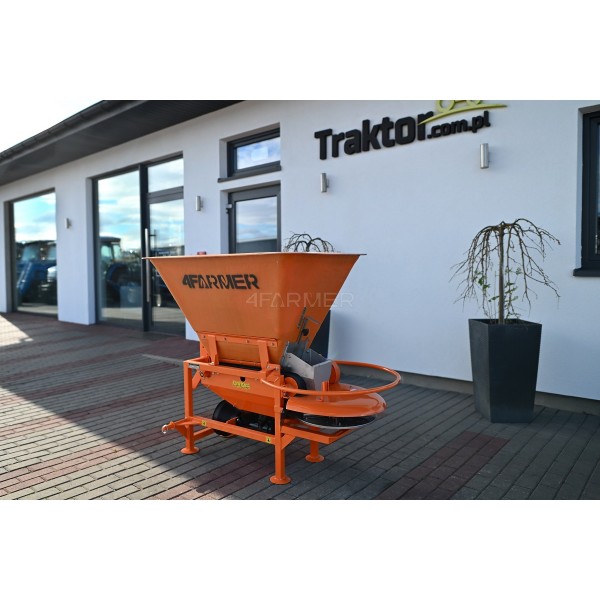

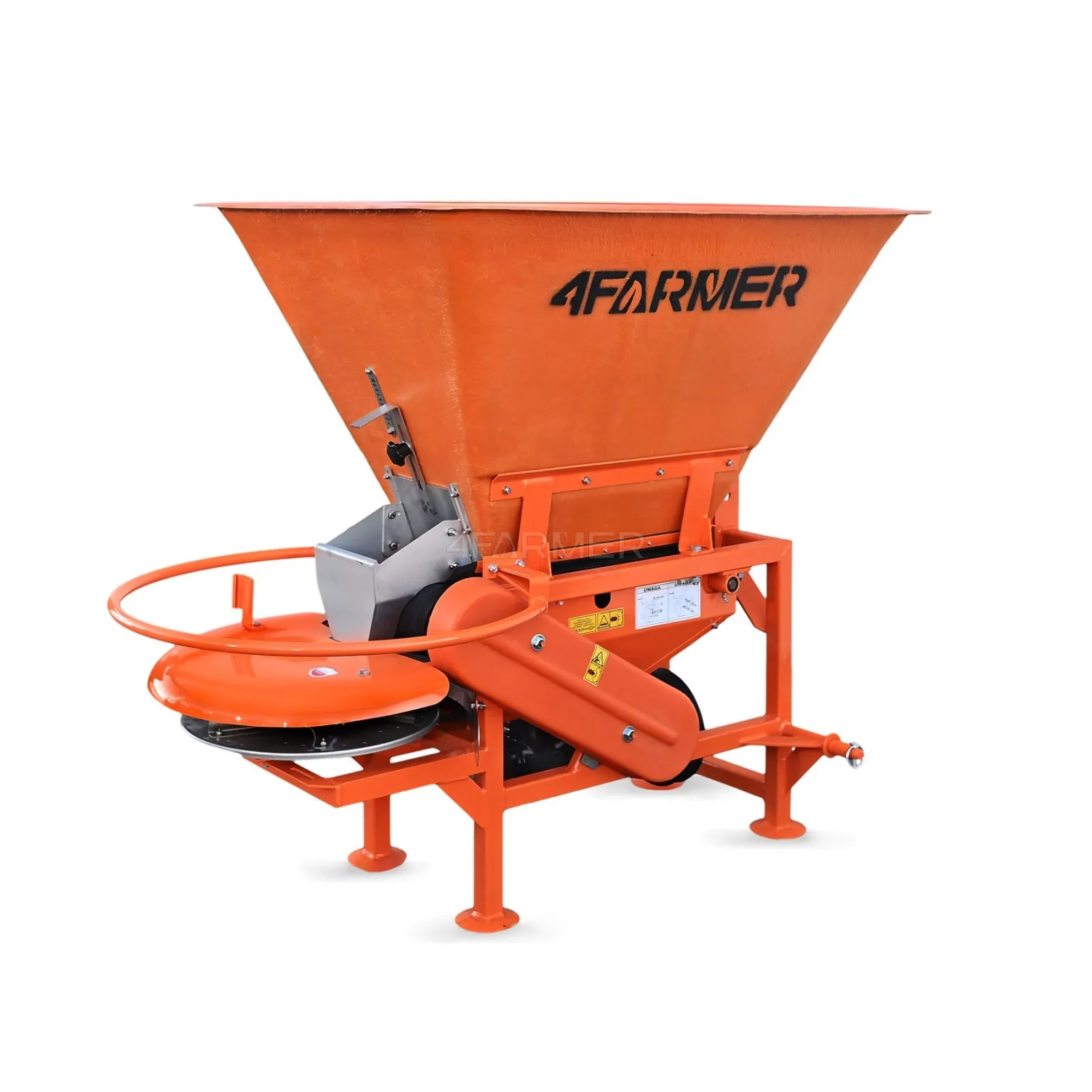

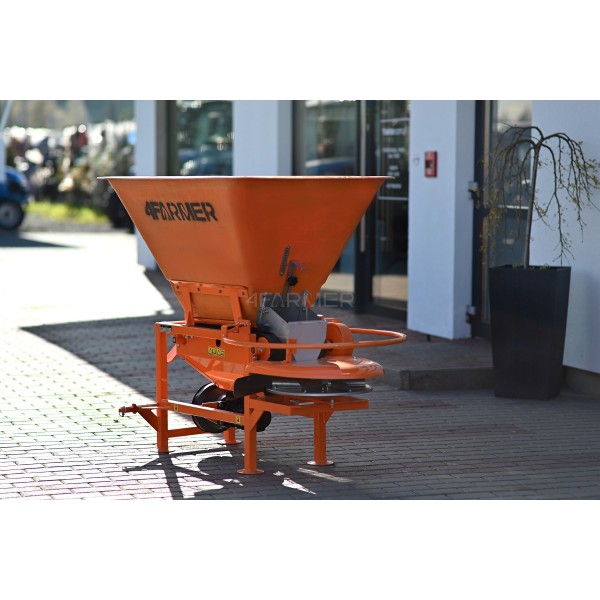

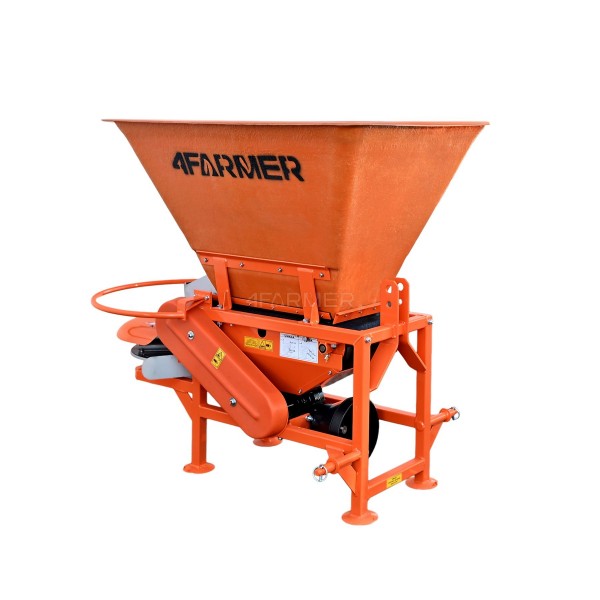

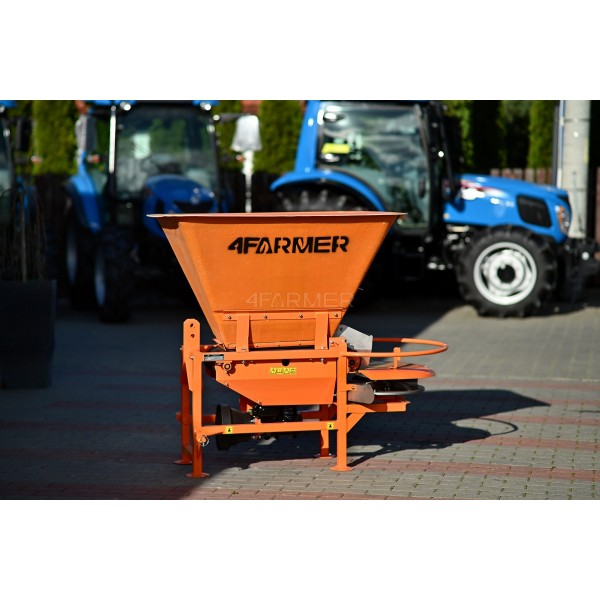

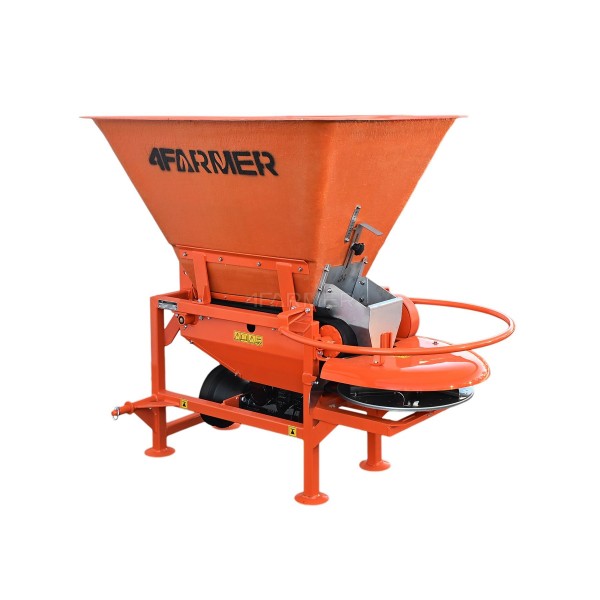

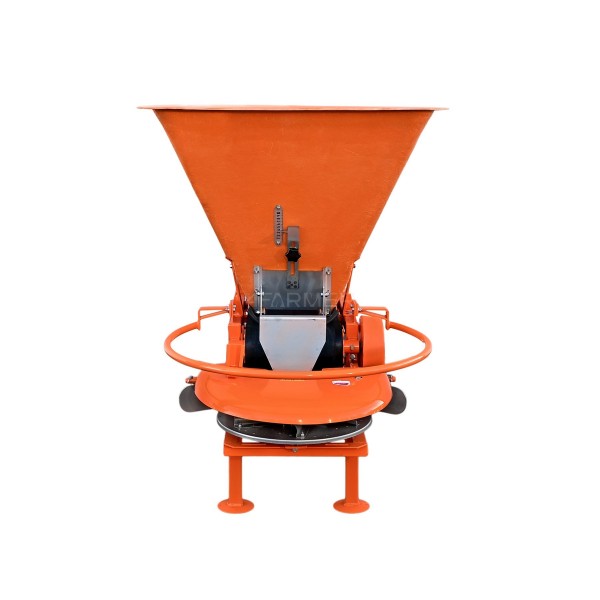

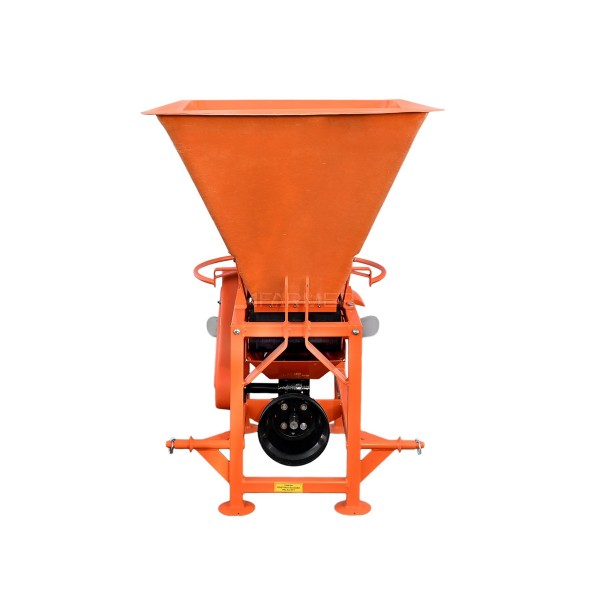

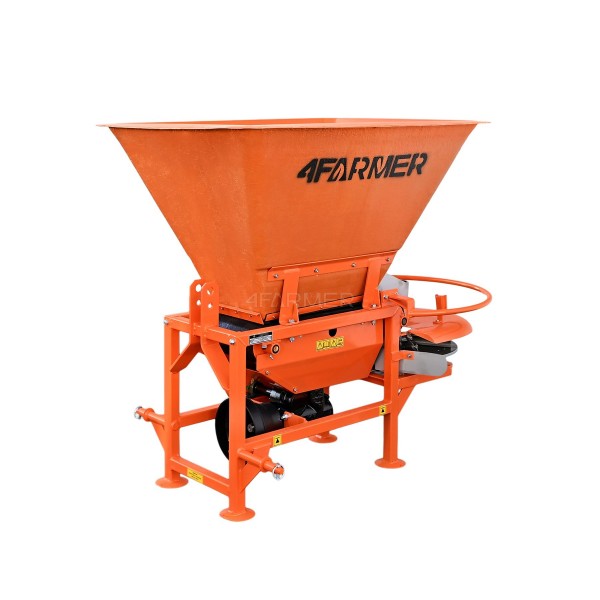

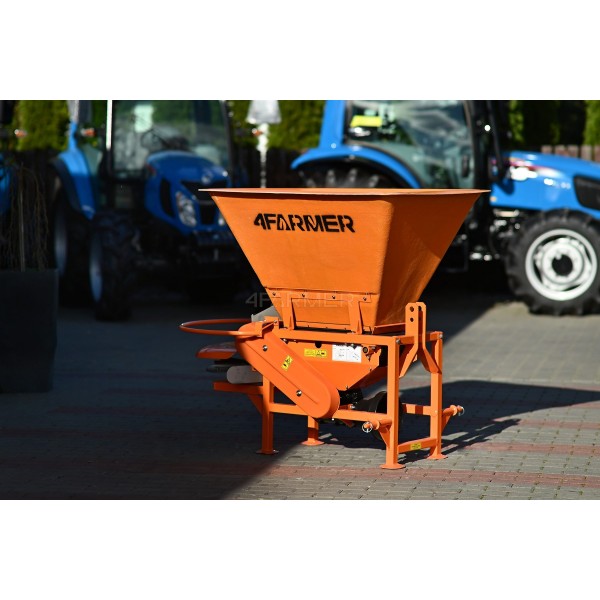

M320 Motyl type belt spreader with 4FARMER field attachment
The M320 spreader - spreader of loose fertilizers , granulates and dusty mixtures is designed for all tractors with a rear linkage with a three-point hitch Cat I and Cat II.
The spreader is also successfully used in municipal companies as a salt or sand spreader after using an appropriate attachment.
M320 Motyl belt spreader with 4FARMER field attachment - solid and durable
The spreader is powered by the tractor's PTO shaft, and the recommended speed is 540 rpm. The spreading system is a centrifugal disc system. The machine has a 320-liter hopper.

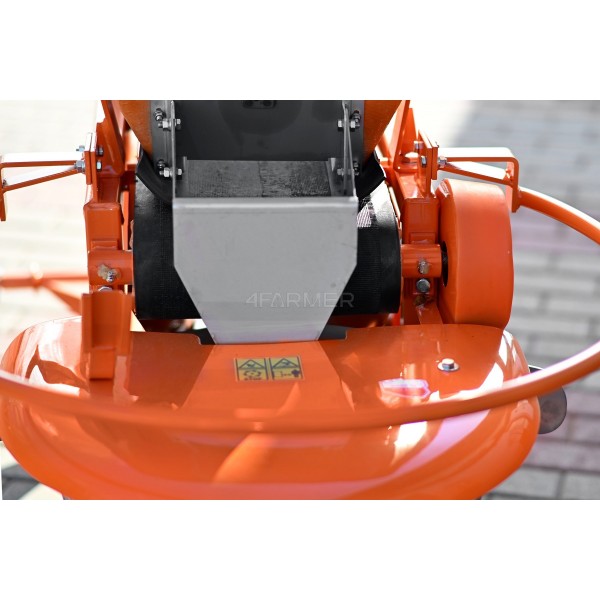

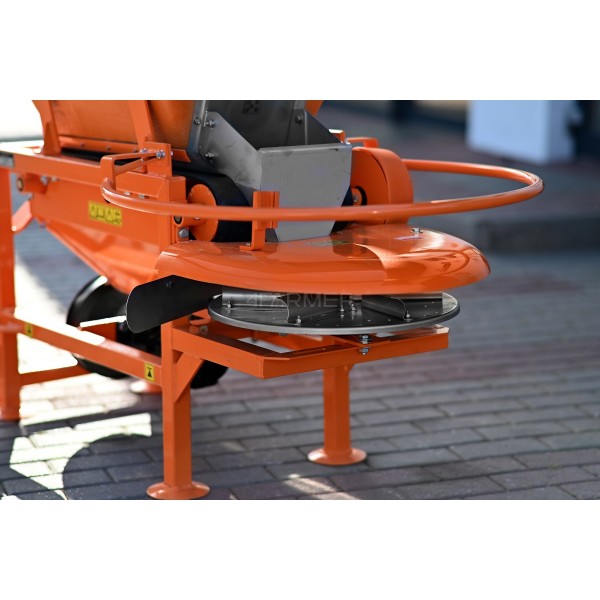

The fertilizer spreader weighs 105 kg, and the permissible load weight ranges from 200 to 400 kg, depending on the tractor. The working element is a horizontally positioned rotating disc with vertical vanes that, in a rotating motion, spreads the material at a distance of 5 to 8 m (not applicable to the narrow spreading attachment), depending on the type of seed used. The spreader's capacity ranges from 4 to 6 ares per hour, also depending on the type of load.

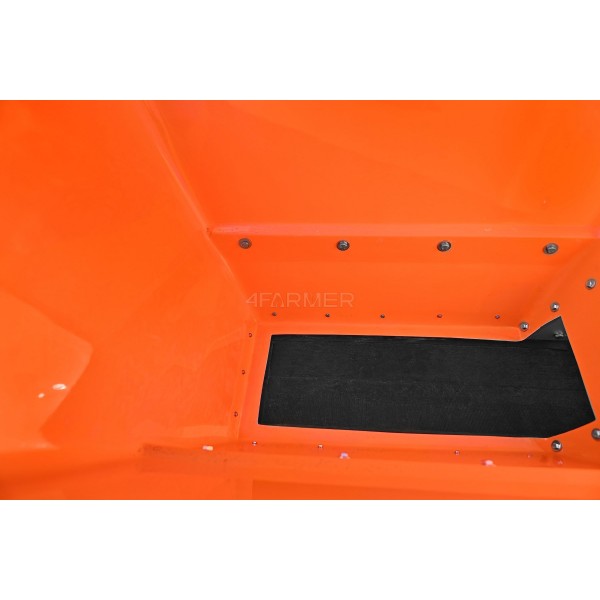

The M320 spreader tank is made of laminate.
Specification
Condition
New
Production
Polish product
Yield (ha/h)
4 - dusty and crystalline fertilizers
6 - granular fertilizers
Maximum operating speed (km/h)
9
PTO / PTO
540 (rpm)
NEXT DOOR

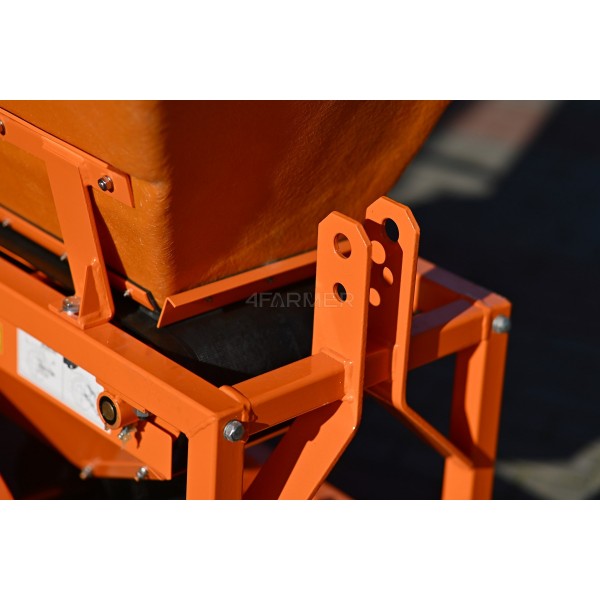

3 point
KAT I
KAT II
Weight (kg)
105
Maximum permissible load weight (kg)
with a class 0.9 tractor - 400 kg
with a tractor class 0.6 - 200 kg
Transport speed (km/h)
max 25
Spreading working width for broadcasting (m) / (without header)
Dusty materials: 5
Granular material: 8
Range of fertilizer doses (kg/h)
25 - 1500
Tank capacity (L)
320
