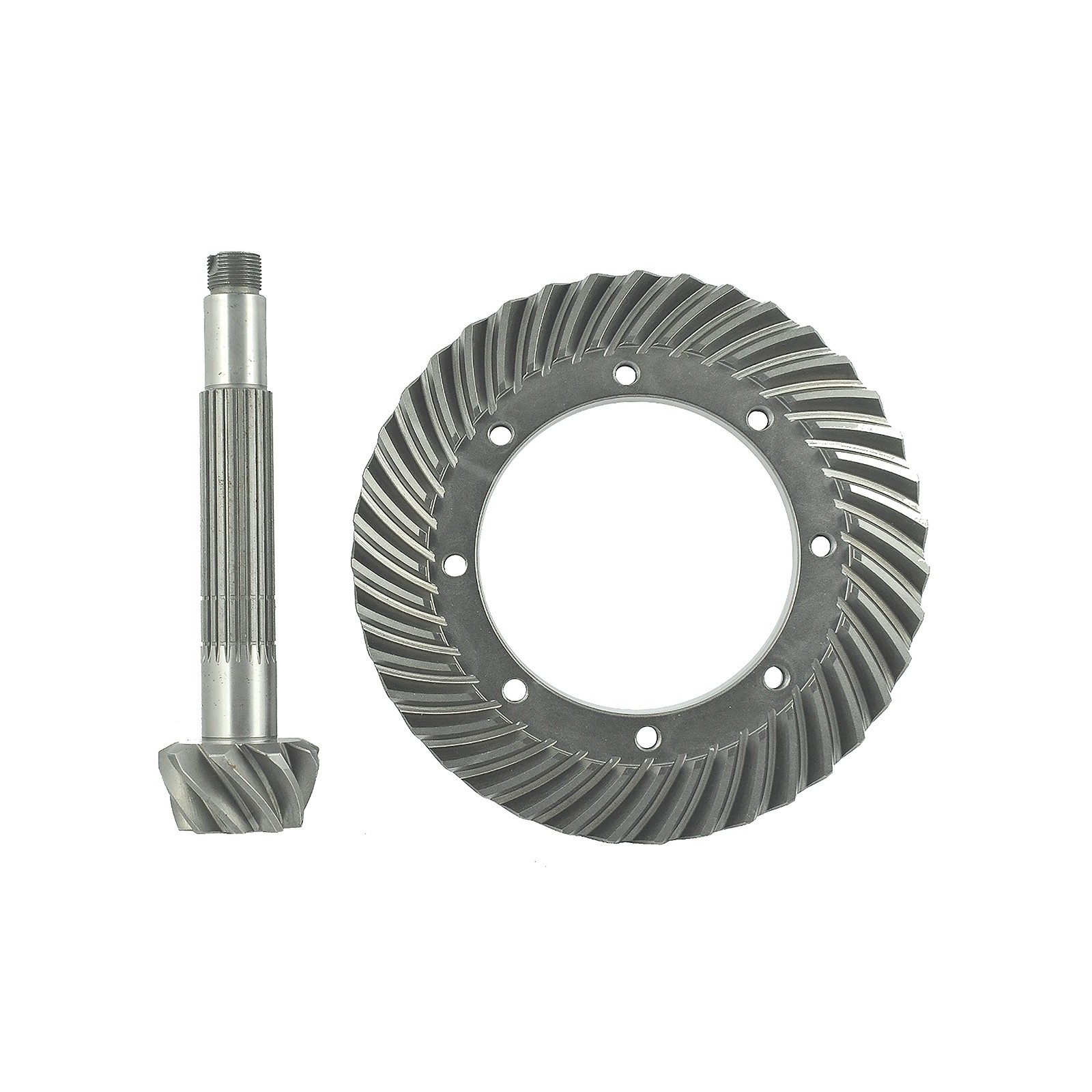

Crown wheel 39T/225 mm + pinion shaft 9T/22T/228 mm / Kubota L1500/L2201/L2601/L3001 / 34160-4321-1 / 5-19-104-05

Product code: 5-19-104-05
Brand 4FARMER
Country of production 4FARMER
View other model
zł1,999.00
Includes VAT 23%

Lowest price from 30 days: zł1,999.00

Ask for availability

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

q

q
Unavailable
0 pcs
On order See details Leasing & financing for businesses See details See the tractor in person Find the nearest store

Product description

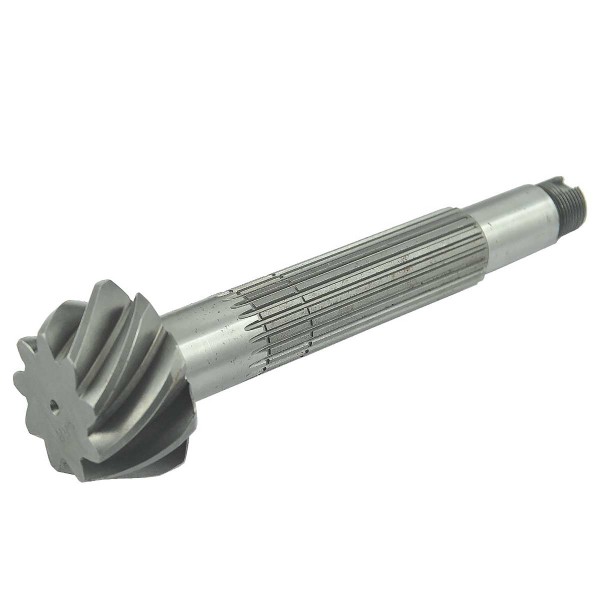

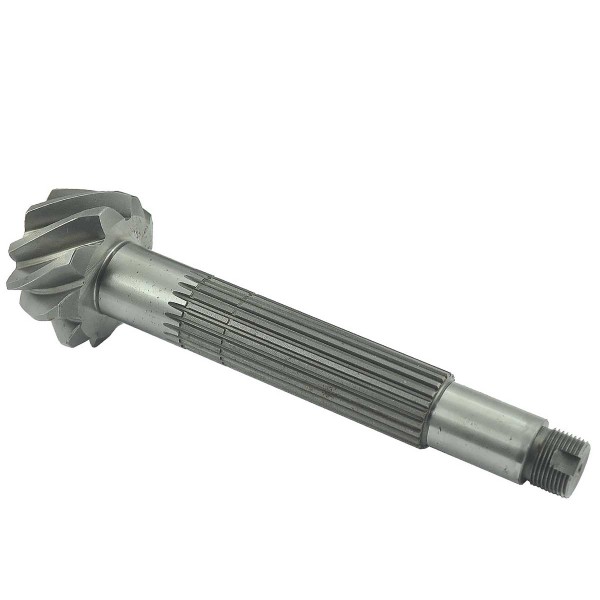

Shaft dimensions :

  • total length: 228 mm,
  • helical gear diameter: 48 / 63 mm,
  • helical rack length: 34 mm,
  • cutter diameter: 29.50 mm (measured with cutter teeth), 27.50 mm (measured between teeth),
  • cutter working length: 16 / 80 mm,
  • thread: M22 x 1.5 mm,
  • thread length: 13 mm,
  • number of teeth: 9T / 22T.

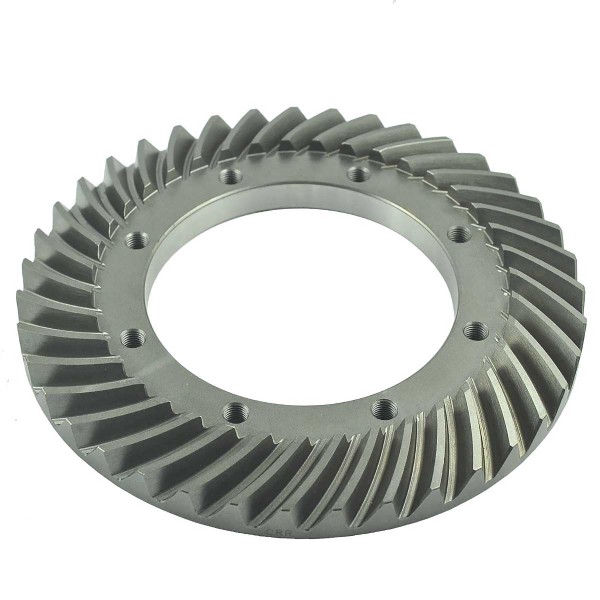

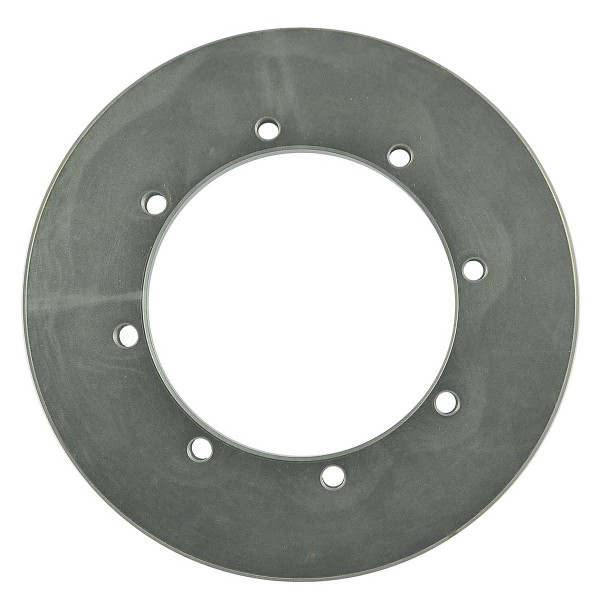

Ring wheel dimensions :

  • outer diameter: 225 mm,
  • inner diameter: 125 mm,
  • height: 22.50mm,
  • spacing of mounting screw holes: 144 mm (measured diagonally), 55 mm (measured apart),
  • number of teeth: 39T.

Tractor models :

Kubota :

  • Kubota L1500,
  • Kubota L2201,
  • Kubota L2601,
  • Kubota L3001.

The first signs of damage to the drive unit, ring gear or pinion shaft are the observation of play in the final drive, or a clear clatter when starting and increased noise level during operation.

Warehouse :
M01:A46

Specifications

Condition
New
Bolt hole spacing (mm)
55 / 144
