Turnbuckle 406 mm / TUZ Cat I/Cat I
What is a turnbuckle and what is it used for?

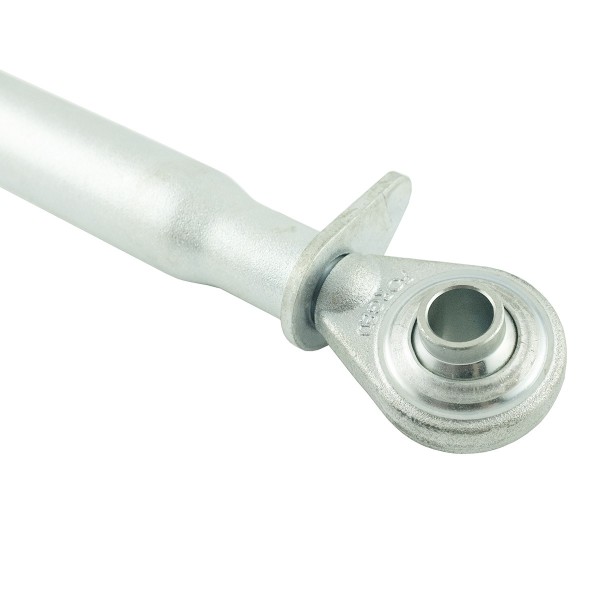

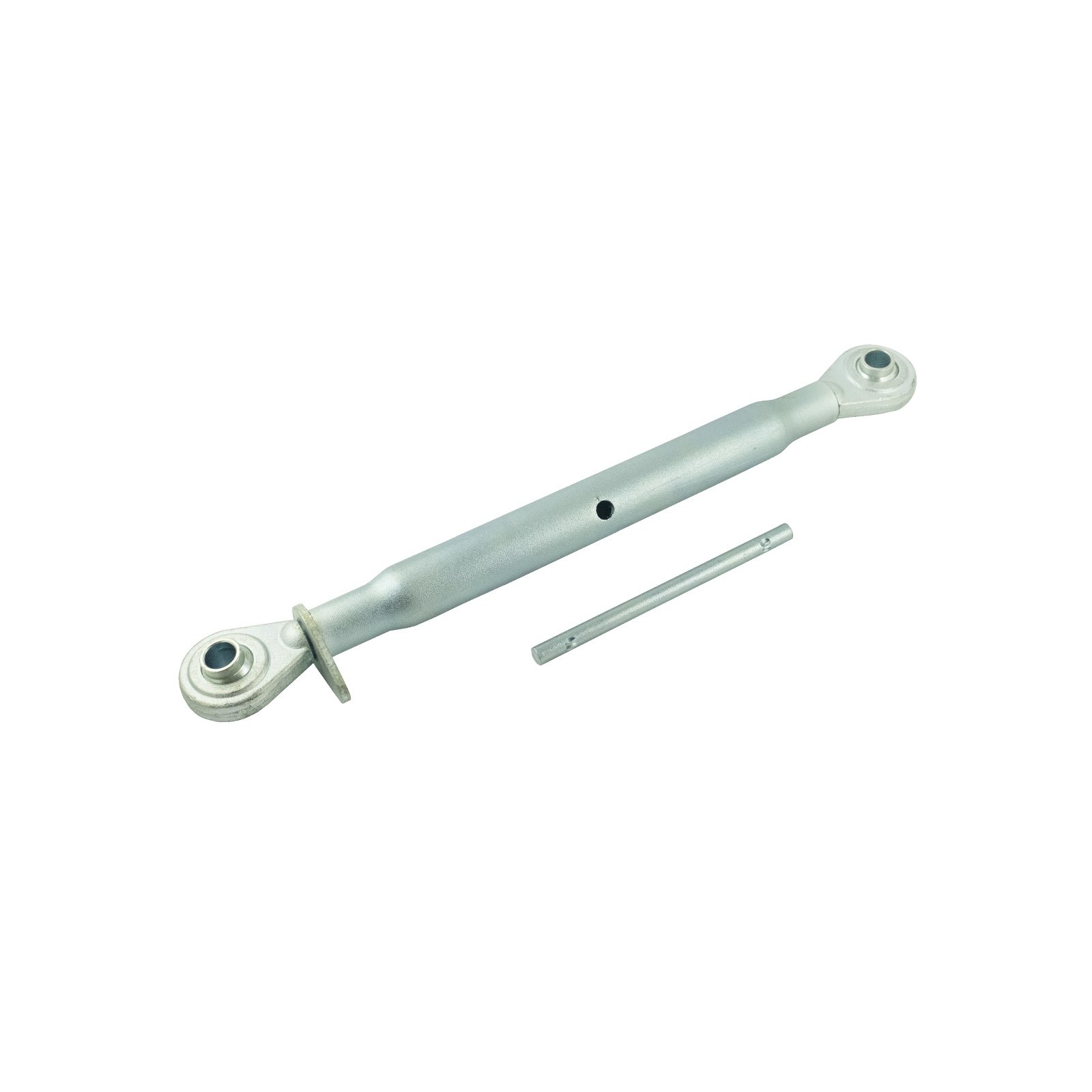

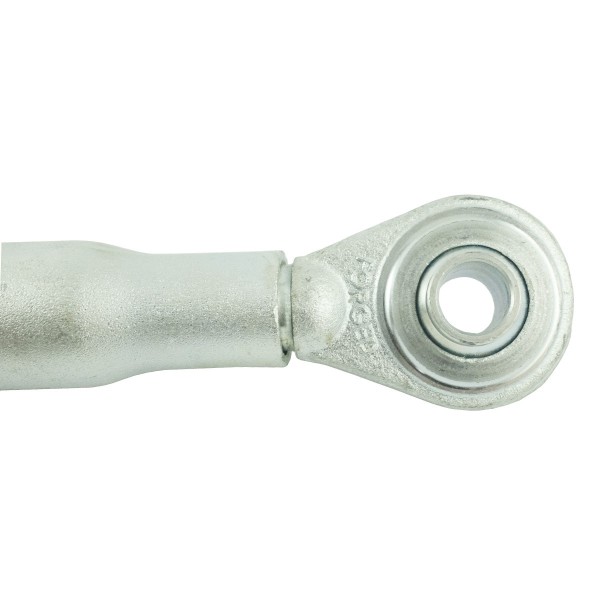

The TUZ turnbuckle used in agriculture is a tractor element, or more precisely, an element of the rear hydraulic lift TUZ ( TUZ-three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural implement. The pipe tensioning screw , also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. The turnbuckle and terminated with spherical swinging holes, sleeves for locking pins .
Dimensions :
- length: 406 mm (body),
- working length: minimum 515 mm, maximum 730 mm,
- thread: 1-1/8 UNC (inch) / (M28),
- diameter of pin holes: 19.50 mm,
- width of the sleeve for mounting pins: 44 / 44 mm,
- head diameter: 63 / 63 mm,
The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.
Magazine: M01:G52
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
