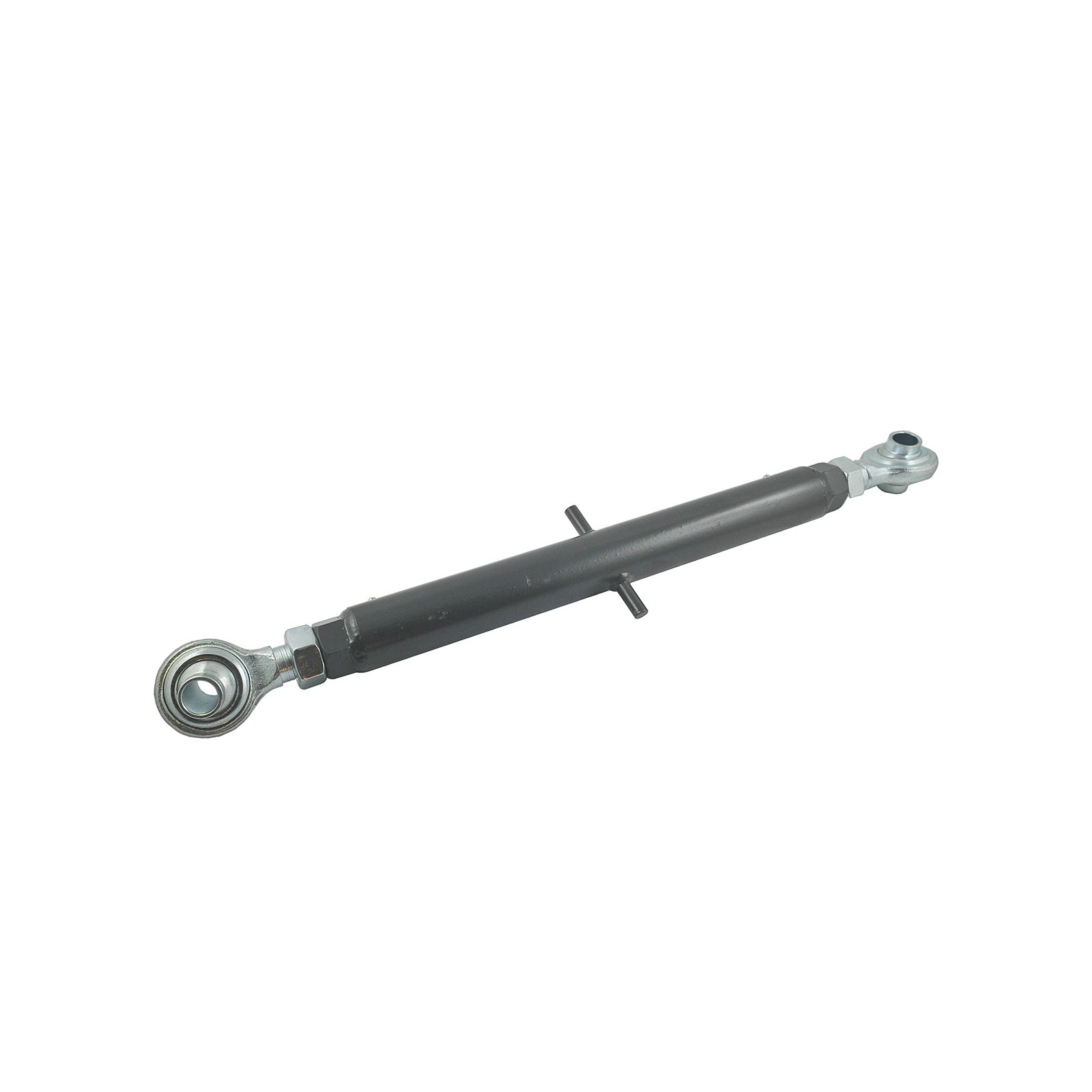

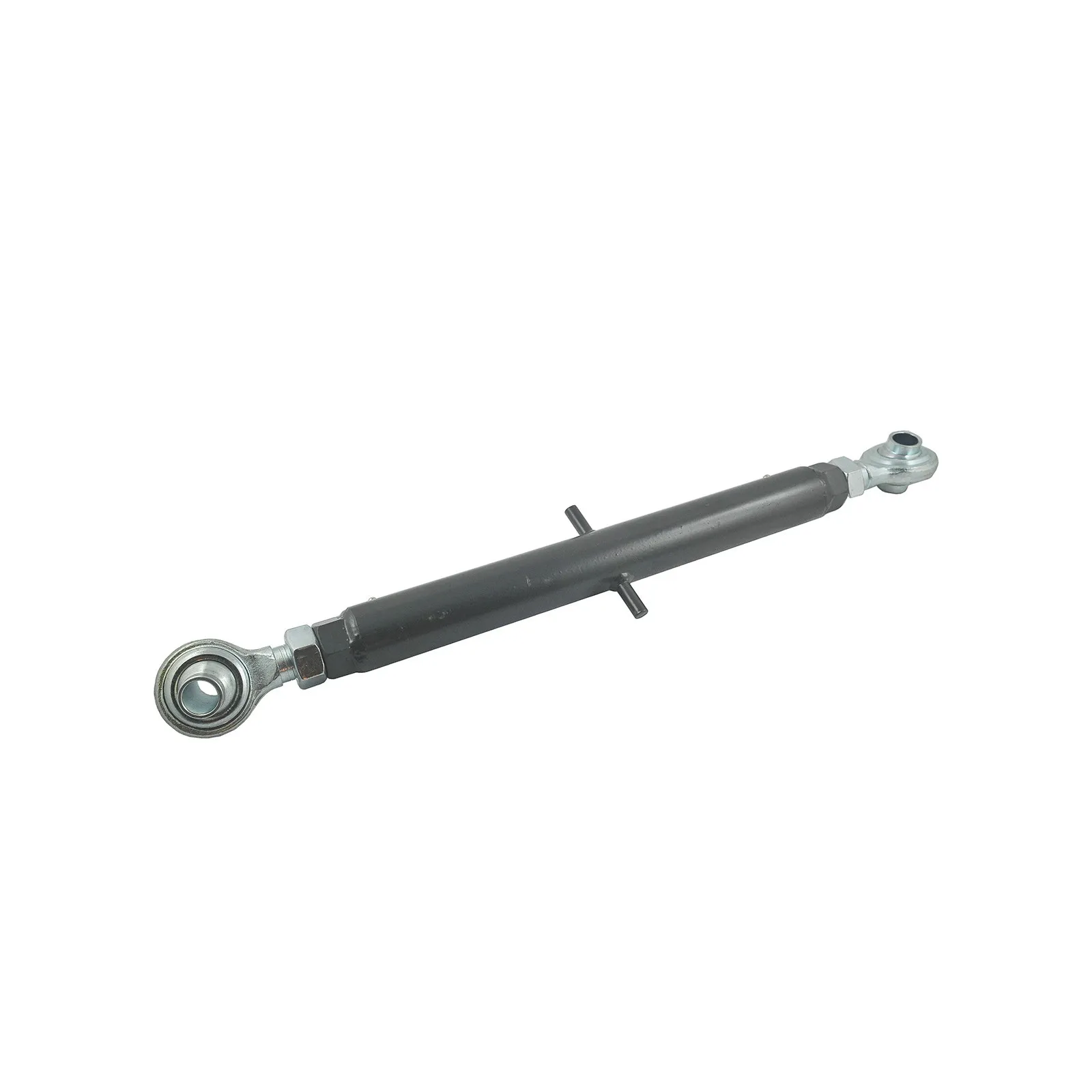

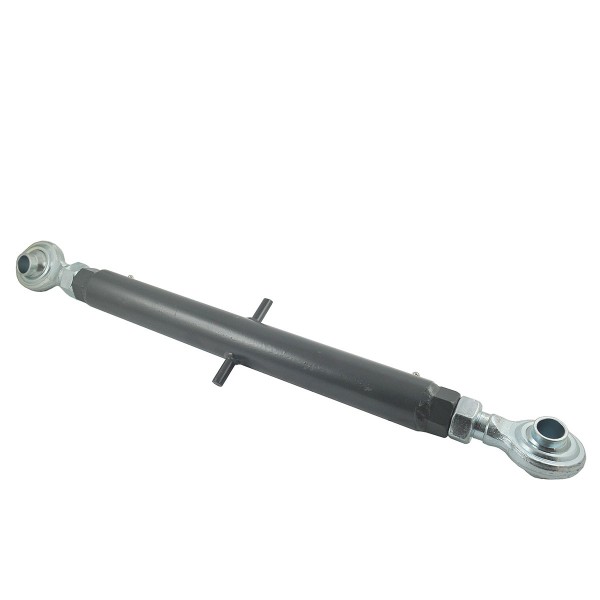

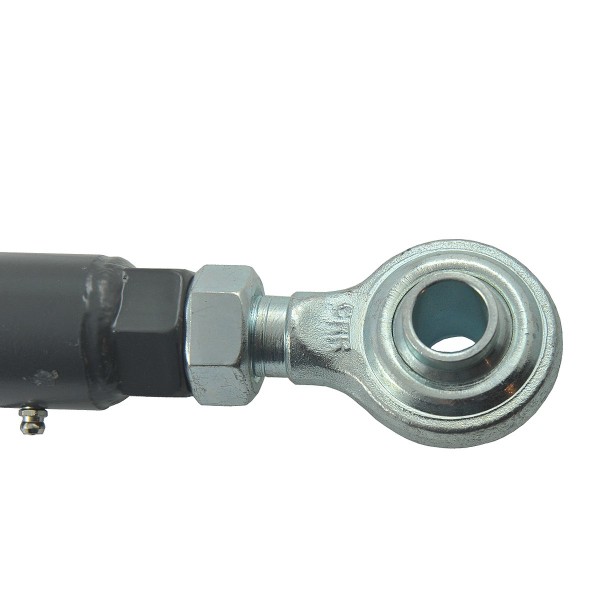

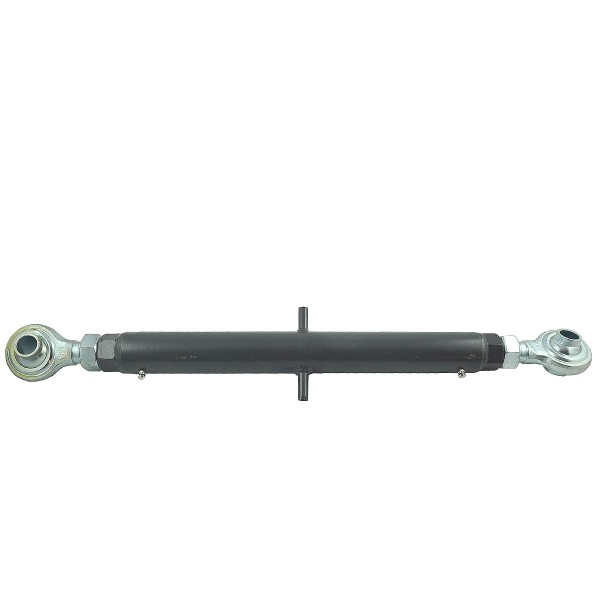

Turnbuckle / Cat 1 / 605 mm / Kubota L3408 / 6-02-101-14

Turnbuckle with a total length of 605 mm , working length of 545 / 745 mm for Kubota tractors of the Kubota L3408 series and others.

The TUZ turnbuckle used in agriculture is a tractor element, or more precisely, an element of the rear hydraulic lift TUZ ( TUZ-three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural implement. The pipe tensioning screw , also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. The turnbuckle and terminated with spherical swinging holes, sleeves for locking pins .

Dimensions :

• total length: 605 mm (with screws tightened to the maximum, 545 mm from center to center of holes),
• working length: 545 / 745 mm,
• diameter of pin holes: 19 mm,
• width of the sleeve for mounting pins: 44 / 44 mm,
• head diameter: 57 / 57 mm,
• original part numbers: -,
• comparison numbers: 5-02-114-03,
• part numbers: 6-02-101-14.

Tractor models:

Kubota:

• Kubota L3408.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse :
M01:G54

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
