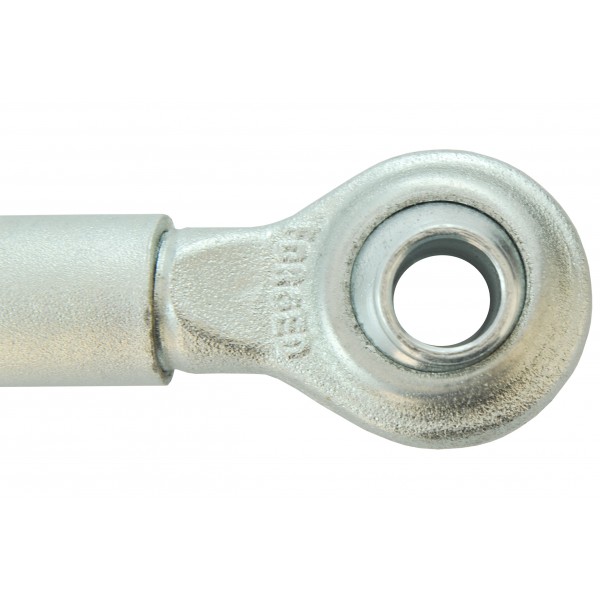

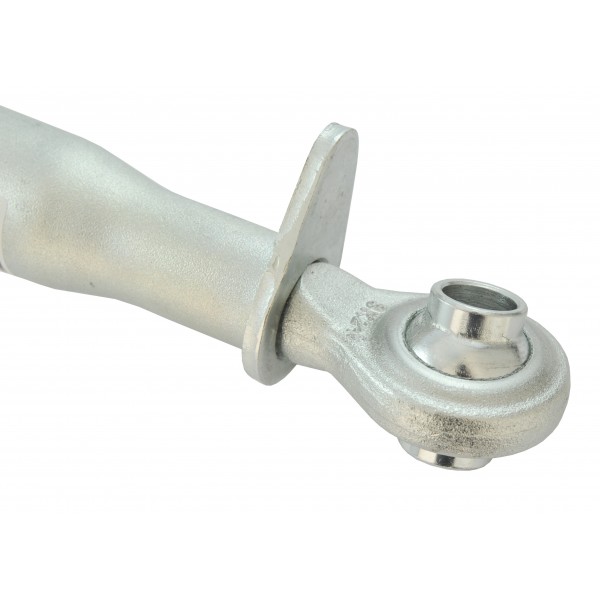

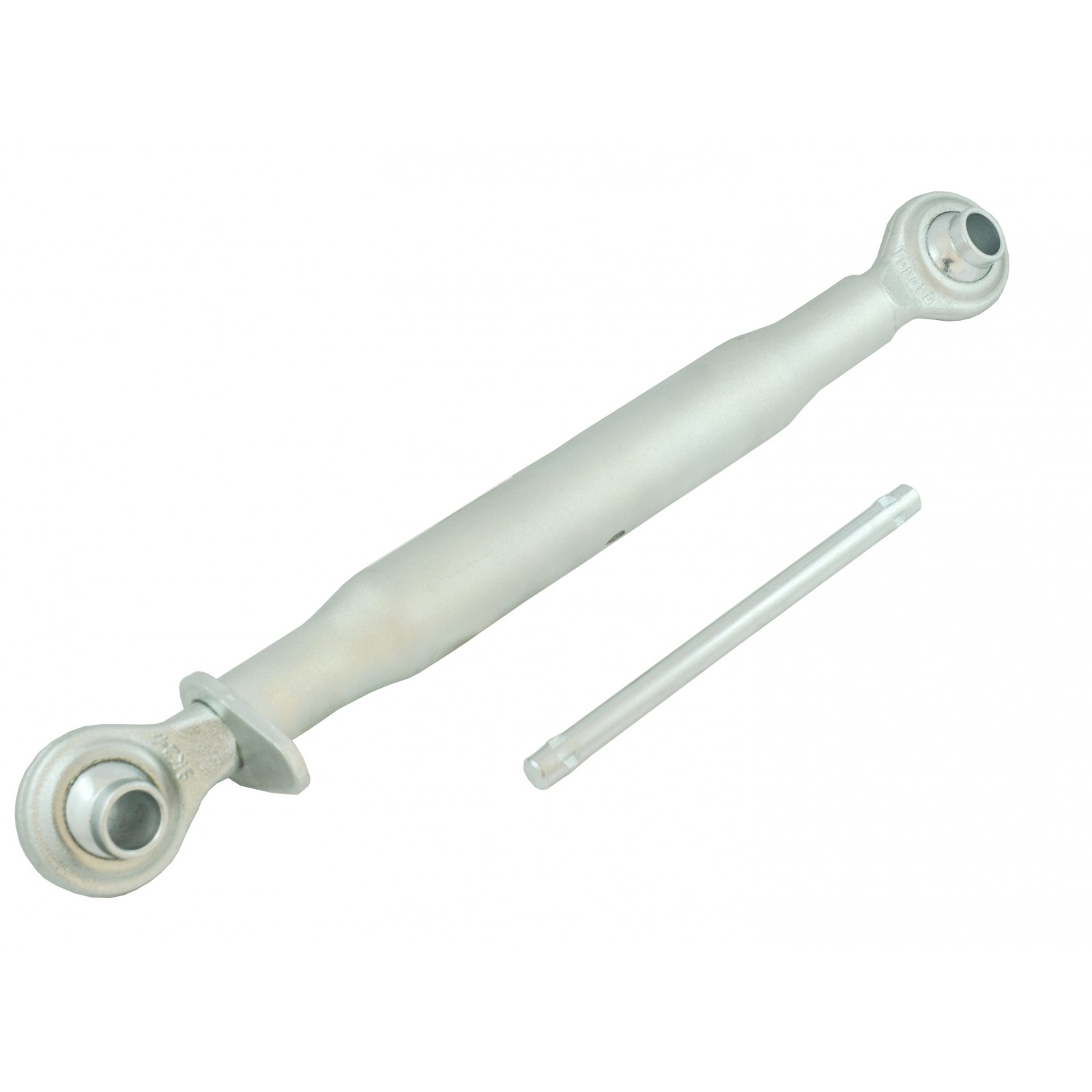

Turnbuckle 13" Cat I, 445 mm ball/ball

Turnbuckle 13" Cat I, 445 mm.

Dimensions:

• Total length: 490 mm.
• Maximum length: 645 mm.
• Length from/to the center of the holes: 445 mm (with the screws fully tightened).
• Pin hole diameter: 19.30 mm.
• Screw diameter: 42 mm.
• The length given in inches (13 inches) is for the screw measured without tips and screws. (middle part of the screw).
• Screw thread 1 1/8" (inch).
• Pin sleeve width: 44.50 mm.
• Ball diameter: 57.30 mm.
• For tractors up to 56 HP.
• Three-point linkage, category I.
• The set includes a wrench for tightening the screw: 205 x 13 mm.
• Index: p.479
