Middle Arm / Cat I / M24 / 500-710 mm

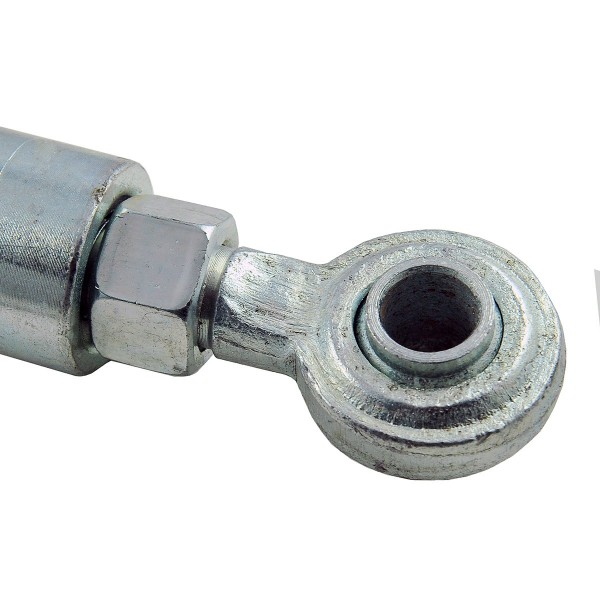

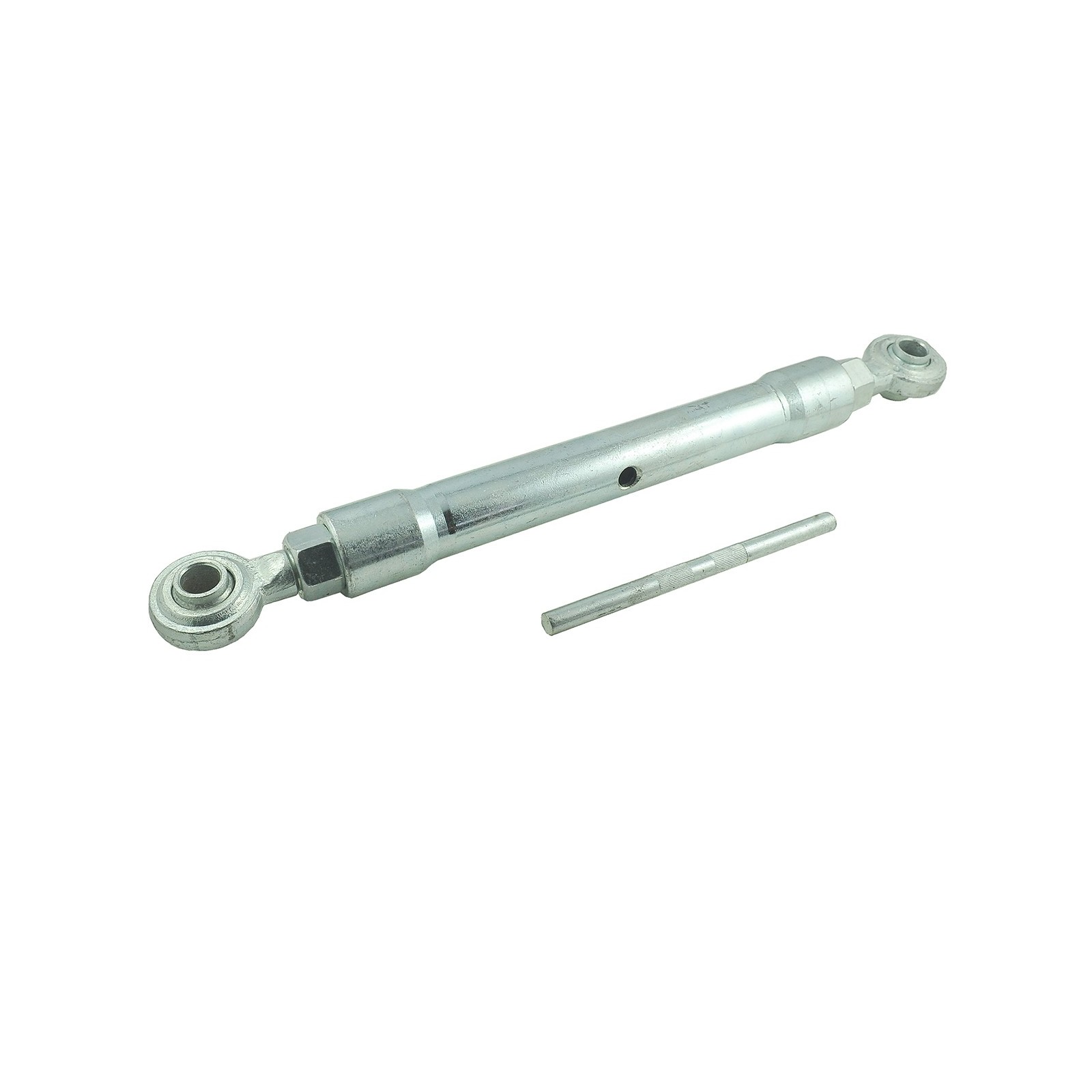

Turnbuckle Cat 1 with a total length of 555 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 19.50 mm (Thrust linkage Cat I) for tractors and other agricultural machines.

A three-point linkage turnbuckle used in agriculture is a tractor component, specifically a component of the rear three- point linkage hydraulic linkage (3-point linkage - rear three-point suspension system), and is used to connect the tractor to a machine or agricultural implement. A tubular tensioning turnbuckle, also known as a connector, consists of three elements: a body and two screws with oppositely directed threads. The turnbuckle and the turnbuckle are terminated with spherical, self-aligning holes, bushings on locking pins.

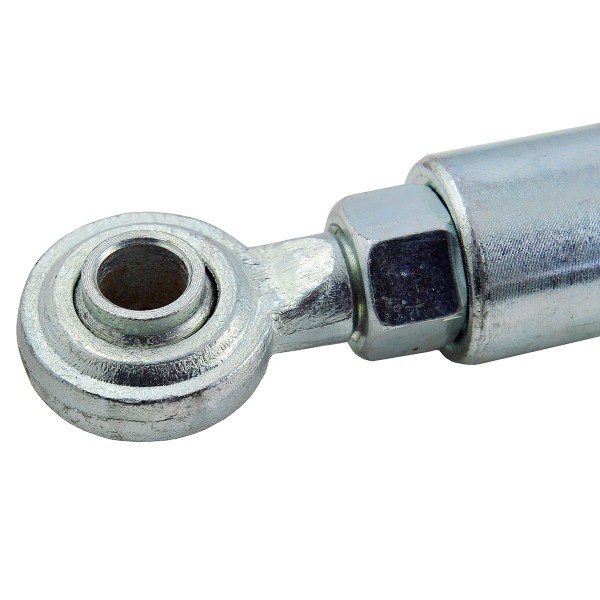

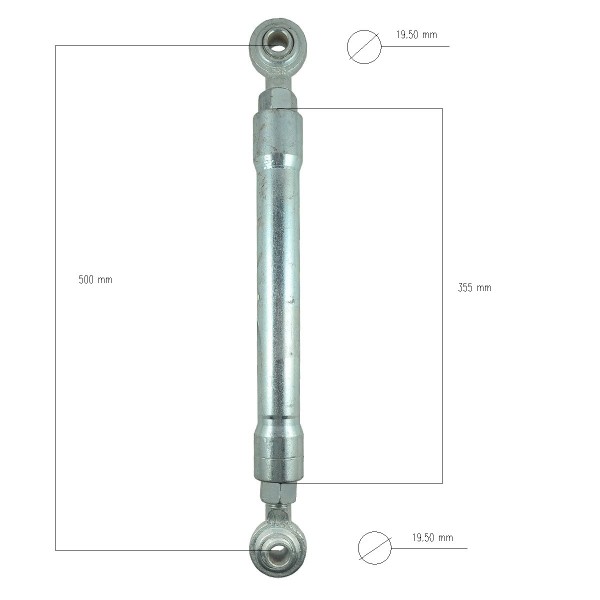

Dimensions :

• length: 355 mm (body),
• total length: 555 mm (minimum total length measured with fully tightened screws),
• working length: minimum 500 mm, maximum 710 mm,
• thread: M24 x 3,
• diameter of pin holes: 19.50 mm (Cat I),
• width of the sleeve for mounting pins: 38 mm,
• head diameter: 57 mm,
• steel hardness: -,
• steel resistance: -,
• part numbers: 6-02-101-01.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.
