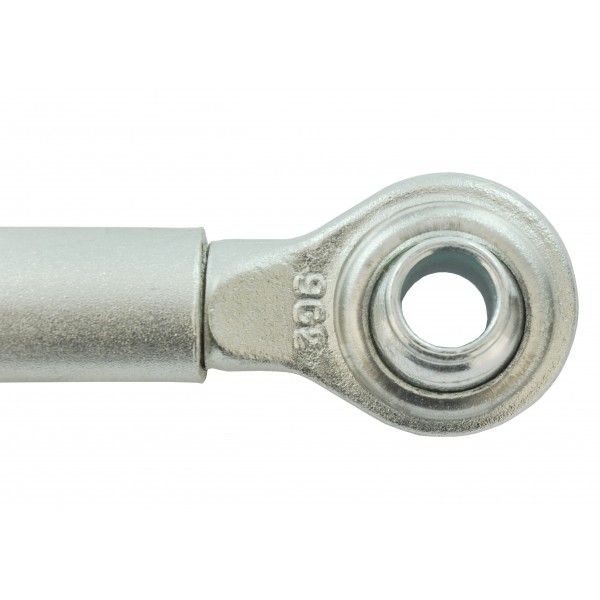

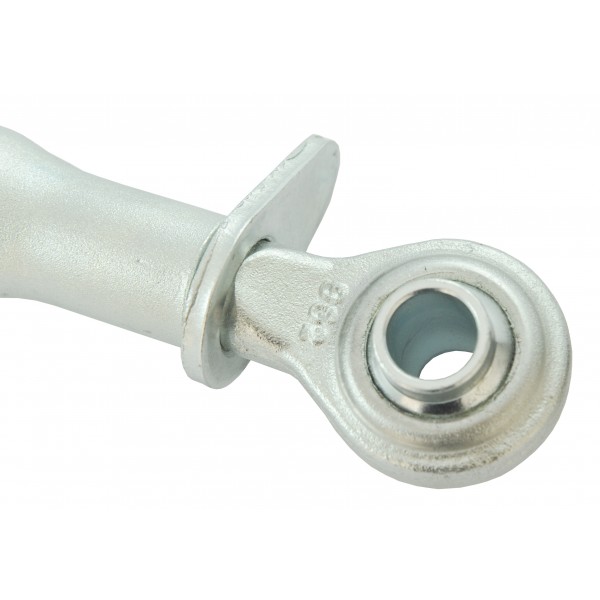

Turnbuckle 7" Cat I, 290mm ball/ball

A turnbuckle , also known as a turnbuckle or screw bolt , is a special type of screw used in a variety of applications, including construction and mechanics. A turnbuckle is characterized by its thread, which is usually straight, and its ends can have various shapes, including round heads or star-shaped heads. Compared to standard screws, turnbuckles can have more specific shapes and sizes, adapted to specific applications. Usually made of steel, stainless steel, or other corrosion and abrasion resistant materials, depending on the application and the conditions in which it will be used. Used to connect or fasten various components, including in building structures, machines, vehicles, as well as in regulating systems, such as in drive systems or hydraulic devices.

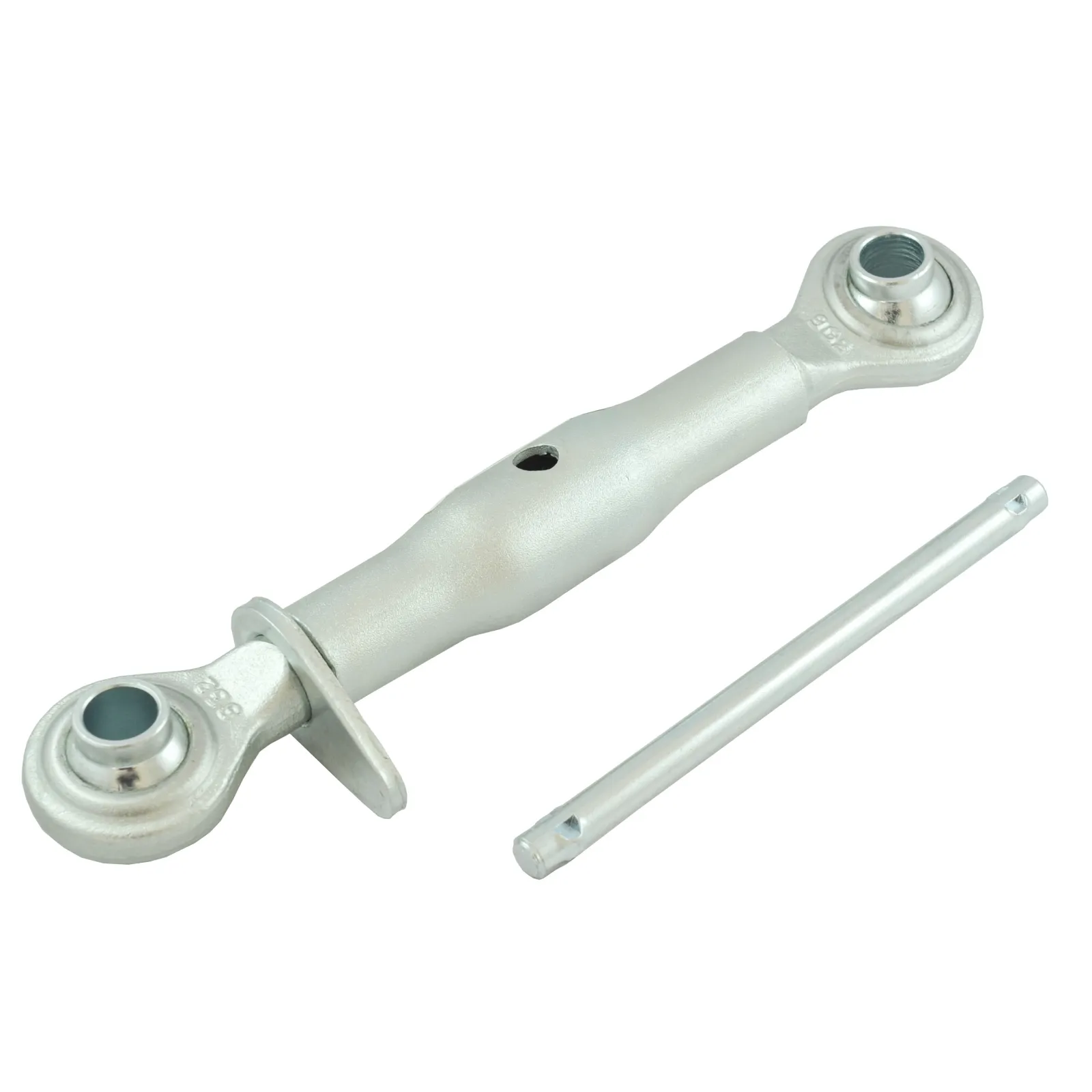

7" turnbuckle Cat I, 290 mm ball/ball.

Dimensions:

• Total length: 340 mm.
• Maximum length: 370 mm.
• Length from/to centre of holes: 290 mm (with screws fully tightened).
• Pin hole diameter: 19.30 mm.
• Screw diameter: 42 mm.
• The length given in inches (7 inches) refers to the screw measured without the ends and screws. (center element of the screw).
• Screw thread 1 1/8" (inch).
• Pin sleeve width: 44.50 mm.
• Ball diameter: 56.70 mm.
• For tractors up to 56HP.
• Three-point hitch cat. I.
• Screwdriver wrench included: 205 x 13 mm.
• Index: p.15502

Magazine: M01:F85:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
