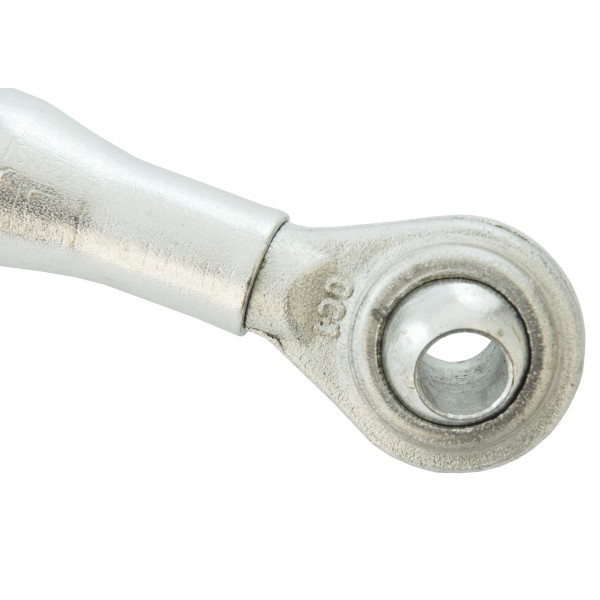

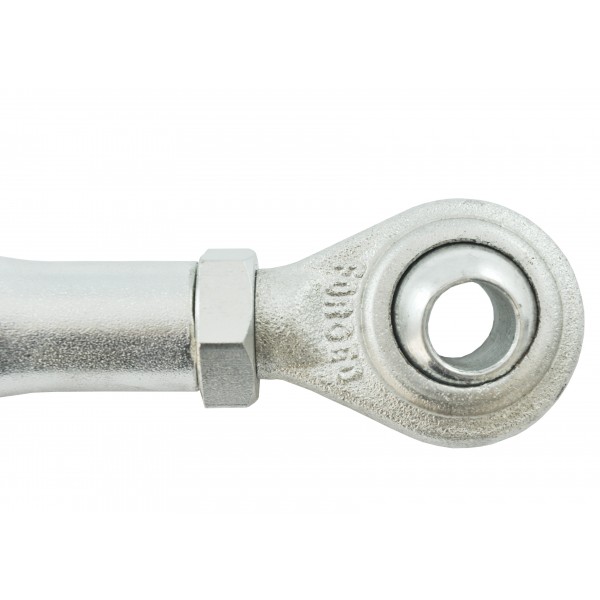

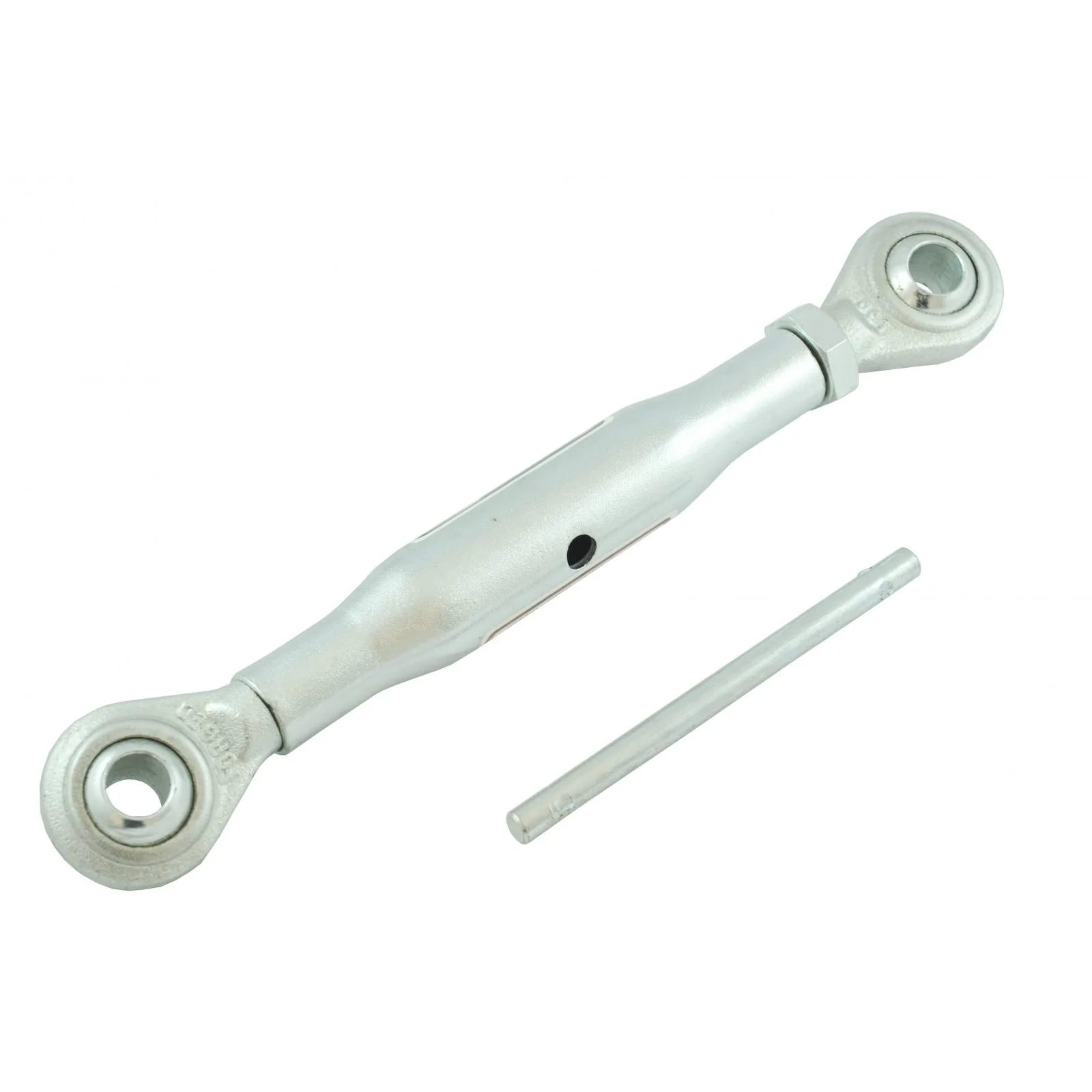

Turnbuckle 7 1/2" Cat 0/0, 280 mm ball/ball

Turnbuckle 7 1/2" Cat 0/0, 280 mm ball/ball.

Dimensions:

• Total length: 330 mm.
• Maximum length: 393 mm.
• Length from/to the center of the holes: 280 mm (with the screws fully tightened).
• Pin hole diameter: 16.30 mm.
• Screw diameter: 34 mm.
• Length in inches (7 1/2 inch) refers to the screw measured without tips and screws. (middle part of the screw).
• Screw thread 3/4" (inch).
• Pin sleeve width: 25 mm.
• Ball diameter: 45 mm.
• For tractors up to 30 HP.
• The set includes a wrench for turning the screw: 140 x 9.40 mm.
• Three-point hitch category 0/0.
• Index: p.28887

Magazine: M01:F85:S04
