To order
Condition
New
Production
Substitute
Parts
3-point linkage
NEXT DOOR
3 point
Head diameter (mm)
63
Pin hole diameter (pins/mm)
19,50
Hammer/knife/pin mounting width (a) (mm)
44
wishlist

Turnbuckle / 370 mm / TUZ Cat I/Cat I

4F/10-15/370
zł79.00
Tax included PL 23%

64,23 netto

  • To order
wishlist

Do you have any questions?

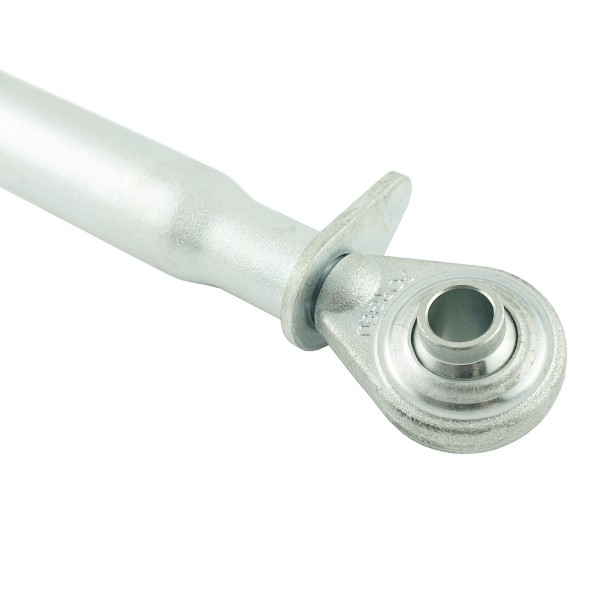

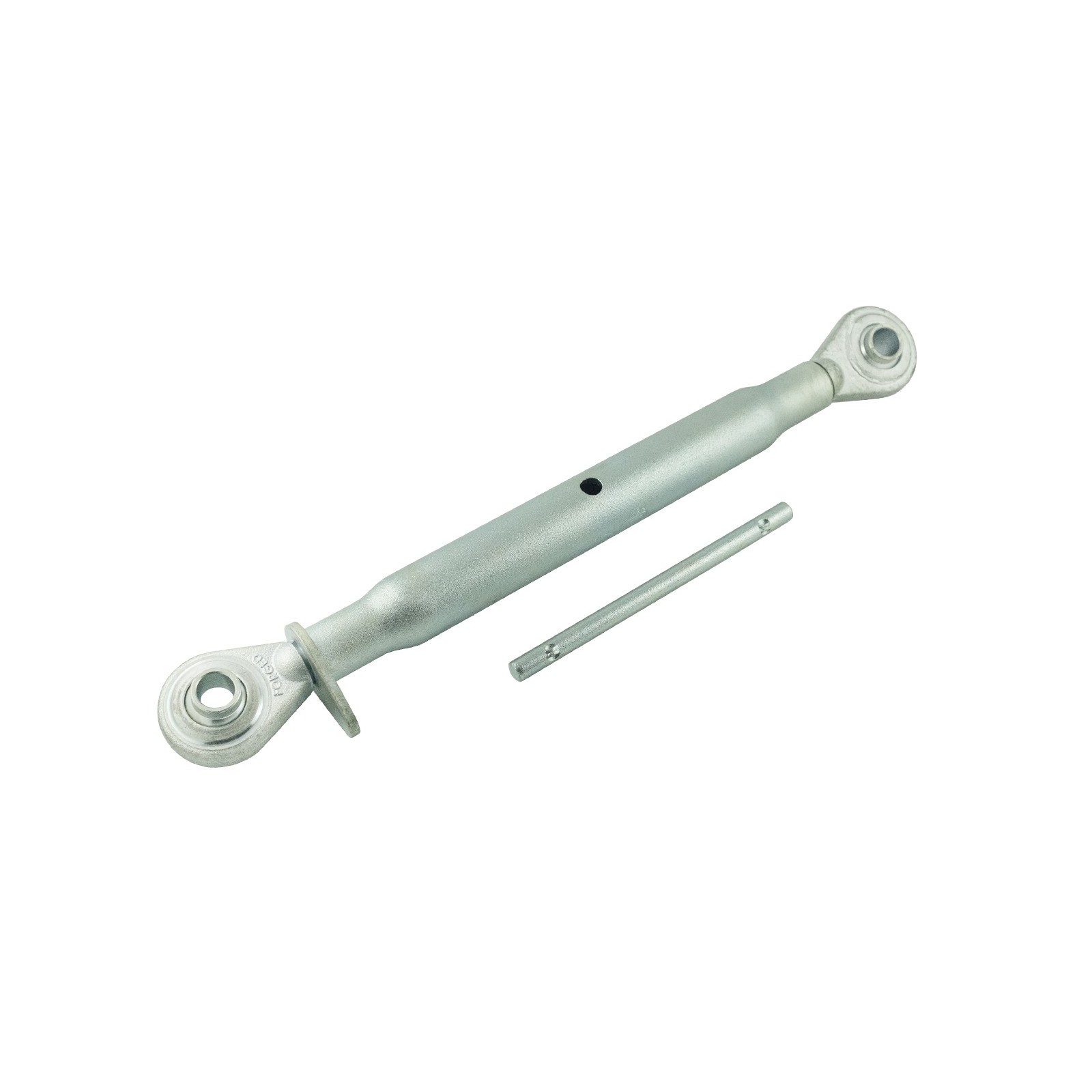

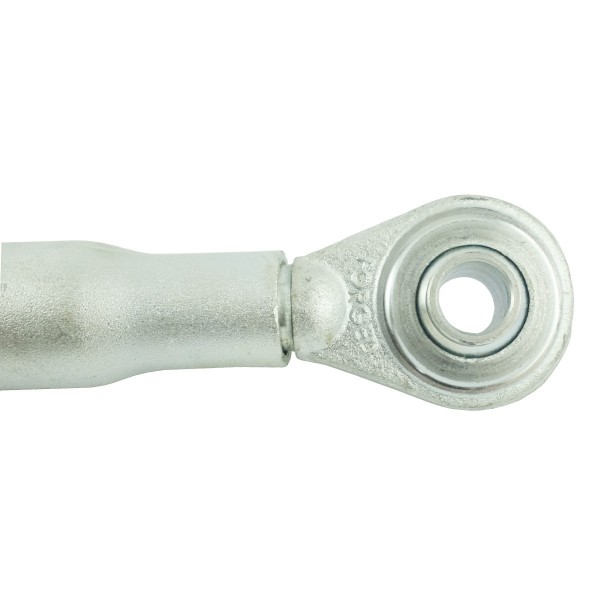

Turnbuckle / 370 mm / TUZ Cat I/Cat I

What is a turnbuckle and what is it used for?

The TUZ turnbuckle used in agriculture is a tractor element, or more precisely, an element of the rear hydraulic lift TUZ ( TUZ-three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural implement. The pipe tensioning screw , also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. The turnbuckle and terminated with spherical swinging holes, sleeves for locking pins .

Dimensions :

  • length: 370 mm (body),
  • working length: minimum 480 mm, maximum 695 mm,
  • thread: 1-1/8 UNC (inch) / (M28),
  • diameter of pin holes: 19.50 mm,
  • width of the sleeve for mounting pins: 44 / 44 mm,
  • head diameter: 63 / 63 mm,

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse :
F76

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01:F76
Condition
New
Production
Substitute
Parts
3-point linkage
NEXT DOOR
3 point
Head diameter (mm)
63
Pin hole diameter (pins/mm)
19,50
Hammer/knife/pin mounting width (a) (mm)
44
Thread
1-1/8 UNC
Color
Silver
Category
1
Minimum working length (mm)
480
Maximum working length (mm)
695
Body length (mm)
370

4FARMER

The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.

The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.

Wide offer of 4FARMER:

The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .

The most important advantages of the 4FARMER brand?

  • Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
  • Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
  • Professional support and access to spare parts.

4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
