Available
Others in the offer of this manufacturer >
Condition
New
Parts
3-point linkage
Overall length (mm)
285
working length (mm)
226-281
Head diameter (mm)
57
Pin hole diameter (pins/mm)
19,50
Thread
M24 x 3.00
Go to full specification >

Turnbuckle / Cat I/I / M24 / 226-281 mm / S.140525

S.140525
zł105.00
Tax included PL 23%

85,37 netto

  • Dostępność (1 Quantity): stock

Do you have any questions?

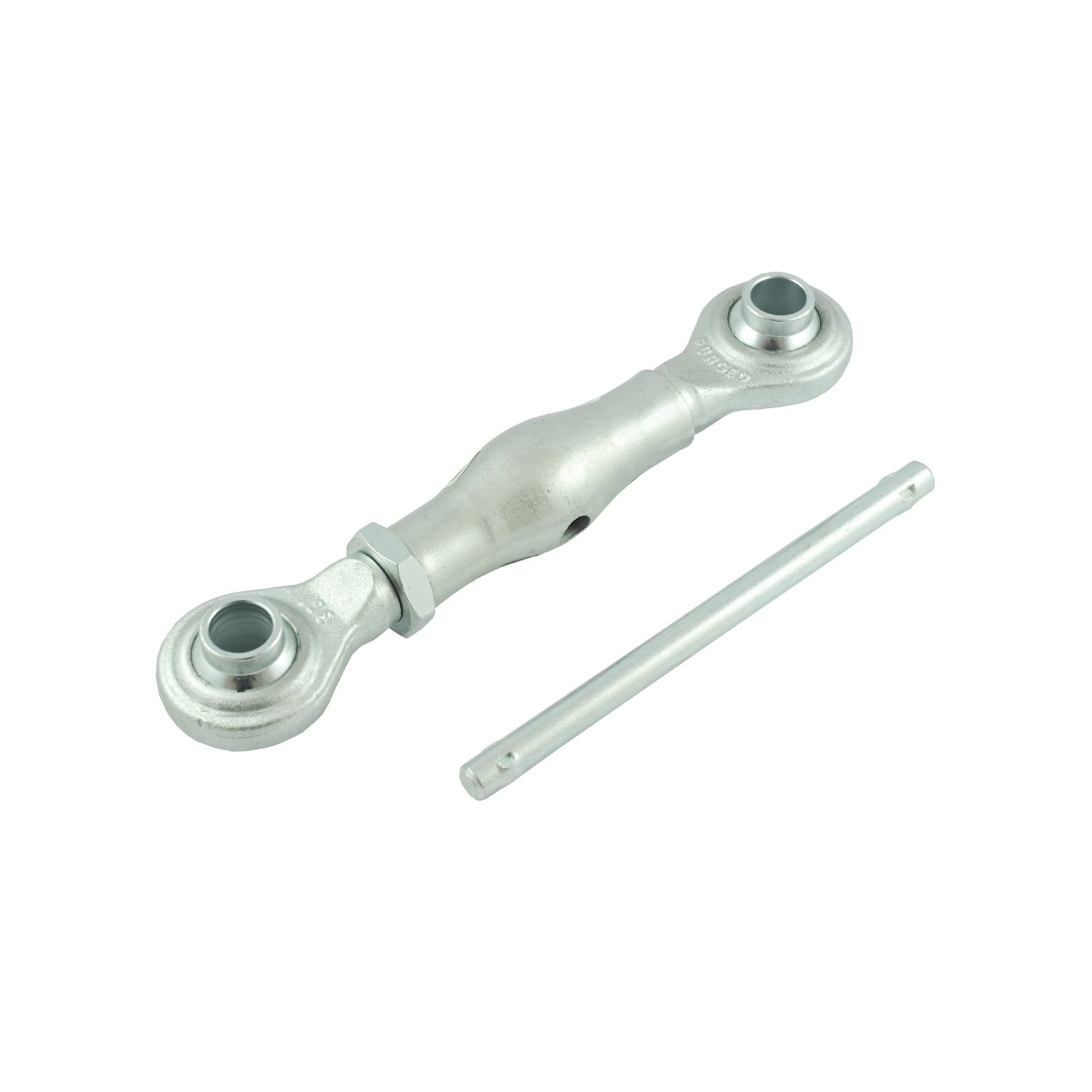

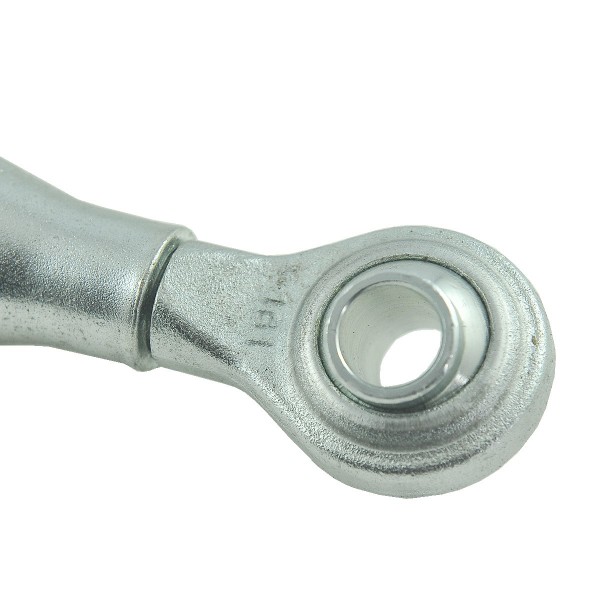

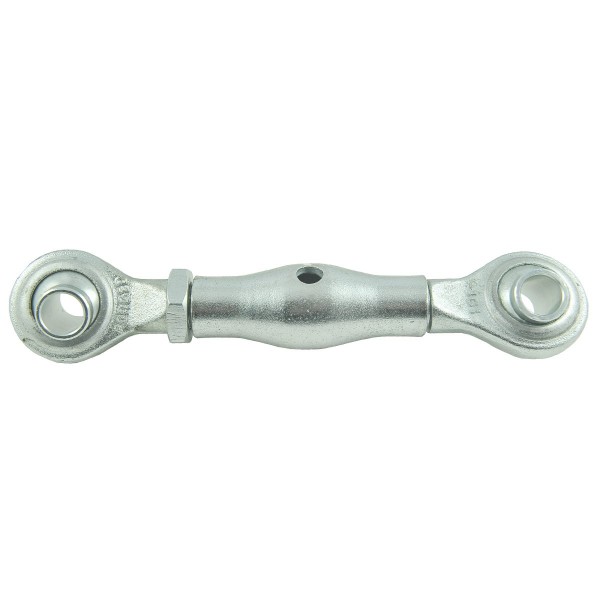

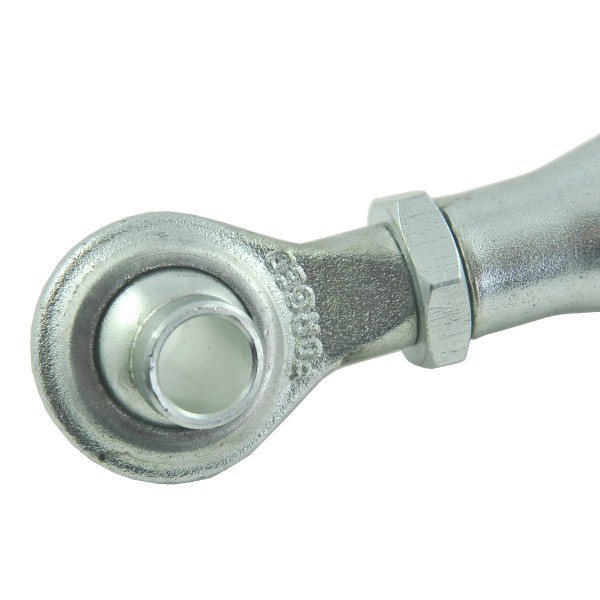

Turnbuckle / Cat I/I / M24 / 226-281 mm / S.140525

Turnbuckle Cat I with a total length of 226 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 19.50 mm (TUZ Cat I).

The TUZ turnbuckle used in agriculture is a tractor element, specifically an element of the rear hydraulic lift TUZ ( TUZ-three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural implement. The pipe tensioning screw, also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. The turnbuckle and terminated with spherical swinging holes, sleeves for locking pins .

Dimensions :

  • length: 116 mm (body),
  • total length: 226 mm (minimum total length measured with fully tightened screws),
  • working length: minimum 226 mm, maximum 281 mm,
  • thread: M24 x 3,
  • diameter of pin holes: 19.50 mm,,
  • pin mounting width: 44 mm,
  • head diameter: 57 mm,
  • part numbers: S.140525.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse:
K18:A04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
