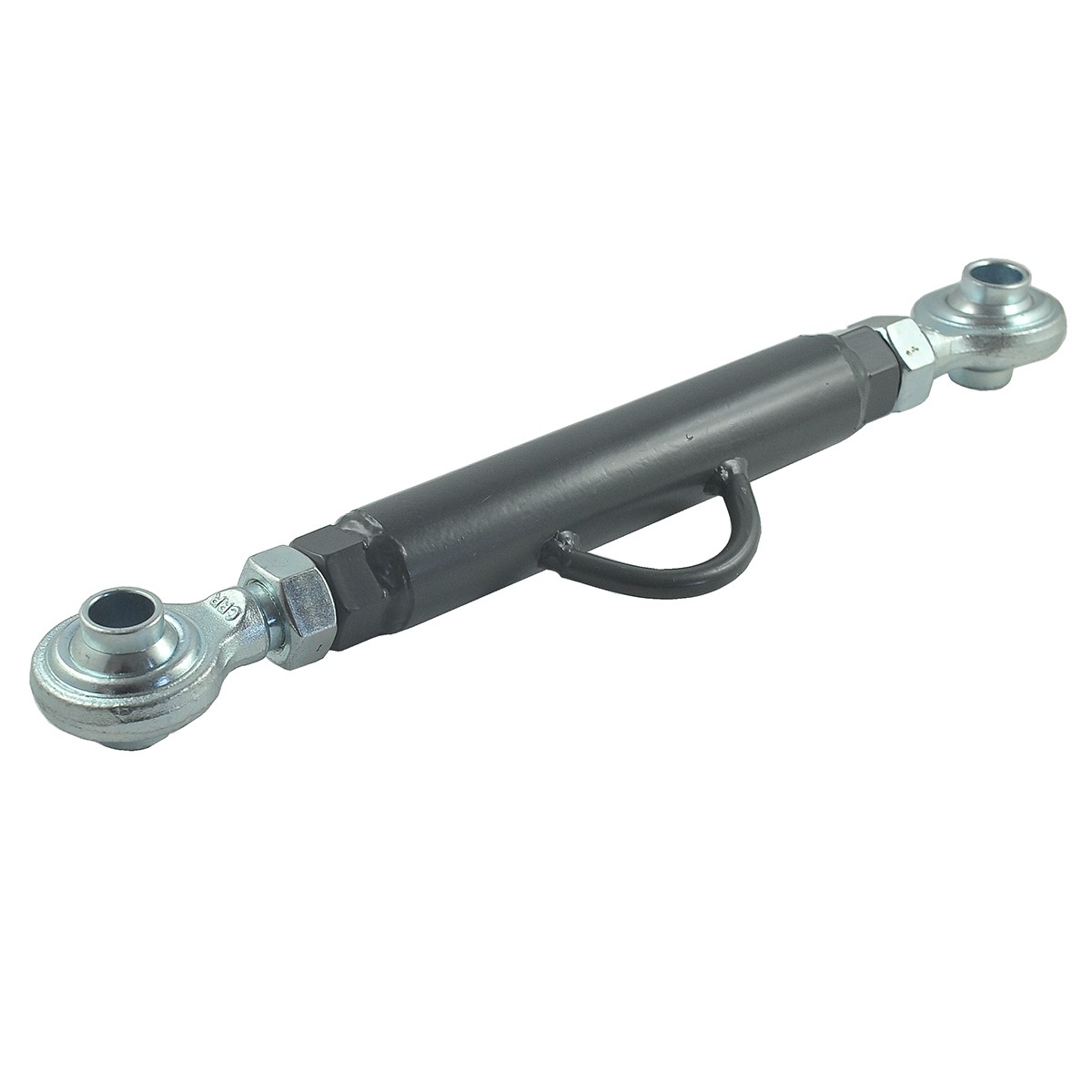

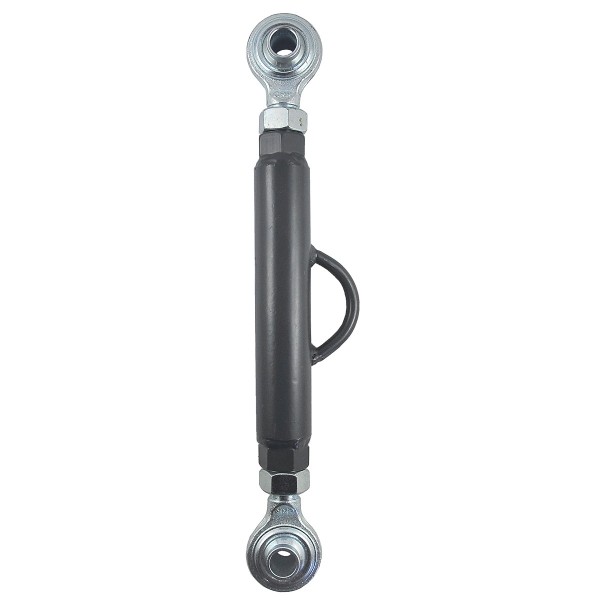

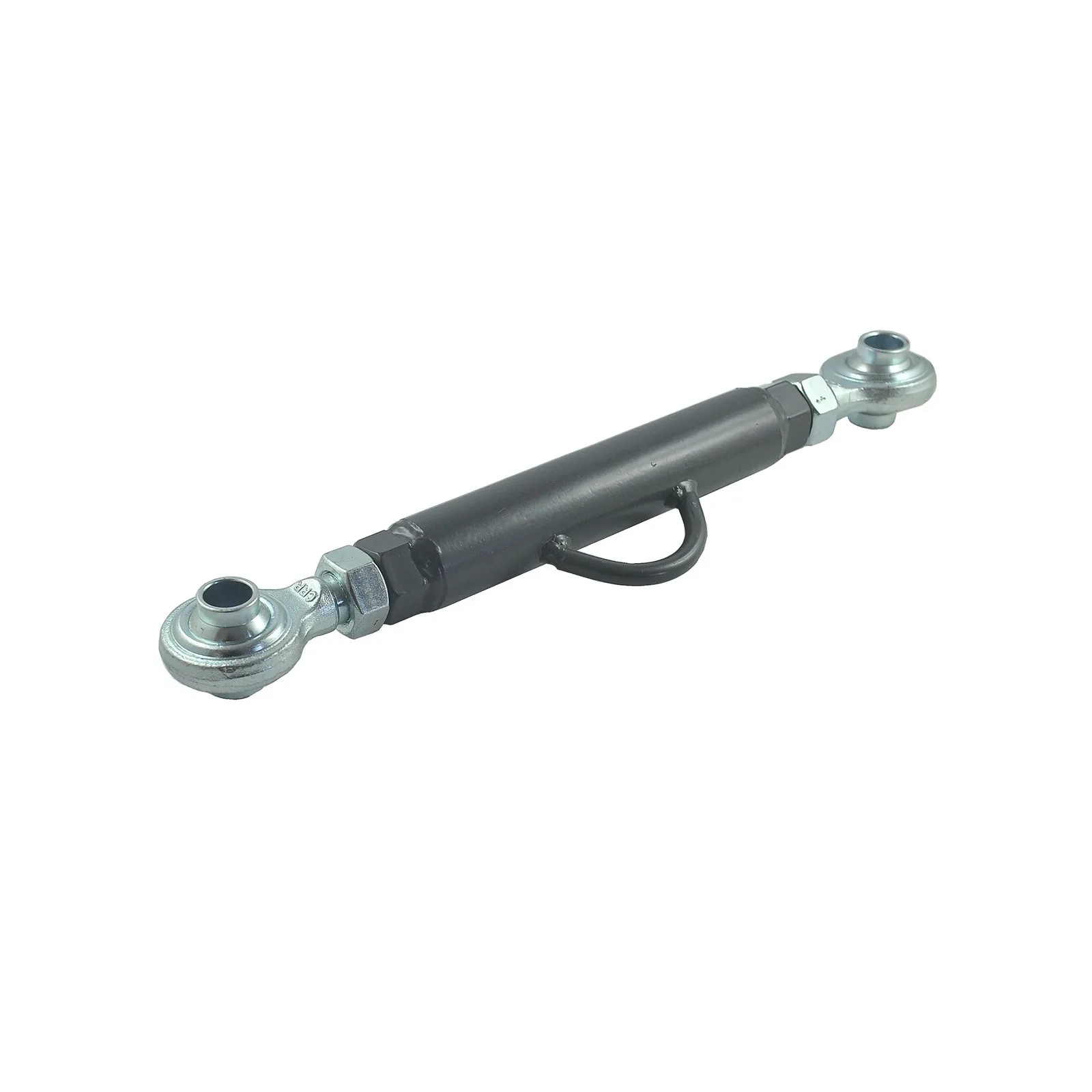

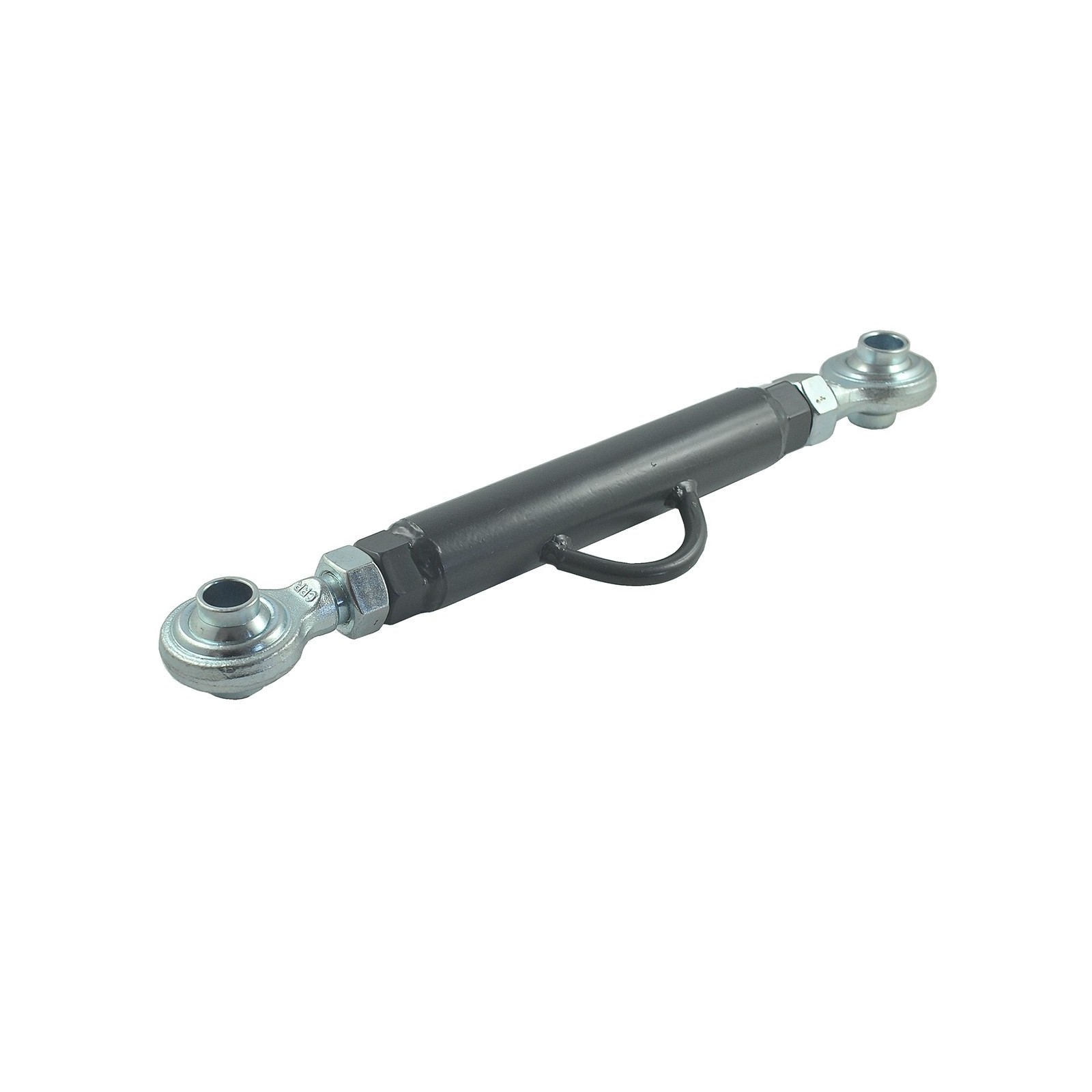

Turnbuckle / Cat I / Cat I / 380-470 mm / 10" / Kubota L2050 / L2600 / L2501 / L3408 / 6-02-101-12

Turnbuckle Cat 1 with a total length of 440 mm (minimum total length measured with fully tightened screws) and a diameter of 19 mm pin holes (TUZ KATI) for Kubota tractors of the series Kubota L2050, Kubota L2600, Kubota L2501, Kubota L3408 and others.

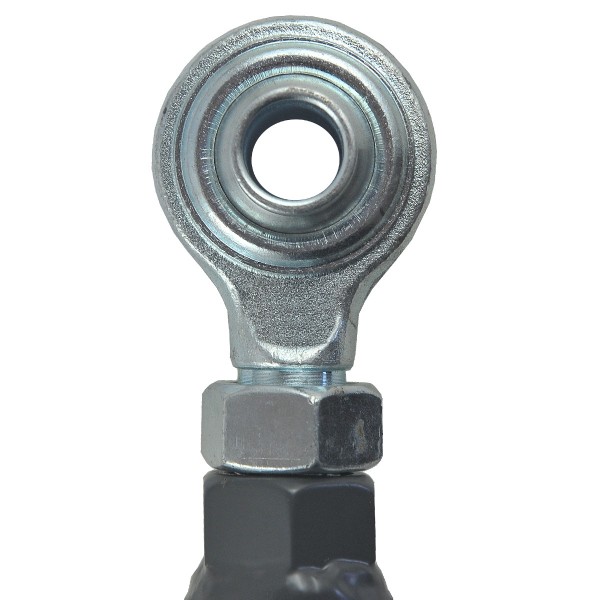

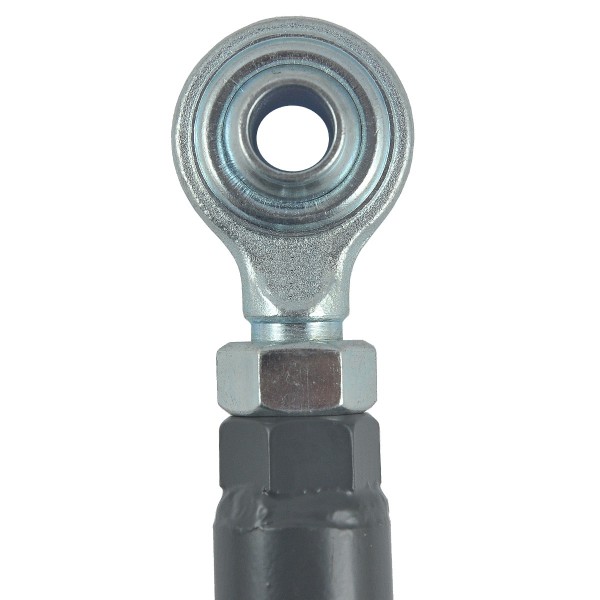

A three-point linkage turnbuckle used in agriculture is a tractor component, specifically a component of the rear three- point linkage hydraulic linkage (3-point linkage - rear three-point suspension system), and is used to connect the tractor to a machine or agricultural implement. A tubular tensioning screw, also known as a connector, is composed of three elements: a body and two screws with oppositely directed threads. The turnbuckle and the sleeves are terminated with spherical, self-aligning holes on locking pins.

Dimensions :

• length: 250 mm (14 inch body),
• total length: 440 mm (minimum total length measured with fully tightened screws),
• working length: minimum 380 mm, maximum 470 mm,
• thread: M24 x 3,
• diameter of pin holes: 19 mm,
• pin mounting width: 44 mm,
• head diameter: 57 mm,
• original part numbers: -,
• part numbers: 6-02-101-12.

Tractor models :

Kubota :

• Kubota L2050,
• Kubota L2600,
• Kubota L2501,
• Kubota L3408.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse:
K18:F14

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
