Turnbuckle / Cat I / Cat II / M27 / 430-640 mm

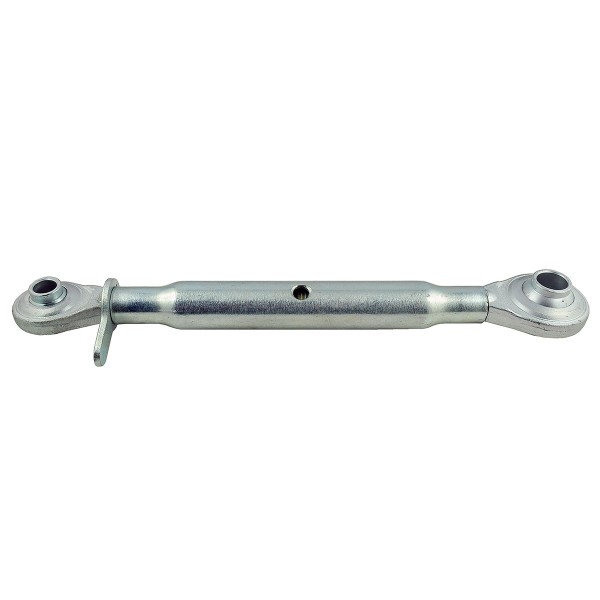

Turnbuckle Cat 1, Cat 2 with a total length of 505 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 19.50 mm (TUZ Cat I) and 26 mm (TUZ Cat II) for tractors and other agricultural machines.

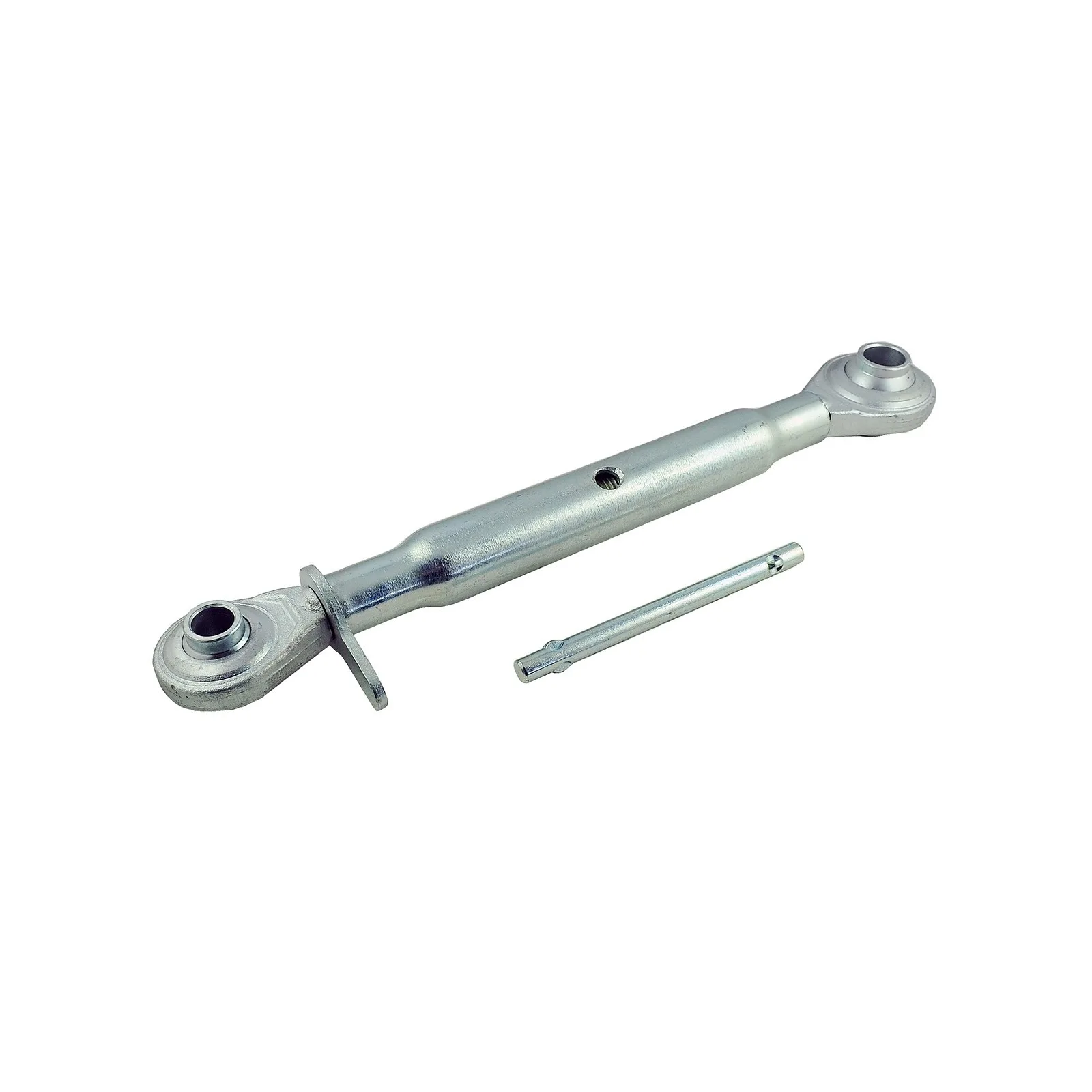

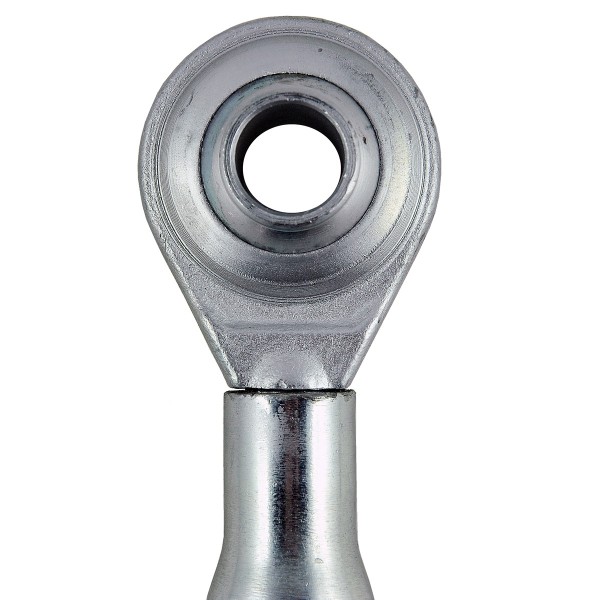

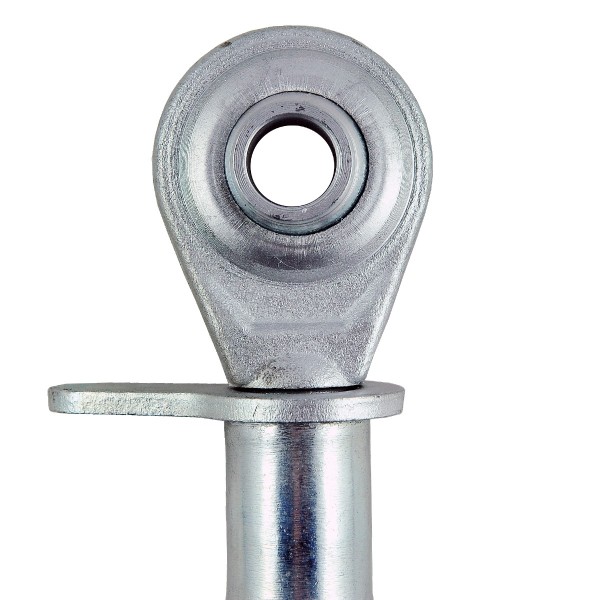

The TUZ turnbuckle used in agriculture is a tractor element, and more precisely an element of the rear hydraulic lift TUZ ( TUZ - three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural equipment. The pipe tensioning screw, also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. Turnbuckle and ended with spherical swinging holes, sleeves for locking pins .

Dimensions :

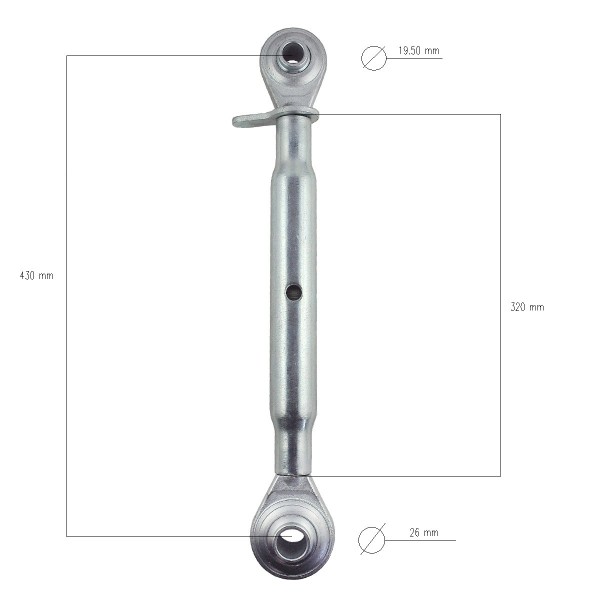

• length: 320 mm (body),
• total length: 505 mm (minimum total length measured with fully tightened screws),
• working length: minimum 430 mm, maximum 640 mm,
• thread: M27 x 3,
• diameter of pin holes: 19.50 mm (Cat I), 26 mm (Cat II),
• width of the sleeve for mounting pins: 44 mm (Cat I), 50 mm (Cat II),
• head diameter: 63 mm (Cat I), 75 mm (Cat II),
• steel hardness: 52 - 58 HRC,
• steel resistance: 490-630 (N/mm²),
• part numbers: 19676.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.
