Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
3-point linkage
NEXT DOOR
KAT II
Outer diameter (mm)
75
Inner Diameter (mm)
26
Overall length (mm)
225
Go to full specification >

Turnbuckle head / CAT II / RH / M27 / 225 mm / 03423

03423
zł52.00
Tax included PL 23%

42,28 netto

  • Dostępność (1 Quantity): stock

Do you have any questions?

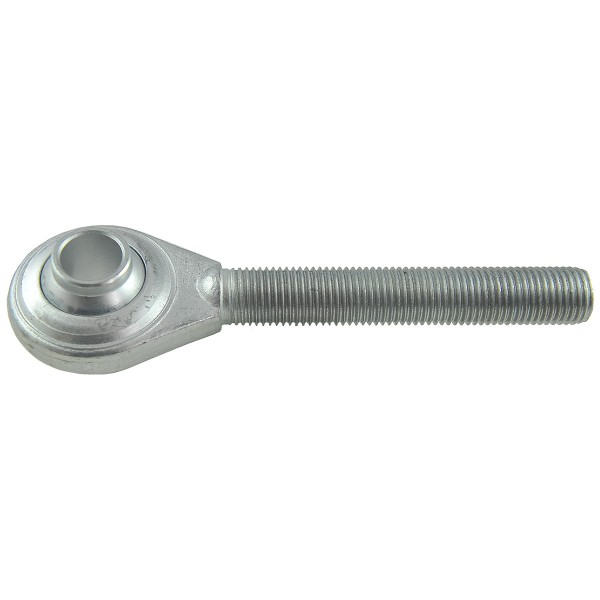

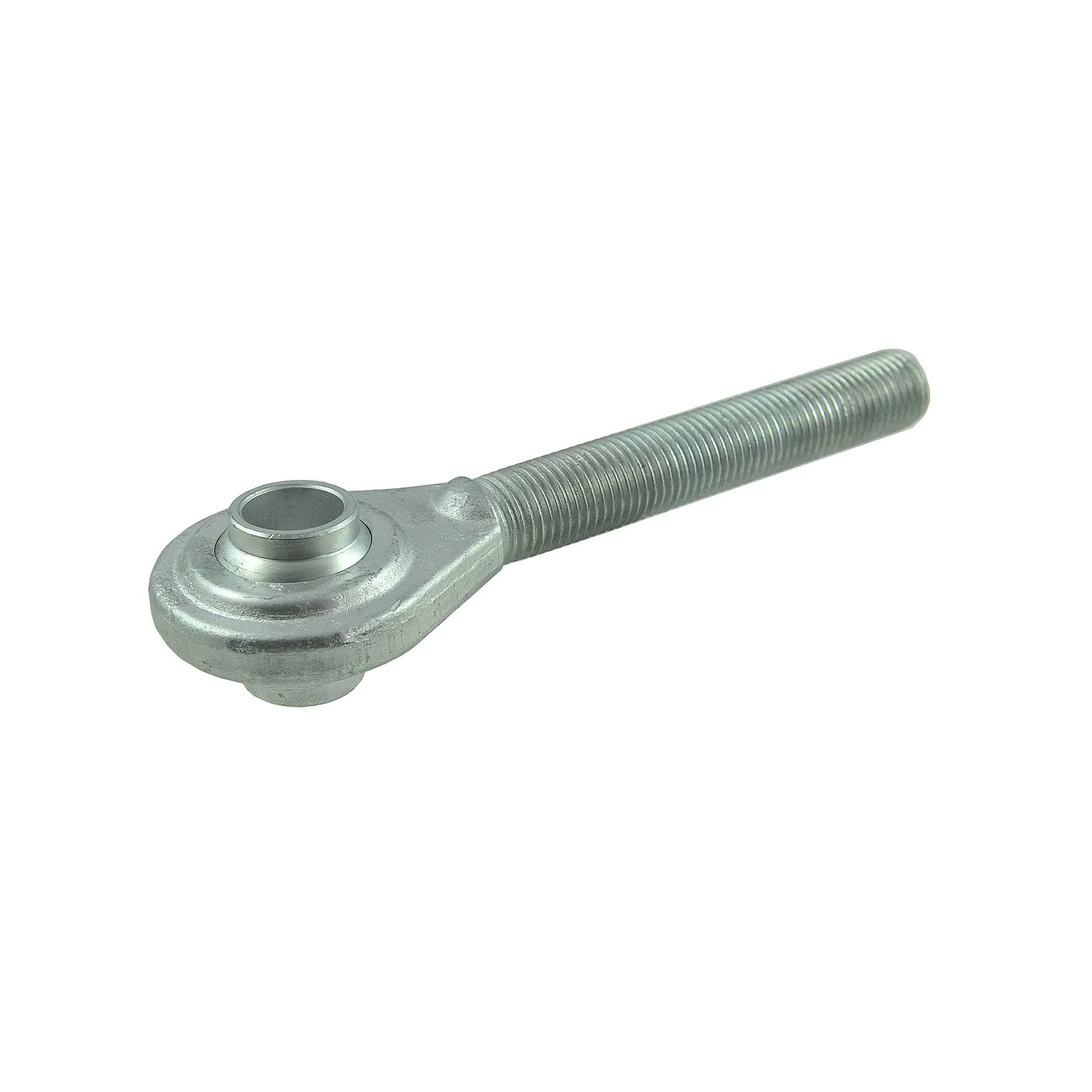

Turnbuckle head / CAT II / RH / M27 / 225 mm / 03423

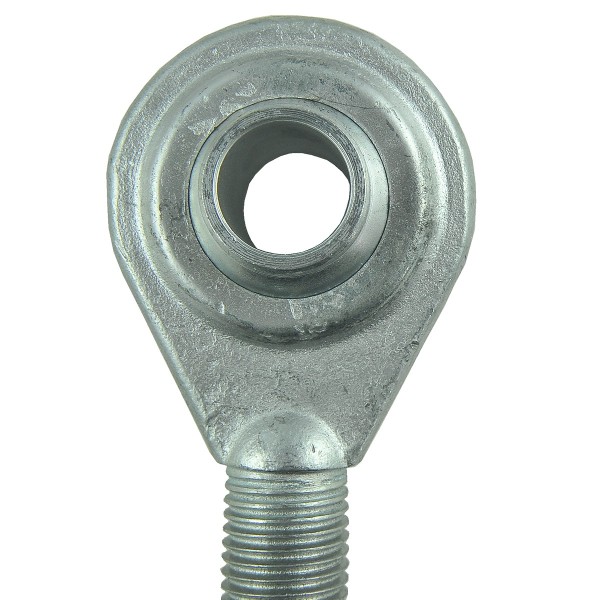

Top link ball head (right) with internal diameter of 26 mm and M27 x 3 thread.

The TUZ turnbuckle used in agriculture is a tractor element, and more precisely an element of the rear hydraulic lift TUZ ( TUZ - three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural equipment. The pipe tensioning screw, also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. Turnbuckle and ended with spherical swinging holes, sleeves for locking pins .

Dimensions :

  • total length: 225,
  • inner diameter: 26 mm,
  • outer diameter: 75 mm,
  • width (sleeve): 50 mm,

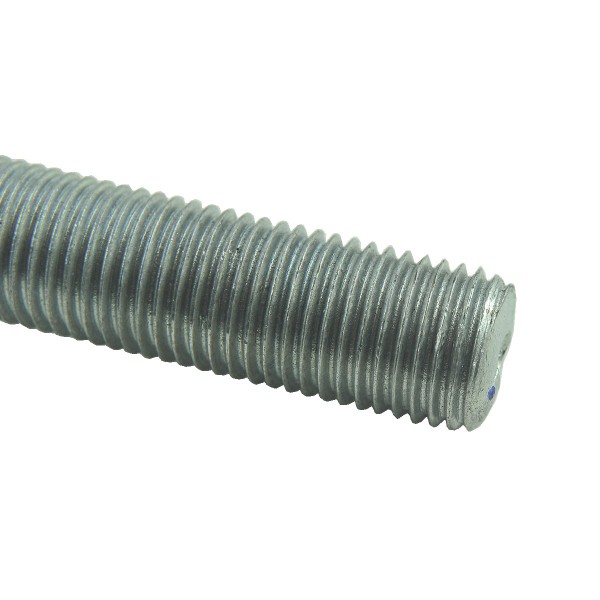

  • thread: M27 x 3,
  • thread length: 160 mm,
  • part numbers: 03423.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse :
K13:37

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K13:37
Condition
New
Production
Substitute
Parts
3-point linkage
NEXT DOOR
KAT II
Outer diameter (mm)
75
Inner Diameter (mm)
26
Overall length (mm)
225
Width (mm)
50
Thread(s) length (mm)
160
Thread
M27 x 3
Part number
03423
