Product description

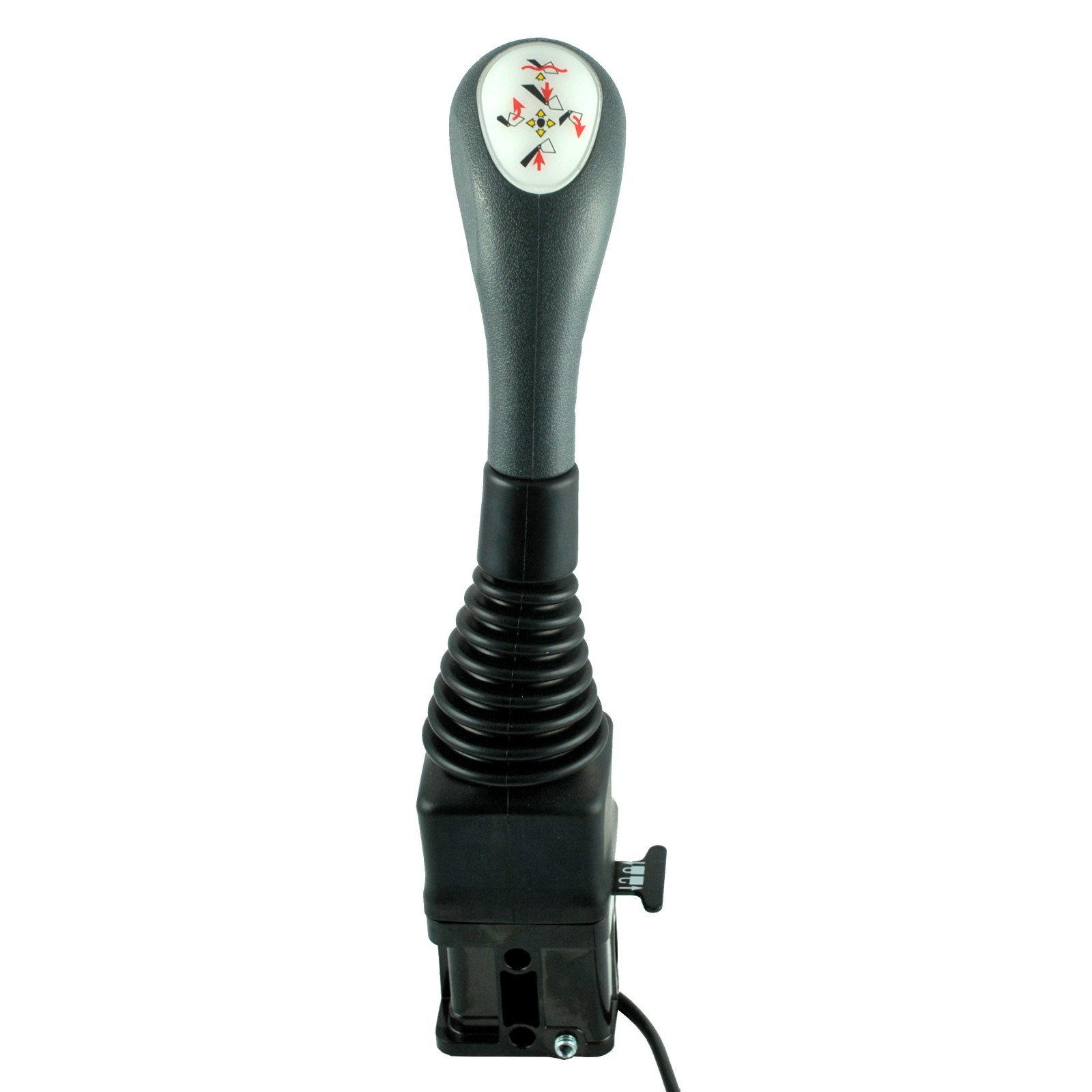

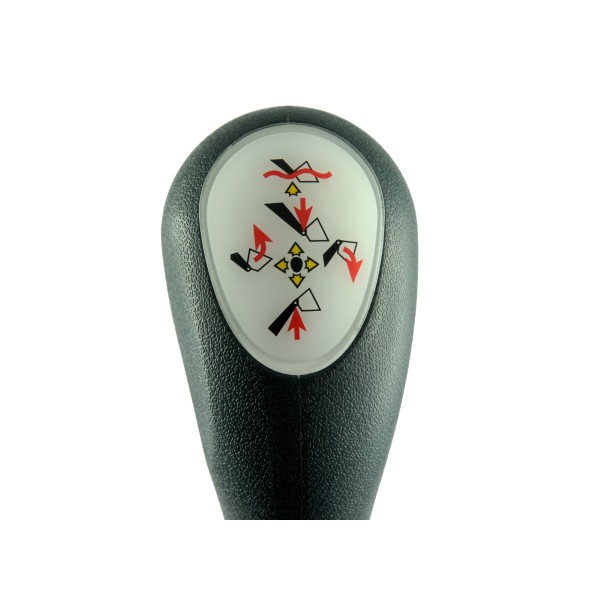

Joystick for the TUR with a button for ball-end cables is an ergonomic device enabling precise control of a front loader from the operator's cab. Thanks to its solid construction and a comfortable handle made of hardened plastic, it ensures working comfort and durability. The built-in button allows easy control of additional functions, such as solenoid valves. The joystick is compatible with popular tractor models, such as Zetor or Ursus, which makes it a universal solution for many agricultural machines. Joystick with a button for ball-end cables. Used in hydraulic systems controlled by multiple sections, used in machines of the agricultural, construction and other industries.
A joystick with one button, designed for cables ending in a ball (14 mm), is the most popular model used in front loaders with directional control valves of the VDM6, Badestnost or Galtech type.
Key features of this model:

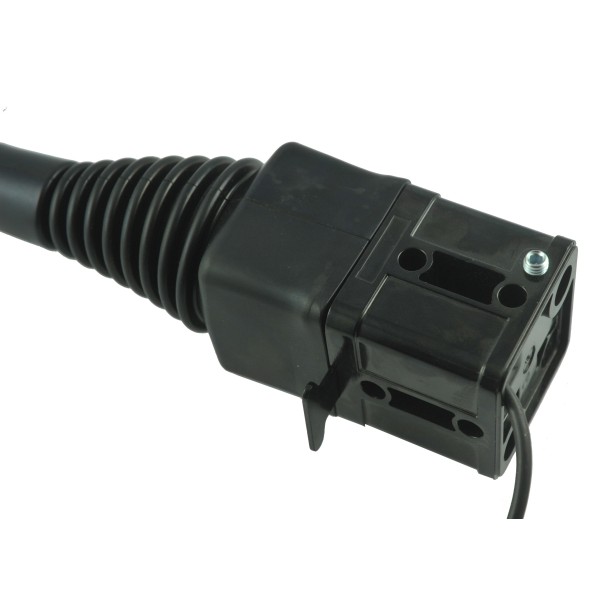

Mounting system: Designed for two cables with a ball end (the so-called Italian/Indemar standard).

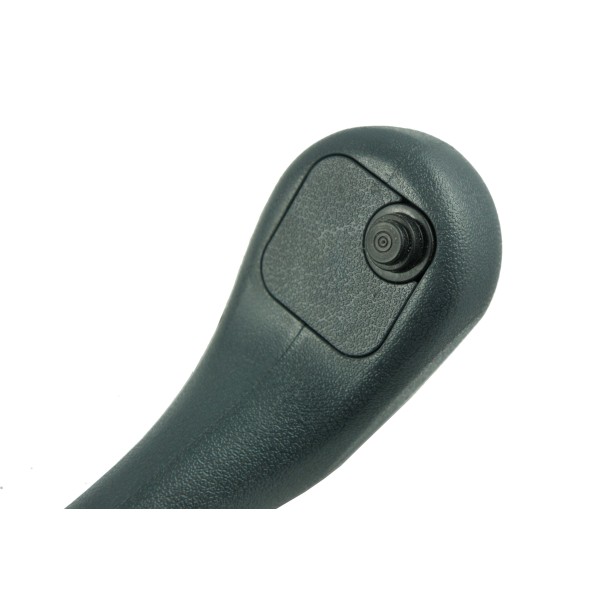

Button function: The electric (normally open) button is used to control the solenoid valve (the 3rd section) - e.g. opening a crocodile grapple or a grab.
Safety lock: It has a mechanical slider that locks the movements of the joystick, which is essential when driving on public roads.
Power supply: The button has two wires led out for connecting a 12V/24V installation.
Technical data:
Compatibility: Control valves operated by cables (VDM6, P40, P80).
Material: Durable plastic and a metal base.
What should you pay attention to during installation?
1. Cable length: If you are buying a complete set, 2 m cables are standard, but for larger tractors (e.g. MTZ, larger Zetor models) it is worth considering 2.5 m or 3 m.
2. Relay: It is recommended to connect the button via a relay in order to protect the delicate contact inside the joystick from burning out caused by the solenoid valve coil.
3. Ball socket: Check whether your current cables definitely have a 14 mm ball (versions with a “fork” end are less common).
Warehouse: K18:M03 S1, L01-M0
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to production differences over the years.
