copy of Engine oil filter 504182851 / LS PLUS70 / LS PLUS80 / LS PLUS90 / LS Tractor / 40199026

Engine oil filter with thread for LS Tractor series LS PLUS 70, LS PLUS 80, LS PLUS 90 and others.

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal oil filter , screw-on, is a filter whose main task is to remove the smallest impurities from the oil, even 1/50 mm in size. The filter construction is very simple and consists of a metal can with a thread and a paper insert inside arranged in a so-called accordion to increase the filtration surface. Oil contamination, for which we use the filter, most often arises, in the case of organic impurities, from the breakdown of the oil itself during operation, from fuel residues or are by-products of oxidation. Mineral impurities are air impurities and metal particles that appear in the engine during operation.

Dimensions :

• height: 95 mm,
• diameter: 93 mm,
• base diameter: 95 mm,
• seal diameter: outer 70 mm, inner 61 mm,
• thread: M27 x 2.00,
• weight: 0.520 kg,
• part number: 504182851, 504182851L, 40199026, 40196723.

Tractor models :

LS Tractor :

• LS PLUS70,
• LS PLUS80,
• LS PLUS90.

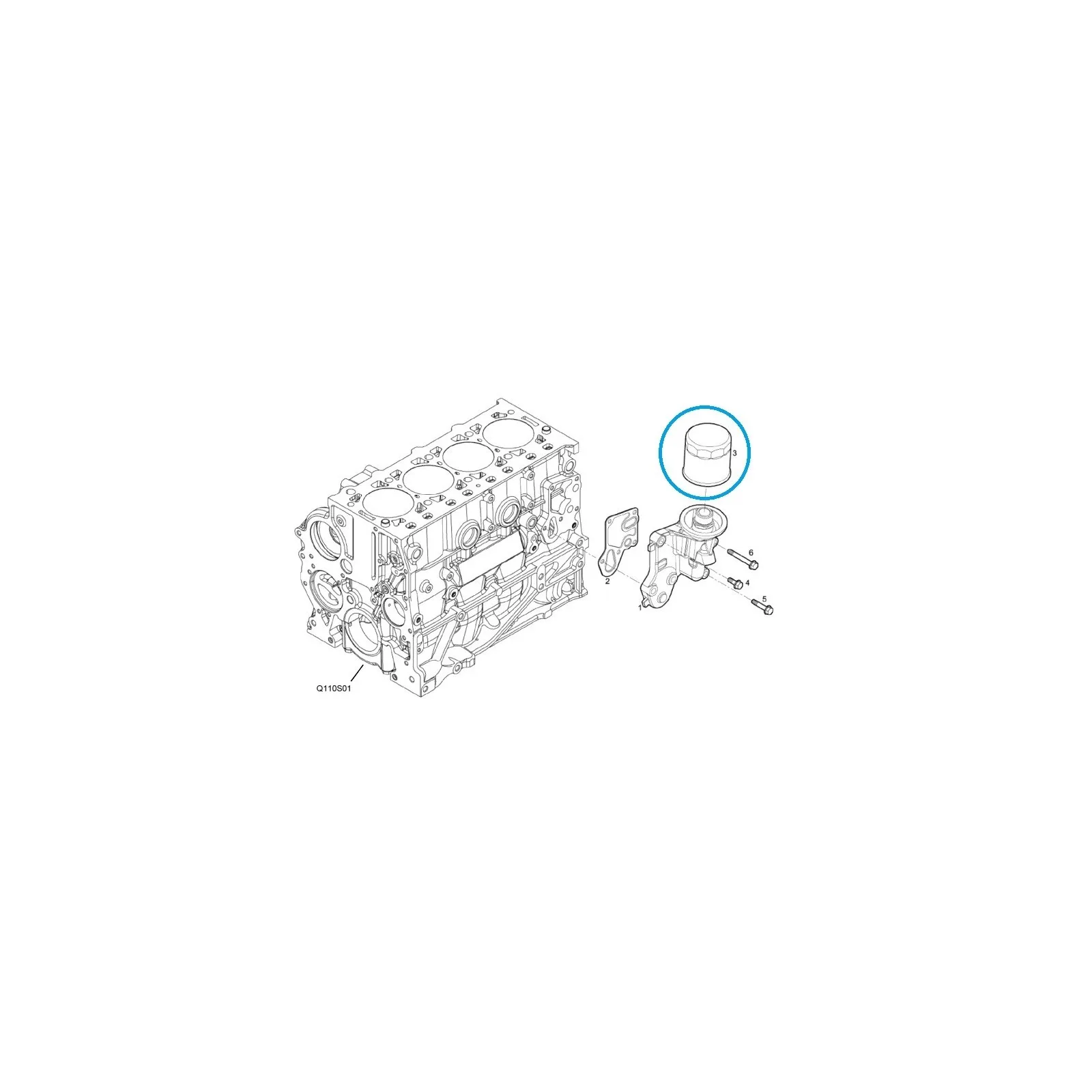

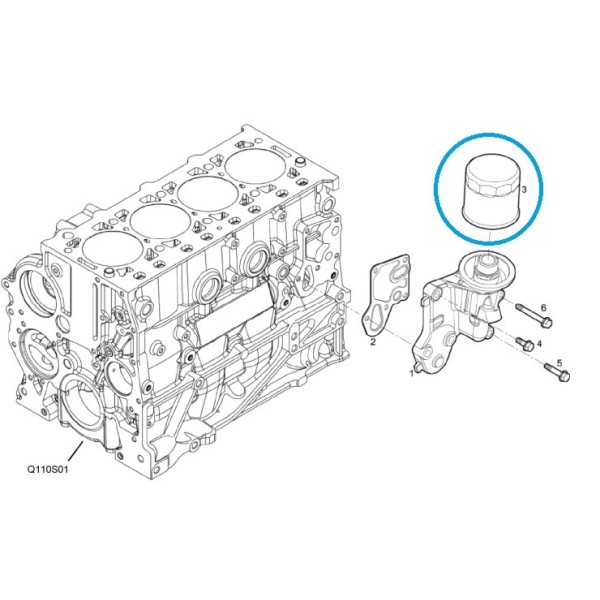

The filter is most often mounted on the side of the engine and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption and in extreme cases a clogged oil filter can lead to engine overheating and damage to the head gasket. The oil filter should always be replaced together with the oil change at the frequency specified in the machine's operating instructions.
