Condition
New
Production
Substitute
Parts
Filtry
Tractor models
Iseki TM3200
Height (mm)
170
Diameter (mm)
80
Base diameter (mm)
84
Go to full specification >
wishlist

Hydraulic oil filter 70 x 80 mm, M20x1.5 Kubota, Yanmar, Iseki, Hinomoto

36049hps
3661200253794
zł75.00
Tax included PL 23%

60,98 netto

  • To order
wishlist

Do you have any questions?

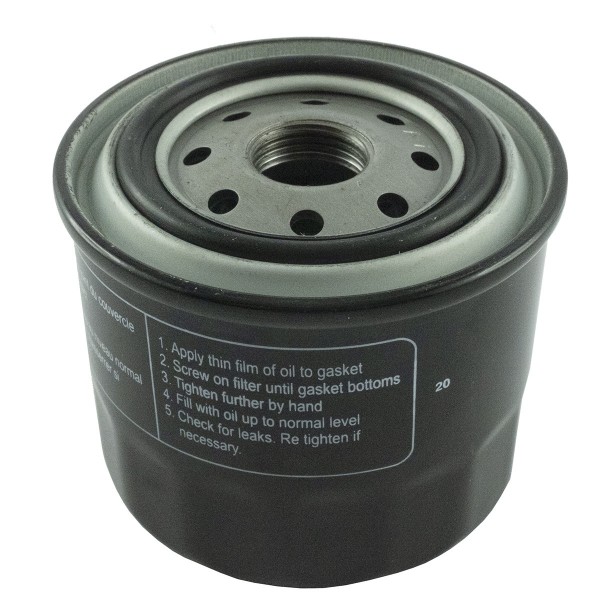

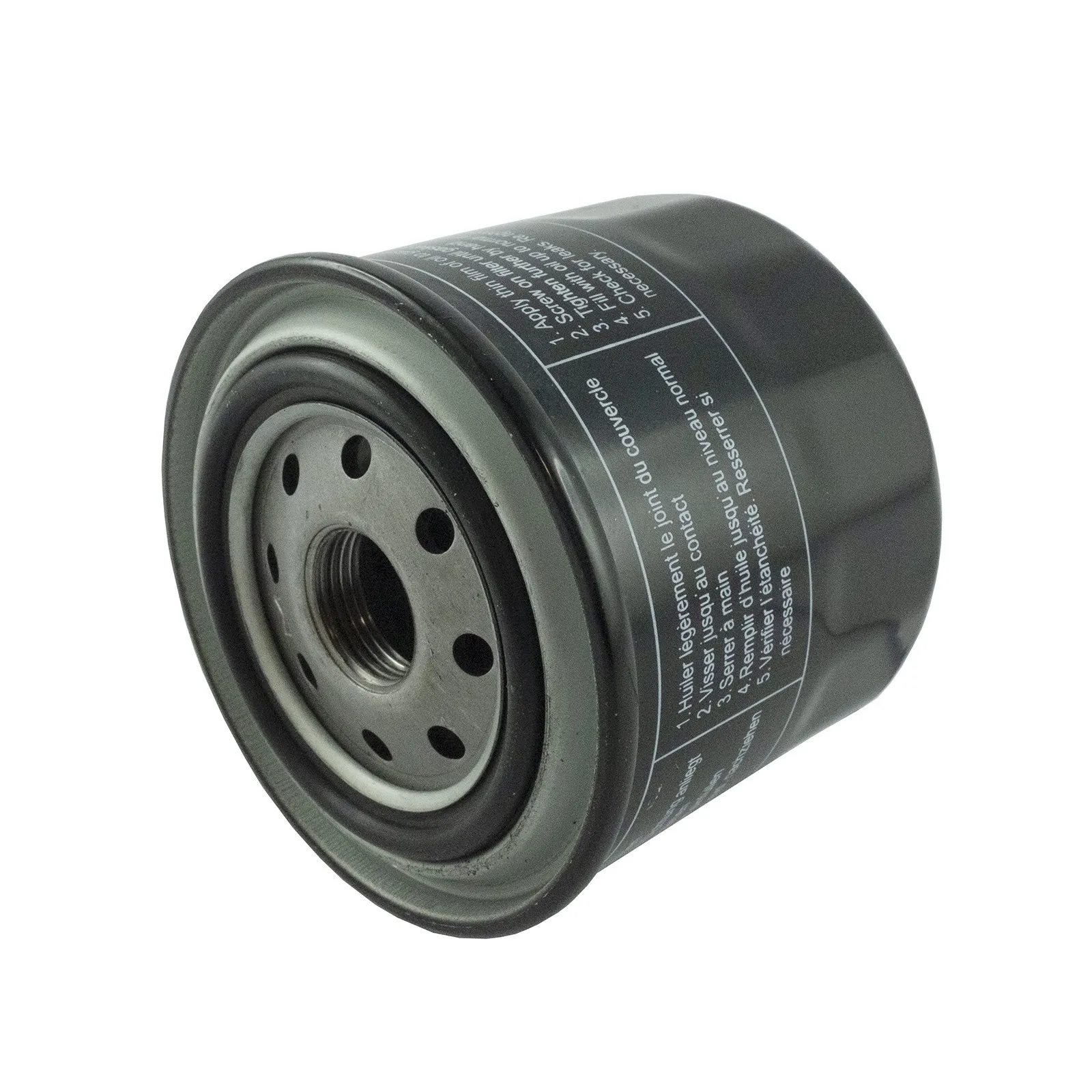

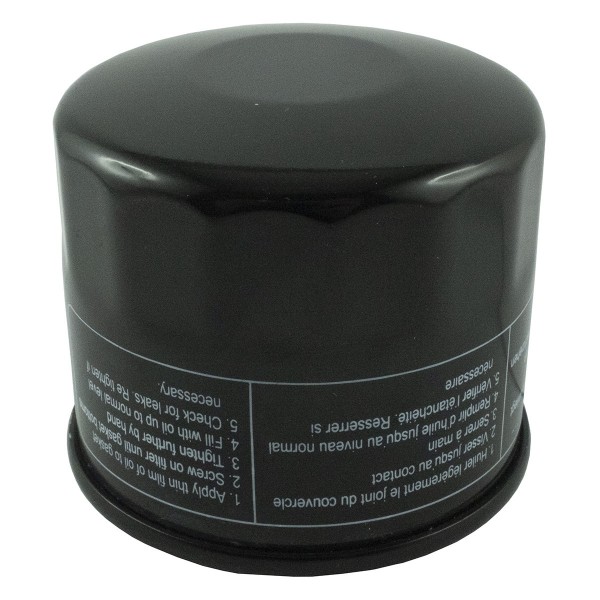

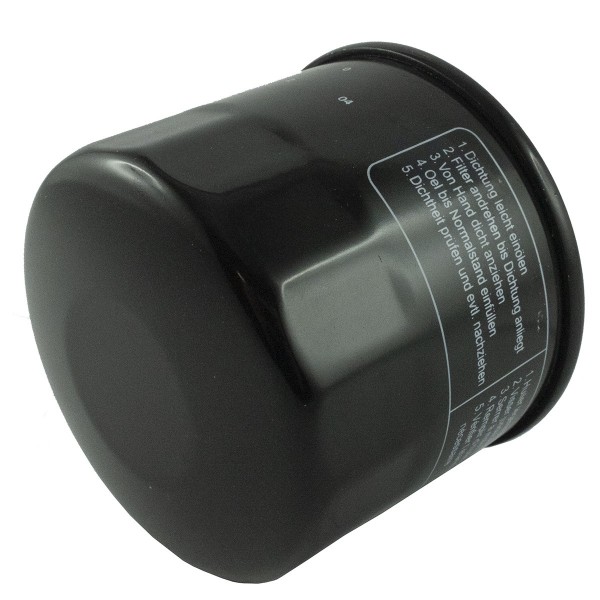

Hydraulic oil filter 70 x 80 mm, M20x1.5 Kubota, Yanmar, Iseki, Hinomoto

Hydraulic oil filter , dimensions 70x80 mm, with M20X1.5 thread for Japanese Kubota , Iseki , Hinomoto and other tractors and mini tractors.

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor's box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor. Regular replacement of the hydraulic filter is a guarantee of trouble-free operation of the machine and the certainty that in there are no foreign bodies in the hydraulic system that could damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.

Dimensions :

  • Height: 70 mm,
  • Diameter: 80 mm,
  • Base diameter: 84 mm,
  • Seal diameter: external: 63 mm, internal: 50 mm,
  • Thread: M20X1.5, 18.70 mm,
  • Weight: 0.360 kg,
  • Reference numbers: SHP 94063

Tractor models:

Iseki:

  • Iseki TM3200,

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.

Magazine: M01:F54

Specification

Magazyn: M01:F54
Condition
New
Production
Substitute
Parts
Filtry
Tractor models
Iseki TM3200
Height (mm)
170
Diameter (mm)
80
Base diameter (mm)
84
Weight (kg)
0.360
Thread
M20 x 1.5
Comparison numbers
SPH94063
Filter type
Hydraulic oil filter
Inner seal diameter (mm)
50
Outer seal diameter (mm)
63
