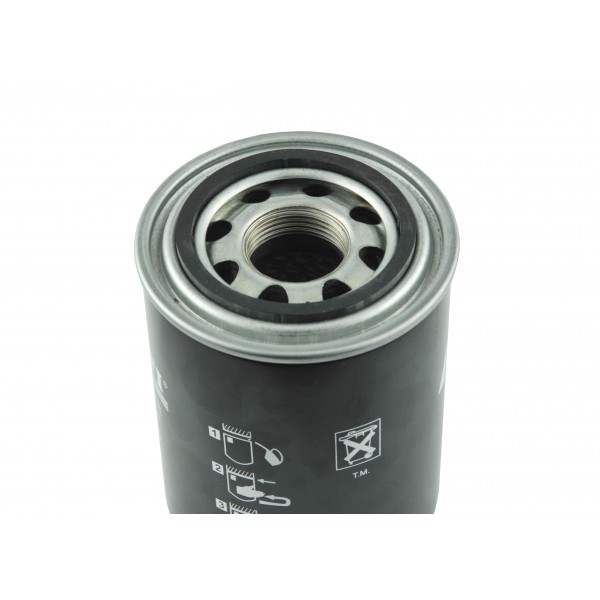

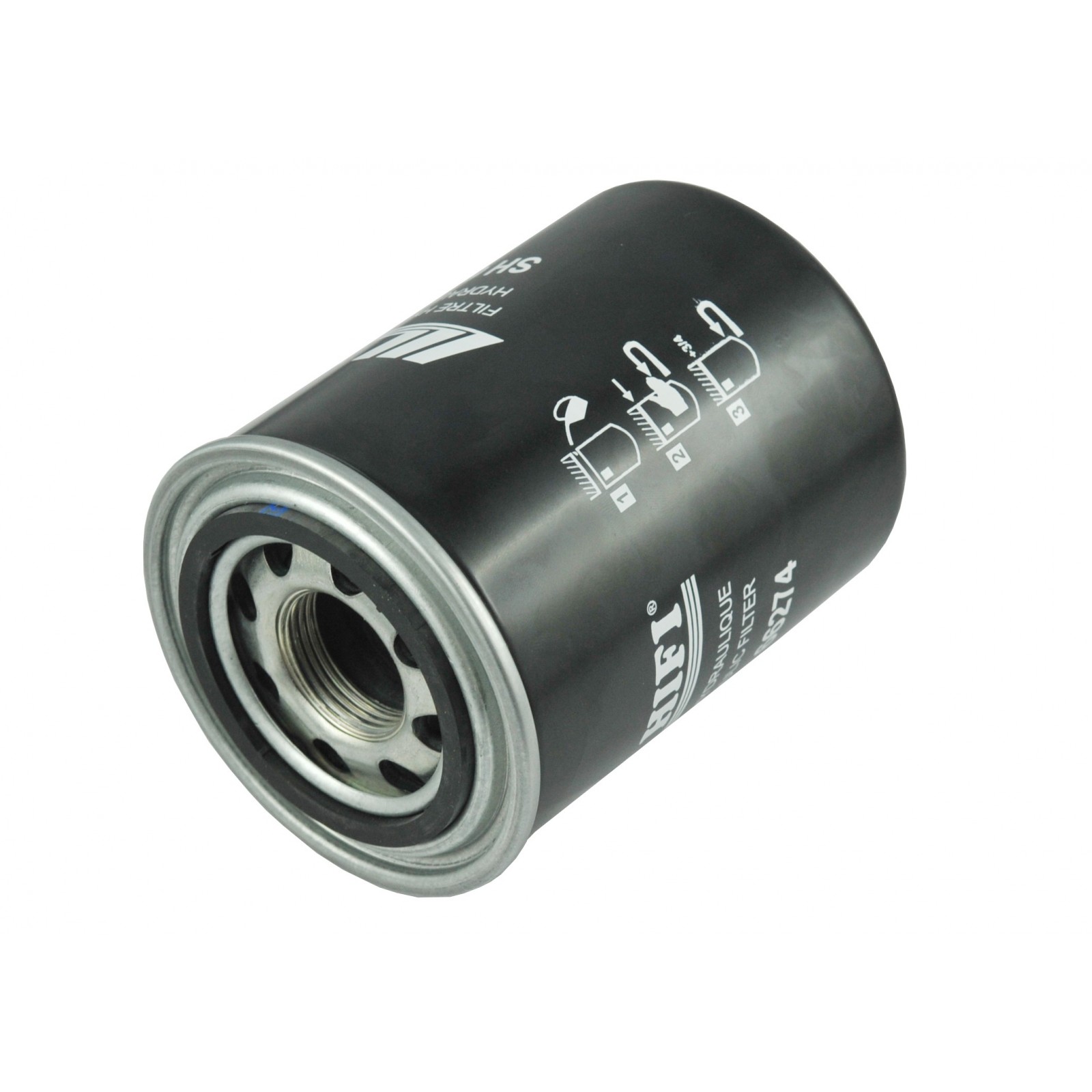

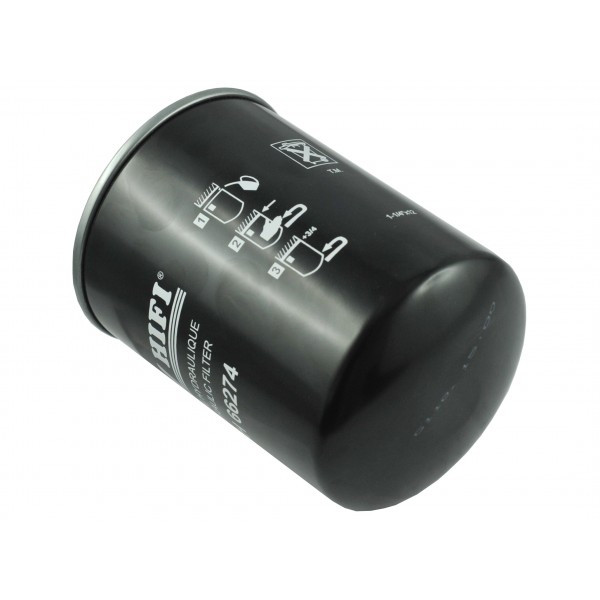

John Deere hydraulic oil filter
Hydraulic filter, John Deere hydraulic oil.
The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). A hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor.
Dimensions:
- Height: 130mm.
- Diameter: 95 mm.
- Base diameter: 98 mm.
- Gasket diameter: outside: 73 mm, inside: 62 mm.
- Thread: 1"1/4-12UNF, 29.80mm.
- Weight: 0.695 kg.
Replacement for:
- John Deere LVA14703
Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign bodies in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.
Magazine: M:01 F53
