Available
Condition
New
Production
Substitute
Parts
Filtry
Tractor models
- Yanmar FX20
Yanmar AF22
Height (mm)
143
Diameter (mm)
96
Base diameter (mm)
97

Hydraulic oil filter 96 x 143 mm / 1"1/2-16UNF / Zinga He 10 / Fleetguard HF 6610

06665HS
zł80.00
Tax included PL 23%

65,04 netto

  • Dostępność (9 Quantity): stock

Do you have any questions?

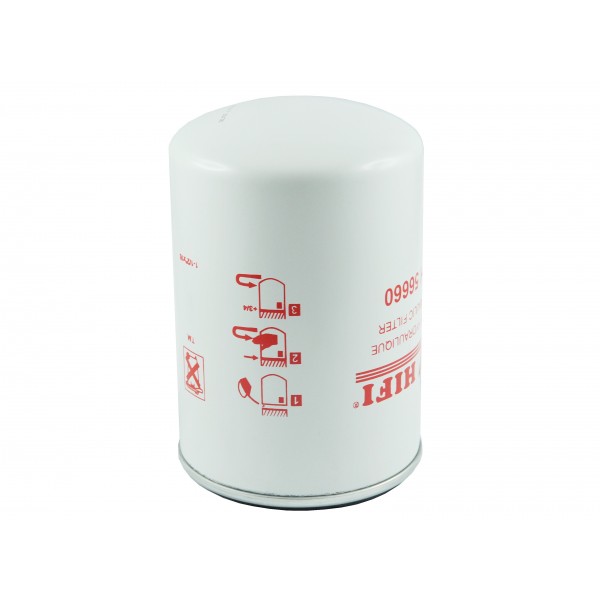

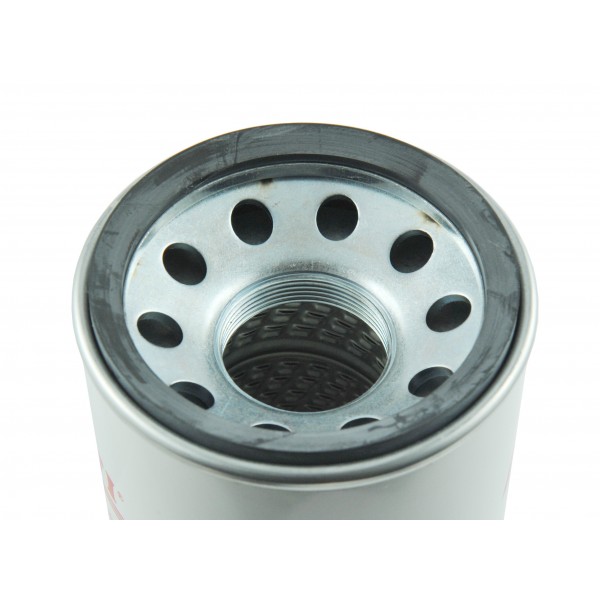

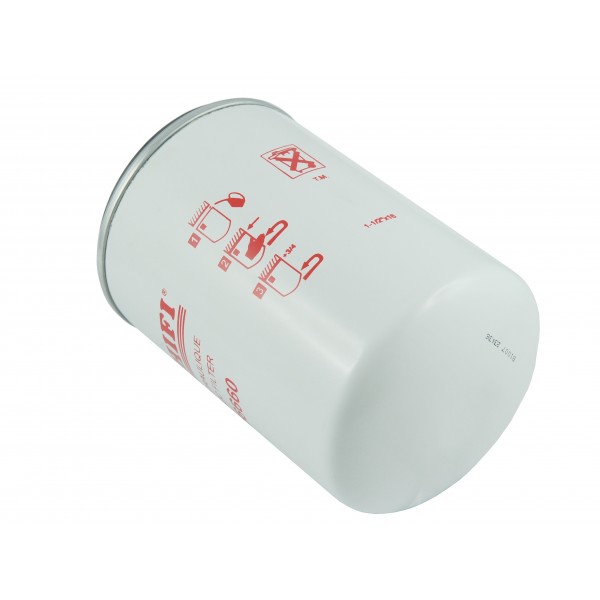

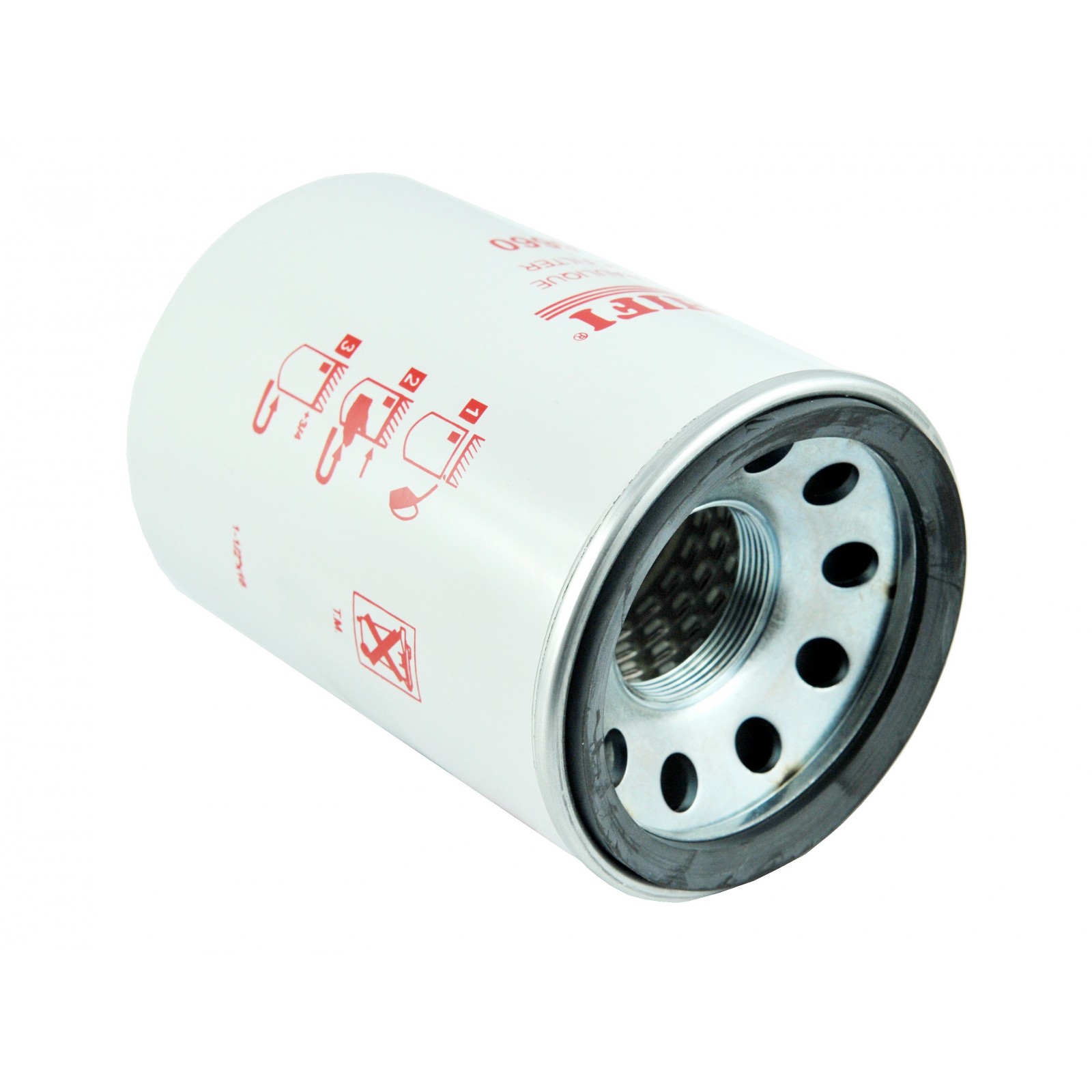

Hydraulic oil filter 96 x 143 mm / 1"1/2-16UNF / Zinga He 10 / Fleetguard HF 6610

Hydraulic oil filter with 1"1/2-16UNF thread, dimensions 143 x 96 mm , for Japanese Iseki tractors and mini tractors of the TA series, TK series , Mitsubishi MT series, Hinomoto E series, Mahindra , Yanmar AF series, FX, TOKO and others .

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). A hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor.

Dimensions:

  • height: 143 mm,
  • diameter: 96 mm,
  • base diameter: 97 mm,
  • seal diameter: external 90 mm, internal 75 mm,
  • thread: 1"1/2-16UNF,
  • weight: 0.610 kg.

Tractor models :

Yanmar :

  • Yanmar AF22,
  • Yanmar FX20D.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees trouble-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.

Magazine : M01:F52

Specification

Magazyn: K18:A39:S01
Condition
New
Production
Substitute
Parts
Filtry
Tractor models
- Yanmar FX20
Yanmar AF22
Height (mm)
143
Diameter (mm)
96
Base diameter (mm)
97
Weight (kg)
0.610
Thread
1"1/2-16UNF
Filter type
Hydraulic oil filter
Inner seal diameter (mm)
75
Outer seal diameter (mm)
90
