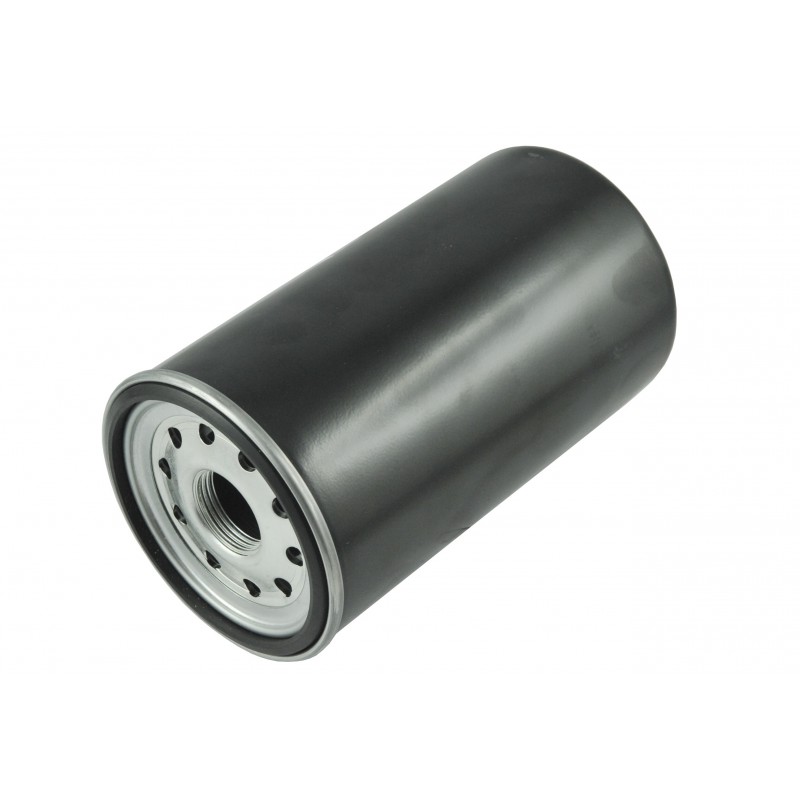

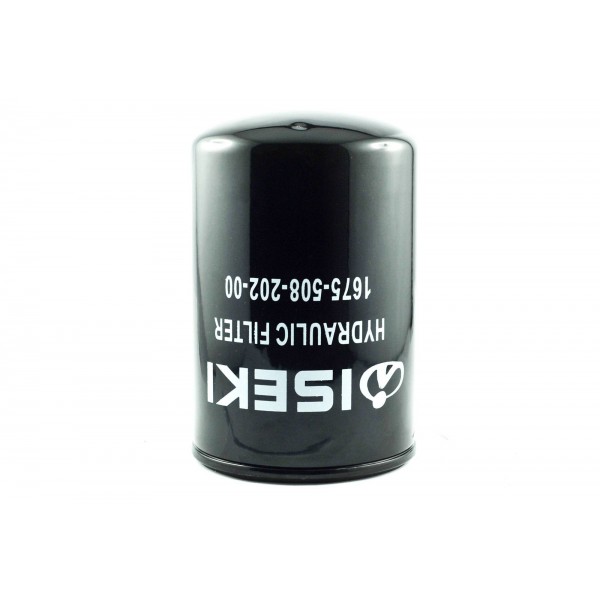

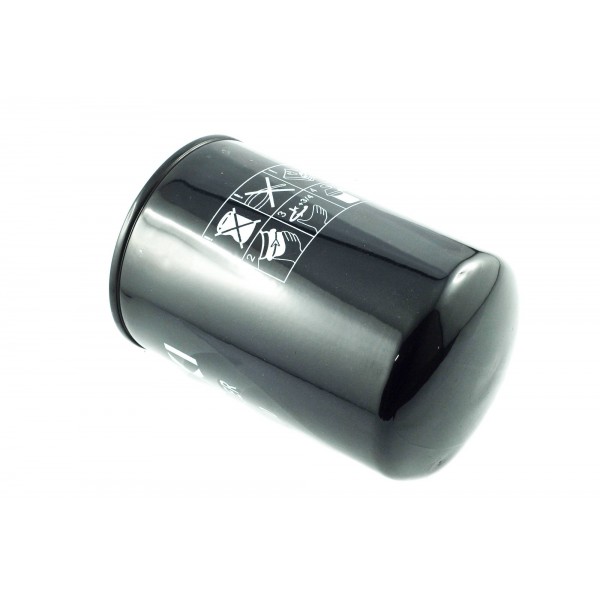

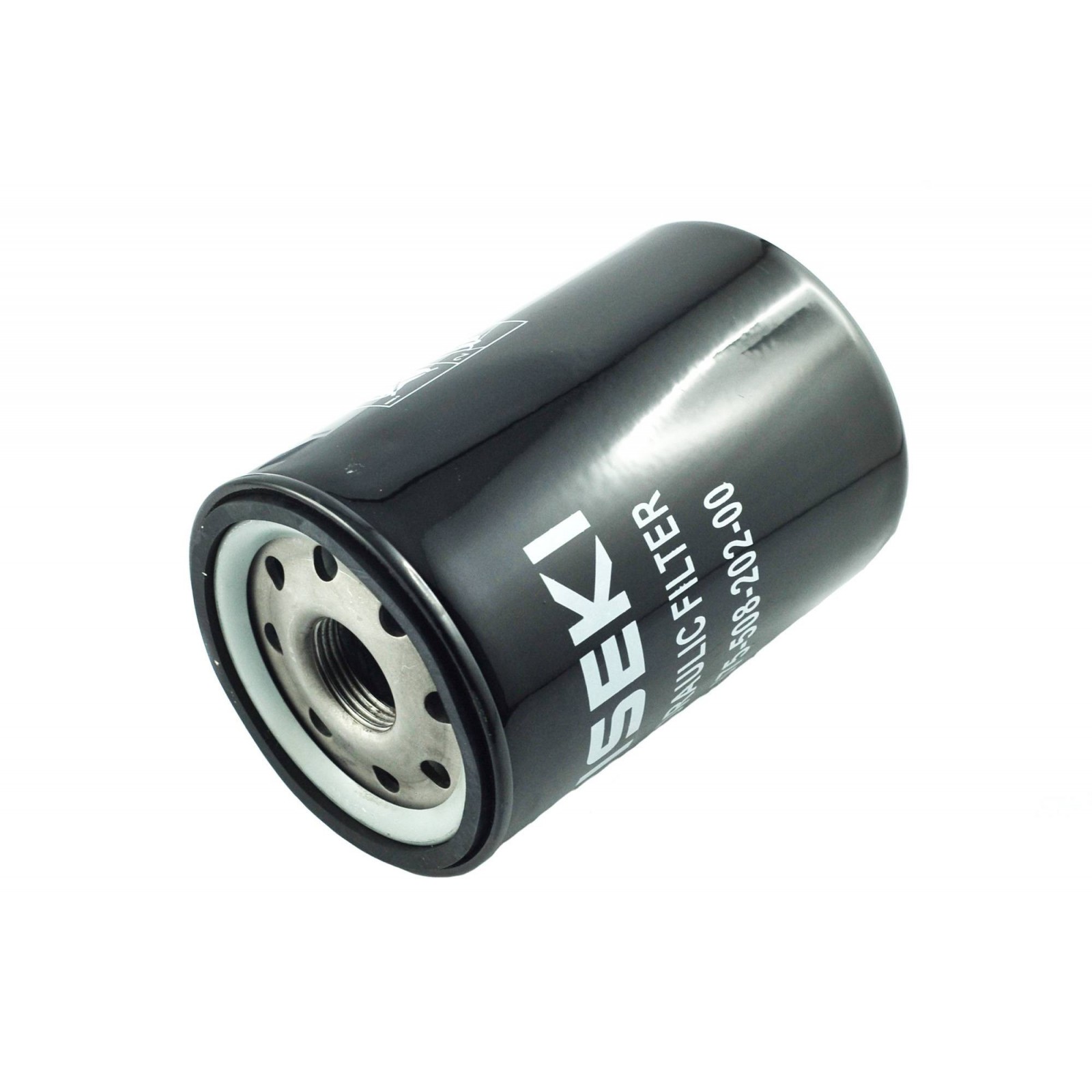

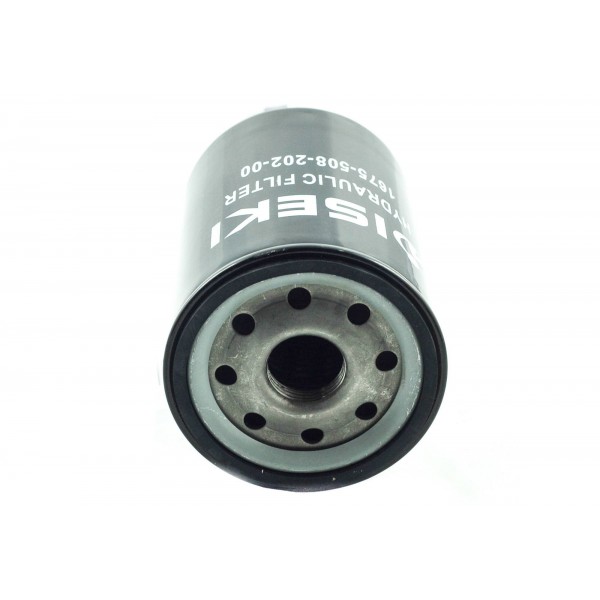

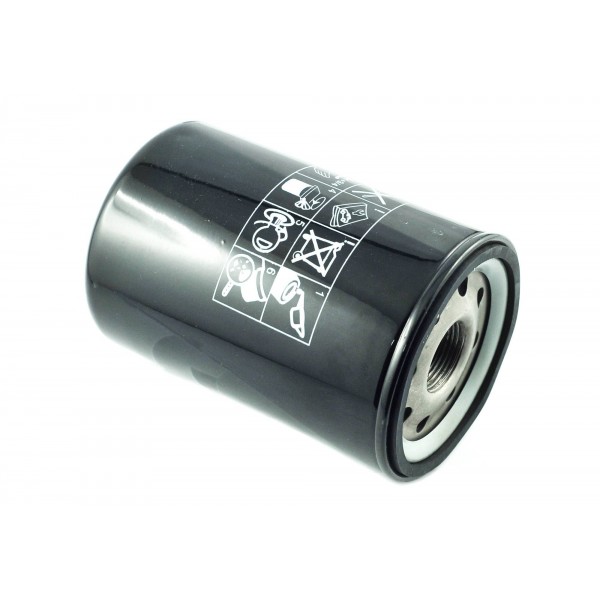

Hydraulic Oil Filter 170 x 108mm / 1 "1 / 4-12UNF / Iseki TF / TG / Geas / Sial / Hunter / 1675-508-202-00

Hydraulic filter dimensions 170 x 108 mm with 1 "1 / 4-12UNF thread for Japanese Iseki tractors and mini tractors of TF , TG , Geas , Sial, Huntar and others.

The main task of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that get into the hydraulic system or arise during tractor operation, e.g. solid (mineral) particles that arise during the operation of the machine. The hydraulic filter is changed every time the hydraulic oil is changed or when the vehicle is operated frequently, in the case of mini tractors it is approximately every 100 hours in the case of second-hand tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the operating manual of the machine, usually after the first 50 operating hours (at least 3 cycles). The hydraulic filter is usually a metal filter with a thread and a gasket , which is mounted in the vicinity of the tractor's box exactly along the flow of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor,

Dimensions :

• Height: 170 mm.
• Diameter: 108 mm.
• Base diameter: 112 mm.
• Gasket diameter: outer: 101.50 mm, inner: 90.50 mm.
• Thread: 1 "1 / 4-12UNF, 29.50mm.
• Weight: 1.1 kg,
• Comparative Numbers: 1675-508-202-00 ,

Tractor models :

• Iseki Sial 223,
• Iseki Sial 233,
• Iseki Sial 19 Hunter,
• Iseki Sial 20 Hunter,
• Iseki Sial 22 Hunter,
• Iseki Sial 24 Hunter,
• Iseki Geas 21,
• Iseki Geas 23,
• Iseki Geas 25s,
• Iseki Geas 27,
• Iseki Geas 233,
• Iseki Geas 253,
• Iseki Geas NTA40,
• Iseki TF153,
• Iseki TF173,
• Iseki TF193,
• Iseki TF223,
• Iseki TF243,
• Iseki TG21,
• Iseki TG23,
• Iseki TG25,
• Iseki TG33,
• Iseki TH205.

Replacing the hydraulic filter (regular) and cleaning the insert in the case of a mesh filter is a guarantee of failure-free operation of the machine and the certainty that there are no foreign objects in the hydraulic system that may damage our tractor or adversely affect the operation of the machine, reducing its operating parameters.
