Product description

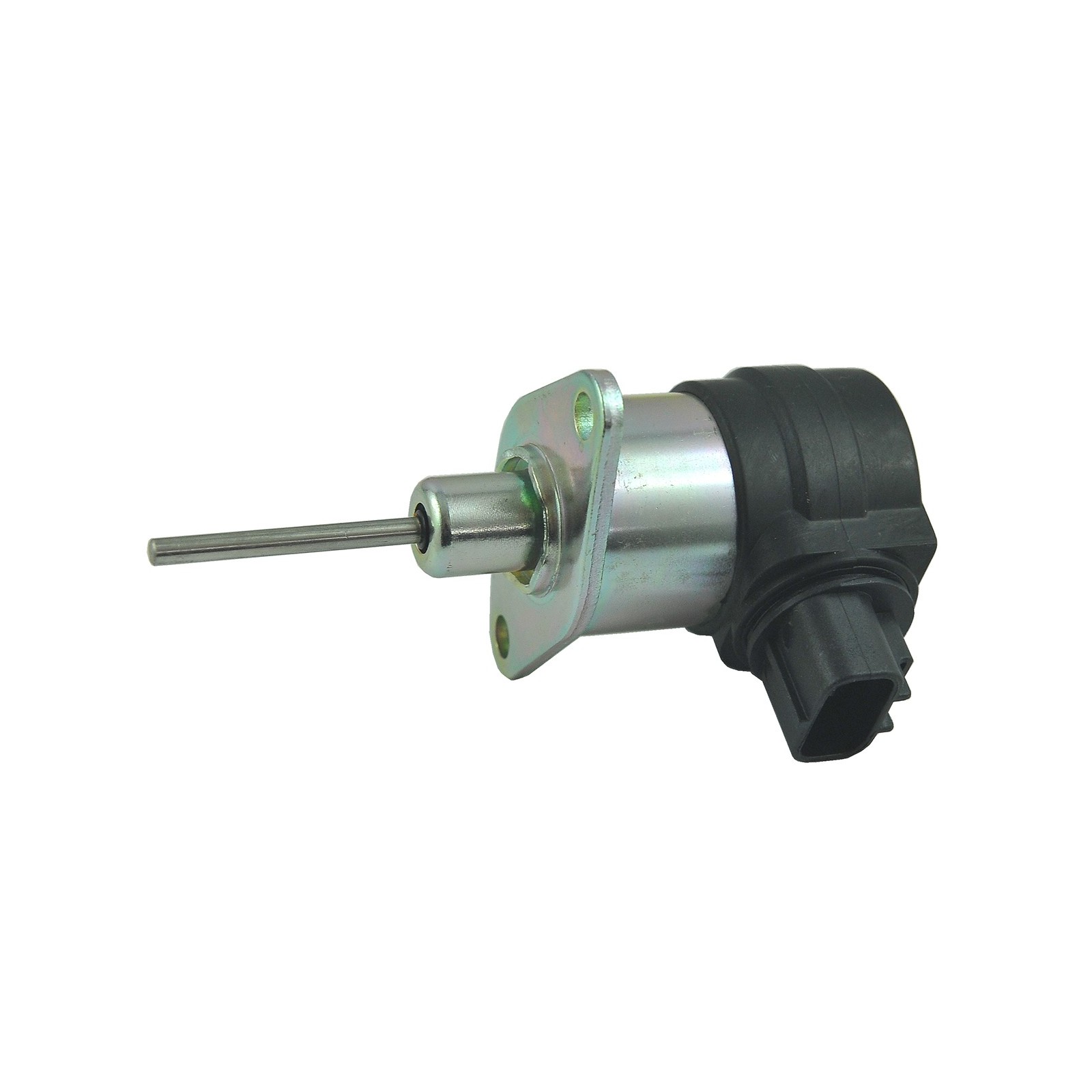

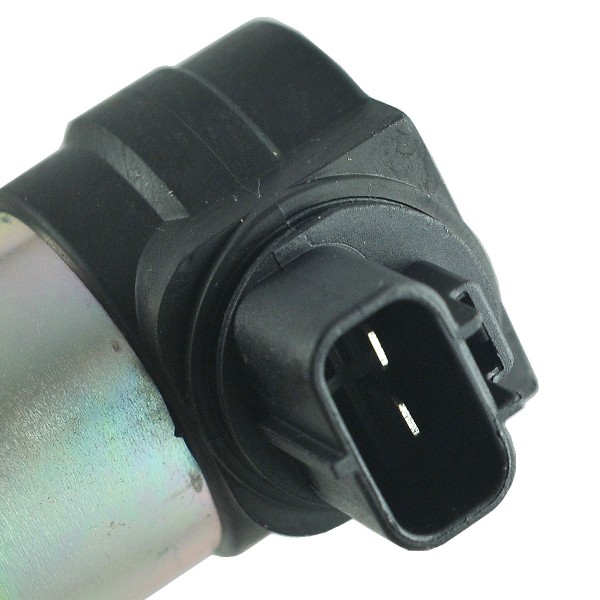

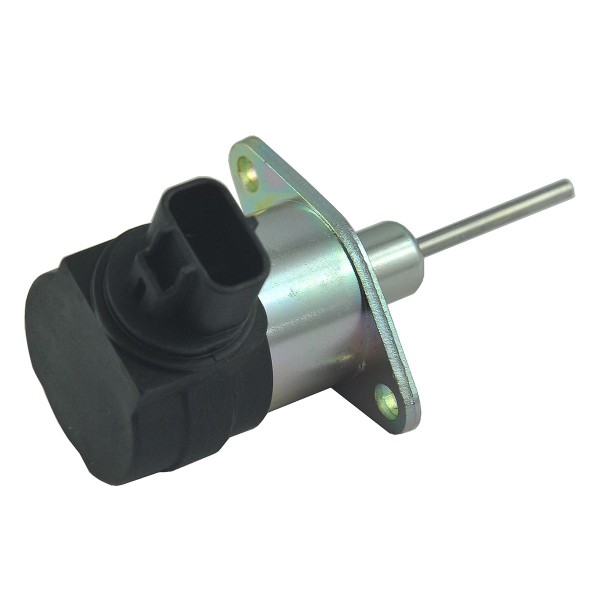

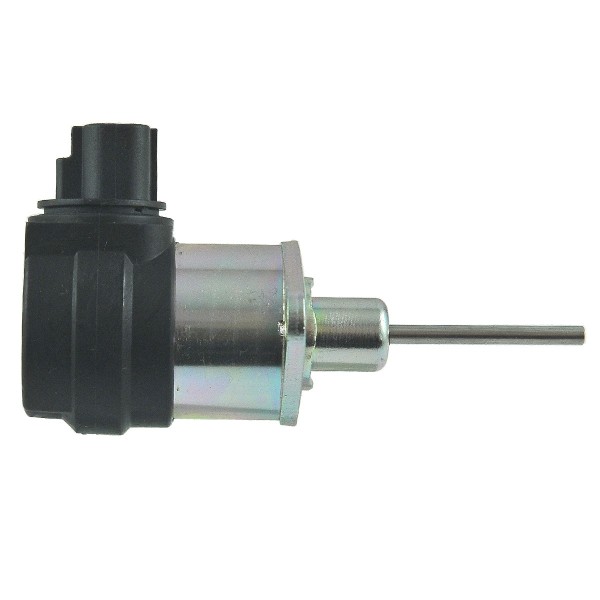

Shut-off coil (solenoid) with a diameter of 38 mm and a total length of 78 mm (measured with the rod) for Kubota tractors, models Kubota L3218, Kubota L3008, Kubota L3408, Kubota L3608, Kubota L4018, Kubota L4508, Kubota L4708, Kubota L5018, with Kubota D1703, Kubota V2003, Kubota V2403, Kubota V3307 engines and others.
The shut-off coil, solenoid valve or electromagnet is one of the most important elements of the tractor's ignition system and is responsible for cutting off the fuel supply to the fuel pump. The task of the shut-off coil is to stop the engine. The shut-off solenoid is an electrical device operating at 12V, often immersed in oil.
Dimensions:
- voltage: 12V,
- diameter: 38 mm,
- total length (without rod): 78 mm,
- rod length: 42 mm,
- number of pins: 2 pcs.
- mounting bolt hole spacing: 56 mm,
- original part numbers: 1A084-60012, 1J880-60013,
- cross-reference numbers: 6-25-100-13,
- part numbers: 6-25-100-32.
Engine models:
Kubota:
- Kubota D1703,
- Kubota V2003,
- Kubota V3307,
- Kubota V2403.
Tractor models:
Kubota:
- Kubota L3218,
- Kubota L3008,
- Kubota L3408,
- Kubota L3608,
- Kubota L4018,
- Kubota L4508,
- Kubota L4708,
- Kubota L5018.
The first signs of a failing shut-off coil are engine starting problems, rough engine idling or jerking when pulling away. Sometimes problems with the proper operation of the shut-off coil result from a poorly charged battery.
Warehouse:
K18:E16
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to production differences over the years.
