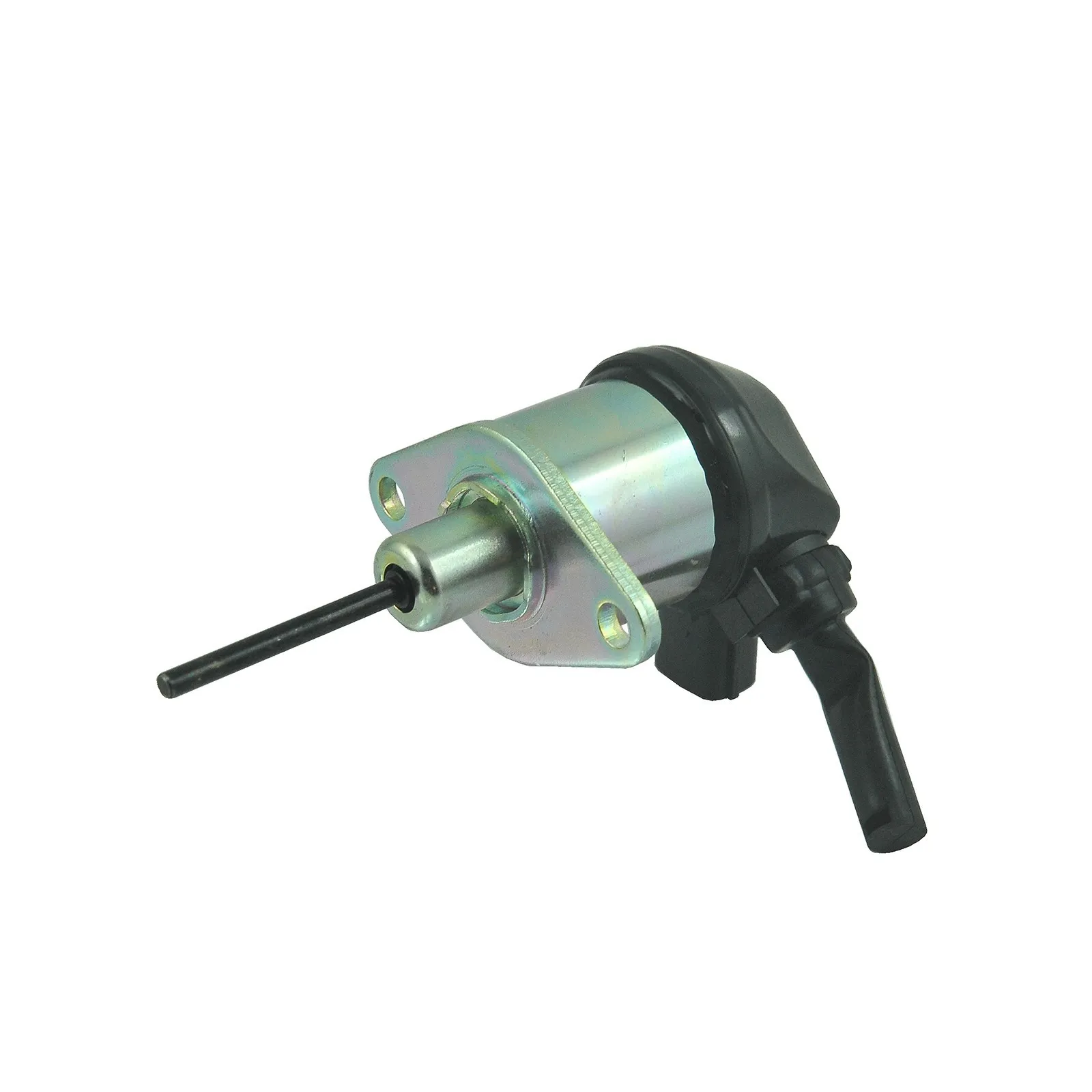

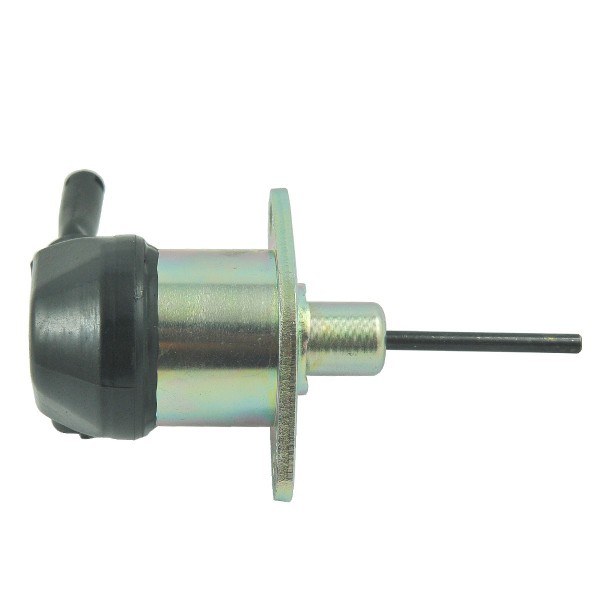

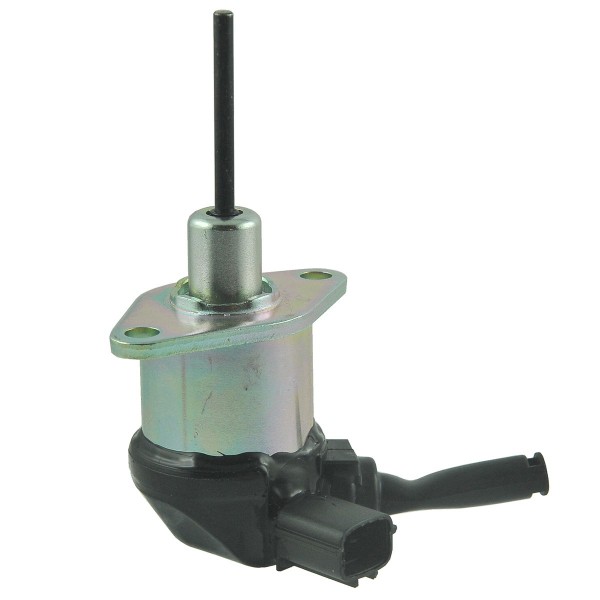

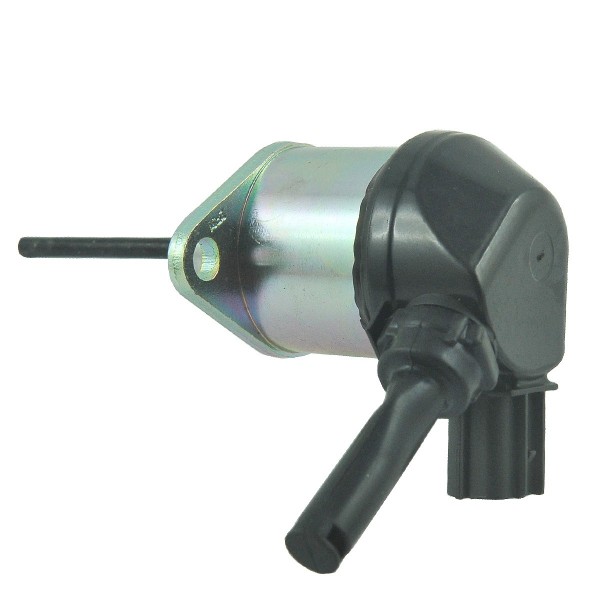

Extinguisher coil / Kubota D1503 / D1703 / D1803 / V2003 / V2203 / V2403 / Kubota L3408 / L3608

Selenoid extinguishing coil with a diameter of 38 mm and a total length of 75 mm for Kubota tractors of the Kubota GL26, Kubota GL27, Kubota GL29, Kubota GL32, Kubota GL33, Kubota GL260, Kubota GL261, Kubota GL268, Kubota GL277, Kubota GL280, Kubota GL281, Kubota GL300, Kubota GL301, Kubota GL320, Kubota GL321, Kubota GL337, Kubota GL338, Kubota L3408, Kubota L3608 series with Kubota D1503, Kubota D1703, Kubota D1803, Kubota V2003, Kubota V2203, Kubota V2403 and others engines.

The extinguishing coil , solenoid valve , or electromagnet is one of the most important elements of the tractor's ignition system and is responsible for cutting off the fuel supply to the fuel pump. The extinguishing coil's task is to turn off the engine. The extinguishing choke is an electrical device operating at a voltage of 12V and often in oil immersion.

Dimensions :

• voltage: 12V,
• diameter: 38 mm,
• total length (without rod): 75 mm,
• rod length: 43 mm,

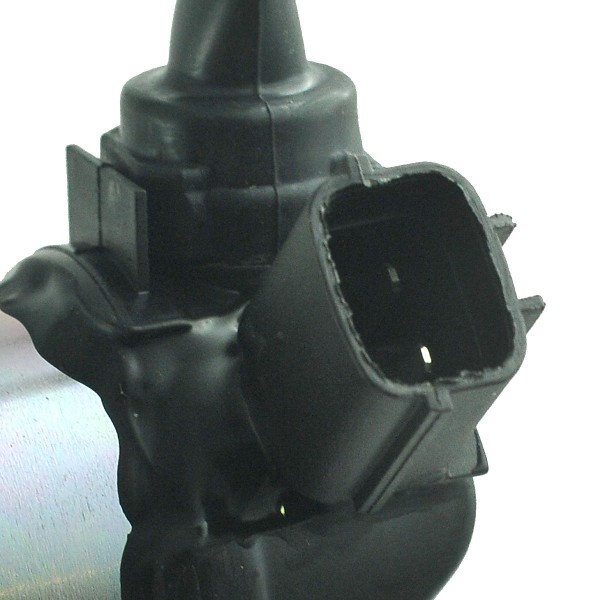

• number of pins: 2 pcs.
• spacing of mounting screw holes: 56 mm,
• original part number: 1A021-60017,
• part numbers: 6-25-100-12.

Tractor models :

Kubota :

• Kubota GL26,
• Kubota GL27,
• Kubota GL29,
• Kubota GL32,
• Kubota GL33,
• Kubota GL260,
• Kubota GL261,
• Kubota GL268,
• Kubota GL277,
• Kubota GL280,
• Kubota GL281,
• Kubota GL300,
• Kubota GL301,
• Kubota GL320,
• Kubota GL321,
• Kubota GL337,
• Kubota GL338,
• Kubota L3408,
• Kubota L3608.

Engine models :

Kubota :

• Kubota D1503,
• Kubota D1703,
• Kubota D1803,
• Kubota V2003,
• Kubota V2203,
• Kubota V2403.

The first signs of a failed extinguishing coil are problems with starting the engine, rough idling or jerking when starting off. Sometimes problems with the correct operation of the extinguishing coil are due to a weakly charged battery.

Magazine : M01:B61

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
