LS Tractor MT3.40 HST 4x4 - 40 HP / CAB / IND + arrow plow 200 cm, hydraulic 4FARMER + gritter 200L Strumyk
Ergonomic design
The LS Tractor MT3 series is, above all, a perfect fit for your needs. You choose how your tractor will be equipped to meet all your expectations. The LS Tractor is designed with versatility in mind. These machines are suitable for fields, gardens, orchards, plantations, transport, and municipal work. Thanks to the tractor's configuration options and the availability of attachments dedicated to LS tractors, this machine will be the ideal work partner.
Freedom of configuration
When choosing a tractor from the MT3 series, you can choose from several variants:
- front roll bar / rear roll bar,
- ergonomic, comfortable cabin,
- agricultural tires / industrial tires,
- manual gearbox / hydrostatic gearbox.
By choosing the MT3.40 model with the comfort cab configuration, the tractor becomes a year-round machine. Equipped with air conditioning, heating, an audio system, and interior and exterior lighting, it allows for comfortable operation even in challenging conditions.
Power = Possibilities
The MT3.40 is a premium tractor. Under the hood, the machine boasts a powerful, 3-cylinder L3CRV-T4 diesel engine with 40 HP. This engine guarantees excellent operating parameters and high efficiency. Additionally, eight hydraulic outlets allow the tractor to be connected to a wide range of attachments.
The MT3.40's Cat I 3-point linkage with a lifting capacity of 820 kg and an independent PTO shaft allow for versatile use. Four-wheel drive and power steering make the MT3.40 the perfect machine, tailored to your preferences. A comfortable Grammer suspension seat, seat belts, and high-quality interior finish ensure a luxurious and, most importantly, safe ride.

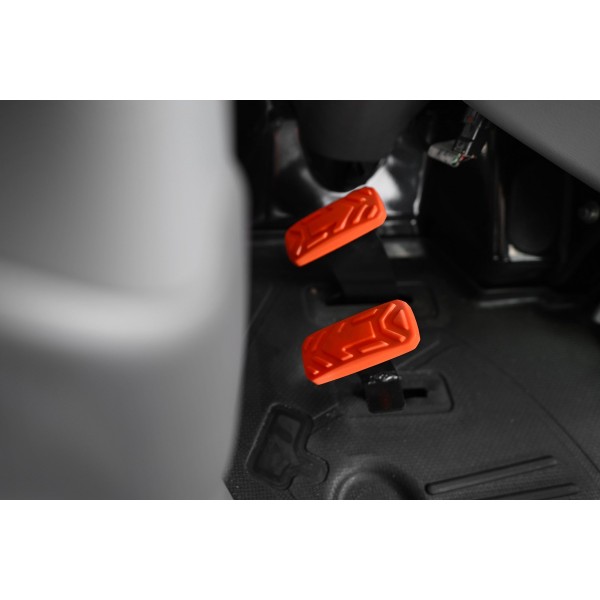

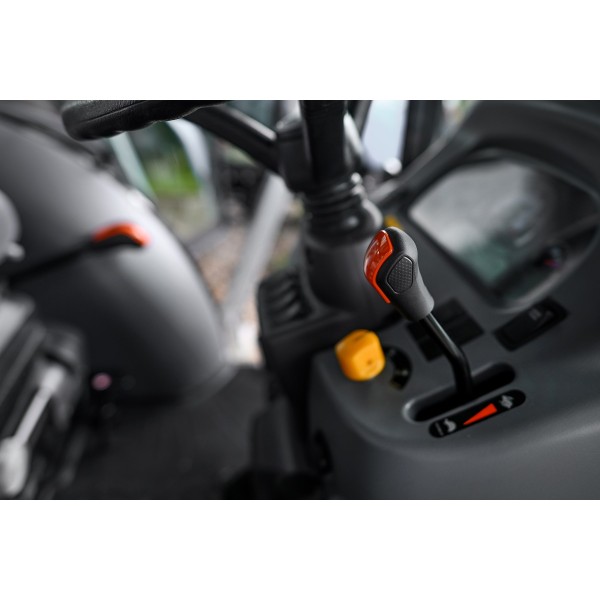

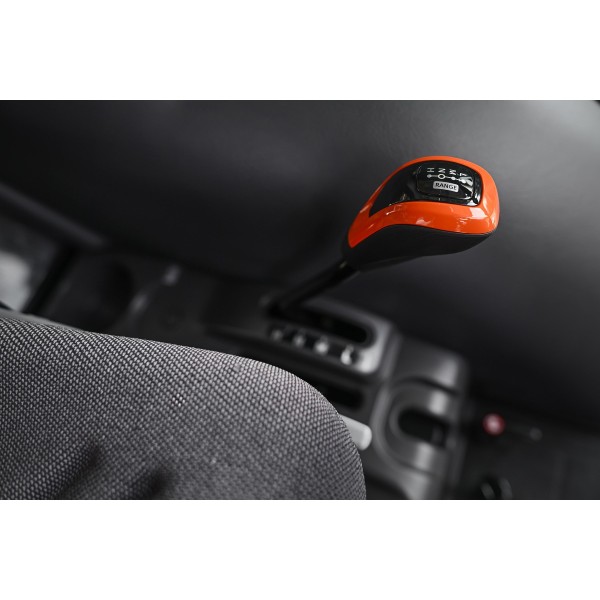

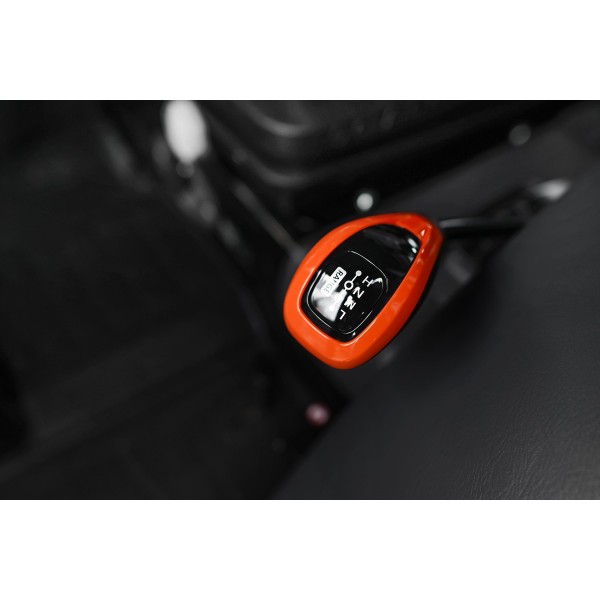

The MT3.40 model is equipped with a hydrostatic transmission, which allows for exceptional comfort and convenience during operation. It is operated by two pedals: F3 and R3. Pressing the appropriate pedal changes the direction of travel – forward or reverse.
The LS Tractor MT3.40 is a model with exceptional versatility, allowing you to work with a variety of attachments:
LS Tractors are modern, offer high operator comfort and are of the highest quality.
LS MT 3.40 with high-quality original LS cab
The cabin is very solidly constructed, adhering to the highest manufacturing standards. Thanks to the cabin, the LS MT 3.40 becomes a machine we can rely on in all weather conditions!
The tractor with a cabin is additionally equipped with a heating function, which is so important during work in the winter season.
Additionally, the cabin is equipped with:
- air conditioning,
- door locks,
- sun visor,
- lighting inside the cabin,
- carpet (plastic),
- audio system,
- front and rear wipers,
- external LED lighting (two lamps at the front and two at the rear of the tractor),
- side mirrors (2 pcs.),
- heater included,
- heater hoses (2 pcs.).
By choosing the LS MT3.40 model, you choose not only high quality workmanship, but also comfort and safety.

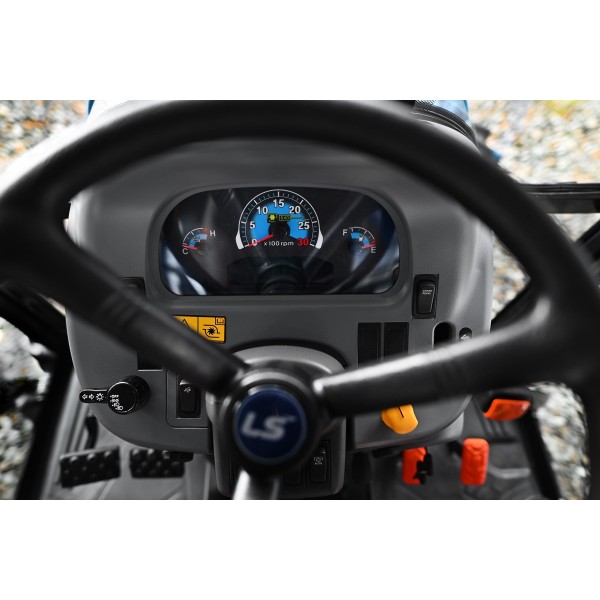

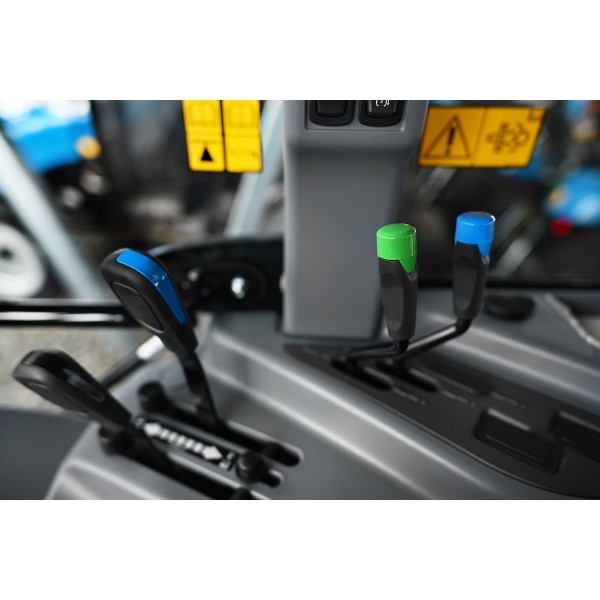

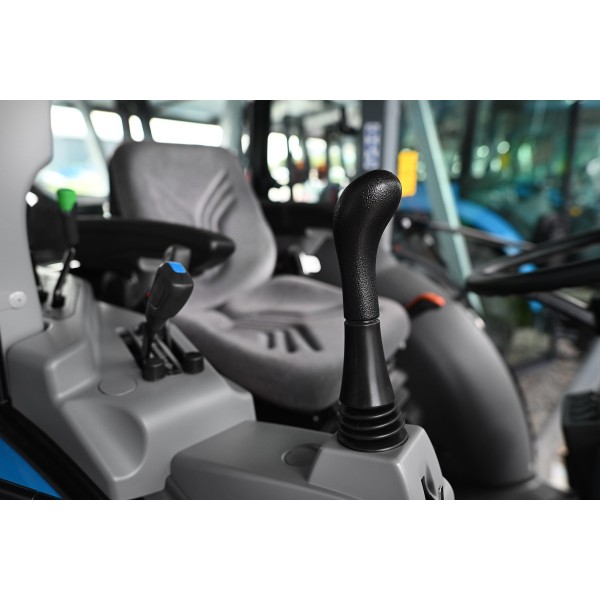

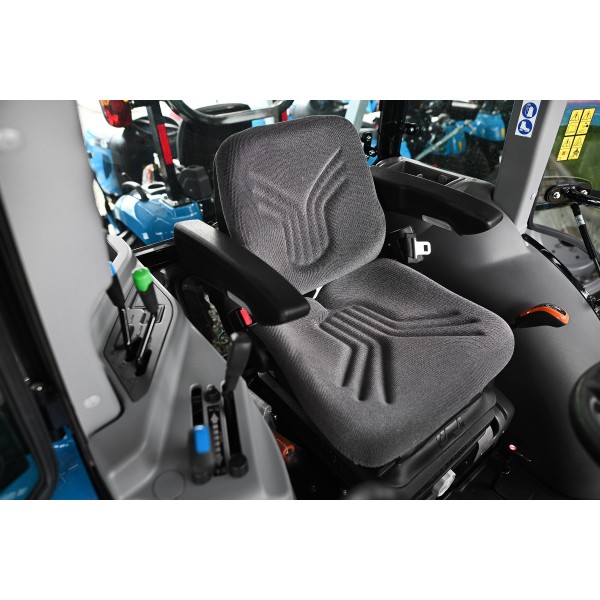

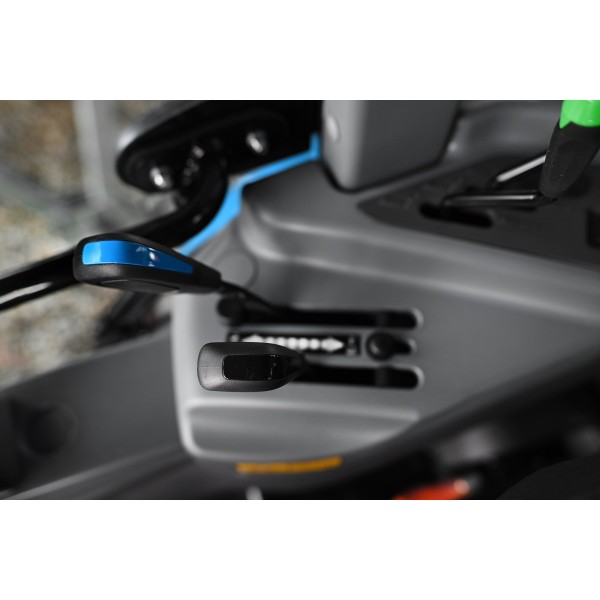

LS Tractor has equipped this unique machine with a comfortable, adjustable seat with a high backrest, armrests and suspension, which, together with ergonomically placed levers, ensures pleasant operation of the machine.
35 years of experience in agricultural tractor production has earned LS Tractor first place in the customer satisfaction survey for LS users, conducted in the US and Canada, for five consecutive years. Excellent hydraulics, a fuel-efficient and efficient engine, built with meticulous attention to detail, and precise assembly are some of the most important features that characterize all LS Tractor products. The MT3 series tractors are designed for more advanced users, but the simplicity and intuitiveness of the LS MT3 tractors allow for trouble-free operation for less advanced users.

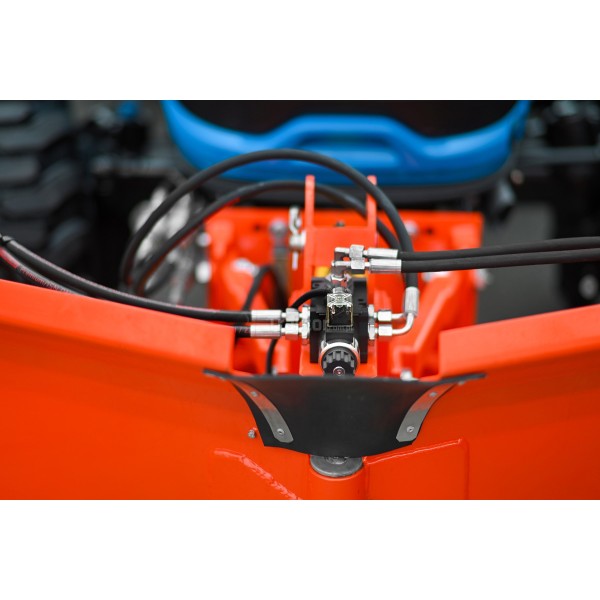

The plow is designed for tractors and mini tractors with a minimum power output of approximately 35 HP. The plow is hydraulically operated using three hydraulic cylinders and requires a three-section distributor with a floating section.

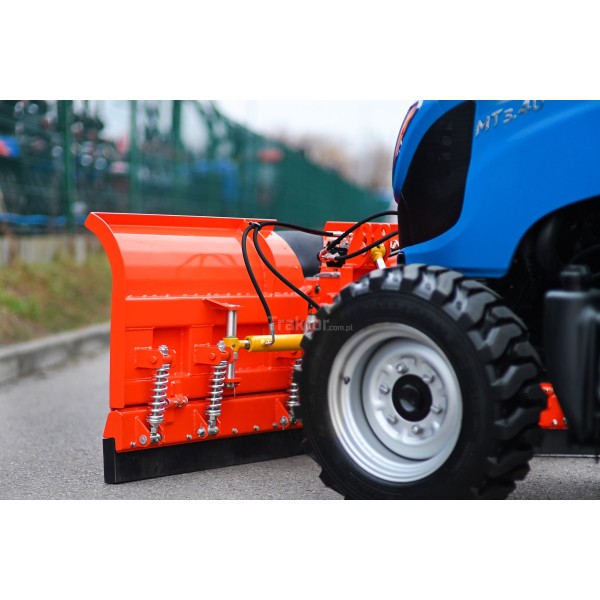

The plow blade has two sections: upper and lower. For safety reasons, the lower, movable section is equipped with a shock-absorbing system that tilts back when it encounters an obstacle. Powerful springs cushion the lower section of the blade, which is topped with a thick, 40 mm thick, 100 mm high rubber . The rubber serves as a protective layer for the snow-cleared surface.
The mounting plate is sold as a set with the plough , and the spacing of the mounting screws is 240 / 220 / 200 mm horizontally and 140 mm vertically, measured from the center to the center of the mounting screw holes.
To fully utilize the plow's capabilities, the tractor must have hydraulics at the front of the tractor .

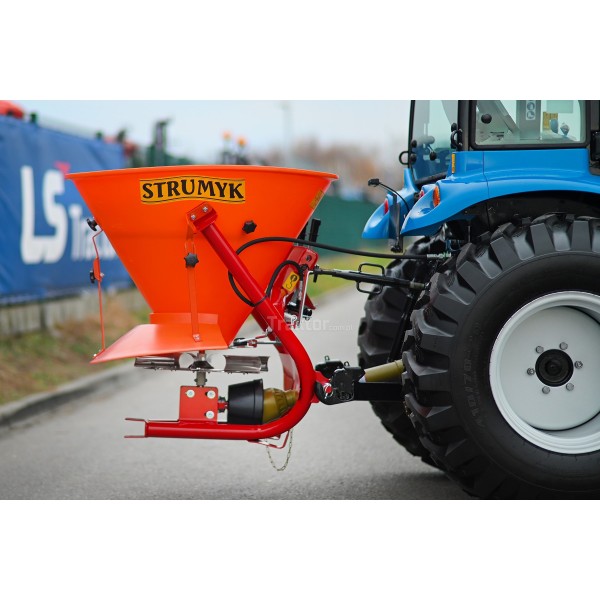

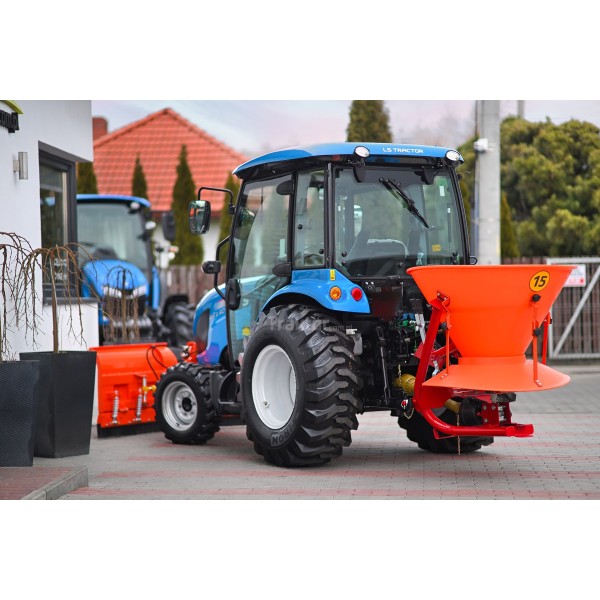

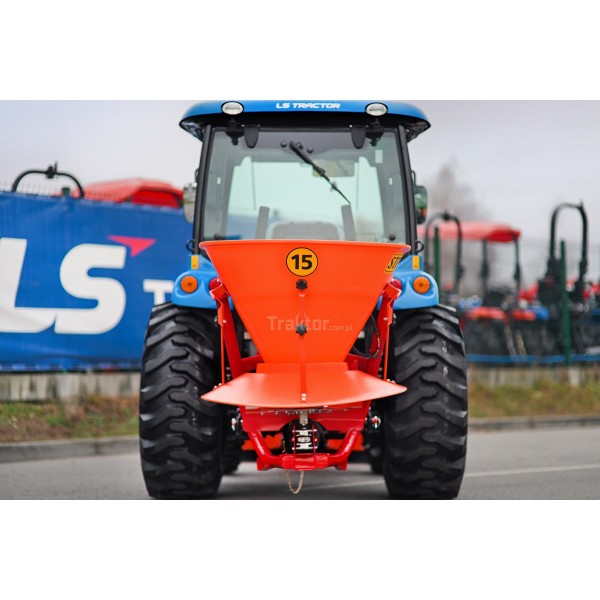

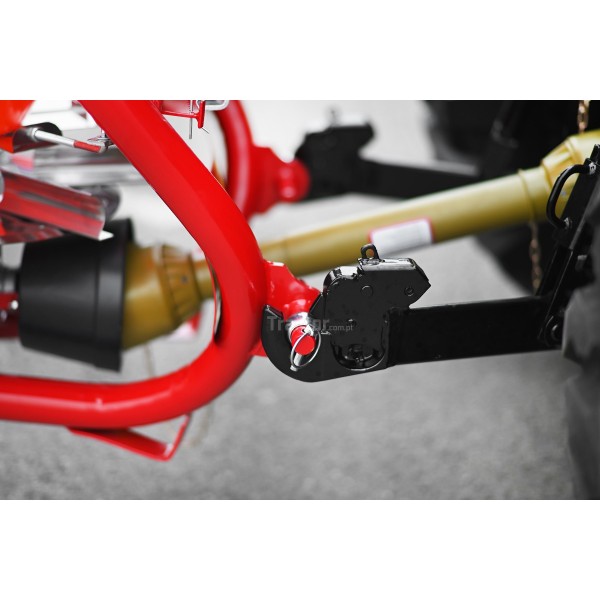

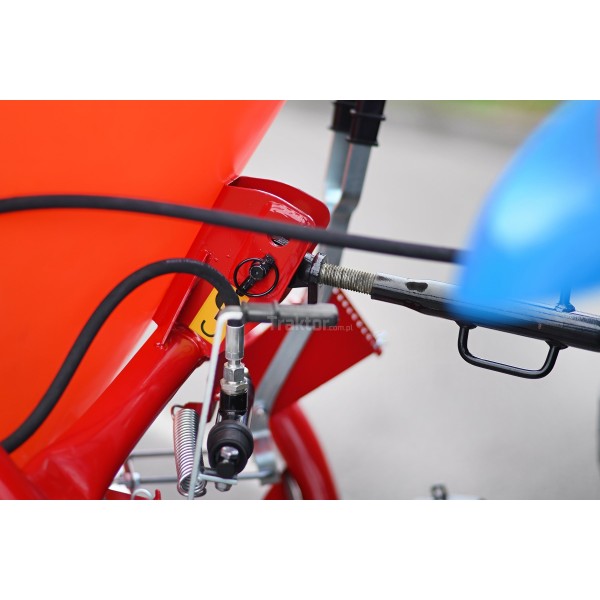

The S-200 Strumyk sand, salt, and gritter is equipped with a maintenance-free gearbox. Additionally, it operates in a disc-type spreading system and features a 6-blade H-17 disc and a lever for spreading adjustment. The gritter has a 200-liter capacity.
The sand spreader comes standard with a grid, and a protective tarpaulin can be purchased as an option.
This model is additionally equipped with hydraulic opening and a third lever.

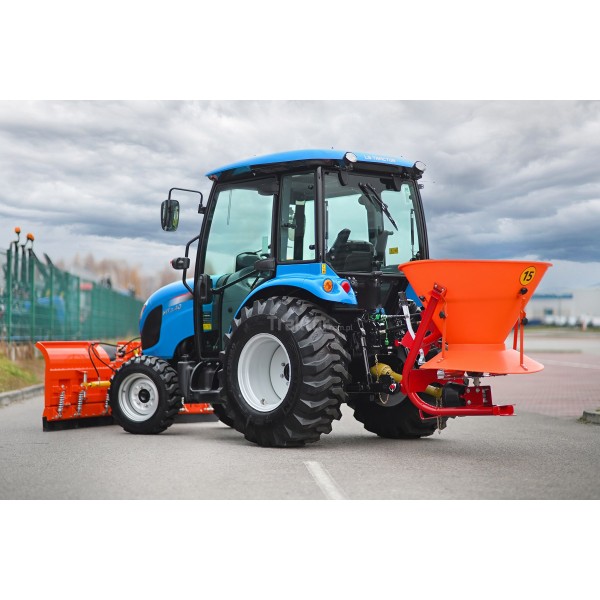

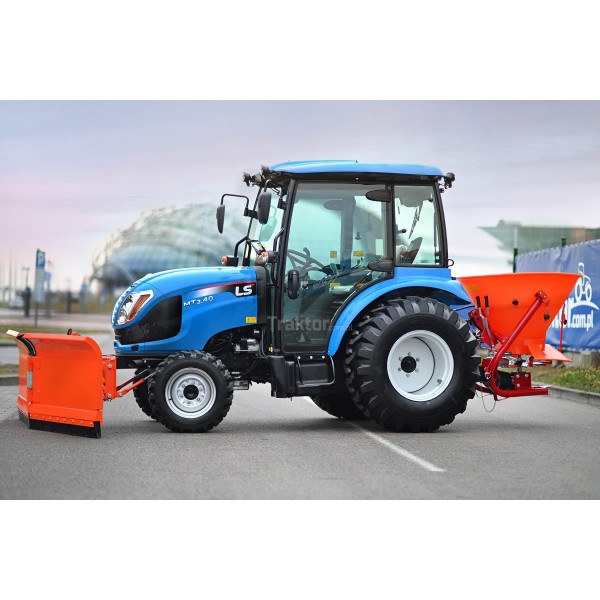

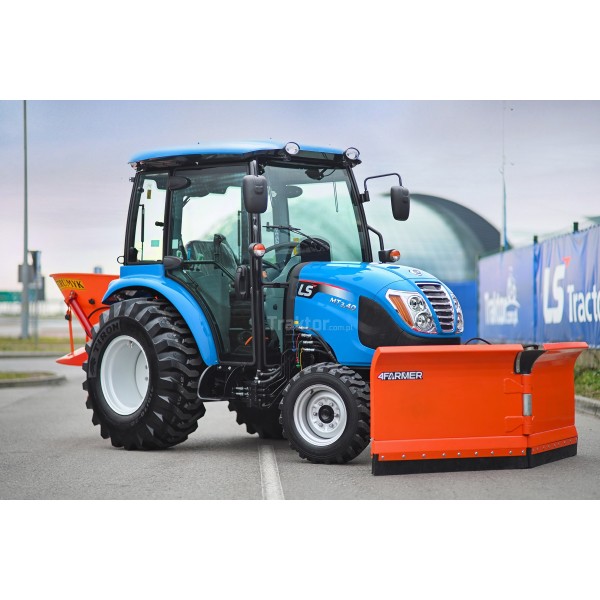

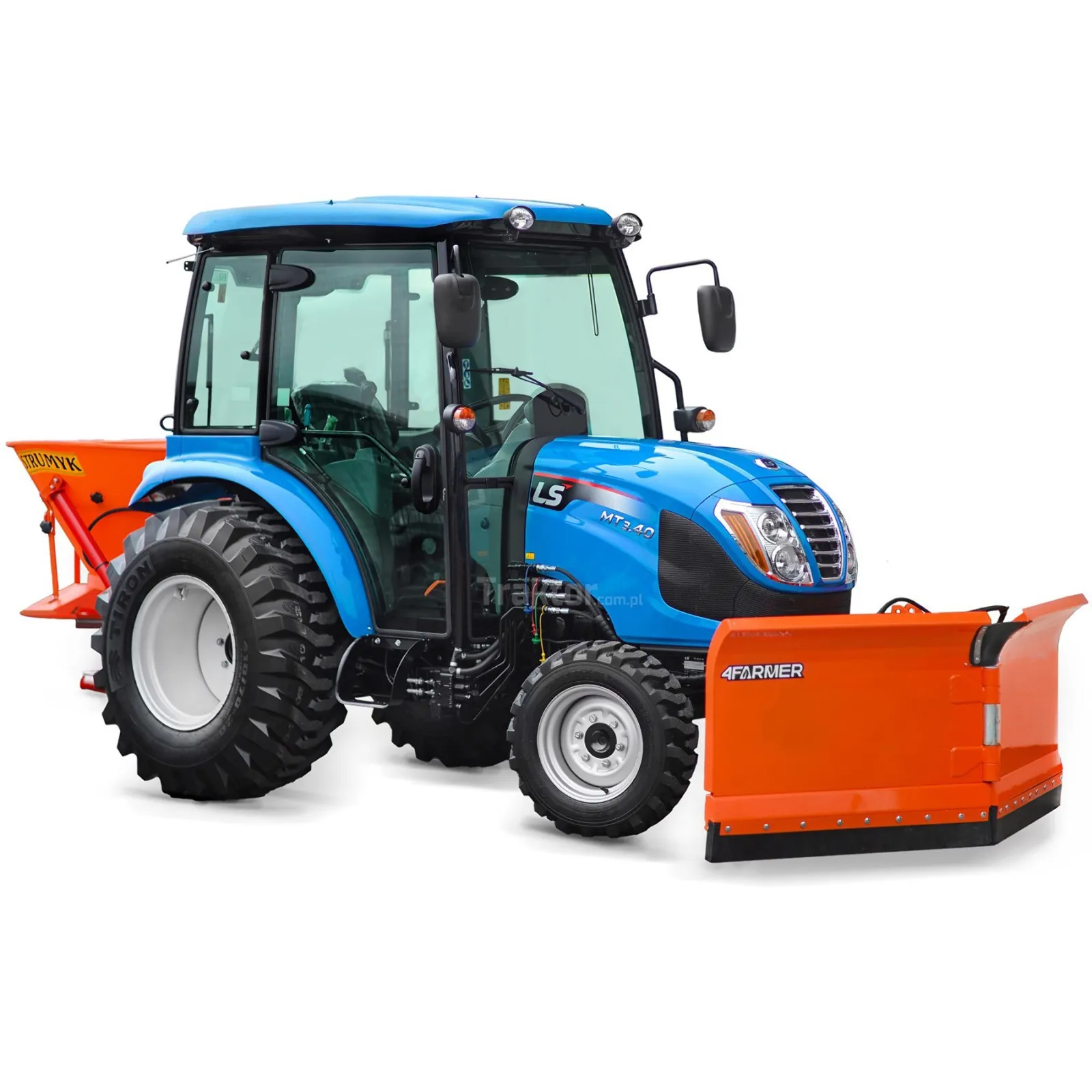

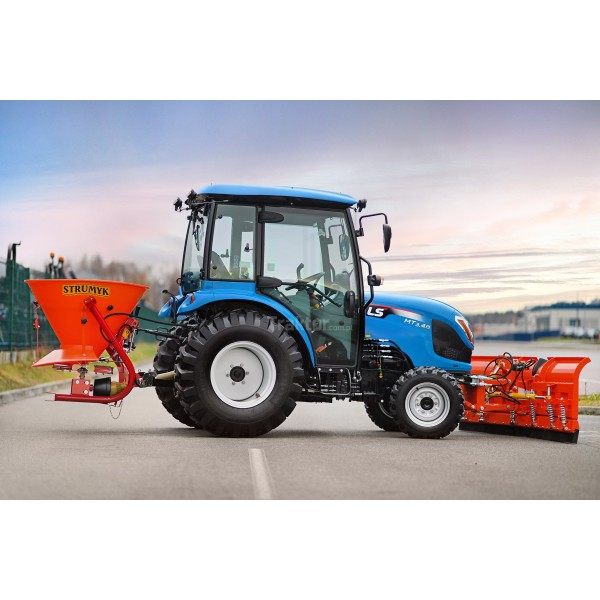

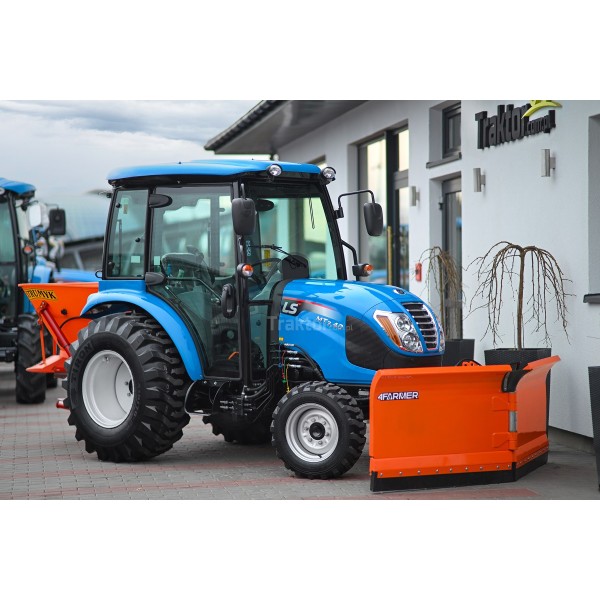

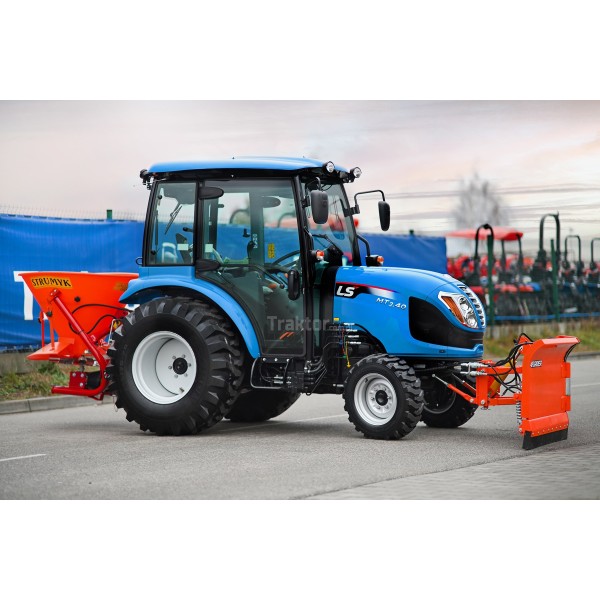

*The set includes: Tractor LS MT3.40 HST + CAB / IND + Snow plow 200 cm, hydraulic, with mounting plate 4FARMER + Sand, salt and gritter S-200 Strumyk
Specification
Condition
New
Equipment
Snow plow
Spreader / spreader
Engine
4 - stroke with turbine
Liquid-cooled 3-cylinder diesel
with Delphi CRDI (Common Rail Direct Injection) direct fuel injection
Engine model
LS Mtron L3CRV-T4 STAGE V
Power (HP/HP)
40
Power (kW)
29.80
Engine capacity (cc/cc)
1879
Rated engine speed (rpm)
2600
Torque (Nm/rpm)
133,5
Fuel tank capacity (L)
40
Drive
4x4 4WD
Transmission
Hydrostatic
Number of forward/reverse gear ranges
3 / 3
Driving speed (km/h)
0~5.10 / 0~23.47 (back)
0~5.10 / 0~23.47 (forward)
Power steering
YES
PTO / PTO
1 speed
3 speeds (additional option)
540 (rpm)
540 rpm / 2509 rpm (additional option)
1000 rpm / 2428 rpm (opcja dodatkowa)
Independent PTO / PTO with wet clutch activated by knob
PTO/PTO power (kW)
23,53 kW (32KM)
NEXT DOOR
3 point
Adjusting the lowering speed of the rear three-point linkage arms / manual control valve
KAT I
Lifting capacity of three-point linkage at ball ends (kg)
820
Hydraulic outputs (pcs (EA) / number of sections)
4/2 (front)
4/2 (rear)
Hydraulic leveling of the rear suspension
No
Cruise control
YES
Armchair
Comfortable, adjustable, with a high backrest
Trailer hitch
Bottom
Upper (option)
Tire type(s)
Industrial
Cabin
Air condition
Heating
Height (mm)
2237
Wheelbase (mm)
1754
Tire size front/rear
25x8.50-14 / 410-70-20
turning radius (mm)
2860
Weight (kg)
1689
Brakes
Wet
Overall length, bumper to drawbar end (mm)
3111
Overall width with tires (mm)
1670
Ground clearance (mm)
331
Maximum front wheel rotation angle (°)
+ / 48
Hydraulic system pressure (MPa/bar)
17.5 (2538psi)
Number of turns of the steering wheel (right / left)
3.9 / 3.3
Rated steering oil flow (l/min)
20.8 (5.5GMP)
Type of candles
Glow plugs
Tread adjustment FRONT (mm)
1141~1177mm (44.9~46.3 in.)
Track adjustment REAR (mm)
1138~1338mm (44.8~52.7 in.)
Basic equipment
Cabin
Hydraulic pump capacity (l/min)
30.9 / 60 (option)
