Product description

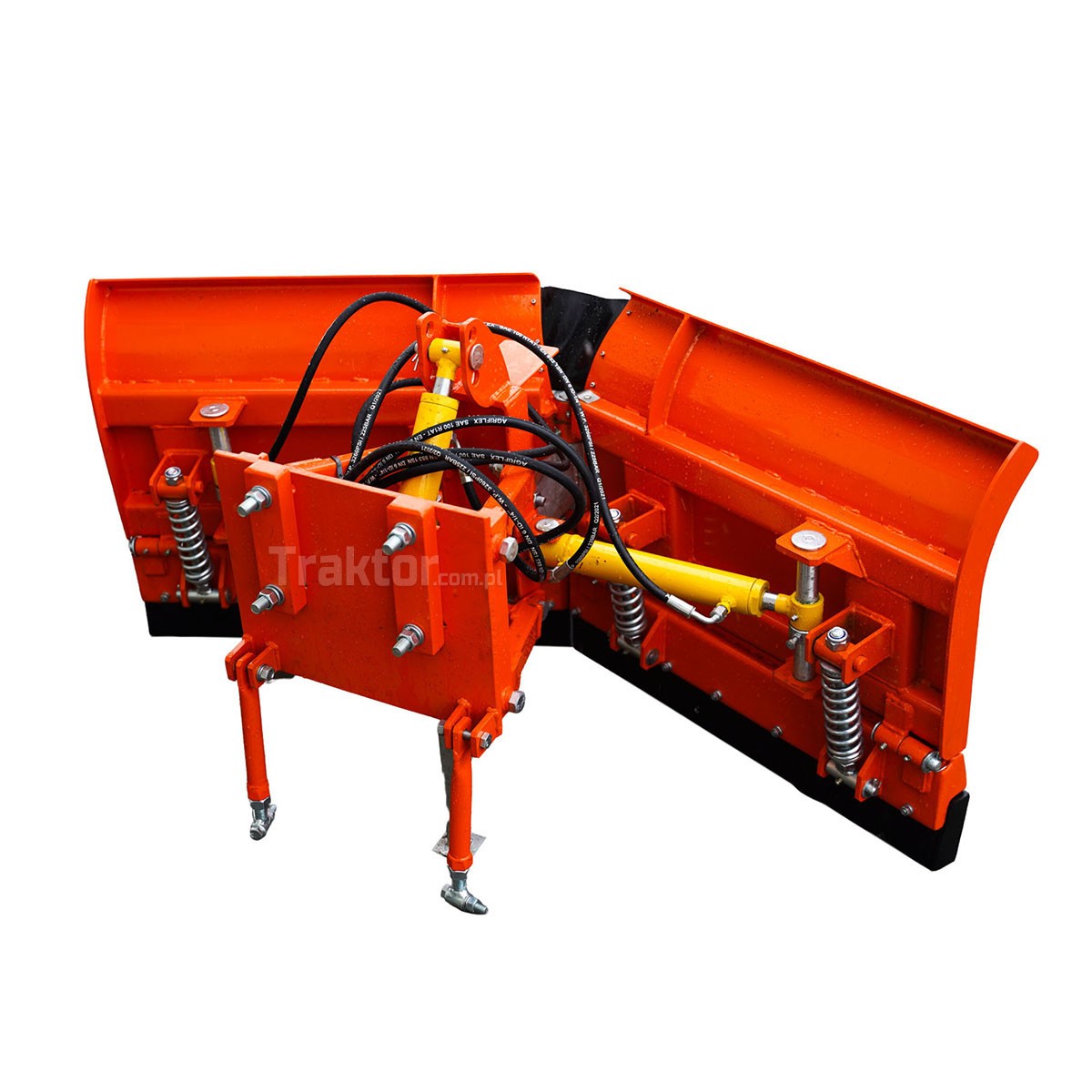

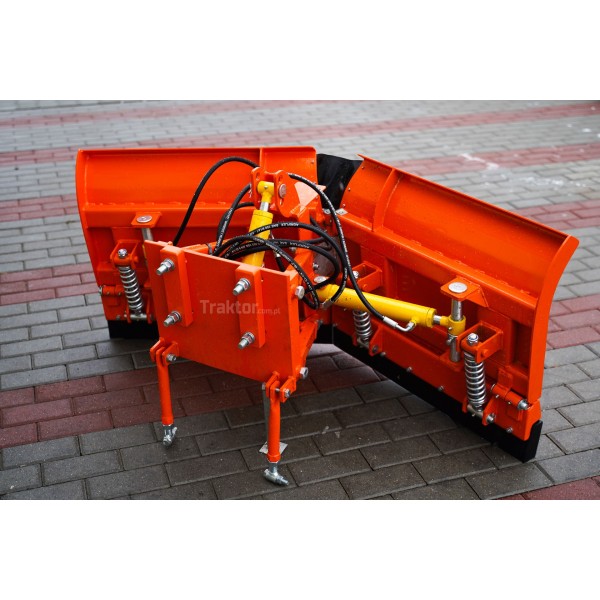

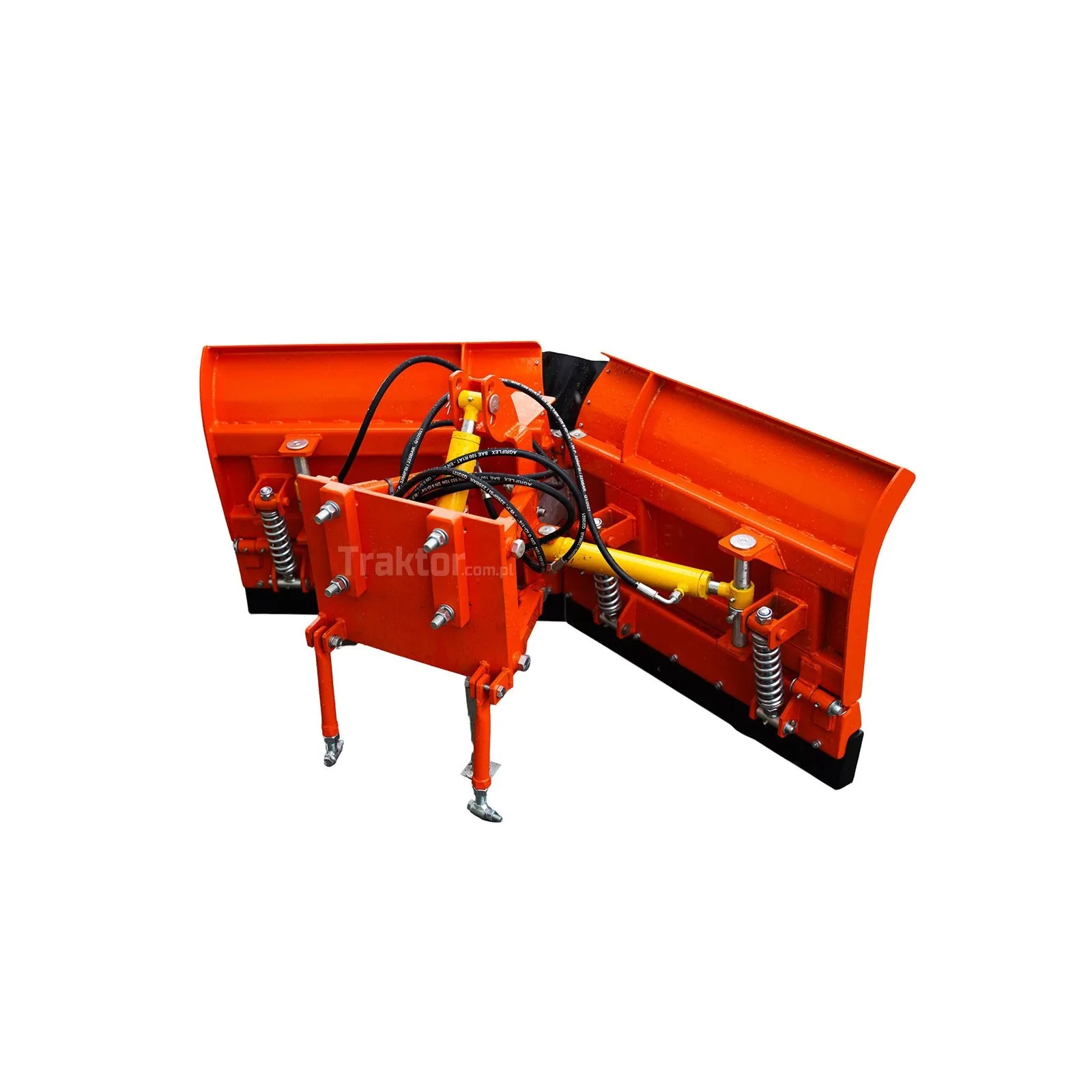

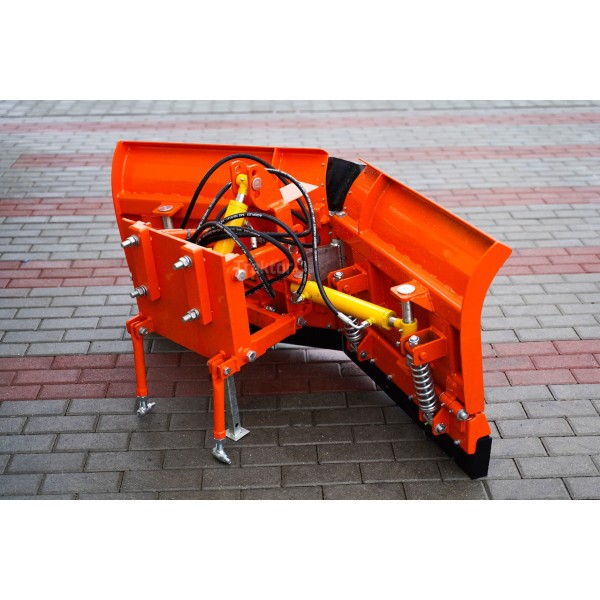

The plow is designed for tractors and mini tractors with a minimum power output of approximately 35 HP. The plow is hydraulically operated using three hydraulic cylinders and requires a three-section distributor with a floating section.

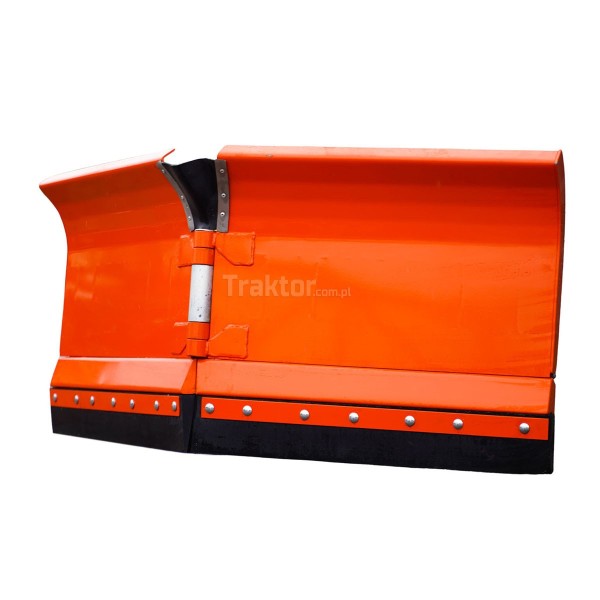

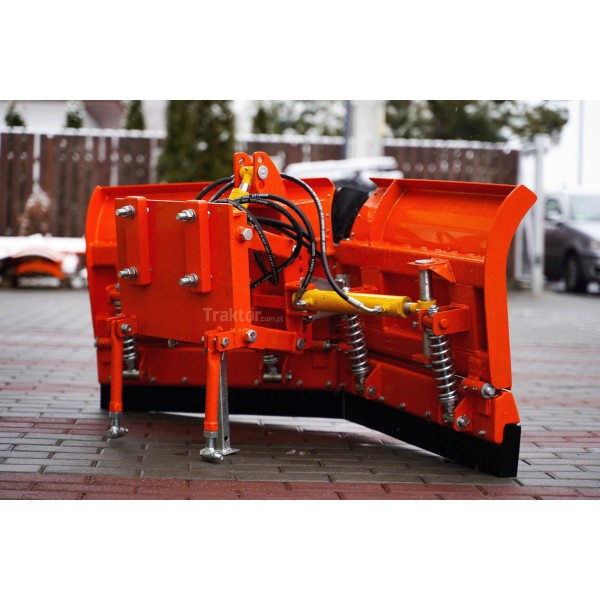

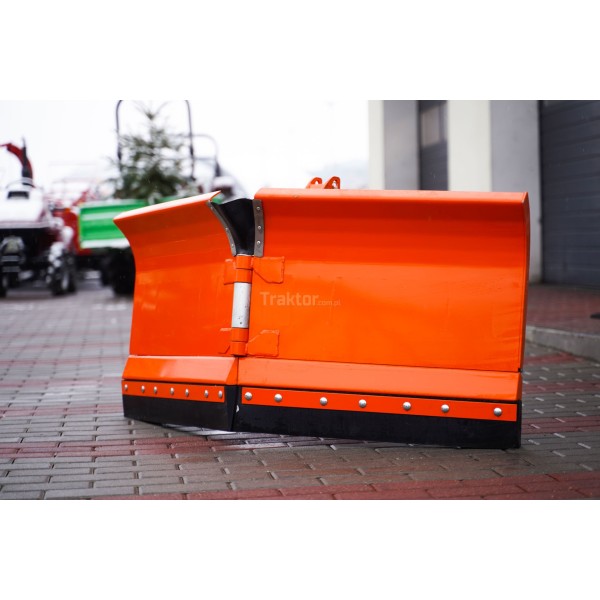

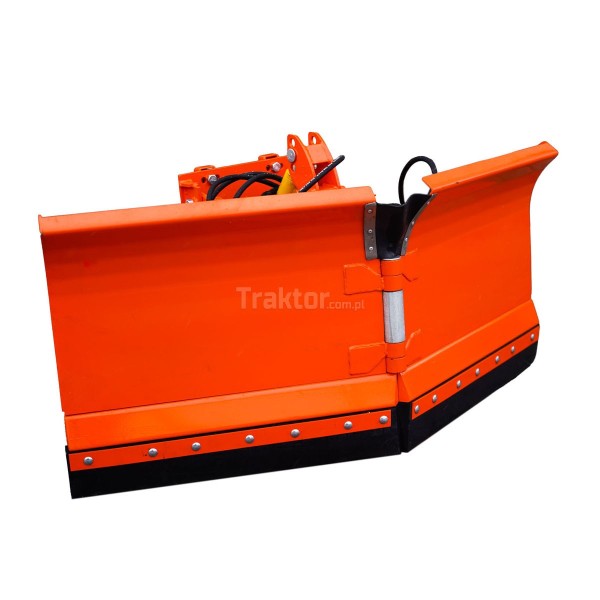

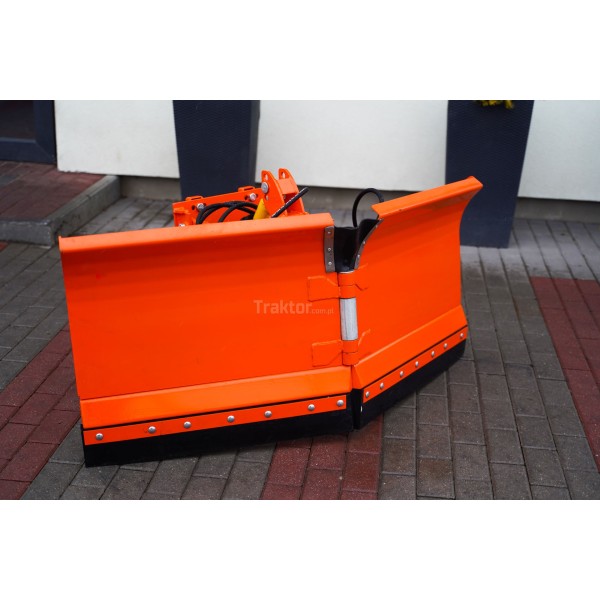

The plow blade has two sections: upper and lower. For safety reasons, the lower, movable section is equipped with a shock-absorbing system that tilts back when it encounters an obstacle. Powerful springs cushion the lower section of the blade, which is finished with a thick rubber covering , 40 mm thick and 100 mm high. The rubber protects the surface being cleared of snow.
The mounting plate is sold as a set with the plough , and the spacing of the mounting screws is 240 / 220 / 200 mm horizontally and 140 mm vertically, measured from the center to the center of the mounting screw holes.

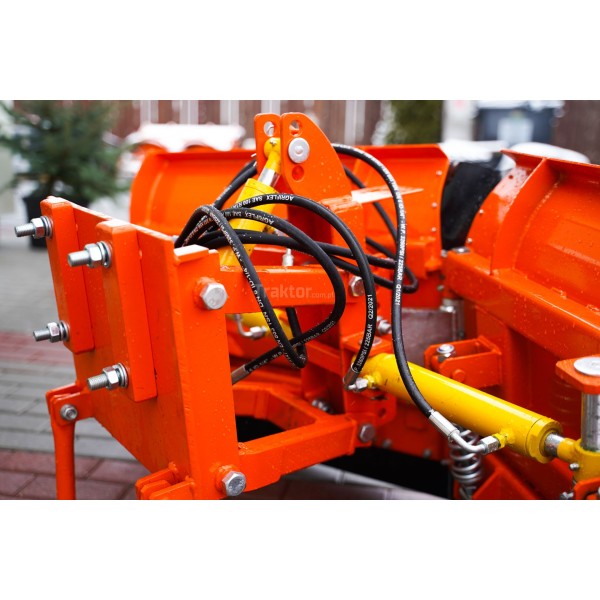

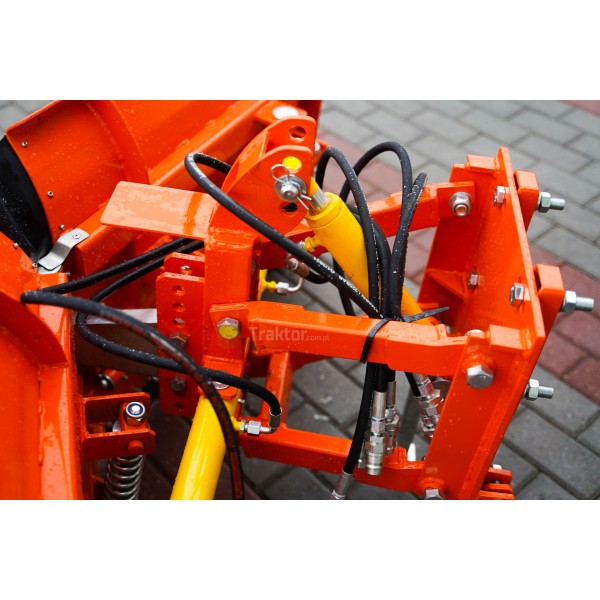

The plow is equipped with a flow divider. This part of the hydraulic system divides the oil in two directions. This allows two actuators to operate simultaneously – for example, one to lift the plow and the other to rotate it. Therefore, only one hydraulic section is required, simplifying operation and the overall design of the system.
To fully utilize the plow's capabilities, the tractor must have hydraulics at the front of the tractor .
