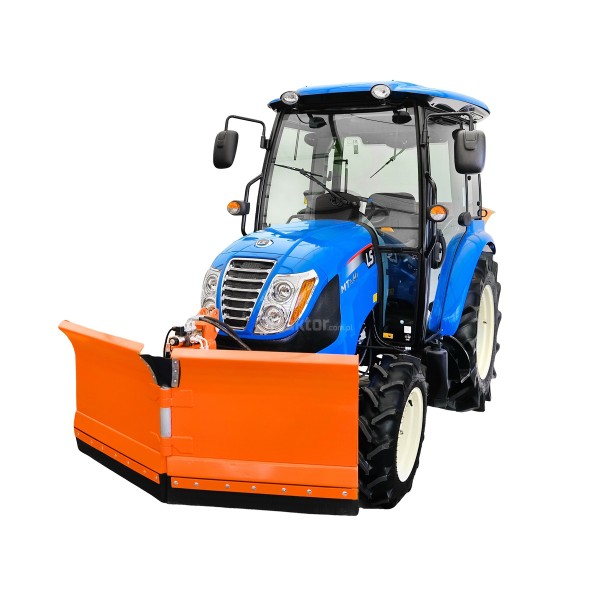

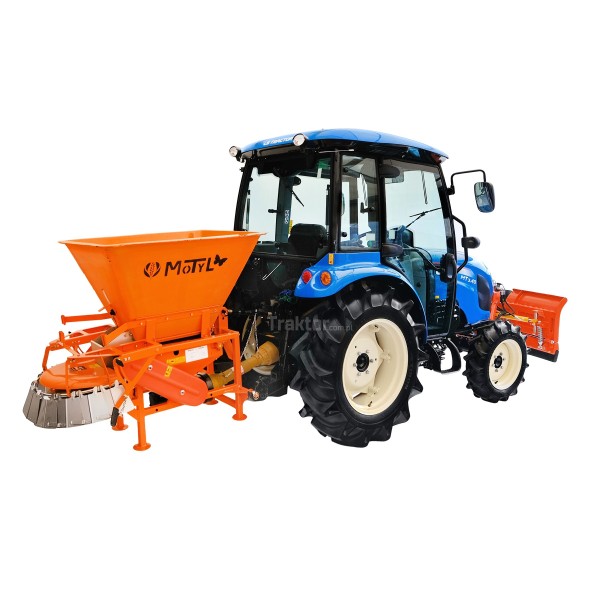

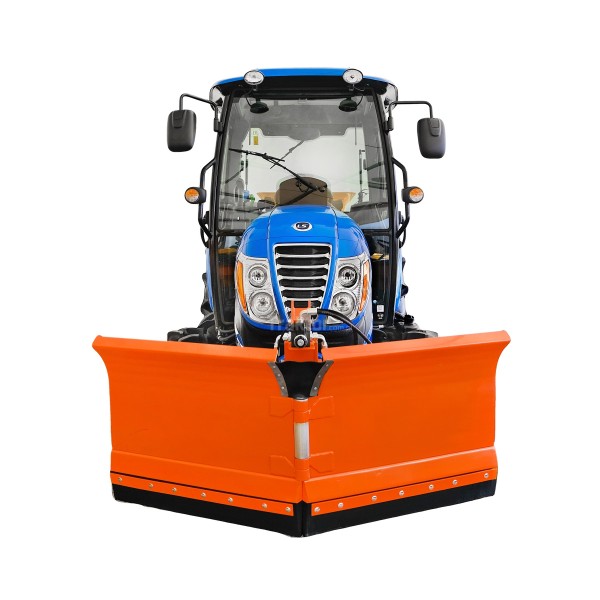

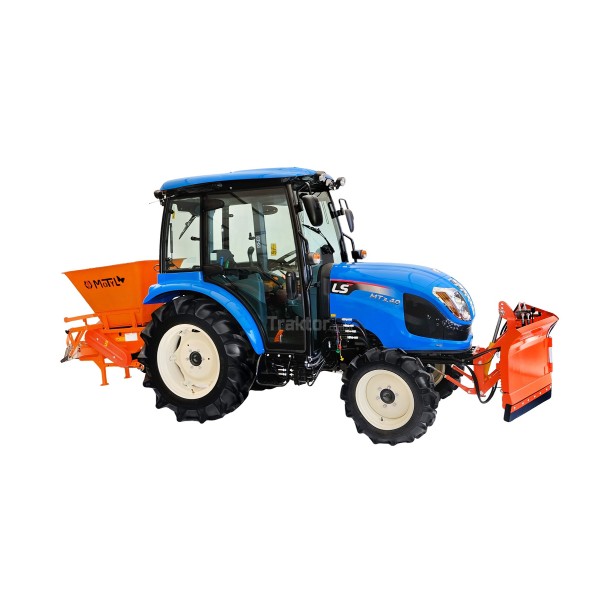

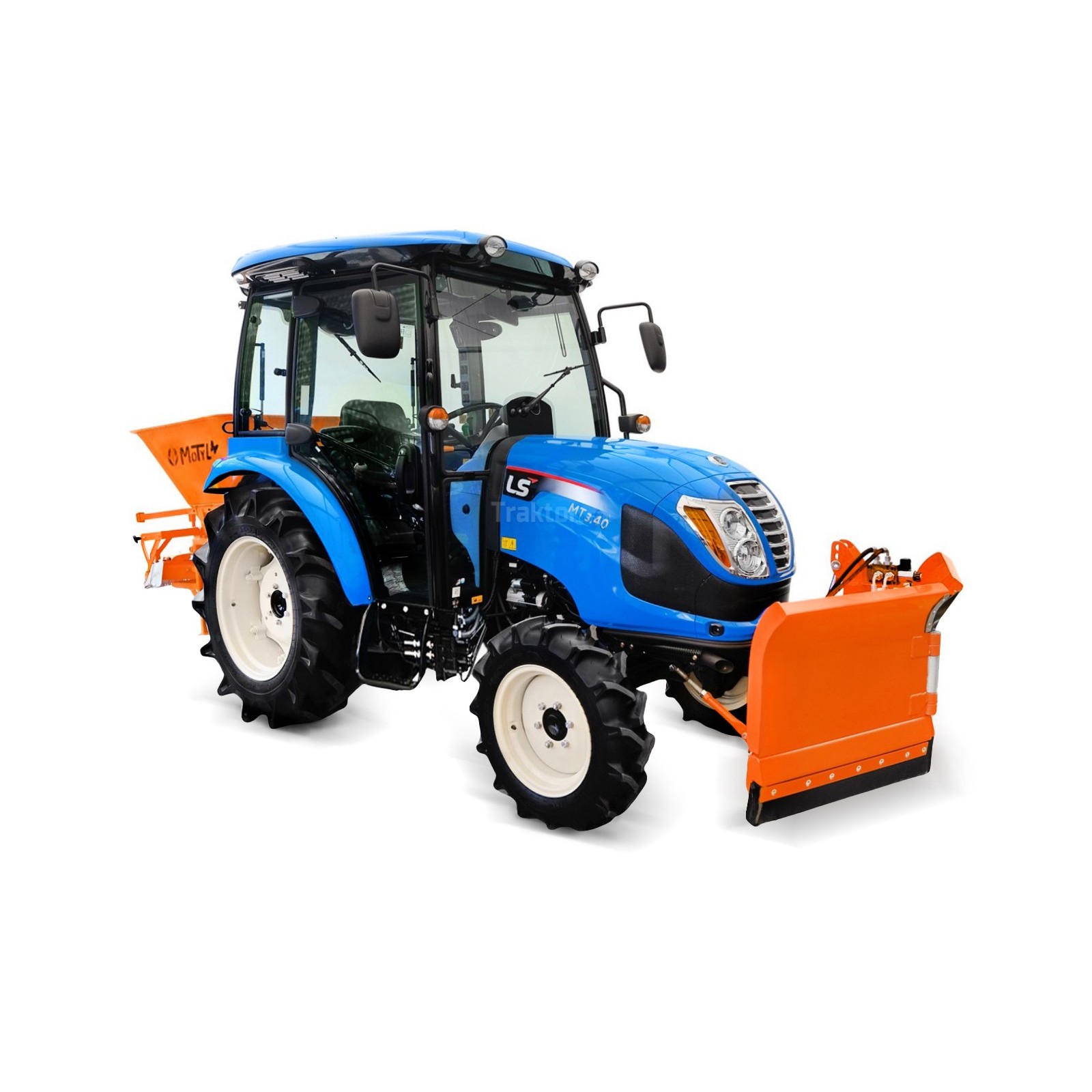

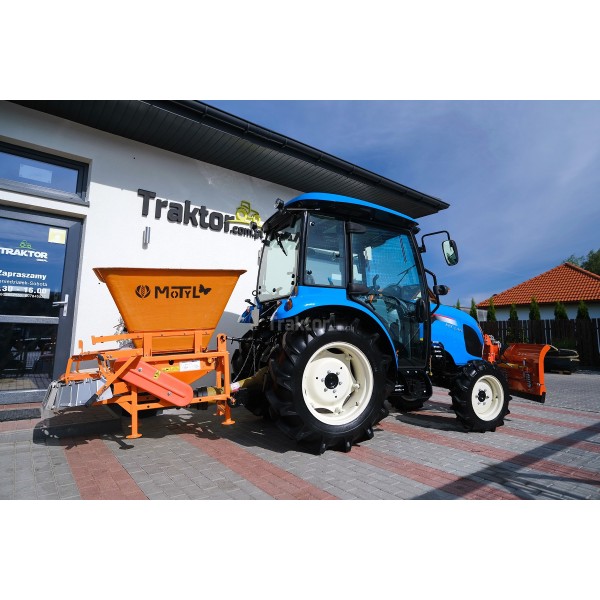

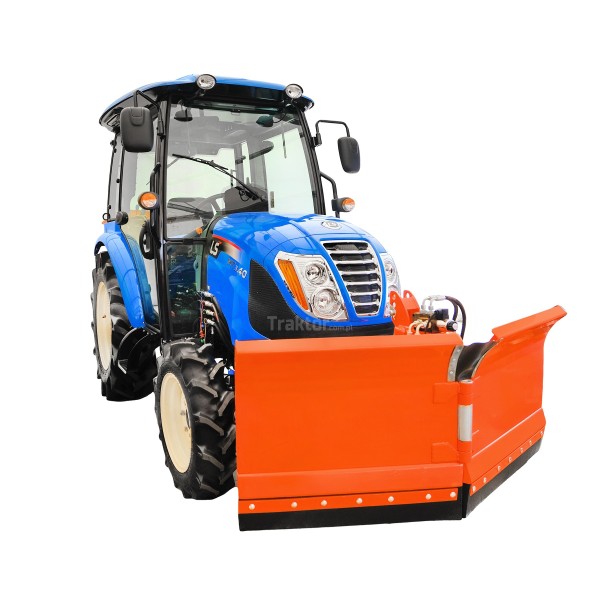

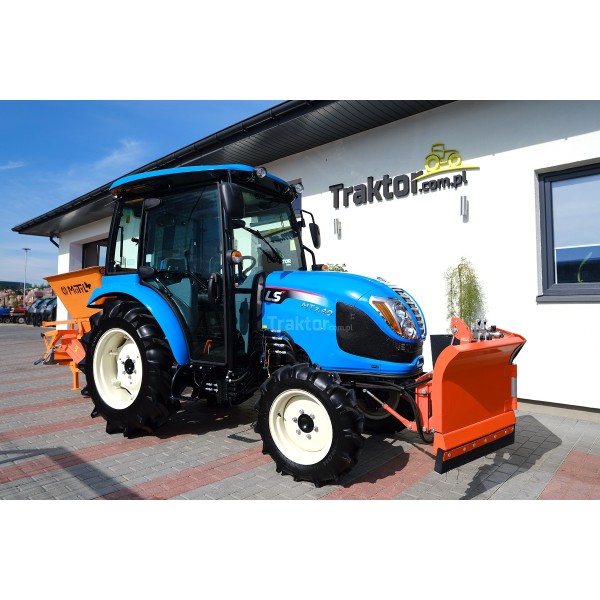

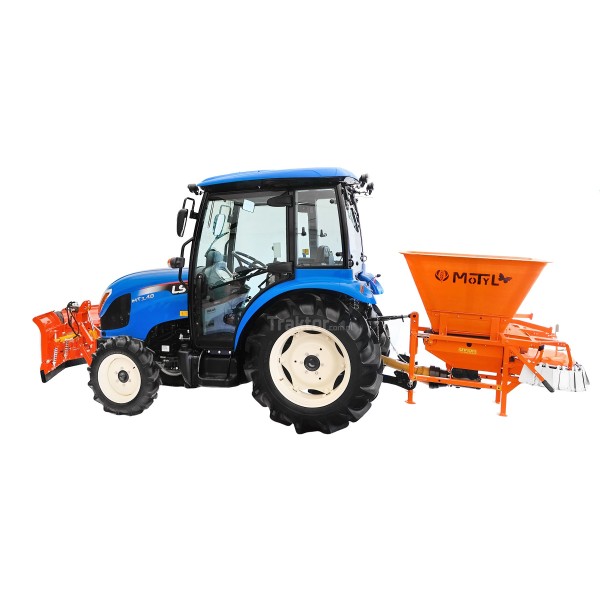

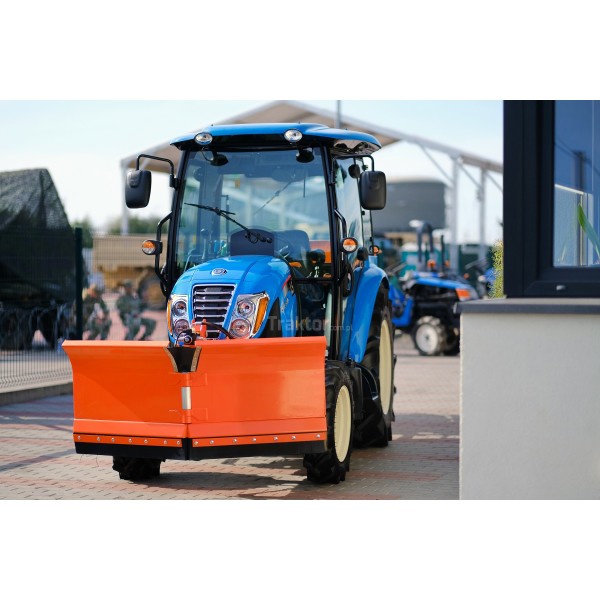

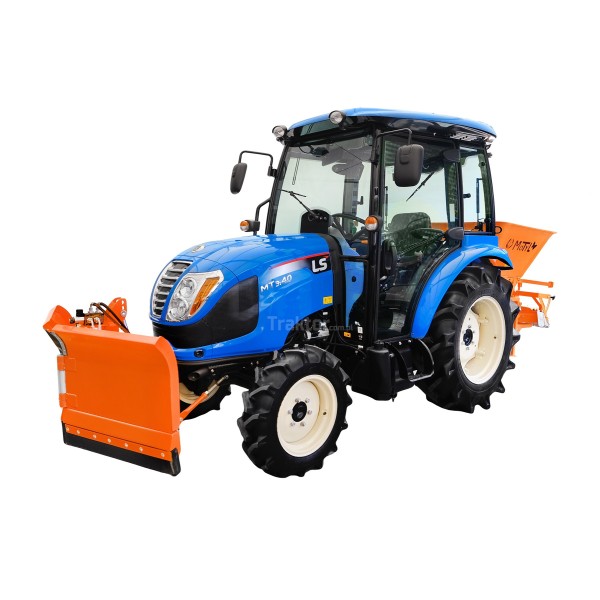

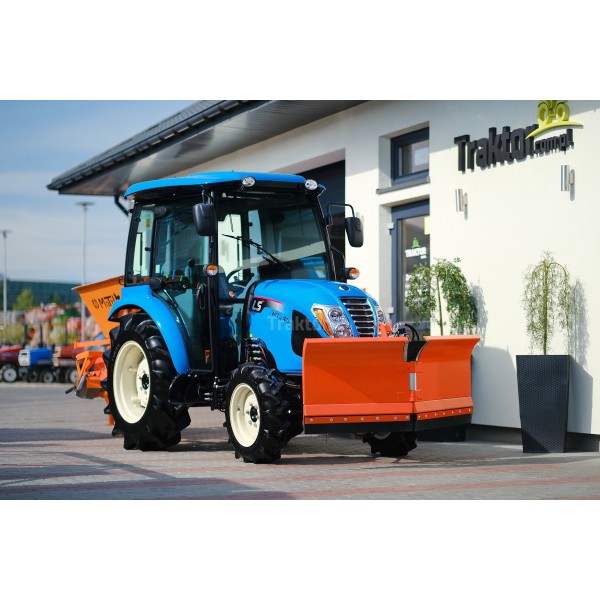

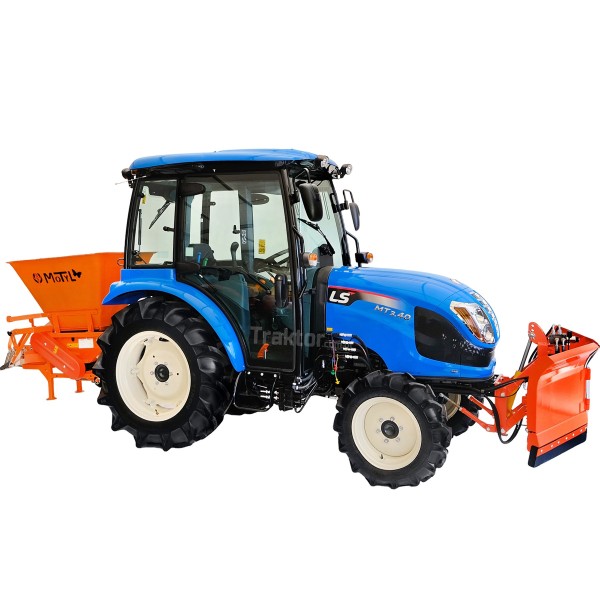

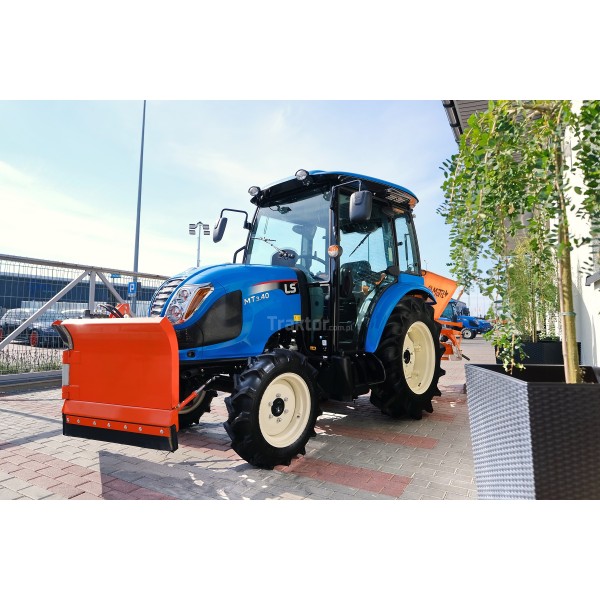

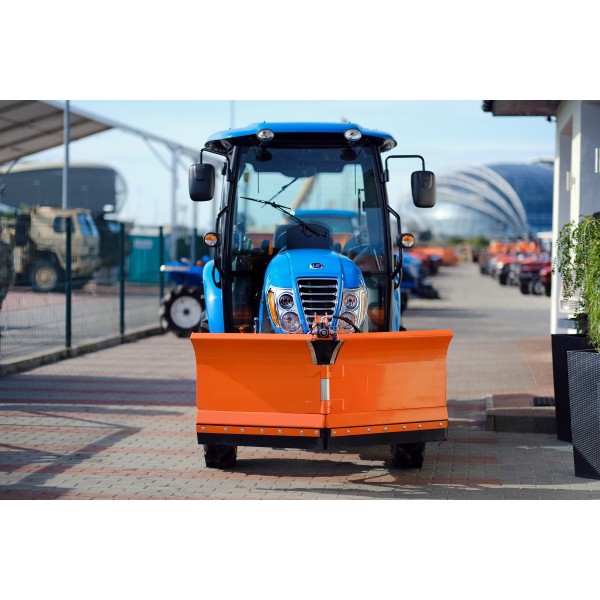

LS Tractor MT3.40 MEC 4x4 - 40 HP / CAB + snow plow 180 cm, hydraulic 4FARMER + MOTYL spreader
Ergonomic design
The LS Tractor MT3 series is, above all, a perfect fit for your needs. You choose how your tractor will be equipped to meet all your expectations. The LS Tractor is designed with versatility in mind. These machines are suitable for fields, gardens, orchards, plantations, transport, and municipal work. Thanks to the tractor's configuration options and the availability of attachments dedicated to LS tractors, this machine will be the ideal work partner.
Freedom of configuration
When choosing a tractor from the MT3 series, you can choose from several variants:
- front roll bar / rear roll bar,
- ergonomic, comfortable cabin,
- agricultural tires / industrial tires,
- manual gearbox / hydrostatic gearbox.
By choosing the MT3.40 model with the comfort cab configuration, the tractor becomes a year-round machine. The lockable, sound-insulated cab, equipped with air conditioning, heating, an audio system, and interior and exterior lighting, allows for comfortable operation even in challenging conditions.
Power = Possibilities

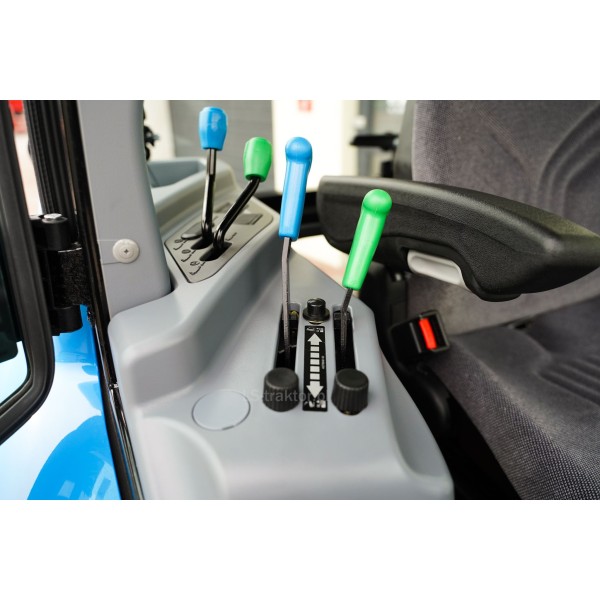

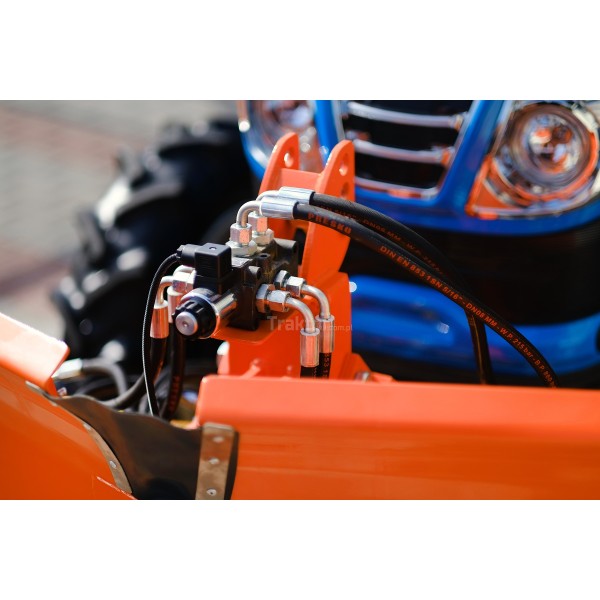

The MT3.40 is a premium tractor. Under the hood, the machine boasts a powerful, 3-cylinder L3CRV-T4 diesel engine with 40 HP. This engine guarantees excellent operating parameters and high efficiency. Additionally, eight hydraulic outlets allow the tractor to be connected to a wide range of attachments.
The MT3.40's Cat I 3-point linkage with a lifting capacity of 820 kg and an independent PTO shaft allow for versatile use. Four-wheel drive and power steering make the MT3.40 the perfect machine, tailored to your preferences. A comfortable Grammer suspension seat, seat belts, and high-quality interior finish ensure a luxurious and, most importantly, safe ride.

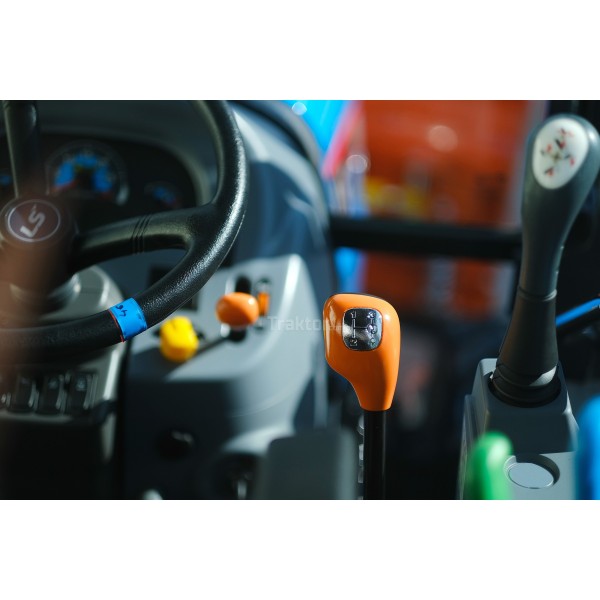

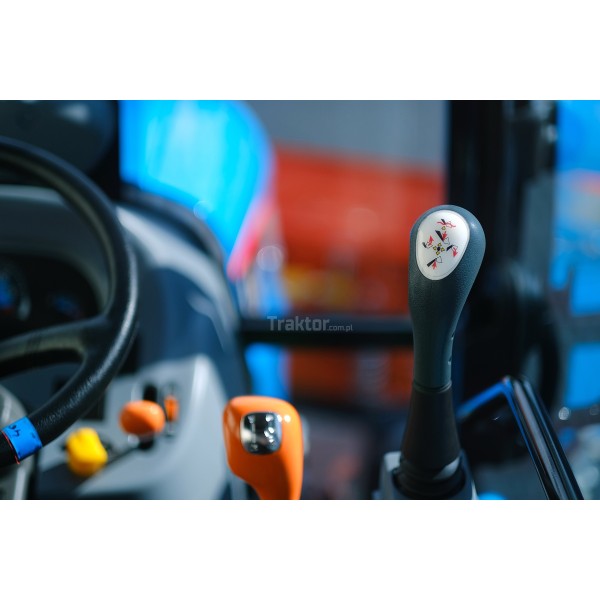

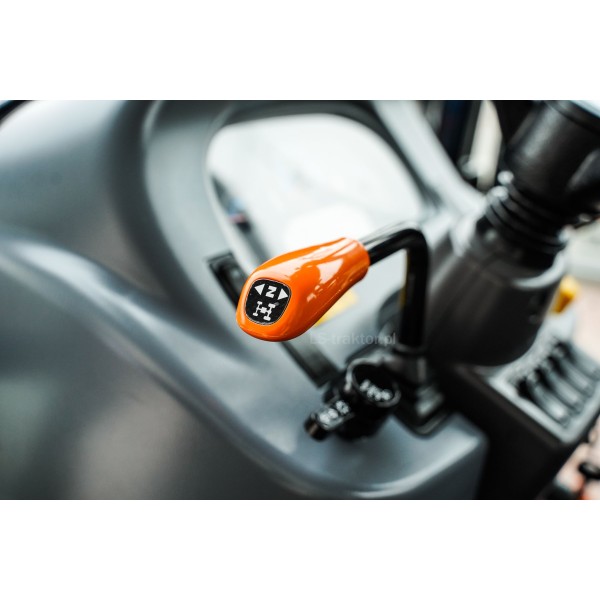

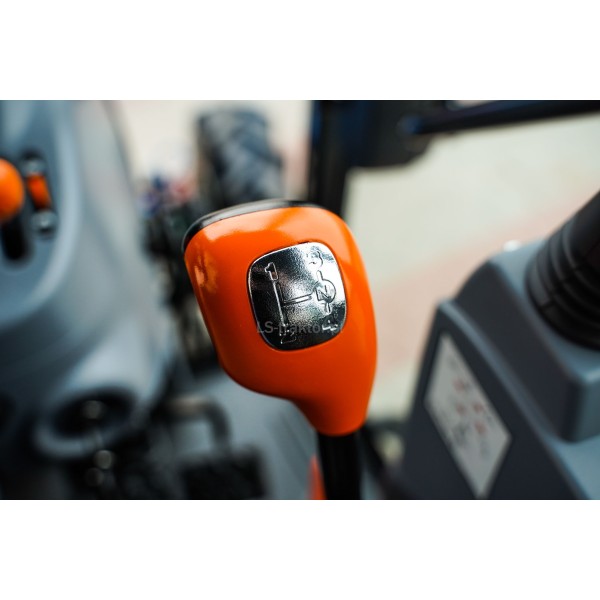

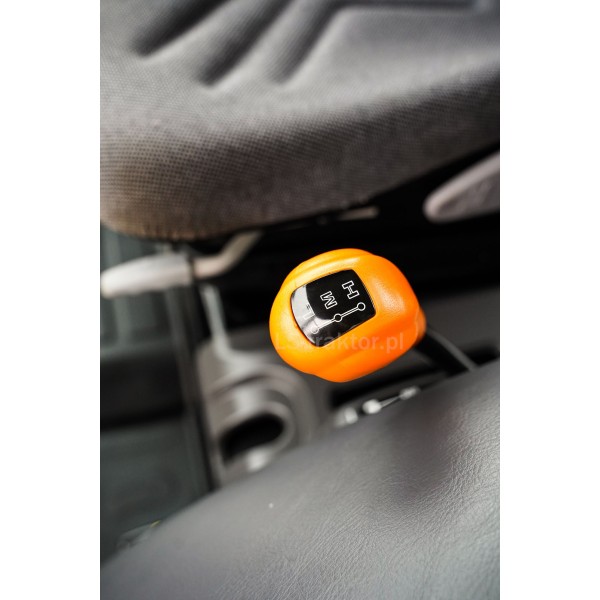

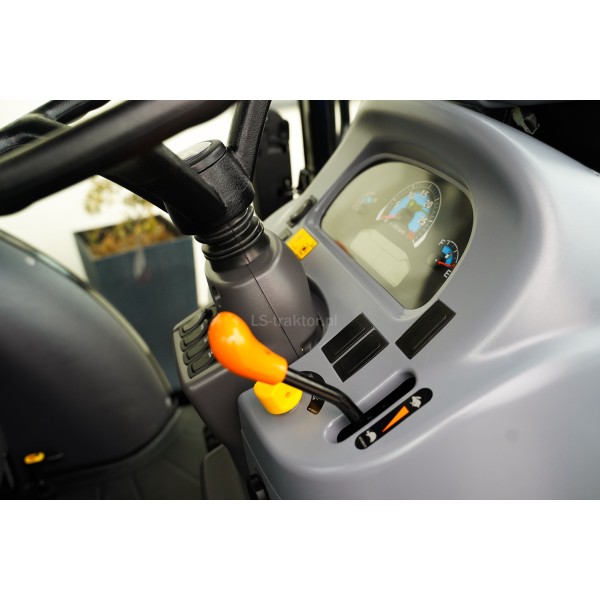

The MT3.40 model is equipped with a manual transmission. A very convenient solution for those wary of a manual transmission is the tractor's built-in reverse lever. This option allows for quick and easy direction changes, and its synchronization makes gear shifting incredibly smooth. It's safe to say that this is also a very interesting option for fans of hydrostatic transmissions. Exceptional comfort and convenience are guaranteed!
The LS Tractor MT3.40 is a model with exceptional versatility, allowing you to work with a variety of attachments:
LS Tractors are modern, offer high operator comfort and are of the highest quality.
LS MT 3.40 with high-quality original LS cab
The cabin is very solidly constructed, adhering to the highest manufacturing standards. Thanks to the cabin, the LS MT 3.40 becomes a machine we can rely on in all weather conditions!
The tractor with a cabin has a heating function, which is so important when working in the winter season.

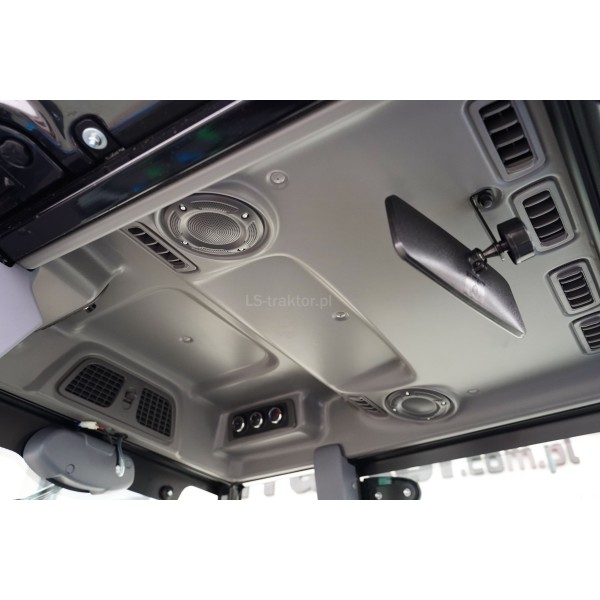

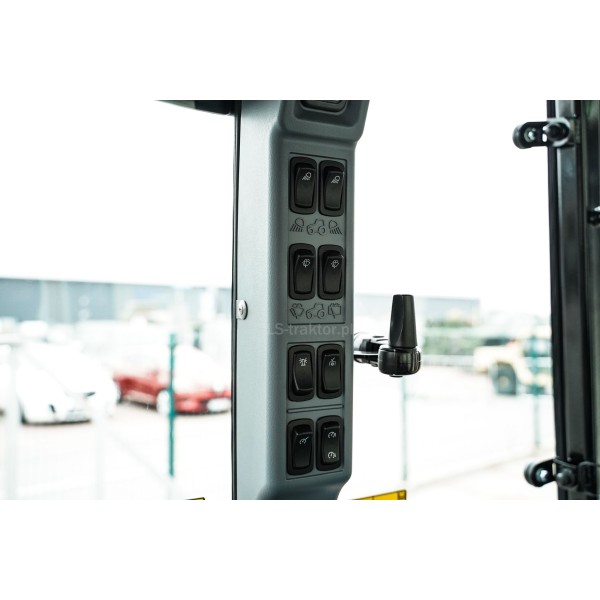

Additionally, the cabin is equipped with:
- air conditioning,
- door locks,
- sun visor,
- lighting inside the cabin,

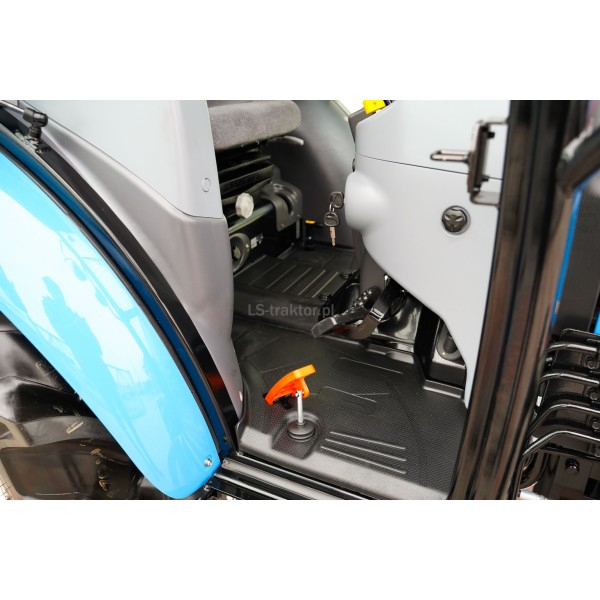

- carpet (plastic),
- audio system,
- front and rear wipers,
- external LED lighting (two lamps at the front and two at the rear of the tractor),
- side mirrors (2 pcs.),
- heater included,
- heater hoses (2 pcs.).
By choosing the LS MT3.40 model, you choose not only high quality workmanship, but also comfort and safety.

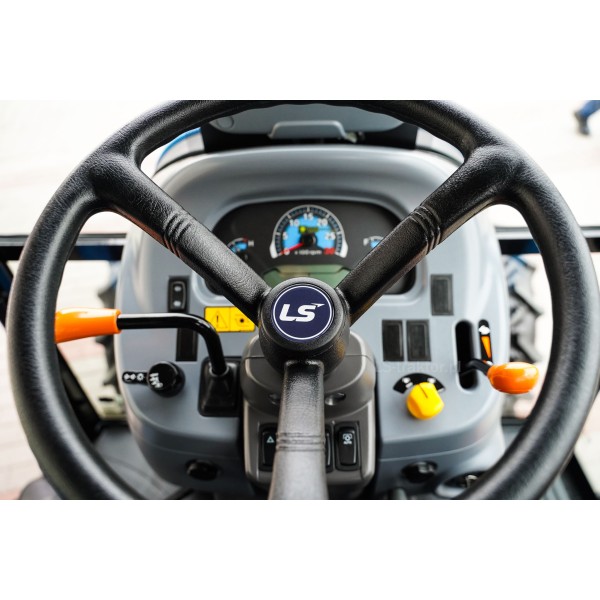

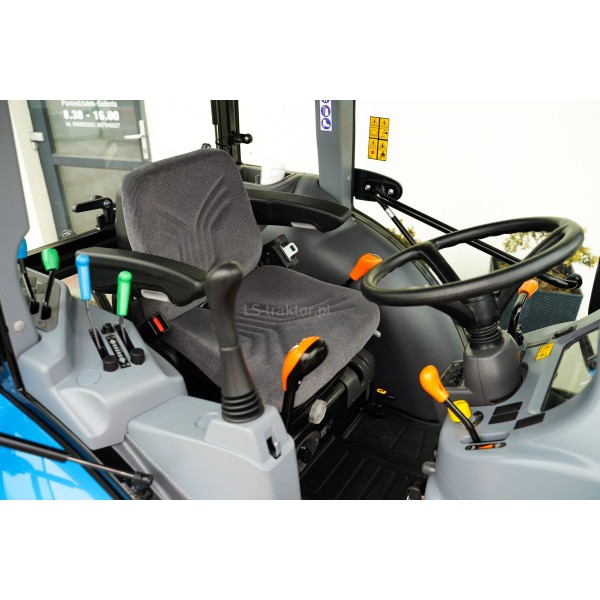

LS Tractor has equipped this unique machine with a comfortable, adjustable seat with a high backrest, armrests and suspension, which, together with ergonomically placed levers, ensures pleasant operation of the machine.
35 years of experience in agricultural tractor production has earned LS Tractor first place in the customer satisfaction survey for LS users, conducted in the US and Canada, for five consecutive years. Excellent hydraulics, a fuel-efficient and efficient engine, built with meticulous attention to detail, and precise assembly are some of the most important features that characterize all LS Tractor products. The MT3 series tractors are designed for more advanced users, but the simplicity and intuitiveness of the LS MT3 tractors allow for trouble-free operation for less advanced users.
Additional equipment and accessories :

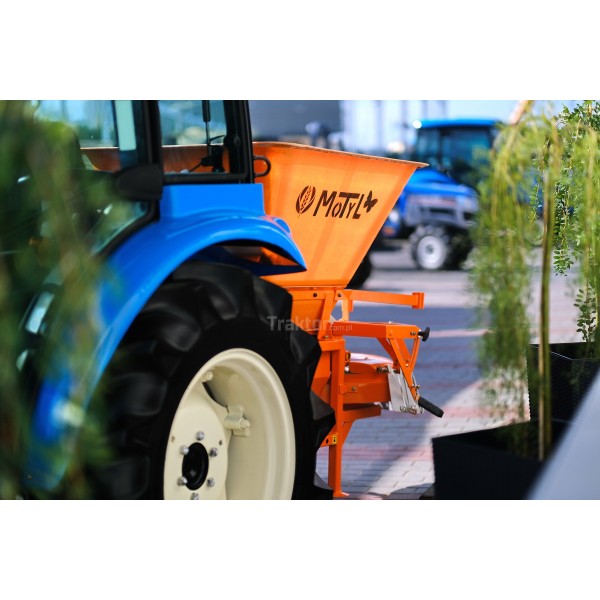

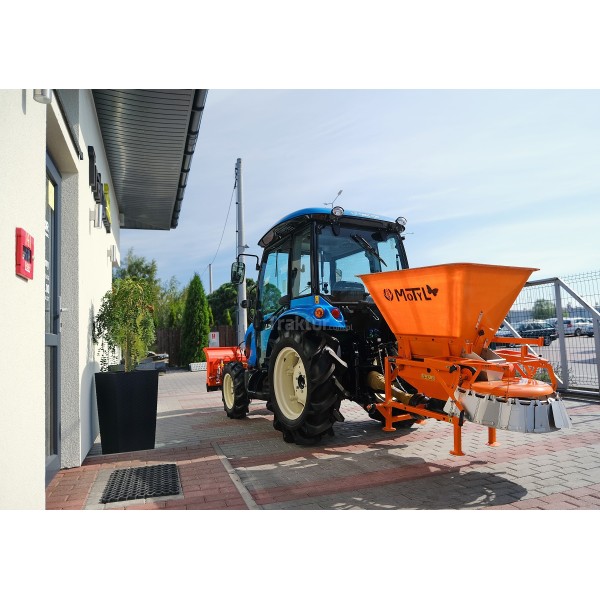

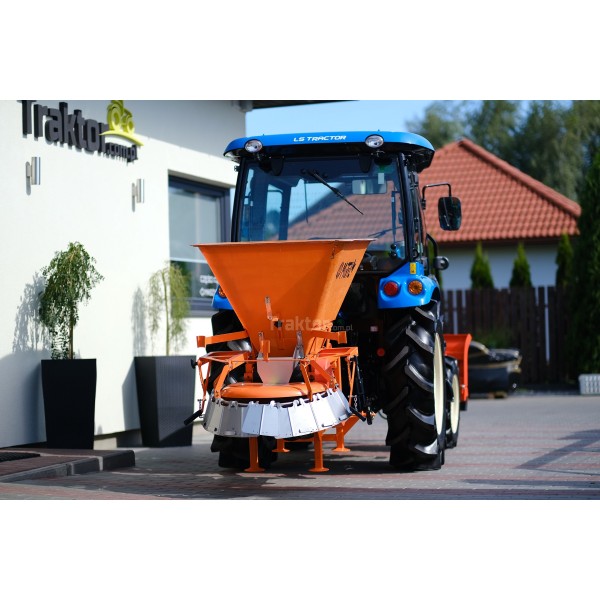

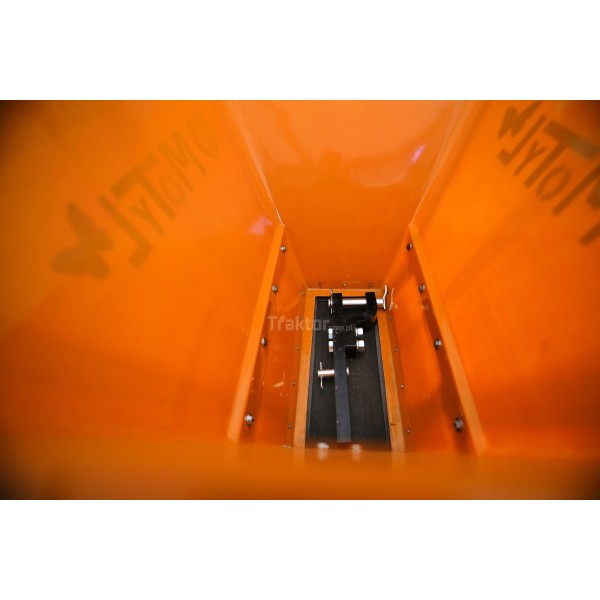

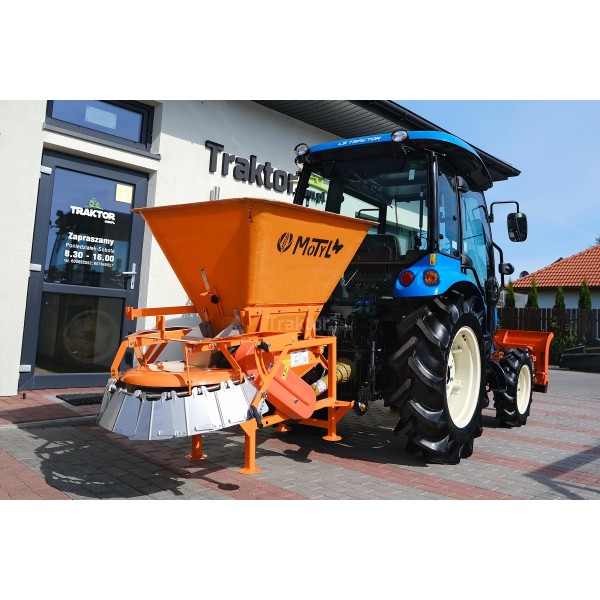

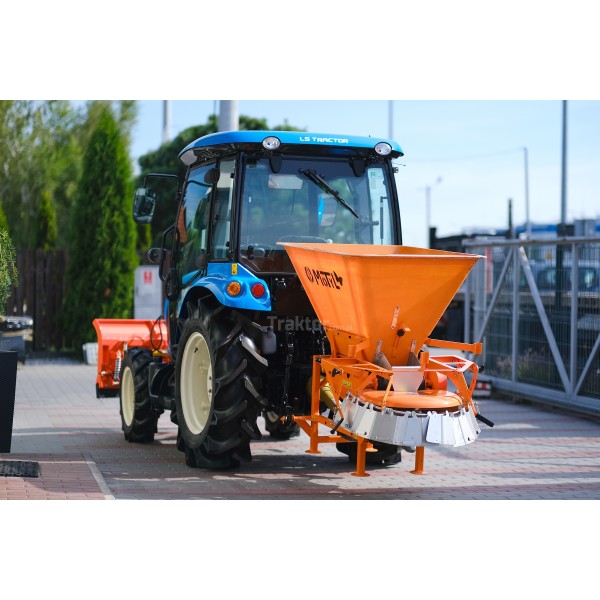

The spreader is powered by the tractor's PTO shaft, and the recommended speed is 540 rpm. The spreading system is a centrifugal disc system. The machine has a 320-liter hopper. The spreader weighs 140 kg, and the permissible load weight ranges from 200 to 400 kg, depending on the tractor.

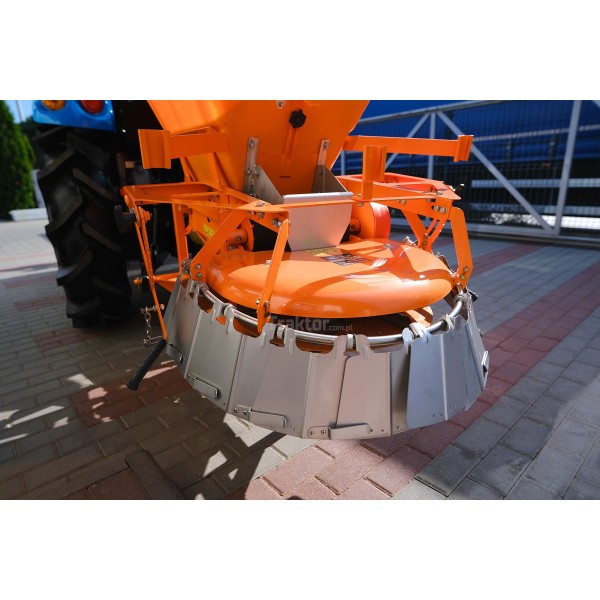

The working element is a horizontally positioned rotating disc with vertical blades that, in a rotating motion, spreads the material over a distance of 5 to 8 m (without the attachment), depending on the type of seed used. By equipping it with a municipal attachment, the spreading width can be adjusted from 1.2 m to 5 m.
The attachment consists of independently adjustable flaps for the left and right sides, which allow for spreading width adjustments from 1.2 m to 5 m. To ensure trouble-free spreading, it is necessary to conduct tests with the material to be spread. As the spreader's height increases (measured from the ground), the spreading width increases, and conversely, as the spreader's height decreases, the spreading width decreases. The physical properties and specific gravity of the spreading material influence the spreading width.
* Price without PTO shaft.
Specification
Condition
New
Equipment

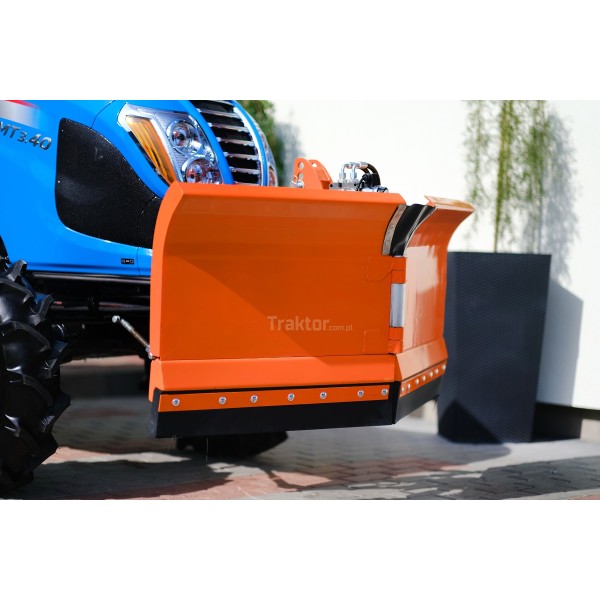

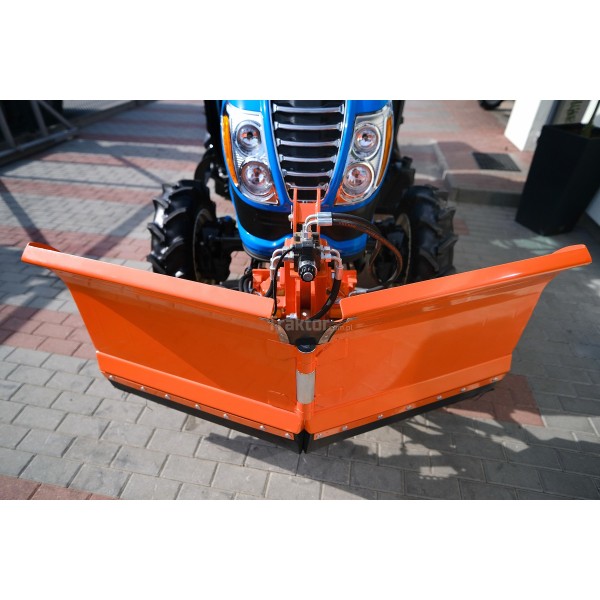

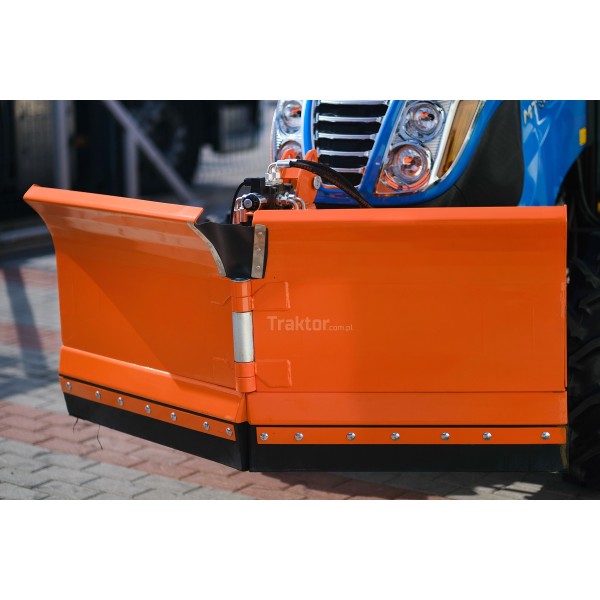

Snow plow
Spreader / spreader
Engine
4 - stroke with turbine
Liquid-cooled 3-cylinder diesel
with Delphi CRDI (Common Rail Direct Injection) direct fuel injection
Engine model
LS Mtron L3CRV-T4 STAGE V
Power (HP/HP)
40
Power (kW)
29.80
Engine capacity (cc/cc)
1879
Rated engine speed (rpm)
2600
Torque (Nm/rpm)
133,5
Fuel tank capacity (L)
47
Drive
4x4 4WD
Transmission
Mechanical
synchronized
Reverse
Yes
Number of forward/reverse gears
12 / 12
Driving speed (km/h)
1.21 / 23.53 (back)
1.27 / 24.73 (forward)

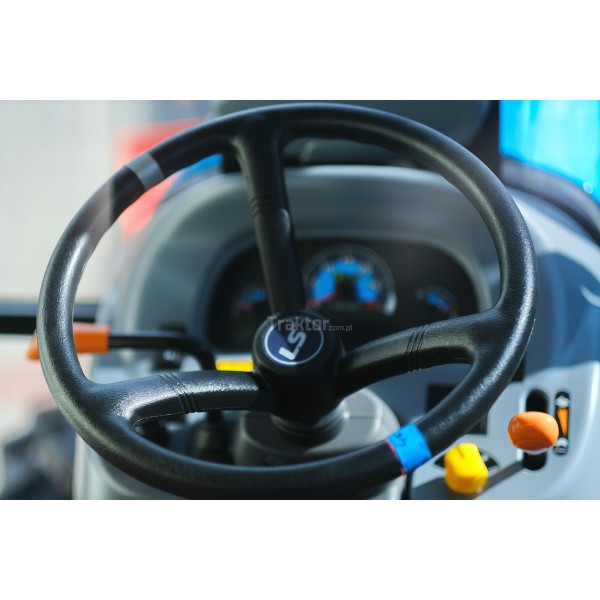

Power steering
YES
PTO / PTO
3 speed
540 / 1761 rpm (540E PTO)
540 rpm / 2509 rpm
1000 rpm / 2428 rpm
Independent PTO / PTO with wet clutch activated by knob
PTO/PTO power (kW)
23,53 kW (32KM)
NEXT DOOR
3 point
Adjusting the lowering speed of the rear three-point linkage arms / manual control valve
KAT I
Lifting capacity of three-point linkage at ball ends (kg)
820
Hydraulic outputs (pcs (EA) / number of sections)
4/2 (front)
4/2 (rear)
Hydraulic leveling of the rear suspension
No
Trailer hitch
Yes
Tire type(s)
Agricultural
Cabin
Air condition
Height (mm)
2237
Wheelbase (mm)
1754
Tire size front/rear
7-16 / 12.4-24
turning radius (mm)
2860
Clutch
Dry, single disc
Brakes
Wet
Overall length, bumper to drawbar end (mm)
3111
Overall width with tires (mm)
1402
Ground clearance (mm)
331
Maximum front wheel rotation angle (°)
+ / 48
Hydraulic system pressure (MPa/bar)
17.5 (2538psi)
Number of turns of the steering wheel (right / left)
3.9 / 3.3
Rated steering oil flow (l/min)
15.6 (4.1GPM)
Type of candles
Glow plugs
Tread adjustment FRONT (mm)
1141~1177mm (44.9~46.3 in.)
Track adjustment REAR (mm)
1138~1338mm (44.8~52.7 in.)
Basic equipment
Cabin
Hydraulic pump capacity (l/min)
30.9 / 60 (option)
