Excavator for tractor LW-5 4FARMER
Excavator for LW 4FARMER tractor

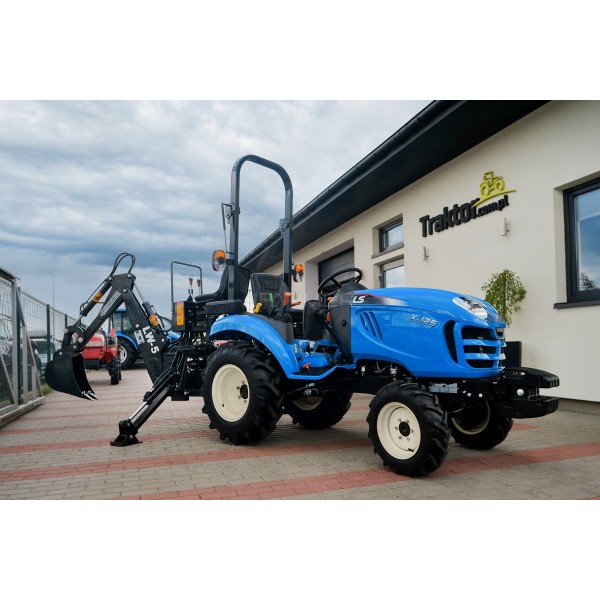

The LW 4FARMER excavator is a series of mini excavators for tractors and mini tractors attached to the tractor's three-point linkage . The universal single-bucket excavator for a tractor is used for all types of earthworks such as digging, meliorating fields or cleaning ditches, but can also perform a reloading function or serve as a crane. The LW 4Farmer excavator is designed for small earthworks in households, farms and is designed for tractors with power from 15 to 180 HP (+/- 5 HP) with a digging depth of 1650 to 3655 mm . The LW 4FARMER excavator is available in several sizes, which allows it to be successfully used in municipal services and construction. Available sizes:
4FAMER LW tractor excavator

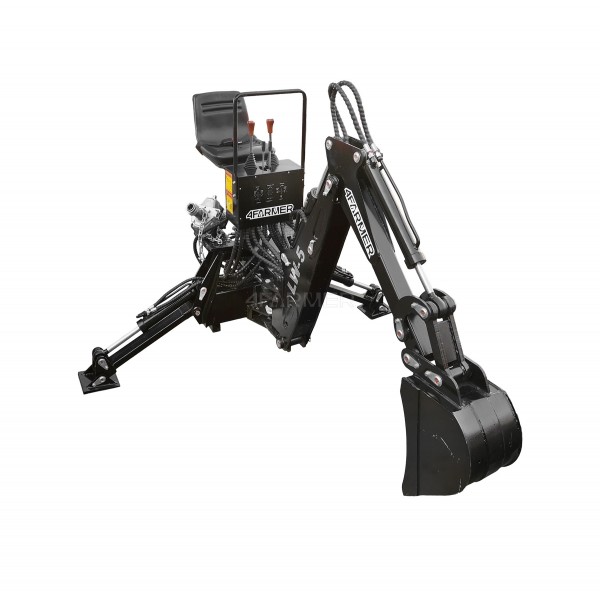

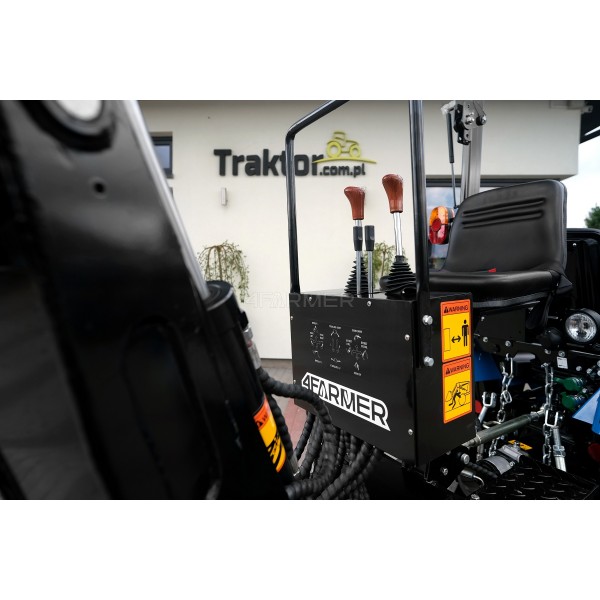

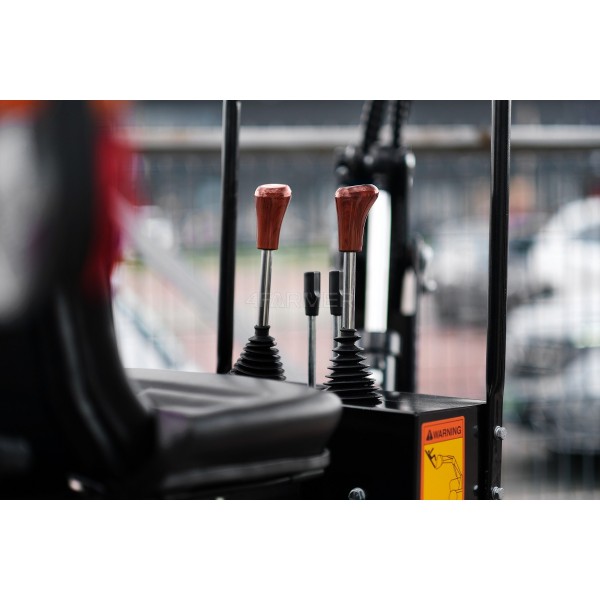

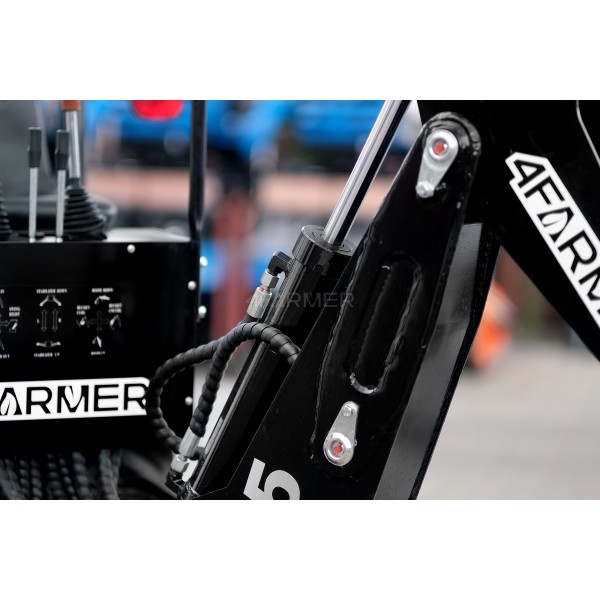

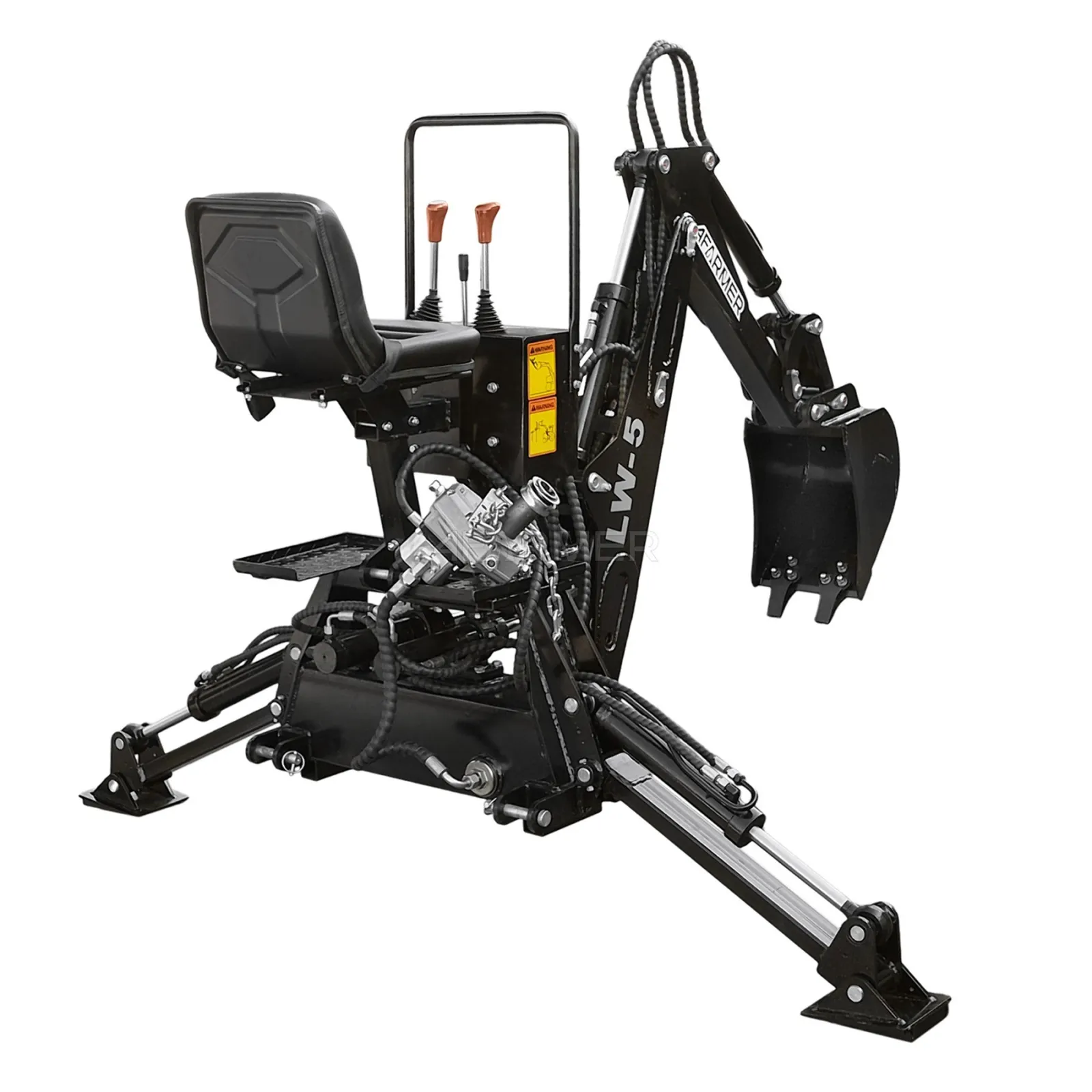

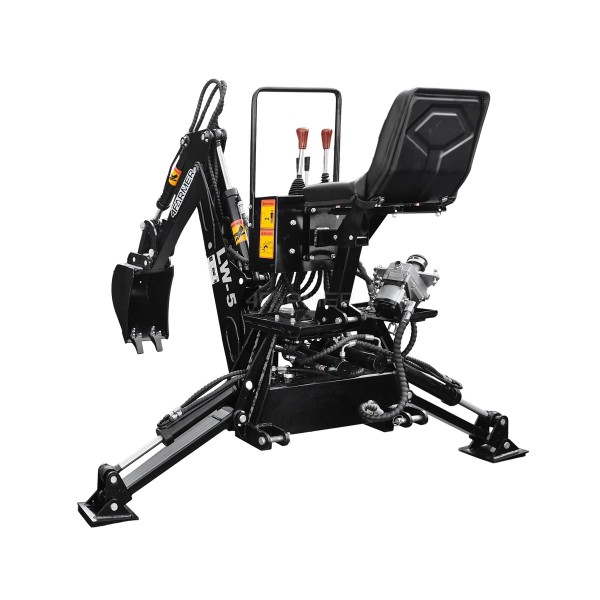

The tractor excavator consists of its own hydraulic pump, frame, lifting arm, hydraulic cylinders, stabilizing legs and bucket, and a control cockpit with an operator's seat. The excavator's hydraulic system is powered by its own hydraulic pump connected to the tractor's PTO shaft and has its own oil tank , thanks to which the excavator has an independent oil system , which means that the tractor's hydraulic oil does not mix with the excavator's hydraulic oil.

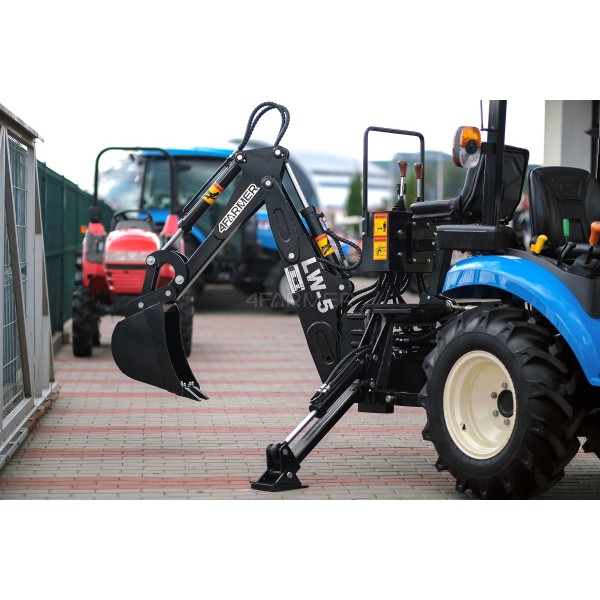

Excavator designed to work with a tractor, the most important features and dimensions of the LW-5 4FARMER excavator

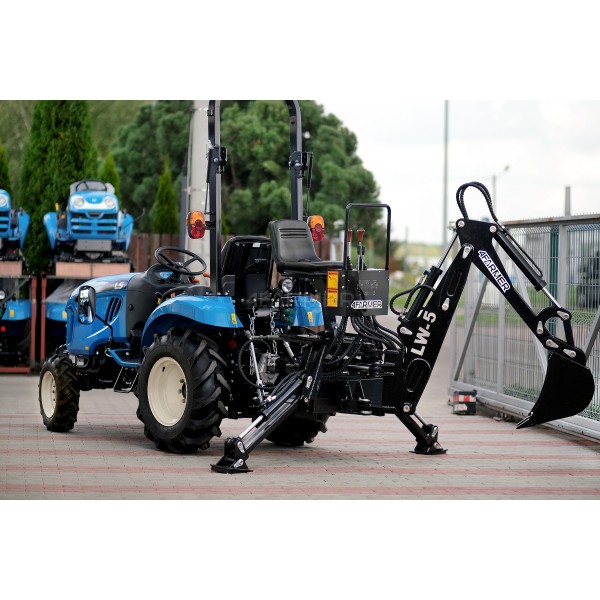

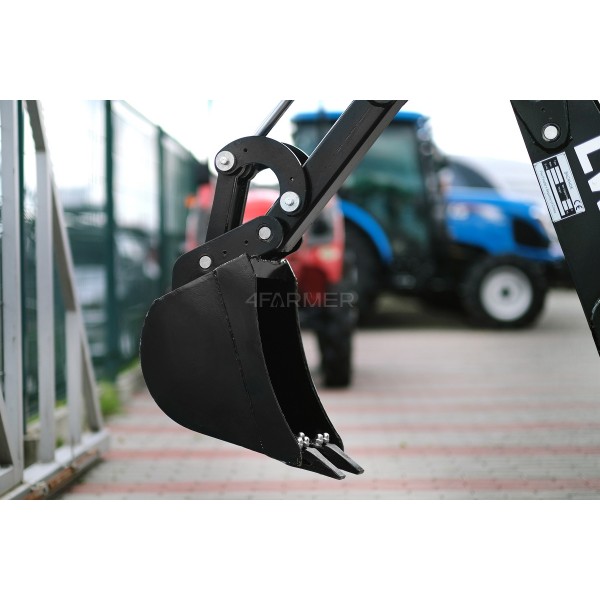

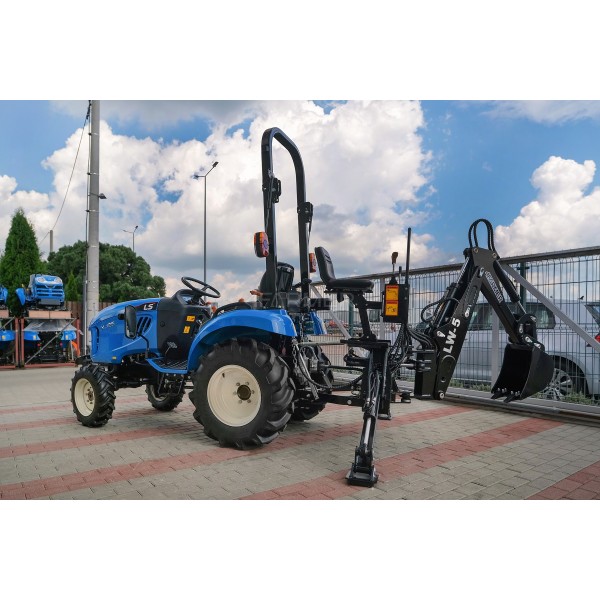

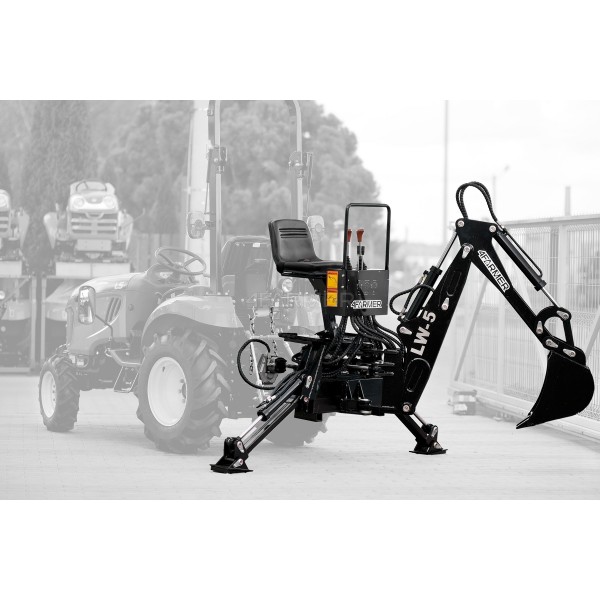

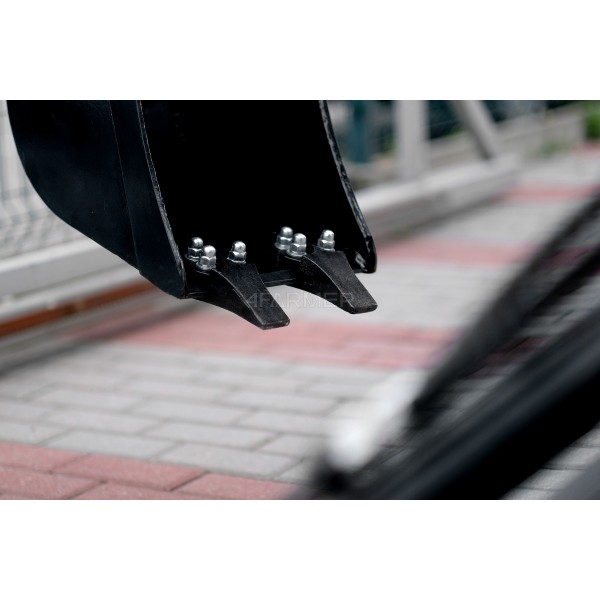

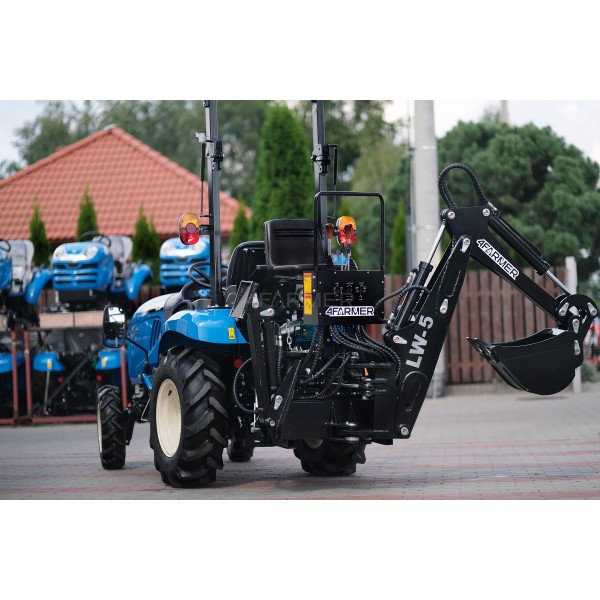

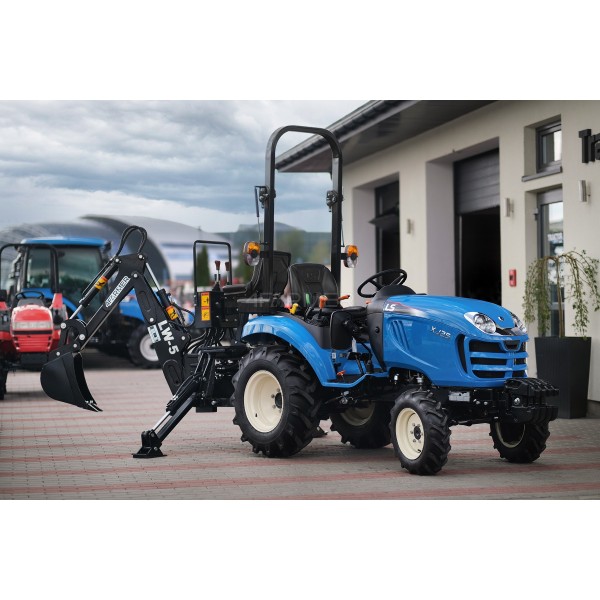

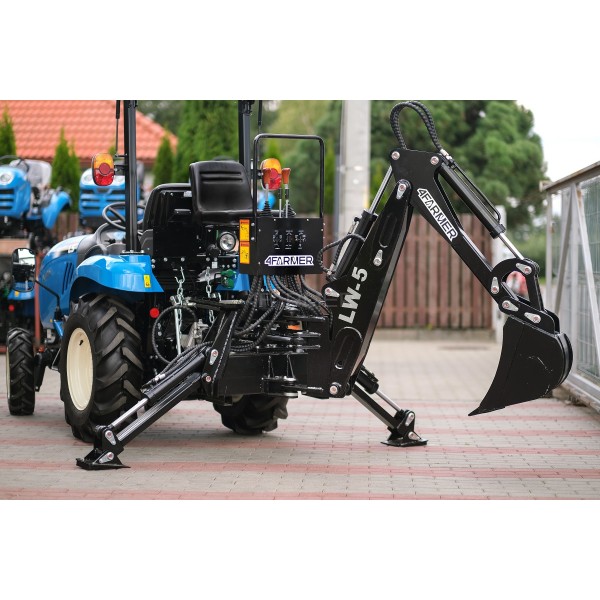

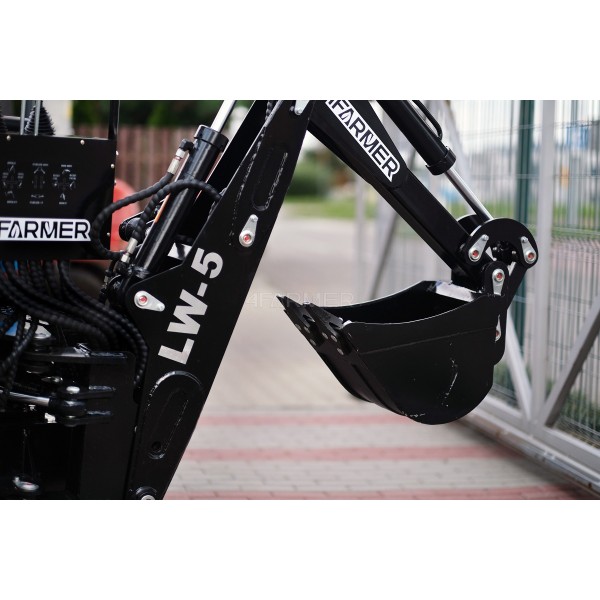

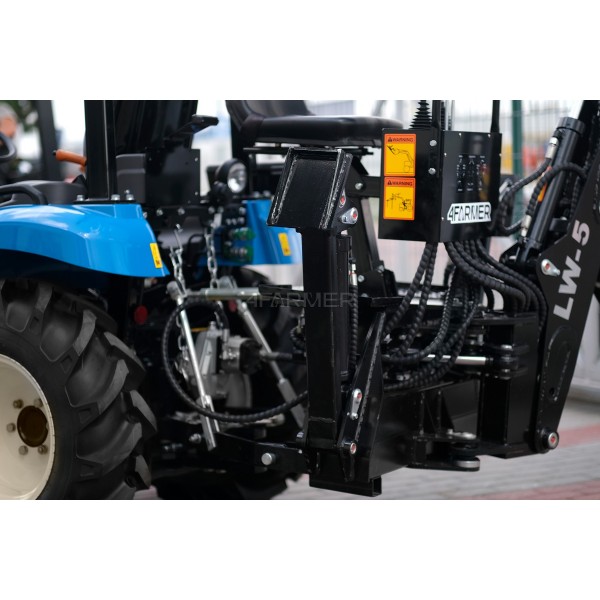

The LW5 excavator is an excavator suspended by means of pins to a tractor with a three-point linkage ( TUZ ) of the first category ( Cat I ). The excavator has its own hydraulic pump mounted on the tractor's power take-off shaft with the designation CBN-F320 . The dedicated bucket width for the LW5 4FARMER model is 350 mm with a capacity of 0.03 m3.
Technical data :
- model: LW-5 4FARMER ,
- weight: 360 kg,
- maximum cutting depth: 1650 mm,
- maximum digging height: 2600 mm,
- maximum digging radius: 2300 mm,
- maximum discharge height: 1530 mm,
- Stabilizer spacing: 2100 mm,
- clearance: 450 mm,
- bucket rotation angle: 160°
- bucket capacity: 0.03 m3,
- bucket width: 350 mm, 14 inches,
- transport width: 1130 mm,
- Hydraulic pump: CBN-F320 .
When choosing an excavator, you should pay attention to the excavator's digging properties and the weight, size and wheelbase of the pulling axle. For the LW 4FARMER excavator, we can use buckets of different sizes and types interchangeably. The excavator does not require a hydraulic connection to the tractor's hydraulic system.
Specification
Condition
New
Equipment
Excavator
Minimum required tractor power (HP HP PS)
15
Oil pump
CBN-F320
Maximum digging depth (mm)
1650
Maximum digging height (mm)
2600
Max digging radius (mm)
2300
NEXT DOOR
3 point
KAT I
Maximum throwing height (mm)
1530
Weight (kg)
360
Pin diameter (mm)
22
Bucket width (mm)
350
Bucket capacity (m3)
0.03
Ground clearance (mm)
450
Hydraulic pump (rated oil flow l/min / CC)
20
Color
Black
Bucket rotation angle (°)
160
Spacing of stabilizers (mm)
2100
Transport width (mm)
1130
