3-point linkage arm / 16T / RH / Kubota M6040 / M7040 / M8540 / 5-02-113-28

Product code: 5-02-113-28
Brand 4FARMER
View other model
zł325.20 netto
zł400.00
Includes VAT 23%

Lowest price from 30 days: zł400.00

Delivery options

Loading delivery options...

No delivery options available for this product.

Error loading delivery options. Please try again.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

Unavailable
0 pcs
On order See details Leasing & financing for businesses See details

Product description

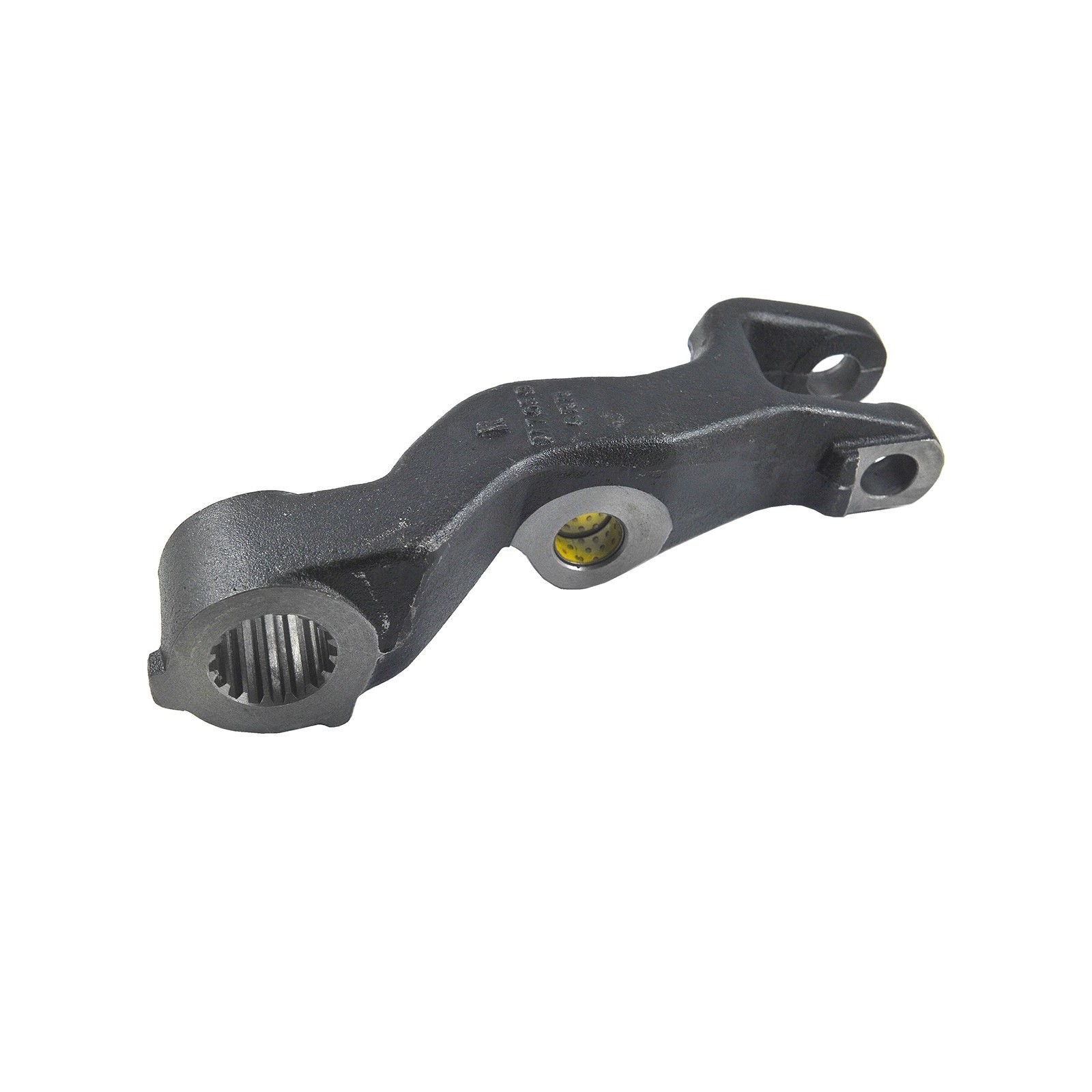

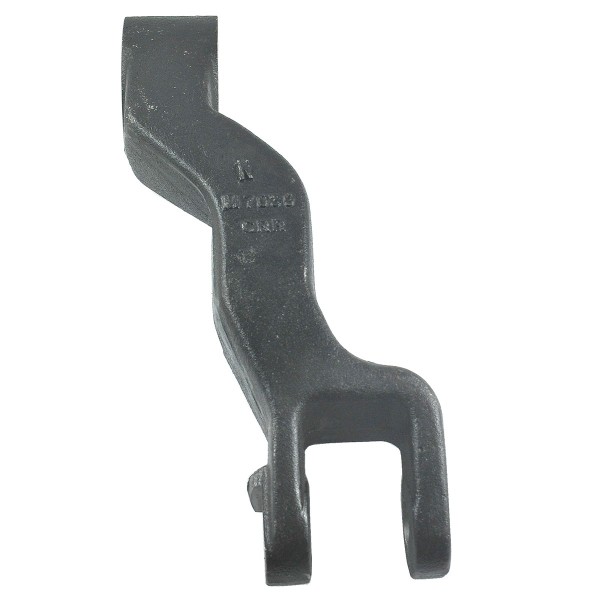

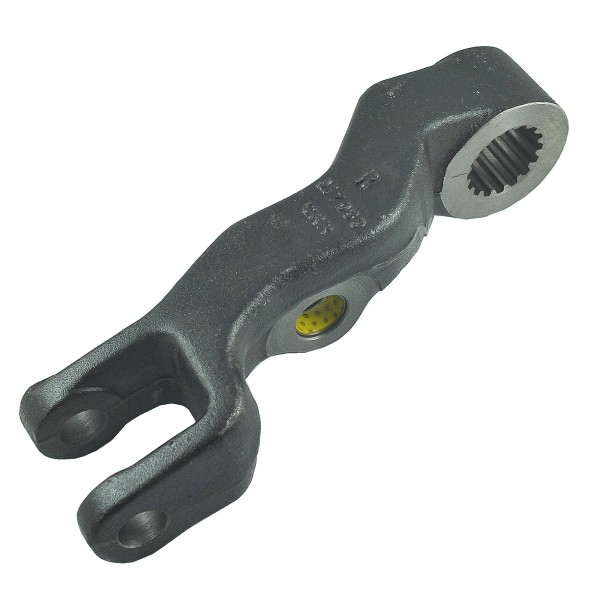

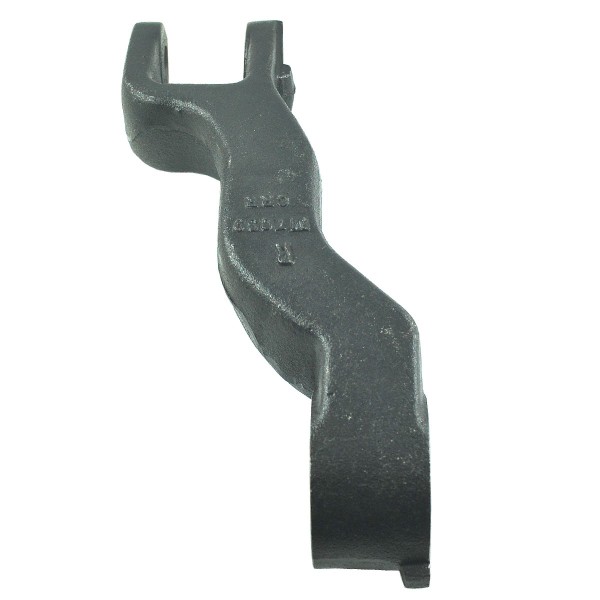

Upper lifting arm of the three-point linkage (shaft 6-18-122-01, 3C001-82830) with a total length of 310 mm for Kubota tractors of the Kubota M6040, Kubota M7040, Kubota M8540 series and others.

The lifting arm of the three-point linkage is an essential element of every tractor, ensuring effective lifting and lowering of agricultural machines and tools.

Dimensions :

  • total length: 310 mm,
  • working length: 250 mm,
  • inner diameter (16T): 40 mm (measured with cutter), 45 mm (measured between cutter teeth),
  • pin mounting width: 60 mm (IN), 80 mm (OUT),
  • pin hole diameter: 22.50 mm,
  • original part numbers: 3C001-82952,
  • comparison numbers: -,
  • part numbers: 5-02-113-28.

Tractor models :

Kubota :

  • Kubota M6040,
  • Kubota M7040,
  • Kubota M8540.

Warehouse :
K18:F33:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Fixing width (mm)
60 (IN), 80 (OUT)
Overall length (mm)
310
Parts
3-point linkage
Inner Diameter (mm)
40, 45
Tractor models
Kubota M6040, Kubota M7040, Kubota M8540
Diameter of pin hole(s) (pins/pins / mm)
22.50
working length (mm)
250
Production
Substitute
Part number
5-02-113-28
Original Part Number (OEM)
3C001-82952

Podobne produkty

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
