2-section hydraulic distributor - standard, floating with a latch / 40l/ min / P40-2-OT-QW-C1

2-section hydraulic distributor (1-normal, 2-floating with latch) controlled by hand levers. Thanks to this solution, the operator can easily adapt the device to his needs and increase its functionality. Additionally, the solid construction and high quality of materials used to produce the hydraulic distributor ensure long-lasting and reliable operation even in difficult conditions. Used in the agricultural industry, among others, in agricultural machines, tractors, cyclops, sprayers, HDS, loaders, excavators, sweepers, axles, construction machines, industrial machines and others.

Data and dimensions:

• number of sections: 1 - regular, 2 - floating with a latch,
• maximum pressure: 250 bar,
• maximum flow: 40 l/min,
• threads: 1/2" BSP (5 pcs), 3/8" BSP (4 pcs),
• dimensions: 150 x 230 mm,
• part numbers: P40-2-OT-QW-C1.

It is worth investing in a hydraulic distributor with a floating position to ensure comfort and safety when working with hydraulic devices. Thanks to this, you will be able to perform your tasks effectively and enjoy the stability and precision of the device.

K18:M04

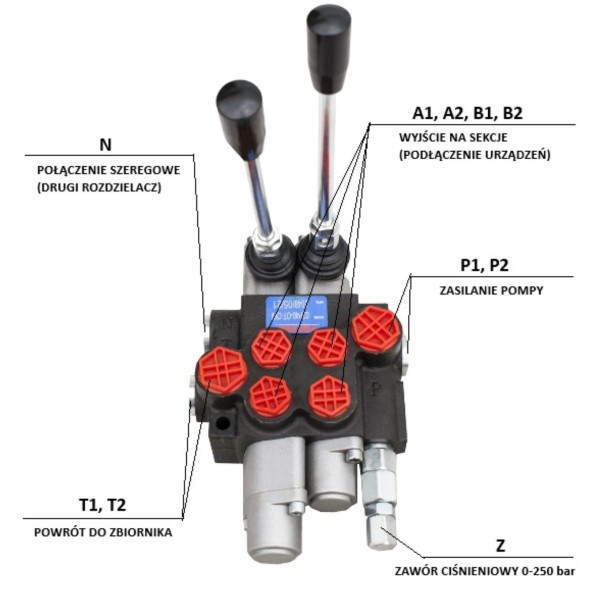

Connection:

Pump supply (P1, P2): BSP 1/2" internal thread

Return to the tank (T1, T2): BSP 1/2" internal thread

Output into sections (A1, A2, B1, B2): BSP 3/8" internal thread

Series connection (N): BSP 1/2" internal thread

Safety valve (Z)

First section setting:

It returns to the vertical position on its own on a spring

- Position 0 neutral – oil is directed to the overflow (T or N)

- Working position 1 - oil flow - in the case of an actuator, the piston rod extends.

- Working position 2 - oil flow - in the case of an actuator, the piston rod retracts.

Second section setting:

Four-position lever, three positions on a spring, i.e. the lever returns to the vertical by itself:

- Position 0 neutral (lever set vertically), cylinder piston rod is standing - oil goes to the overflow.

- Working position 1 (lever set in a forward diagonal position), the cylinder piston rod extends.

- Working position 2 (lever set at an angle to the rear), the cylinder piston rod retracts.

- Floating position 3 with latch, (lever set in the maximum forward position) the cylinder piston rod works freely, extends and retracts freely under the influence of the forces.

In this position it runs there is a latch (detent) that holds the lever without having to hold it with your hand. The oil flows freely between the actuator chambers and the tank, which allows, for example, the plow to follow the terrain.

Possibility of connecting the manifold to another manifold using a pressure sleeve.

*Photos are for illustration purposes only and may differ in detail from the delivered product due to differences in production over the years.
