zł390.00
To order
Condition
New
Production
Substitute
Parts
3-point linkage
Tractor models
Kubota L3408
Kubota L3608
Kubota L4508
Kubota L4708
Kubota L3608
Kubota L4508
Kubota L4708
Diameter (mm)
43
Overall length (mm)
450
Pin hole diameter (pins/mm)
16.50 / 16.50 / 16.50 / 19.50

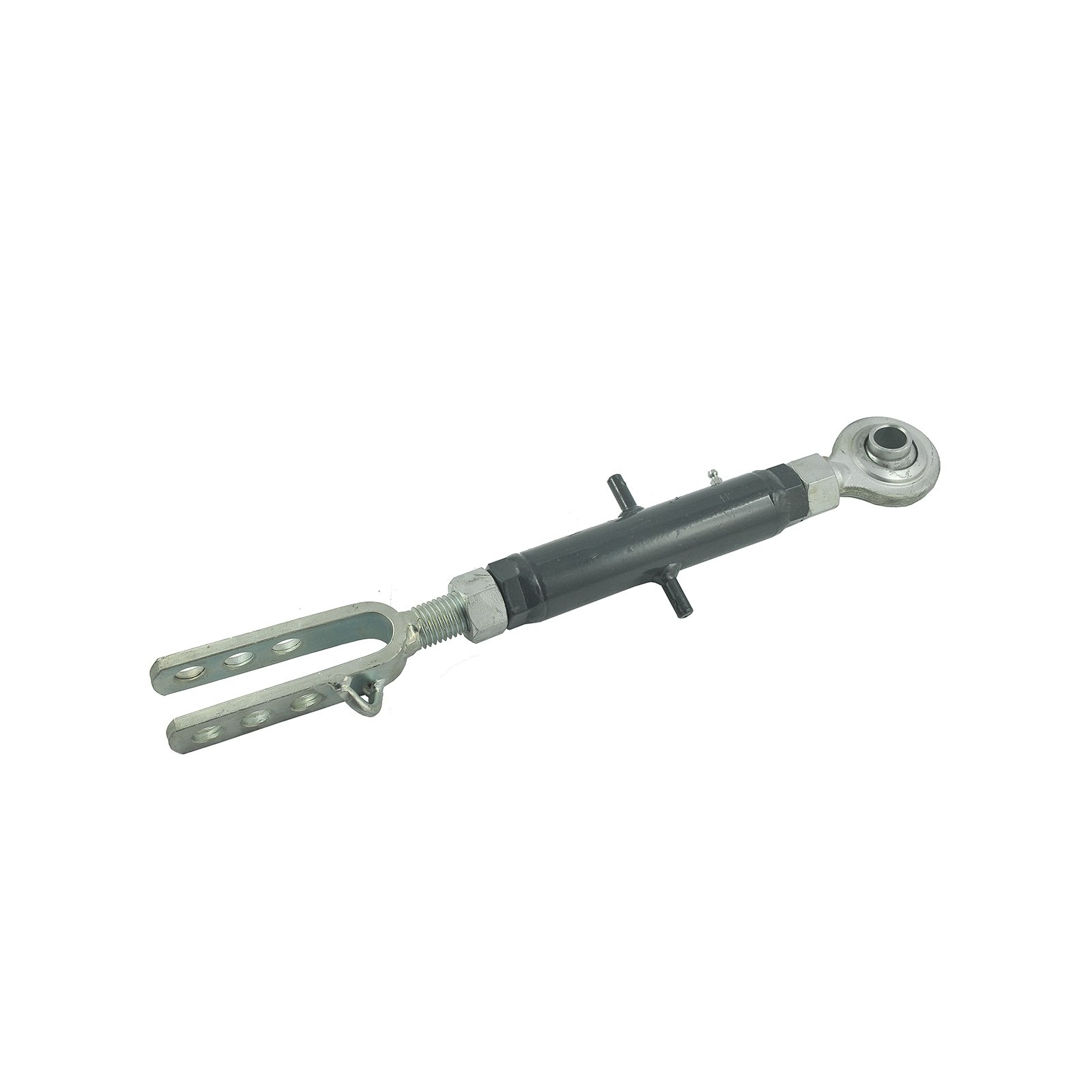

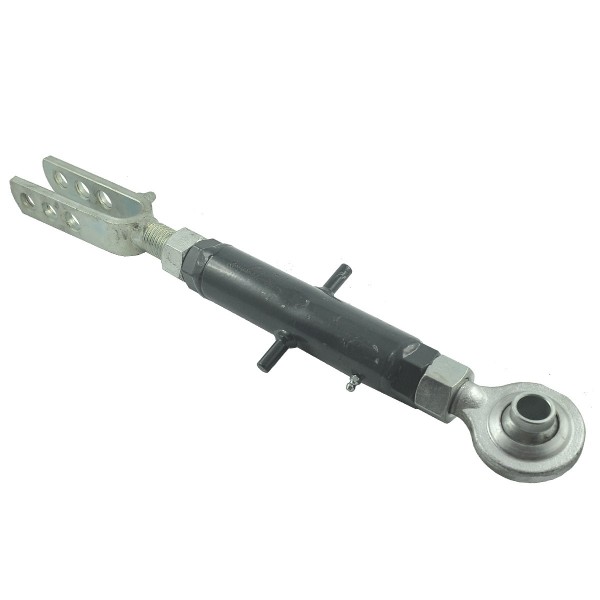

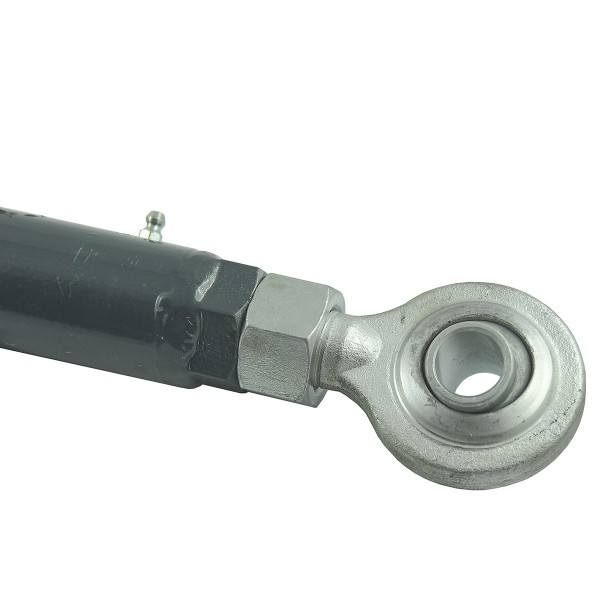

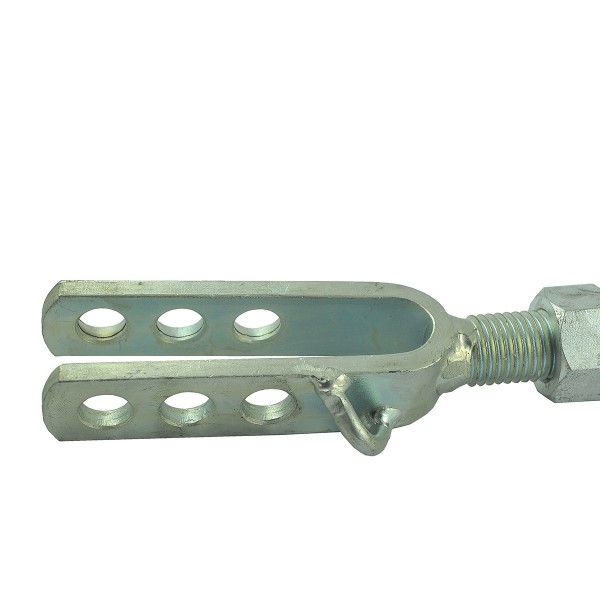

Adjustable arm hanger / TUBE CAT I / 390 mm / Kubota L3408 / L3608 / L4508 / L4708
6-02-102-12
Do you have any questions?
Adjustable arm hanger / TUBE CAT I / 390 mm / Kubota L3408 / L3608 / L4508 / L4708
Right lower arm hanger ( 5-02-111-23 three-point linkage ) with mechanical adjustment (leveling) for Kubota tractors of the Kubota L3408, Kubota L3608, Kubota L4508, Kubota L4708 series and others.
The Cat I TUZ arm hanger is a high-quality component designed for Kubota tractors, including the L3408, L3608, L4508 and L4708 models. Its design provides stability and ease of assembly, which allows for effective use in agricultural work. The 390 mm long adjustment allows for adaptation to various tasks, making this hanger a versatile solution for professional users.
Dimensions :
- total length: 450 mm (minimum total length with screws tightened to maximum),
- working length: 440 / 410 / 390 mm, (minimum working length with maximally tightened screws, measured from centre to centre of the pin holes),
- diameter: 43 mm.
- diameter of pin holes:: 16.50 / 16.50 / 16.50 / 19.50 mm,
- original part numbers: W9501-35040,
- part numbers: 6-02-102-12.
Tractor models :
Kubota :
- Kubota L3408,
- Kubota L3608,
- Kubota L4508,
- Kubota L4708.
Warehouse :
M01:F83
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:F83
Condition
New
Production
Substitute
Parts
3-point linkage
Tractor models
Kubota L3408
Kubota L3608
Kubota L4508
Kubota L4708
Kubota L3608
Kubota L4508
Kubota L4708
Diameter (mm)
43
Overall length (mm)
450
Pin hole diameter (pins/mm)
16.50 / 16.50 / 16.50 / 19.50
Original Part Number (OEM)
W9501-35040
Part number
6-02-102-12
Category
1
Minimum working length (mm)
390
Maximum working length (mm)
440
