2-section hydraulic distributor (1-normal, 2-floating) joystick-controlled. Thanks to this solution, the operator can easily adapt the device to his needs and increase its functionality. Additionally, the solid construction and high quality of materials used to produce the hydraulic distributor ensure long-lasting and reliable operation even in difficult conditions. Used in the agricultural industry, among others, in agricultural machines, tractors, cyclops, sprayers, HDS, loaders, excavators, sweepers, axles, construction machines, industrial machines and others.
Data and dimensions:
It is worth investing in a hydraulic distributor with a floating position to ensure comfort and safety when working with hydraulic devices. Thanks to this, you will be able to perform your tasks effectively and enjoy the stability and precision of the device.
K18:M03

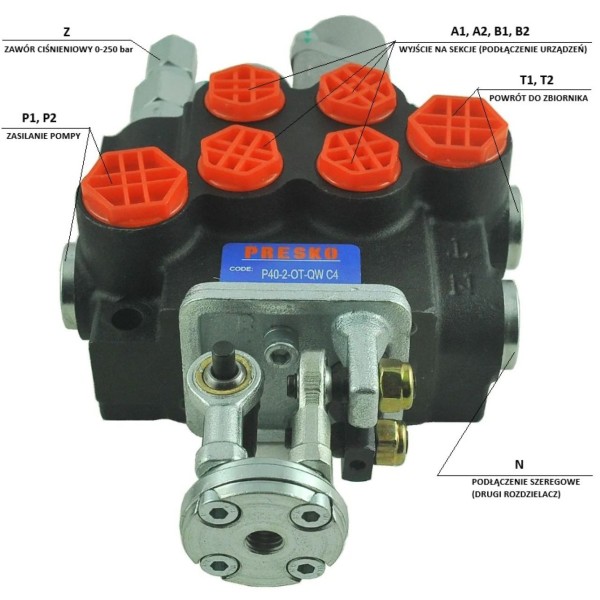

Connection:
Pump supply (P1, P2): BSP 1/2" internal thread
Return to the tank (T1, T2): BSP 1/2" internal thread
Output into sections (A1, A2, B1, B2): BSP 3/8" internal thread
Series connection (N): BSP 1/2" internal thread
Safety valve (Z)
Section 1: Items 1-0-2 (Latch / Detent)
C4 marking for the first section means that the slider has a mechanical latch in every working position.
Position 0 (Neutral): The slider is locked in the center. The oil flows to the overflow (T).
Position 1 (Extend): You move the lever/cable and it stays in that position after you release your hand. The actuator extends continuously.
Position 2 (Return): You move the lever to the other side, it also latches. The actuator retracts continuously.
Application: Ideal for driving hydraulic motors or wrappers where you don't want to keep your hand on the lever.
Section 2: Items 1-0-2-3 (Floating with latch / QW)
The section marked as QW has 4 positions and is dedicated to the "floating" function (e.g. lowering the arms or plowing):
Position 0 (Neutral): Standard stop, actuator hold.
Position 1 and 2 (Working): Standard extension and return. After releasing the lever, the slider returns to zero by itself (spring).
Position 3 (Float): Accomplished by pushing the slider firmly all the way (beyond the working position).
There is a latch in this position.
Channels A and B are connected back (T), which allows the actuator to move freely under the influence of external forces (e.g. the bucket follows the terrain).
Summary differences:
Section 1 (C4): "Remembers" every position (latches on extension, foot and return).
Section 2 (QW): Automatically returns to zero from operating positions, but has a latch in a special floating position.
Possibility of connecting the manifold to another manifold using a pressure sleeve.

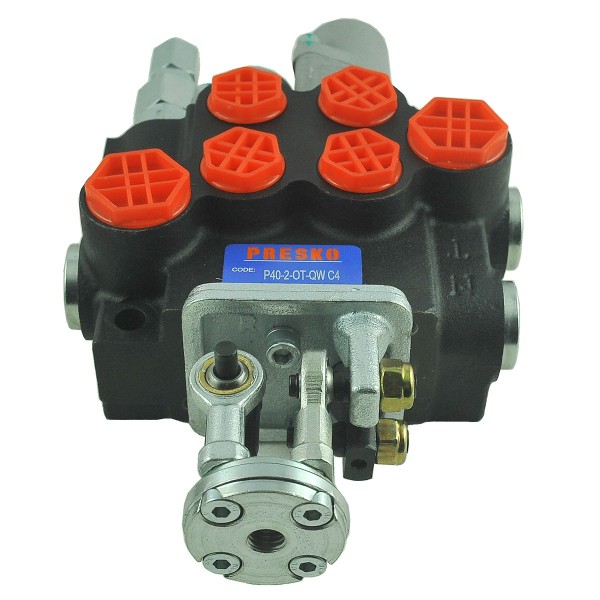

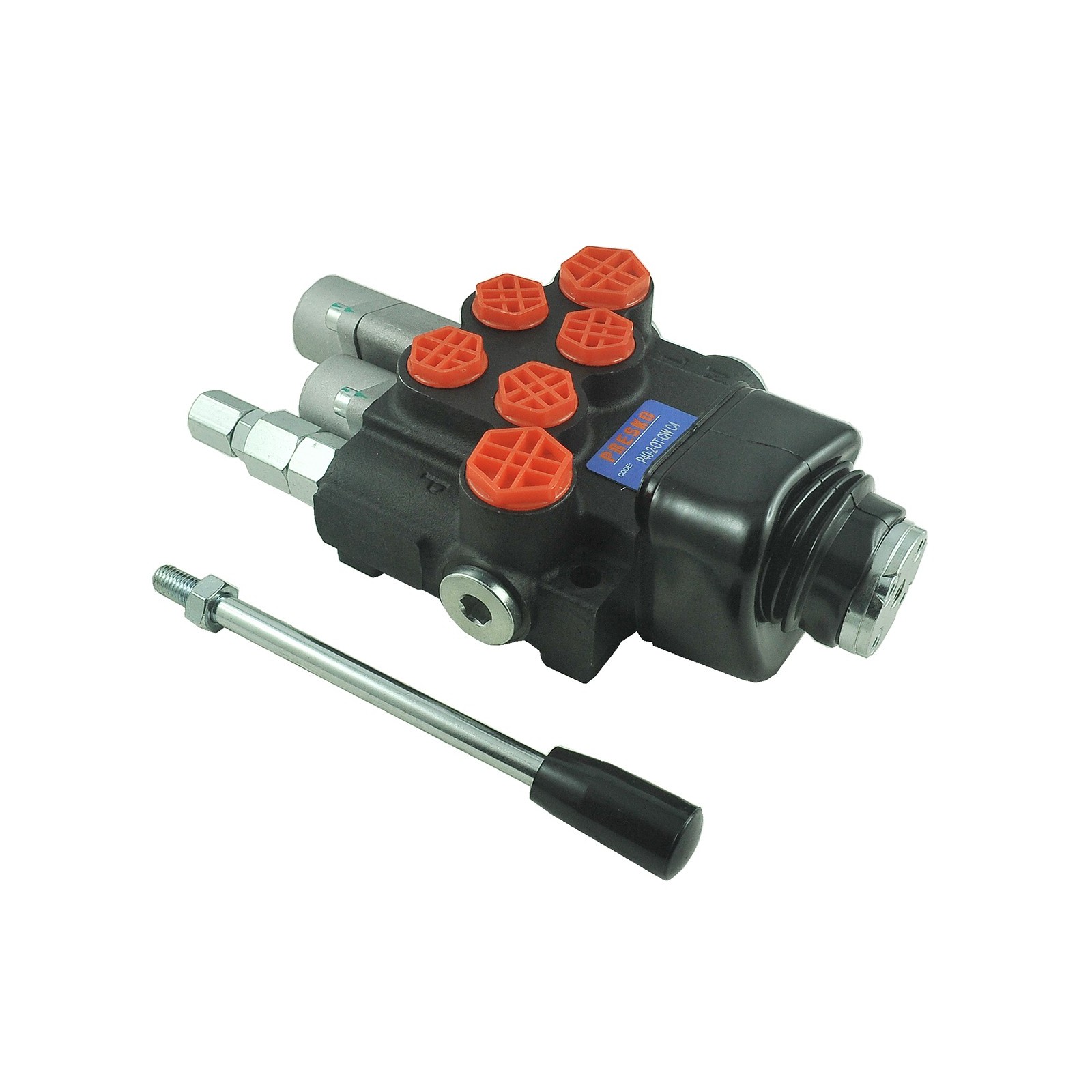

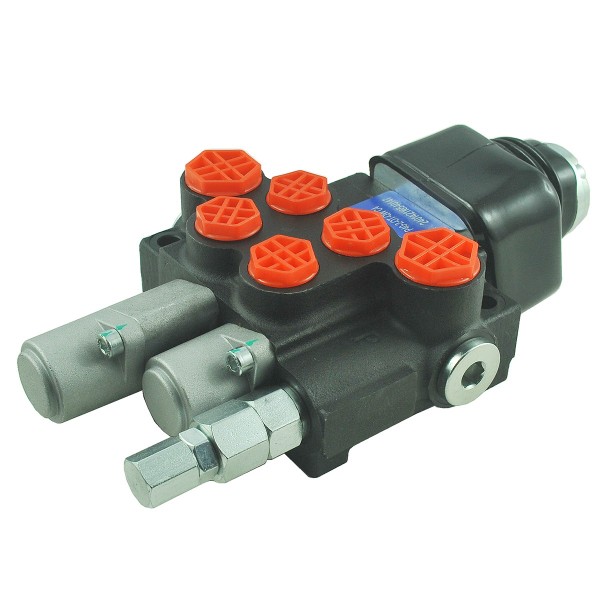

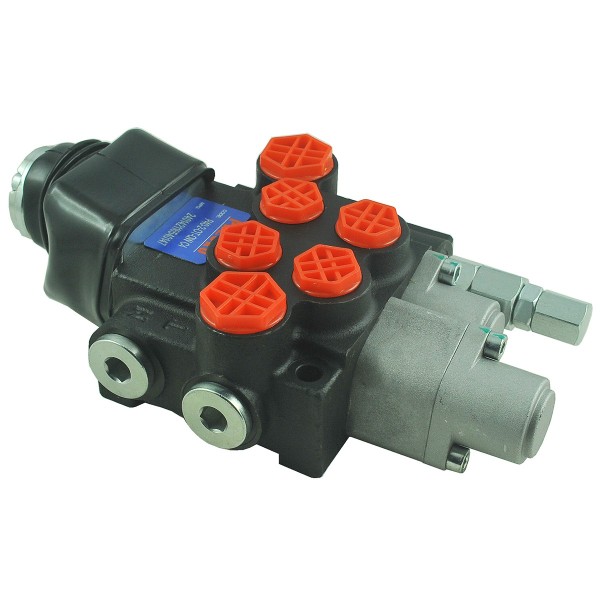

*Photos are for illustration purposes only and may differ in detail from the delivered product due to differences in production over the years.
