Cardan joint / 18T/18T / 112 mm / Kubota B1200 / Iseki TX1400/TX1510 / 5-04-500-05

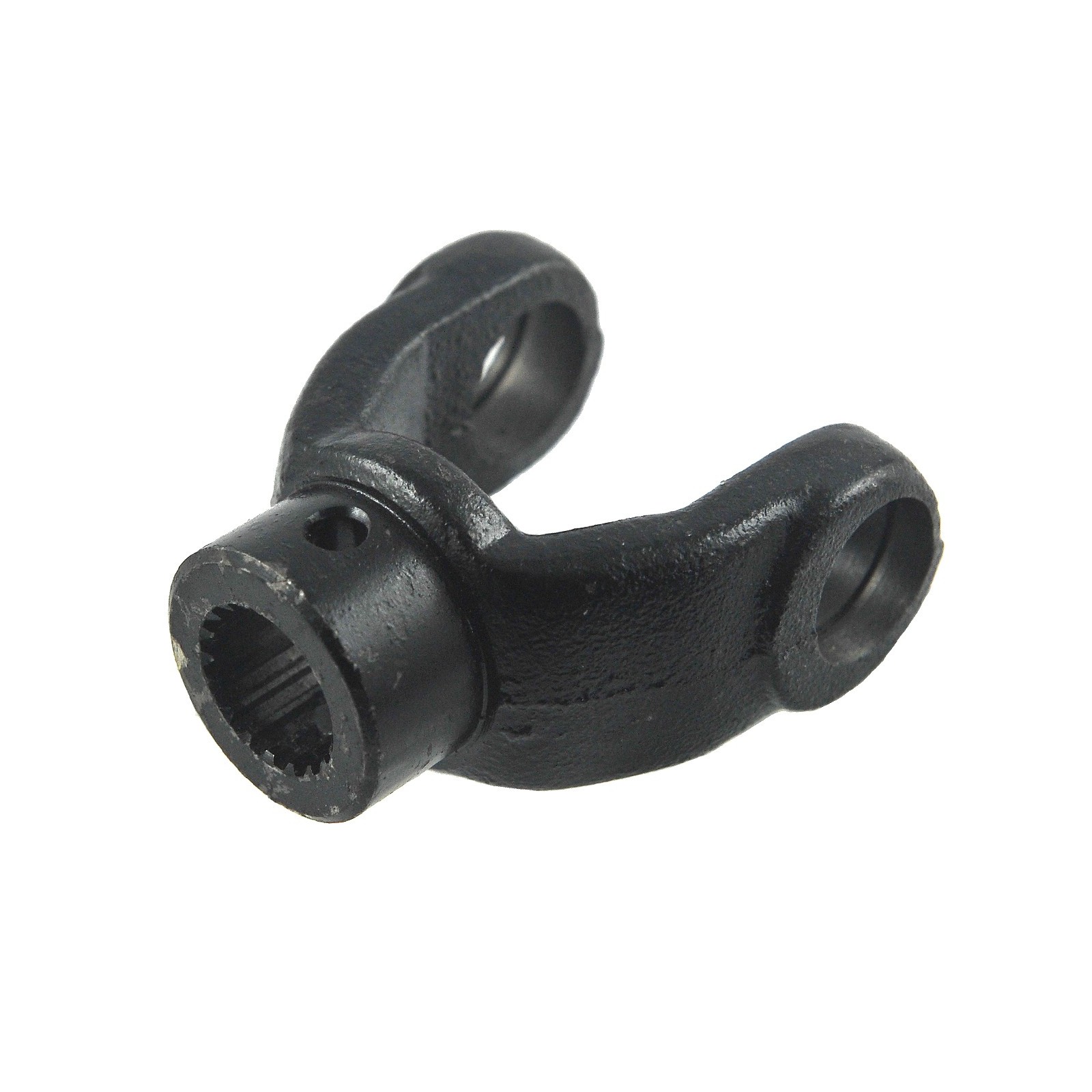

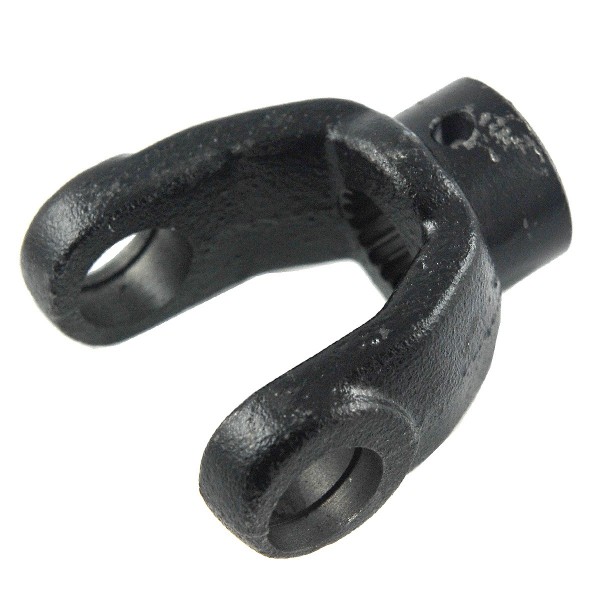

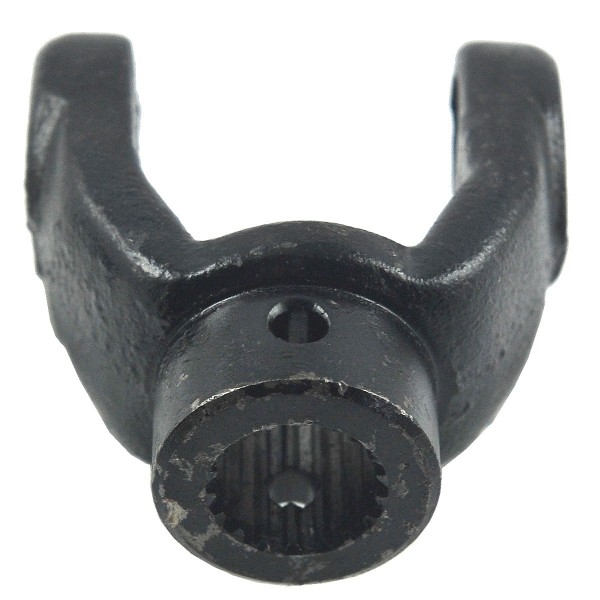

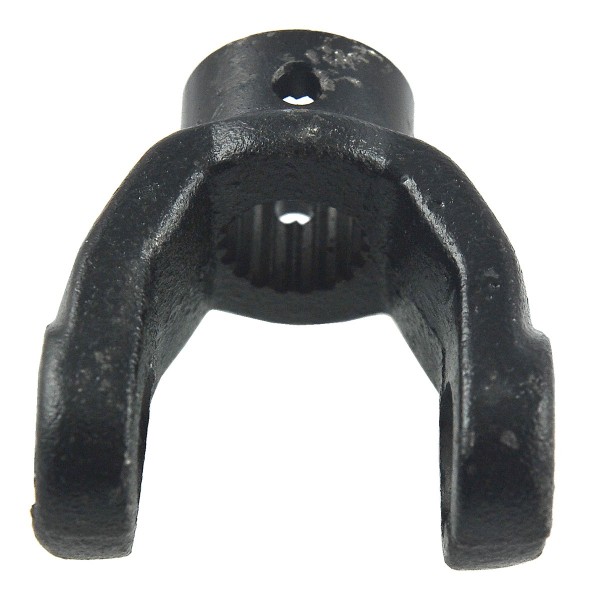

Cardan joint (cross joint 66591-56321, joint 29005 , 66864-15421) with a total length of 112 mm and a cutter with the number of teeth 18T / 18T and an internal diameter of 19.90 mm measured between the teeth of the cutter for Iseki tractors of the Iseki TX1400 series, Iseki TX1510 of the Kubota series Kubota B1200 and others

Cardan joint , universal joint or pivot joint is an element whose main task is to transfer the drive and torque from the active shaft to the passive shaft, which may be at a significant angle to each other. Cardan coupling , cross coupling or swing coupling are all correct names for a joint that consists of two fork-shaped elements joined together by a cross joint. Cardan joints are available with shafts, with ends with a cutter or fork, blocked with a wedge.

Dimensions :

• total length: 72 mm,
• width: 65 mm (measured on the outside),
• inner diameter: 19.90 mm (measured between the cutter teeth), 17.50 mm (measured together with the cutter teeth),
• diameter of holes for cross: 20 mm,
• cross (66591-56321): 20 x 54.60 mm,
• working length of the cutter: 25 mm,
• number of teeth: 18T,
• original part numbers: ( 5-04-500-05 spare part), 66864-15421.

Tractor models :

Kubota :

• Kubota B1200.

Iseki :

• Iseki TX1400,
• Iseki TX1510.

Warehouse :
M01:B63:S01
