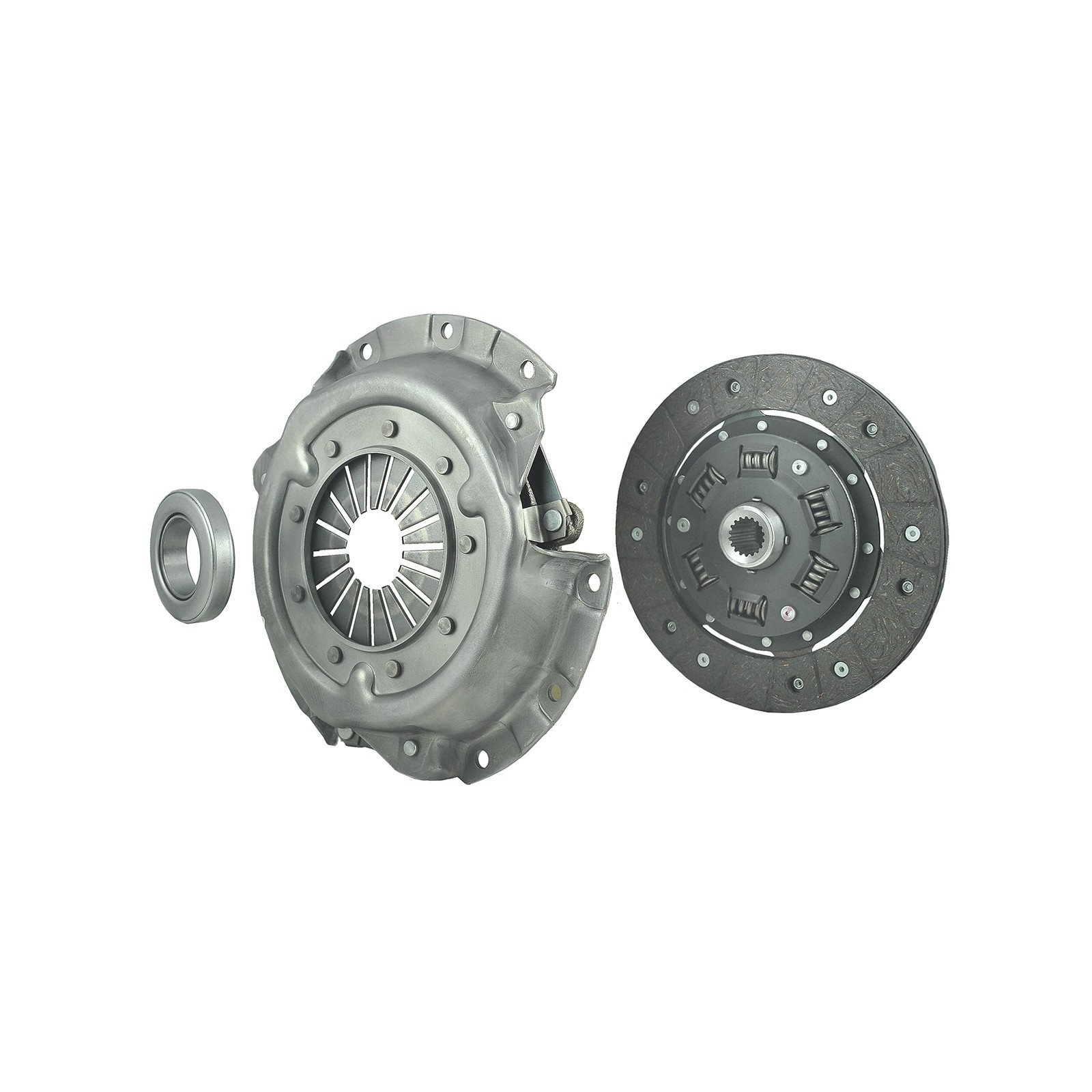

Clutch / Shibaura P15 / P17 / P155 / P165 / P175 /P185 / SL1503 / SL1543 / SL1703 / SL1743 / SP1500 / SP1540 / CKitSType1

Clutch disc pressure plate (disc, pressure plate) with a pressure plate diameter of 127 / 217 mm for Shibaura brand tractors of the Shibaura P15, Shibaura P17, Shibaura P155, Shibaura P165, Shibaura P175, Shibaura P185, Shibaura SL1503, Shibaura SL1543, Shibaura SL1703, Shibaura SL1743, Shibaura SP1500, Shibaura SP1540, Shibaura SP1700, Shibaura SP1740, Shibaura SU1500, Shibaura SU1540 series and others.

The clutch pressure plate is the component that connects the gearbox to the engine, and is therefore responsible for transferring torque from the engine, through the gearbox, to the tractor's drivetrain. To simplify this complex process, the clutch pressure plate is responsible for moving the tractor, starting and stopping, and changing speed ratios. The clutch pressure plate consists of a housing, compression springs, and a clutch disc. Its main function is to exert sufficient frictional force on the clutch disc to prevent the two components (pressure plate and disc) from rotating at different speeds.

The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.

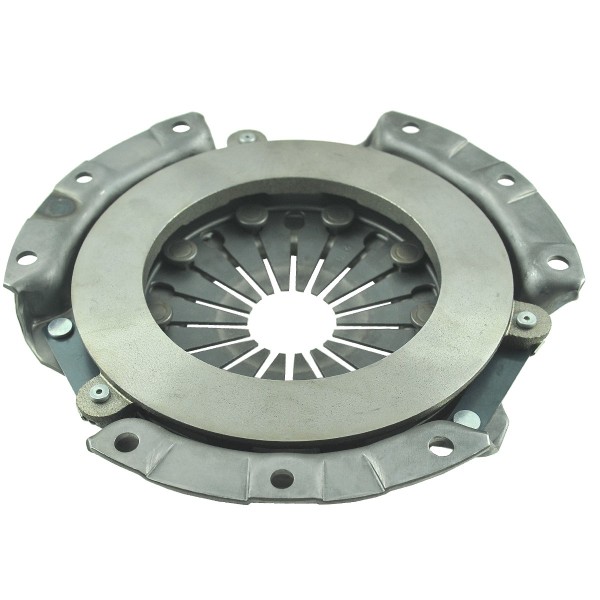

Dimensions (pressure):

• Overall diameter (housing): 240 mm (7 inches),
• Internal diameter of the pressure plate: 125 mm,
• Outer diameter of the pressure plate: 185 mm,
• Height: 40 mm,
• Mounting screw hole spacing: 110 mm (measured from each other), 220 mm (measured diagonally,
• Original part numbers: 37150-14502, 67211-13300, 1007-1110-000, %C5% 82a-240-mm-iseki-tu1400tu1600-33001.html">1600-120-230-00 ,
• Comparison numbers: %C5% 82a-240-mm-iseki-tu1400tu1600-33001.html">33001 , %C5% 82a-kubota-l1500-7-7-cali-209-001501.html">6-26-102-03 .

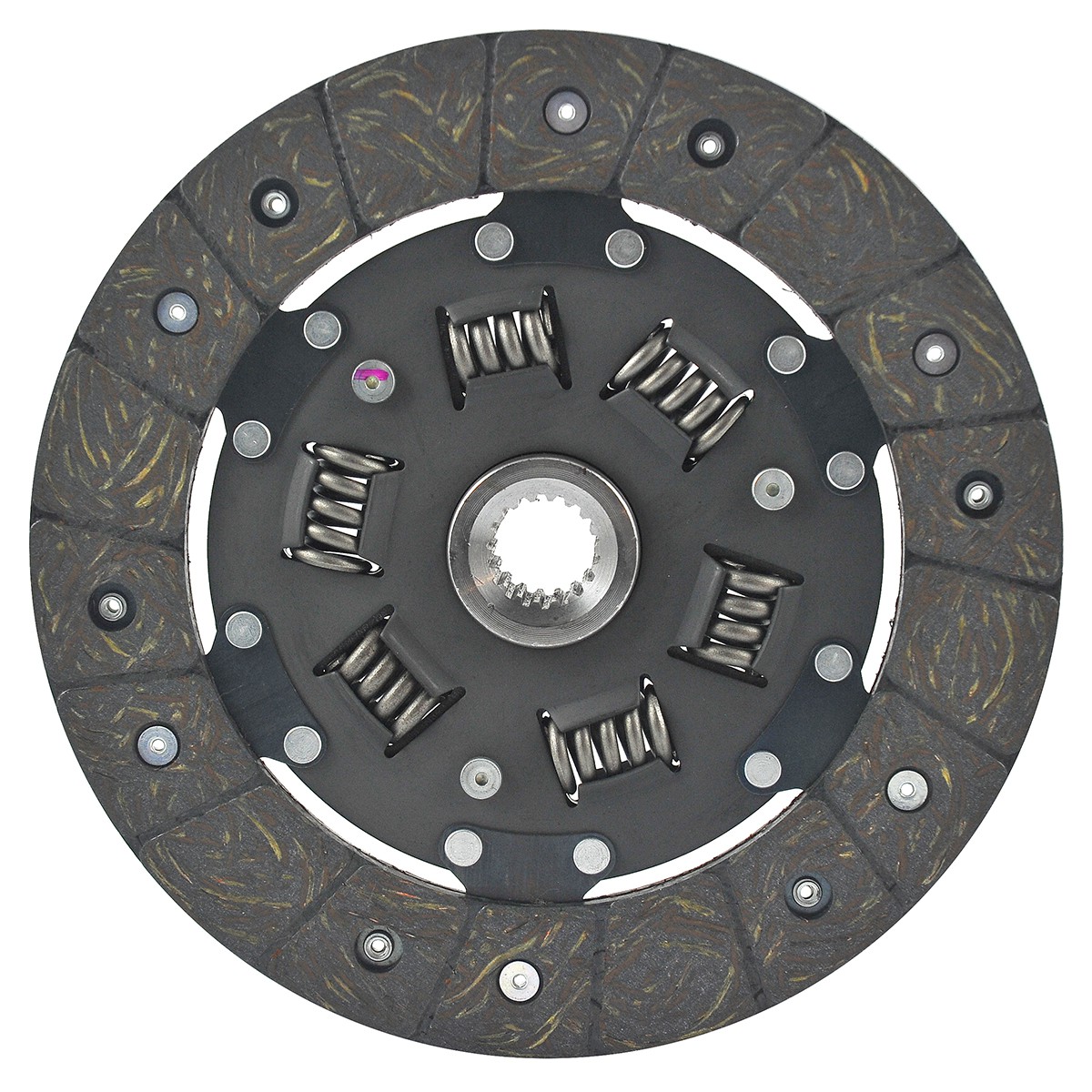

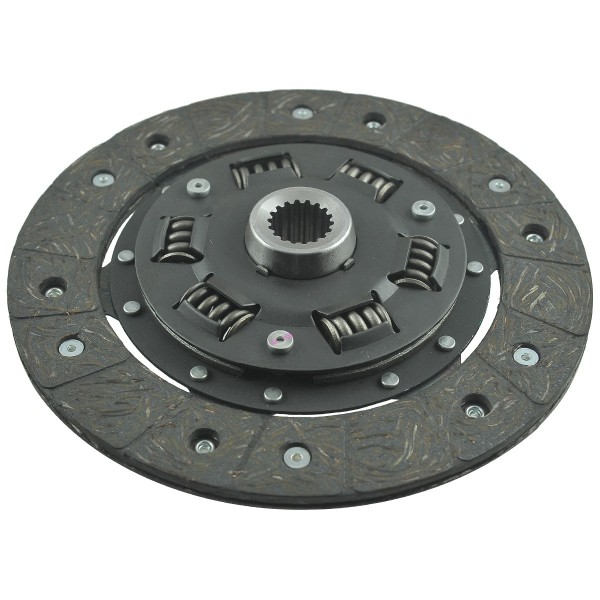

Dimensions (shield):

• Outer diameter: 185 mm,
• Inner diameter: 20 mm (measured between teeth), 18 (measured with cutter),
• Hub height: 26.50 mm,
• Thickness: 8 mm,
• Number of teeth: 18T,
• Original part numbers: %C5% 82a-18t- %C3% B820-x-184-mm-7-12-iseki-tutmtx-1427-120-2500-00-32002.html">1427-120-2500-0,
• Comparison numbers: %C5% 82a-18t- %C3% B820-x-184-mm-7-12-iseki-tutmtx-1427-120-2500-00-32002.html">32002 , %C5% 82a-iseki-18t-184-mm-iseki-tx1510-tu1500-tu1400-tm17-shibaura-p.html">ANT-100873 .

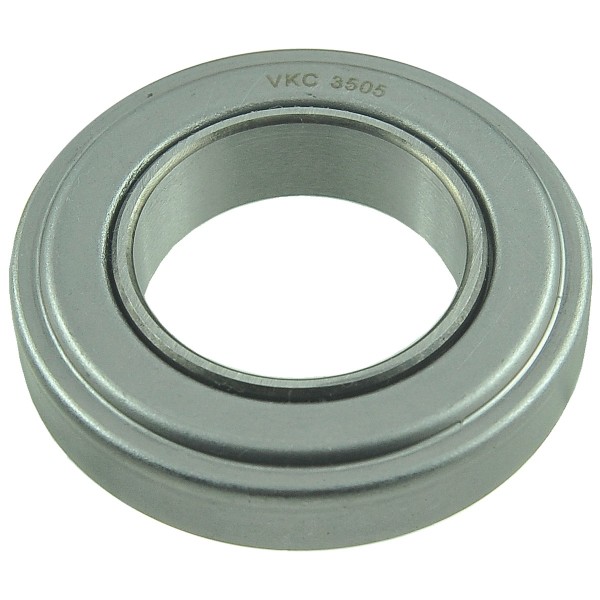

Dimensions (bearing):

• Outer diameter: 67 mm,
• Inner diameter: 38.10 mm,
• Height: 16.50 mm
• Original part numbers: 34150-14280, %C5% BCyska-/31321- %C5% 82o %C5% BCyska-resistance-coupling %C4% 99g %C5% 82a-3810-x-67-x-1650-mm-iseki-tm3160-24tk308b2-1491-120-001-00.html">1491-120-001-00 ,
• Comparison numbers: %C5% BCyska-/92- %C5% 82o %C5% BCysko-sprz %C4% 99g %C5% 82a-38-x-67-x-1525-mm-kubota-l-ct38-1l1-34150-14280-32150-14820-32270-14820-5-23-108-12.html">5-23-108-12 ,
• Part numbers: VKC 3505.

Tractor models :

• Shibaura P15,
• Shibaura P17,
• Shibaura P155,
• Shibaura P165,
• Shibaura P175,
• Shibaura P185,
• Shibaura SL1503,
• Shibaura SL1543,
• Shibaura SL1703,
• Shibaura SL1743,
• Shibaura SP1500,
• Shibaura SP1540,
• Shibaura SP1700,
• Shibaura SP1740,
• Shibaura SU1500,
• Shibaura SU1540.

The first signs of a worn clutch include an unusual noise when pressing or releasing the clutch pedal, an unpleasant odor, or a grinding sound from the gearbox. When replacing a clutch, it's recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.

The first signs of clutch disc wear (wear) are clutch slippage , which makes it difficult or impossible to move the vehicle. The tractor fails to accelerate when the engine speed increases. The clutch disc can also show signs of wear if it is contaminated with oil. It is recommended to replace the disc along with the clutch pressure plate and release bearing, as all these components have comparable durability and wear at the same rate. Another sign of clutch disc wear is the inability to engage a gear.

Warehouse : K18 A29

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
