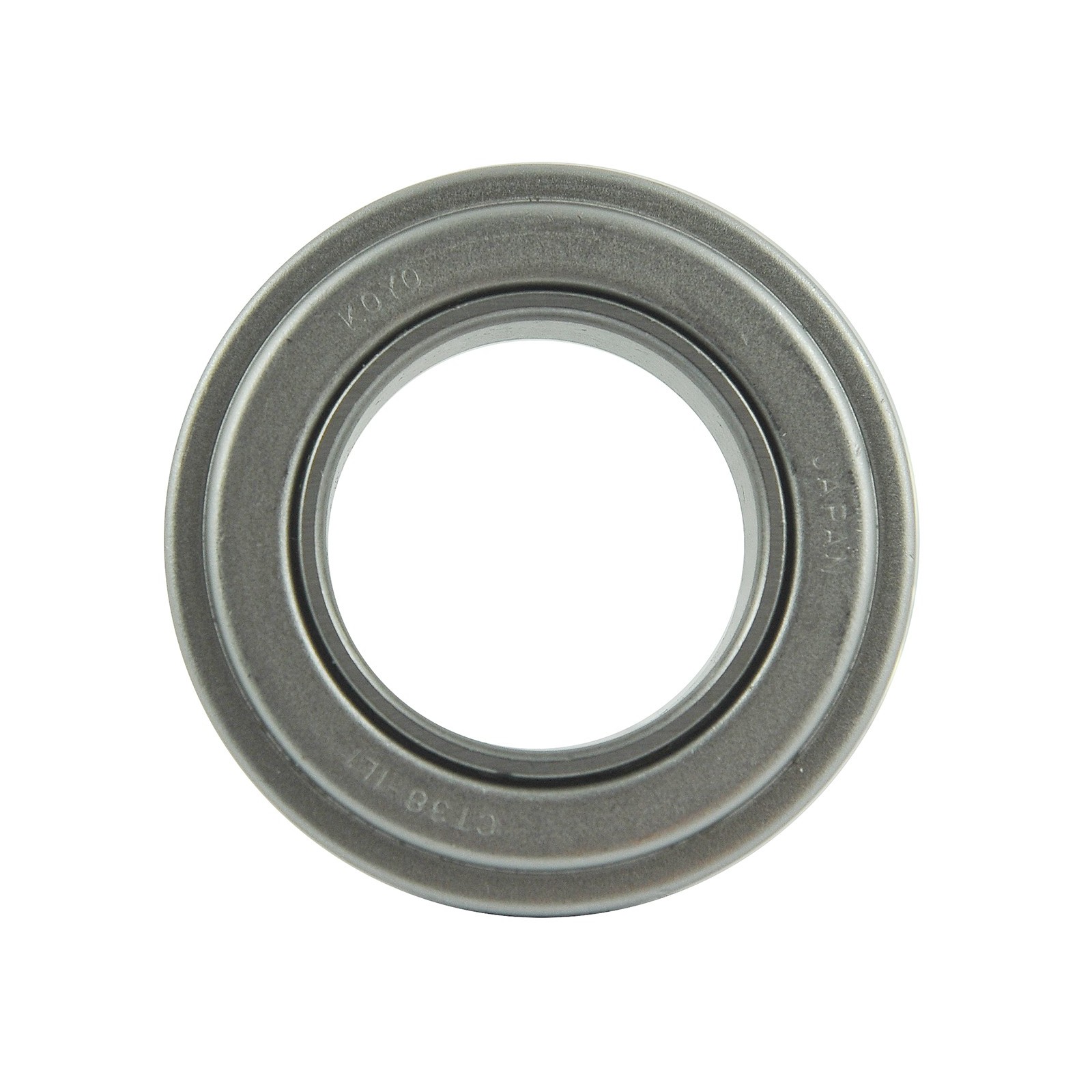

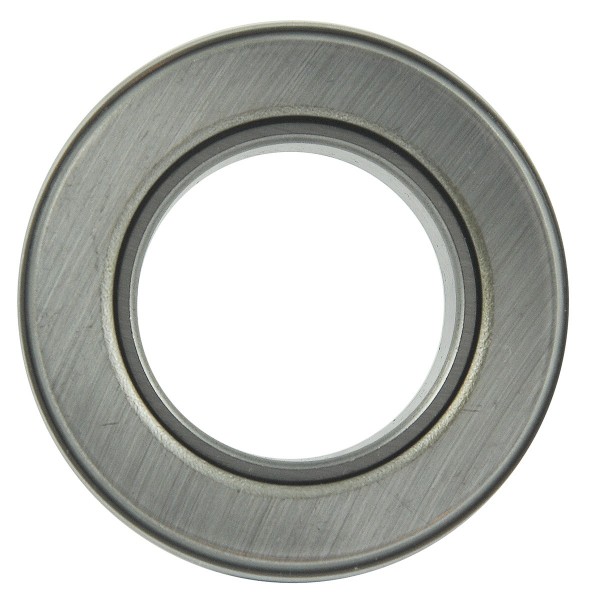

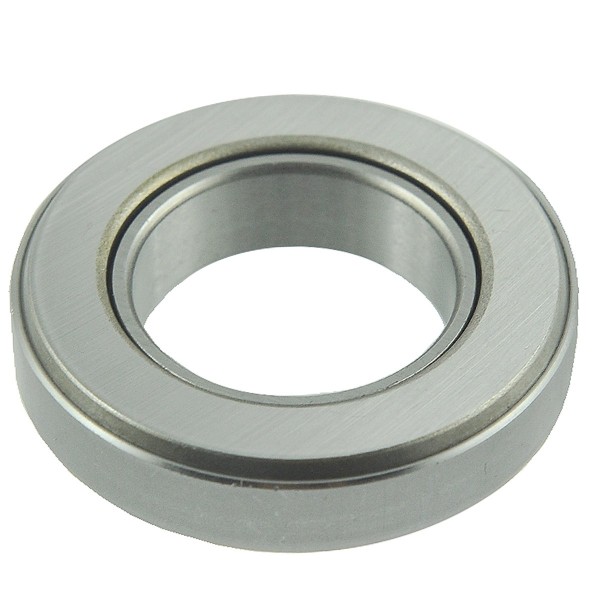

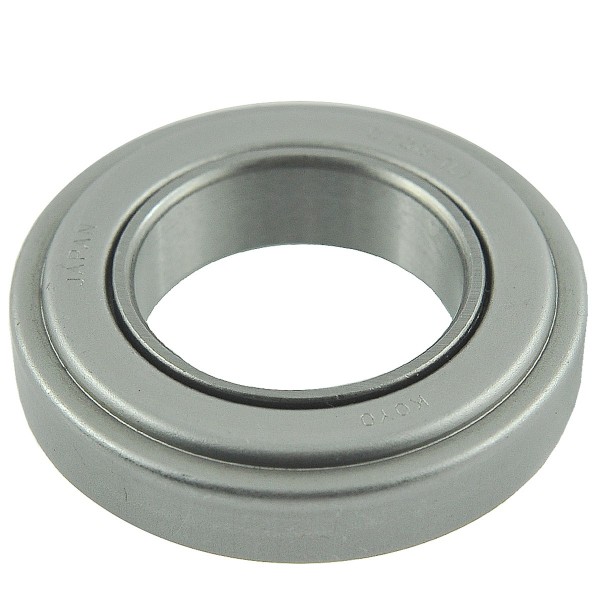

Clutch bearing / 38 x 67 x 15.25 mm / Kubota L / CT38-1L1 / 34150-14280 / 32150-14820 / 32270-14820 / 5-23-108-12

Clutch release bearing (disc 6-05-100-04 , pressure plate 6-26-102-03 ) with an inner diameter of 38 mm, an outer diameter of 67 mm and a height of 15.25 mm for Kubota tractors of the Kubota L1500 series, Shibaura series Shibaura P17F and others.

The clutch bearing is a bearing also called a release bearing or a release bearing and is the only moving element of the clutch system in a tractor engine and moves along the axis of the drive shaft in a feed motion. When pressing the clutch pedal, the release bearing presses on the clutch pressure springs, causing the pressure plate to lift, i.e. the pressure plate will move away from the friction surface of the clutch disc and in this way we can disconnect our drive, transferring power from the engine (crankshaft) to the drivetrain (crankshaft). gearbox drive), i.e. change gear or stop the tractor.

Dimensions :

• diameter: internal: 38 mm,
• diameter: external: 67 mm,
• height: 15.25 mm,
• original part numbers: 34150-14280, 32150-14820, 32270-14820,
• part numbers: CT38-1L1, 5-23-108-12.

Tractor models :

Kubota :

• Kubota B5001,
• Kubota B6000,
• Kubota B7001,
• Kubota B7100,
• Kubota L1500,
• Kubota L2000,

Shibaura :

• Shibaura P17F.

Engine models :

Kubota :

• Kubota Z750.

The first symptoms of bearing wear and the need to replace it are an unnatural sound, e.g. humming or noise coming from the clutch area, which most often disappears after pressing the clutch pedal. In case of serious damage or wear of the clutch bearing, there may be problems with engaging the gear. It is recommended to replace the bearing each time one of the pressure clutch or disc elements is replaced, because replacing each of these elements involves cutting the tractor in half (separating the gearbox from the engine) and is quite an expensive and time-consuming process.
