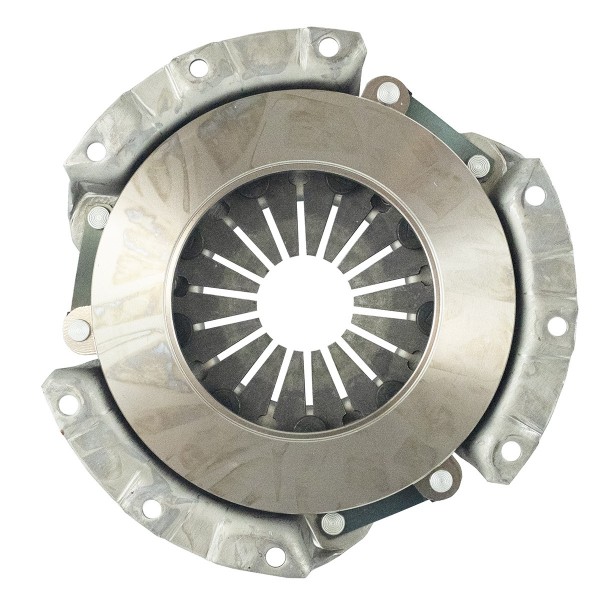

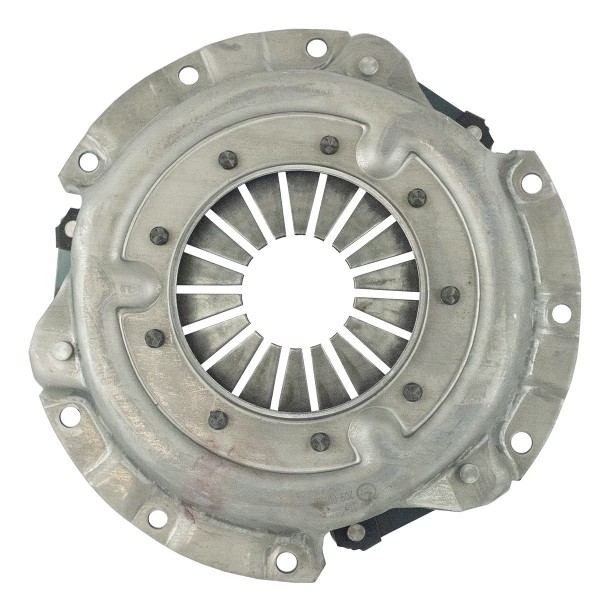

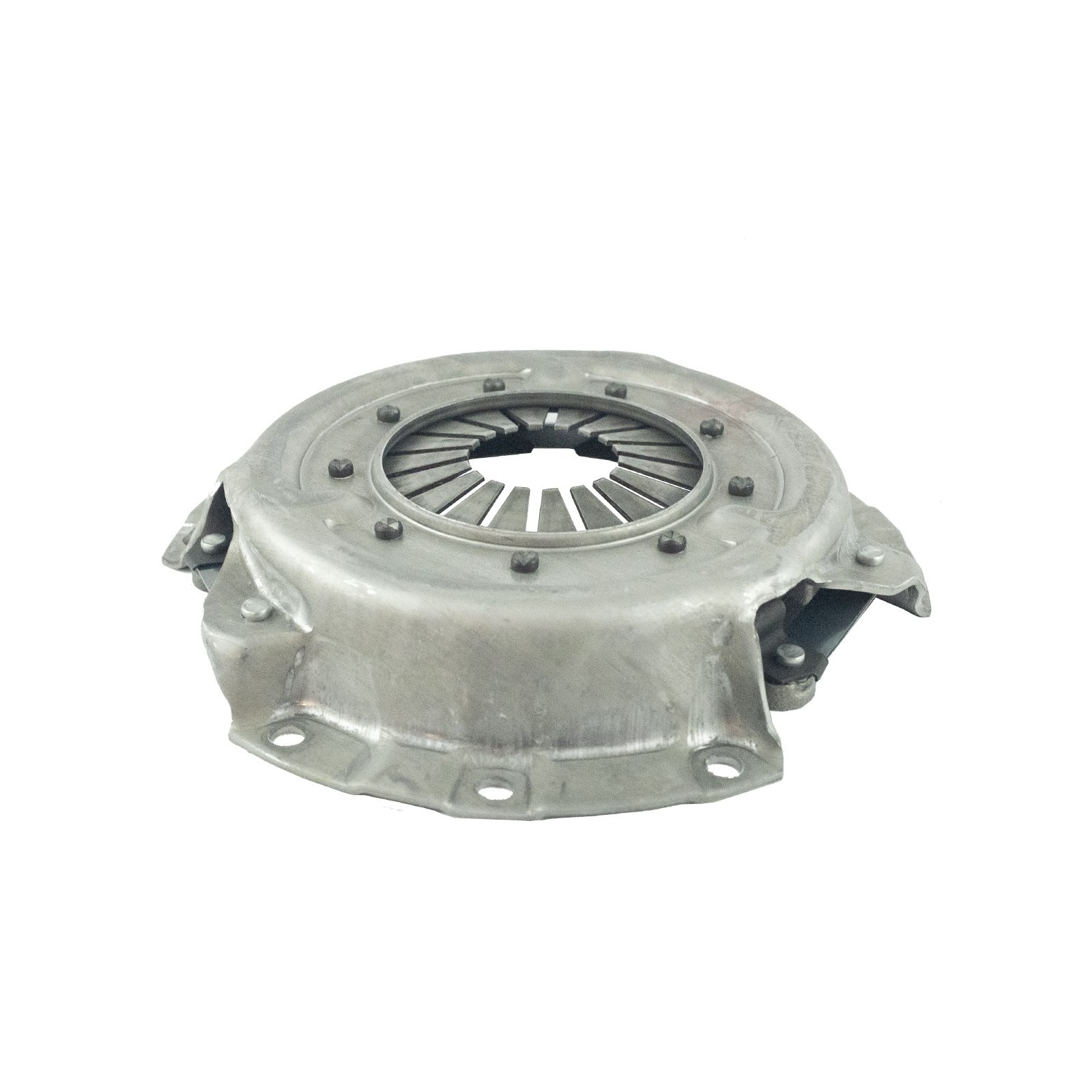

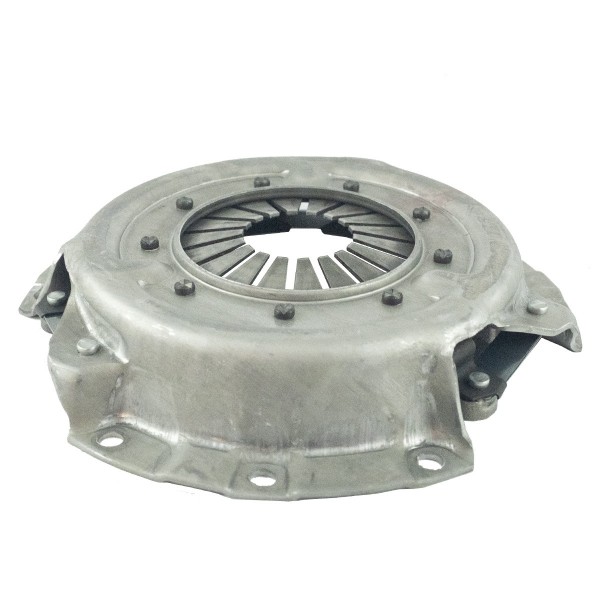

Clutch Pressure Plate / Kubota L1500 / 7" (7 in) / 209-001501 / 6-26-102-03

Clutch disc pressure plate with a pressure plate diameter of 115 / 184 mm for Japanese tractors and mini tractors of the Kubota brand L1500 series.

The clutch pressure plate is the component that connects the gearbox to the engine, and is therefore responsible for transferring torque from the engine, through the gearbox, to the tractor's drivetrain. To simplify this complex process, the clutch pressure plate is responsible for moving the tractor, starting and stopping, and changing speed ratios. The clutch pressure plate consists of a housing, compression springs, and a clutch disc. Its main function is to exert sufficient frictional force on the clutch disc to prevent the two components (pressure plate and disc) from rotating at different speeds.

Dimensions :

• Housing diameter: 238 mm,
• Disc diameter: internal 115 mm,
• Disc diameter: outer 184 mm,
• Height: 40 mm,
• Mounting screw hole spacing: 220 mm (measured diagonally), 110 mm (measured apart),

Tractor models :

• Kubota L1500.

The first signs of a worn clutch include an unusual noise when pressing or releasing the clutch pedal, an unpleasant odor, or a grinding sound from the gearbox. When replacing a clutch, it's recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.

Magazine :K18:E19

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
