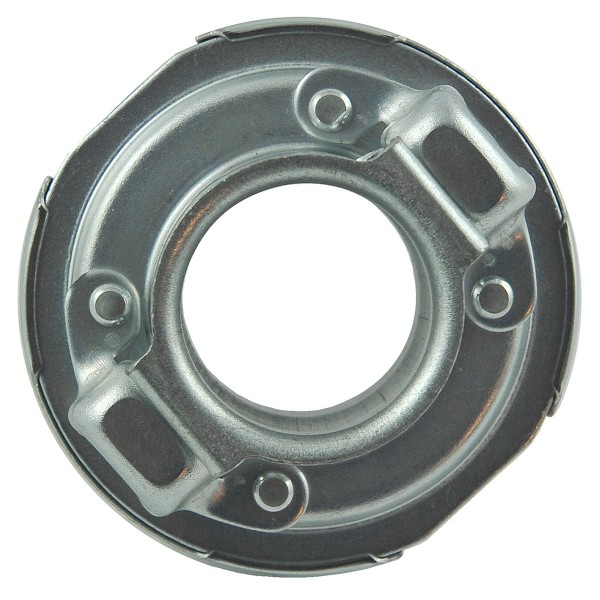

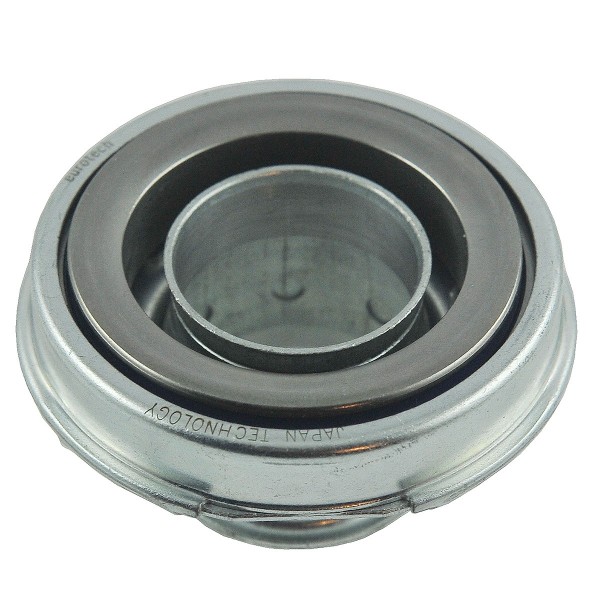

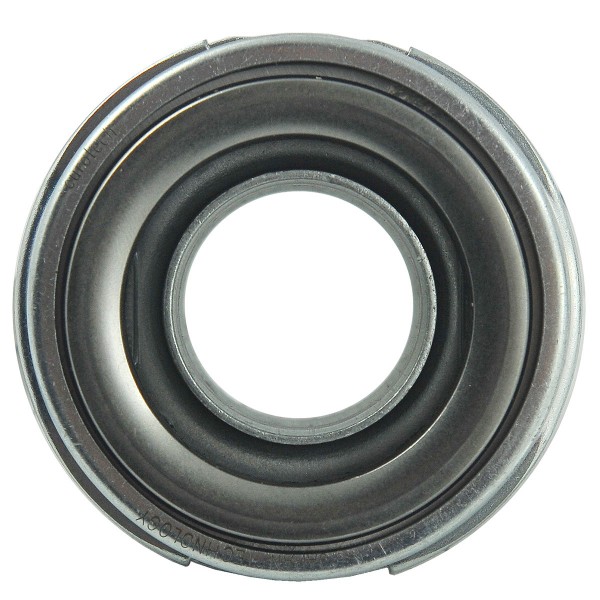

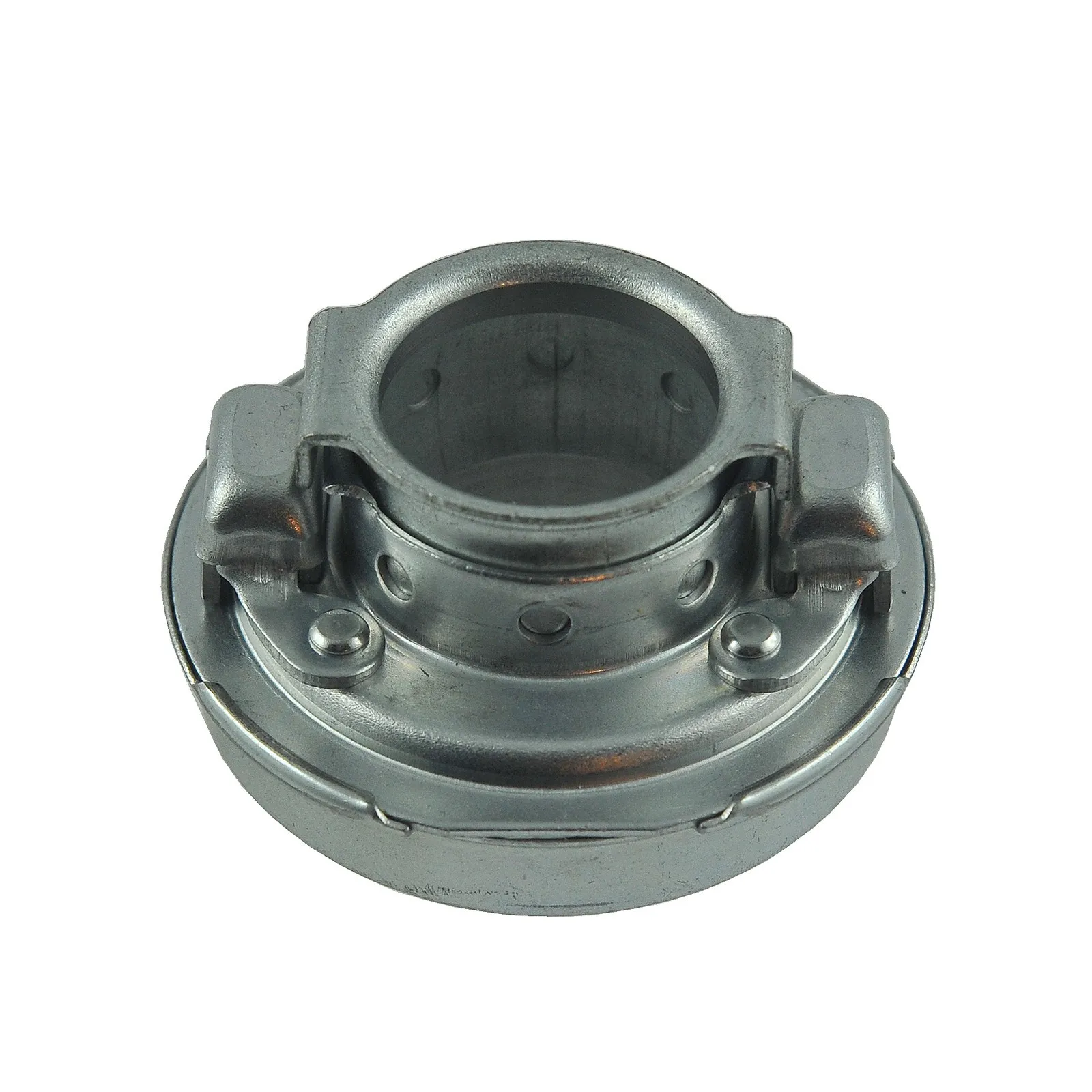

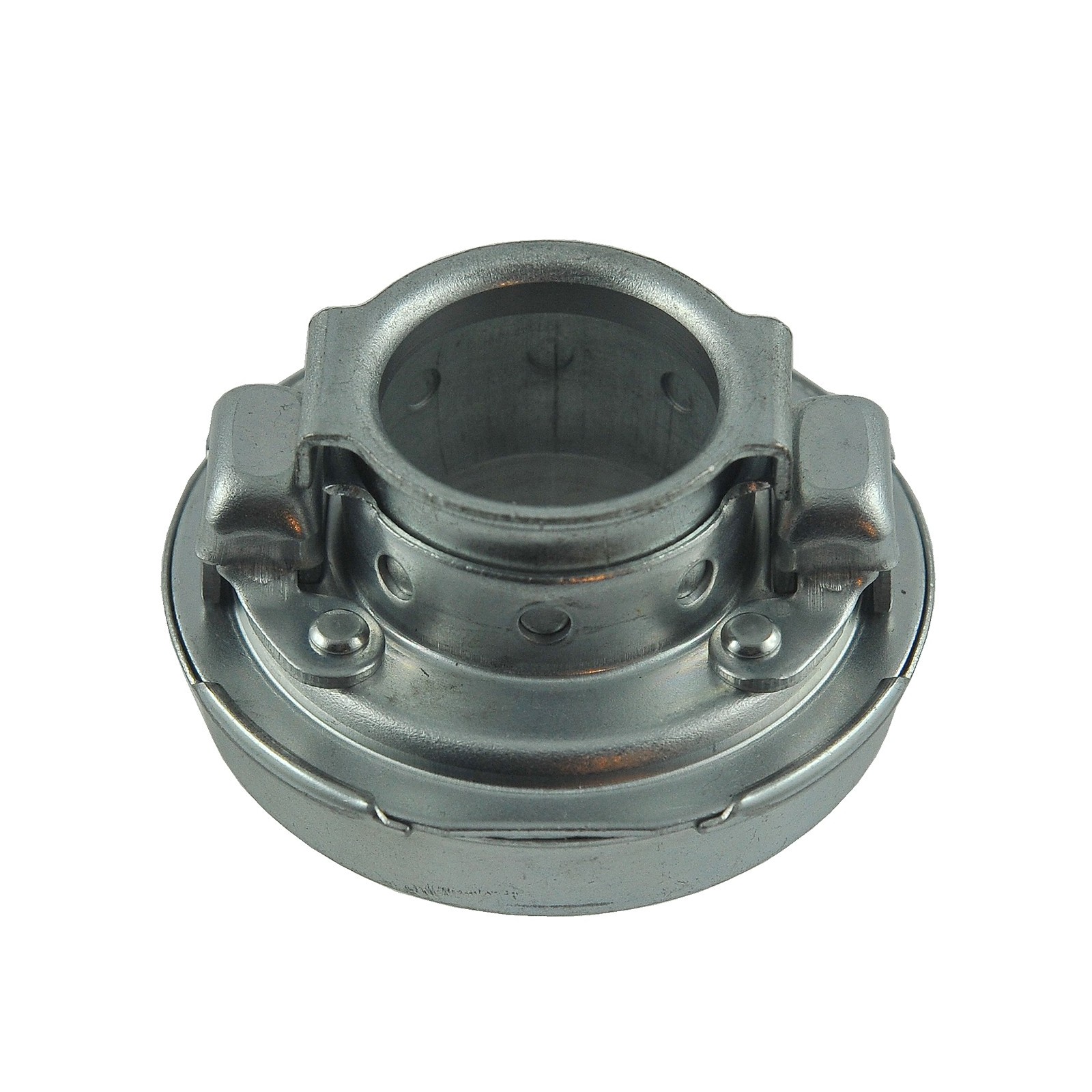

Thrust bearing / Yanmar AF30 / 54TKZ3501 / 6-23-114-03

Clutch release bearing ( disc %C5% 9Bci-do-yanmar/1268-disc-sprz %C4% 99g %C5% 82a-13t-9225-mm-yanmar-af30ef352t-cub-cadet-ex3200-198287-21510-6-05-100-05.html">6-05-100-05 , 198287-21510, pressure plate %C5% 9Bci-do-yanmar/1488-docisk-sprz %C4% 99g %C5% 82a-9-yanmar-ef352t-iseki-geas-27ta207ta225-mitsubishi-mt30-shibaura-d32-198287-21700-6-26-102-06.html">6-26-102-06 , 198287-21700) with an inner diameter of 45 mm , outer diameter of 59 mm and height of 15 mm for Yanmar tractors of the Yamar AF30 series and others.

The clutch bearing , also known as a release bearing or thrust bearing , is the only moving component of the clutch system in a tractor engine. It moves along the axis of the drive shaft in a sliding motion. When the clutch pedal is depressed, the thrust bearing presses against the clutch pressure springs, causing the pressure plate to lift. This means the pressure plate moves away from the clutch disc friction surface. This allows us to disengage our drive, transferring power from the engine (crankshaft) to the drive system (gearbox drive shaft), i.e., change gear or stop the tractor.

Dimensions :

• Inner diameter (bearing): 45 mm,
• Inner diameter (housing): 32 mm,
• Diameter: outer (housing): 70 mm,
• Height (bearing): 15 mm,
• Total height: 40 mm,
• Original part numbers: 54TKZ3501,
• Part numbers: VKC 3672, 6-23-114-03.

Tractor models :

• Yanmar AF30.

The first signs of bearing wear and the need for replacement include an unusual noise, such as a humming or buzzing sound coming from the clutch area, which usually disappears when the clutch pedal is depressed. In the case of severe damage or wear to the clutch bearing, difficulty engaging gears may occur. It is recommended to replace the bearing whenever one of the clutch pressure plate or disc components is replaced, as replacing each of these components requires splitting the tractor (separating the gearbox from the engine) and is a relatively expensive and time-consuming process.

Magazine : K18:F29 S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
