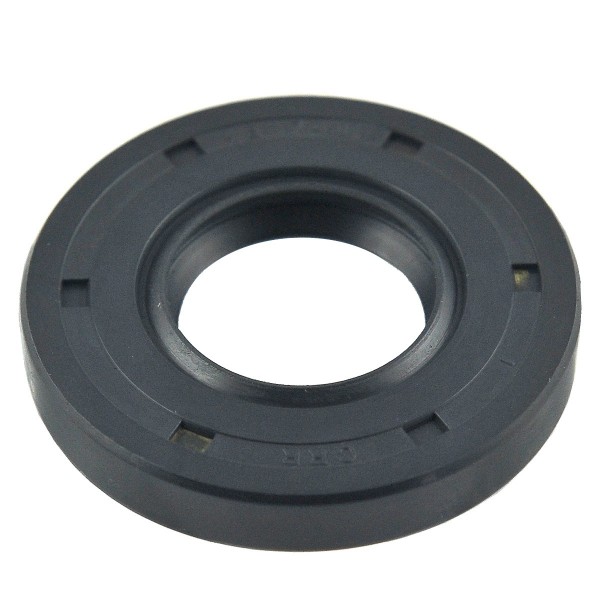

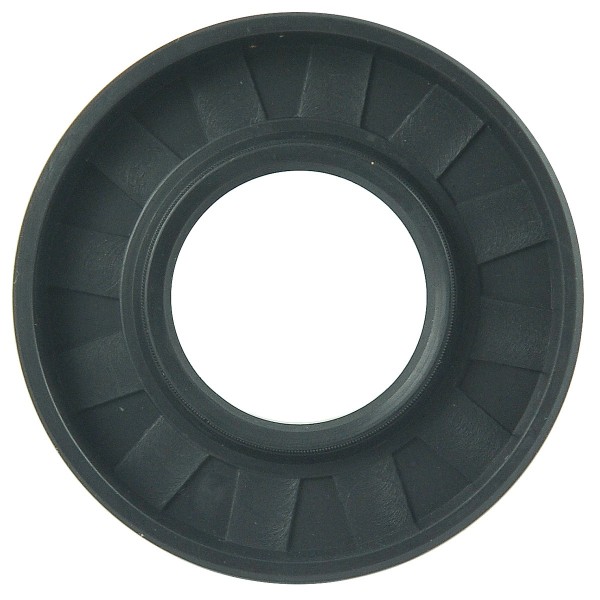

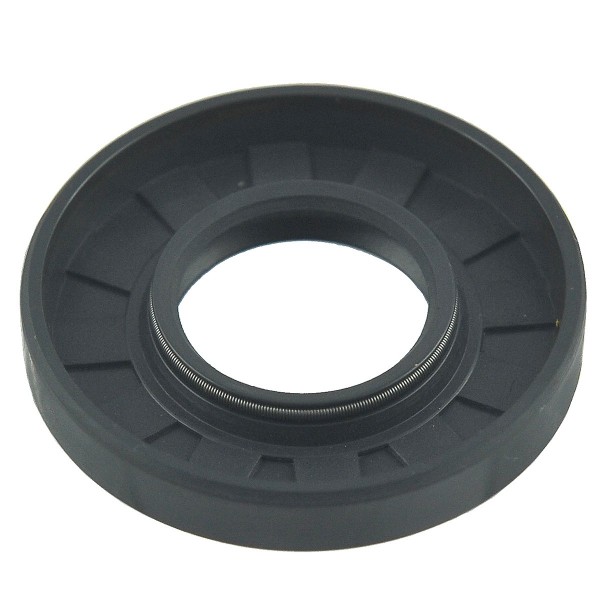

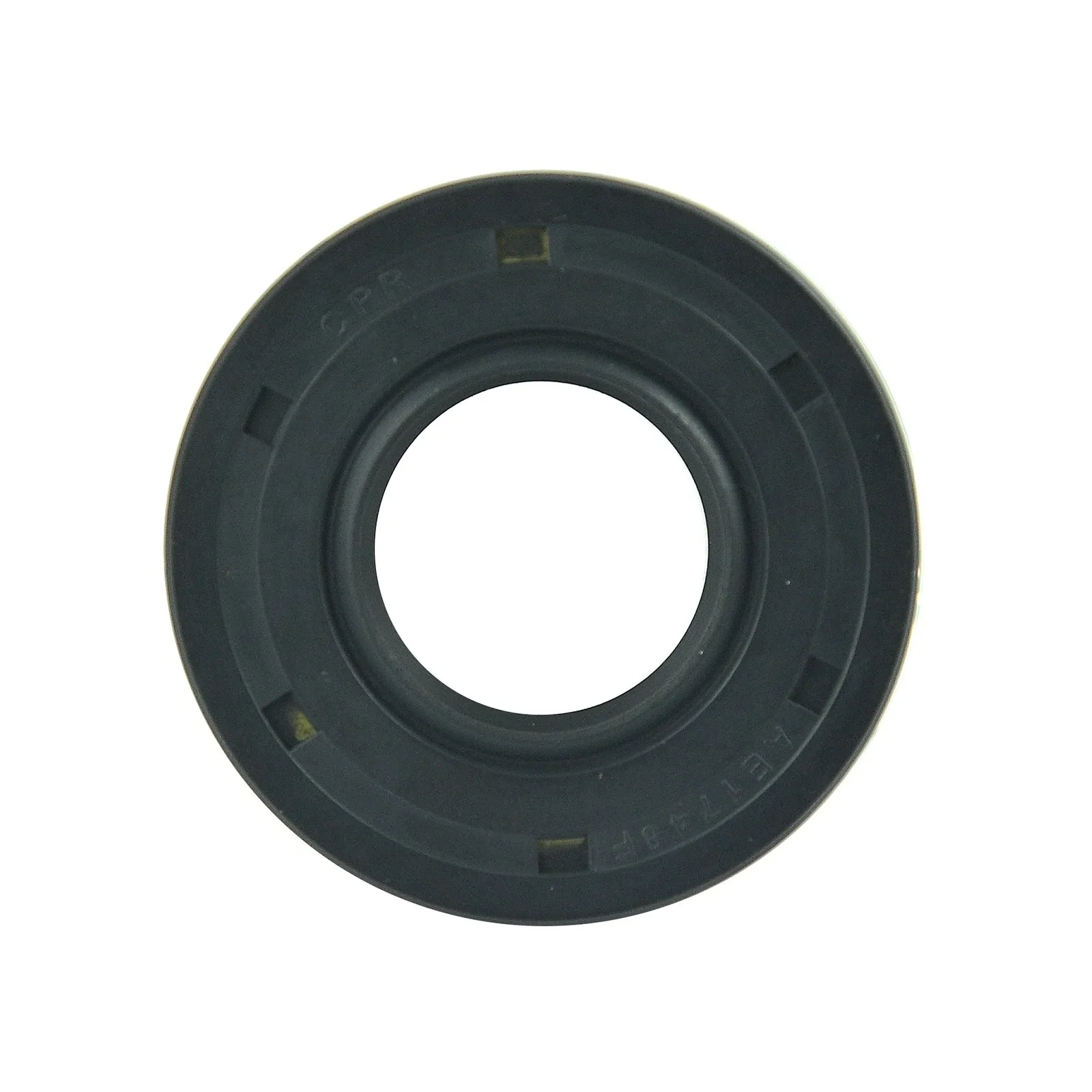

Sealant / 30 x 62 x 10 mm / Yanmar AF30/EF352T/EF393T / AE1748F / 244213-06210 / 5-08-106-13

Front axle drive shaft seal (shaft 5-18-117-15 , 198200-13100-1) with an internal diameter of 30 mm , an external diameter of 62 mm and a height of 10 mm for Yanmar tractors and the Yanmar AF30, Yanmar EF352T, Yanmar EF393T series and others .

The sealant is most often a rubber ring (also called simmering, Simmer's ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Simering is used to seal rotating elements of a system with a maximum internal pressure of up to 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are different types of seals, the most common are cassette seals (two-piece), sealing rings with a spring around or seals with a partially metal casing (cover).

Dimensions:

• outer diameter: 62 mm.
• inner diameter: 30 mm.
• height: 10 mm,
• original part numbers: 244213-06210,
• part numbers: AE1748F, 5-08-106-13.

Tractor models :

Yanmar:

• Yanmar AF30,
• Yanmar EF352T,
• Yanmar EF393T.

Seals prevent oil or lubricant leaks and prevent contaminants from entering the system.
