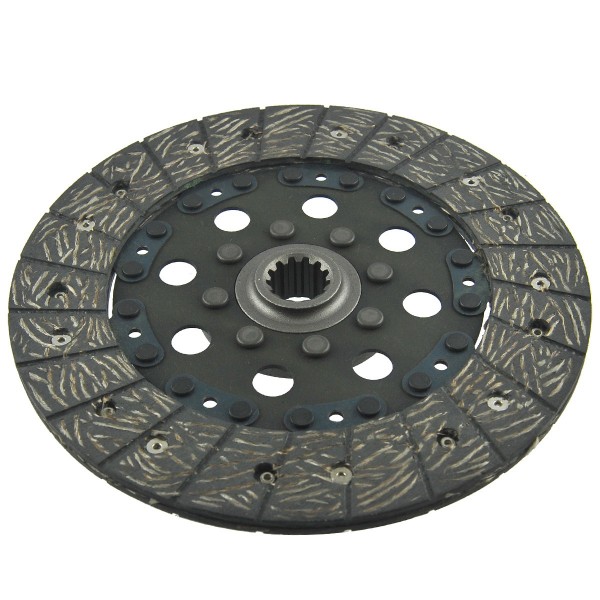

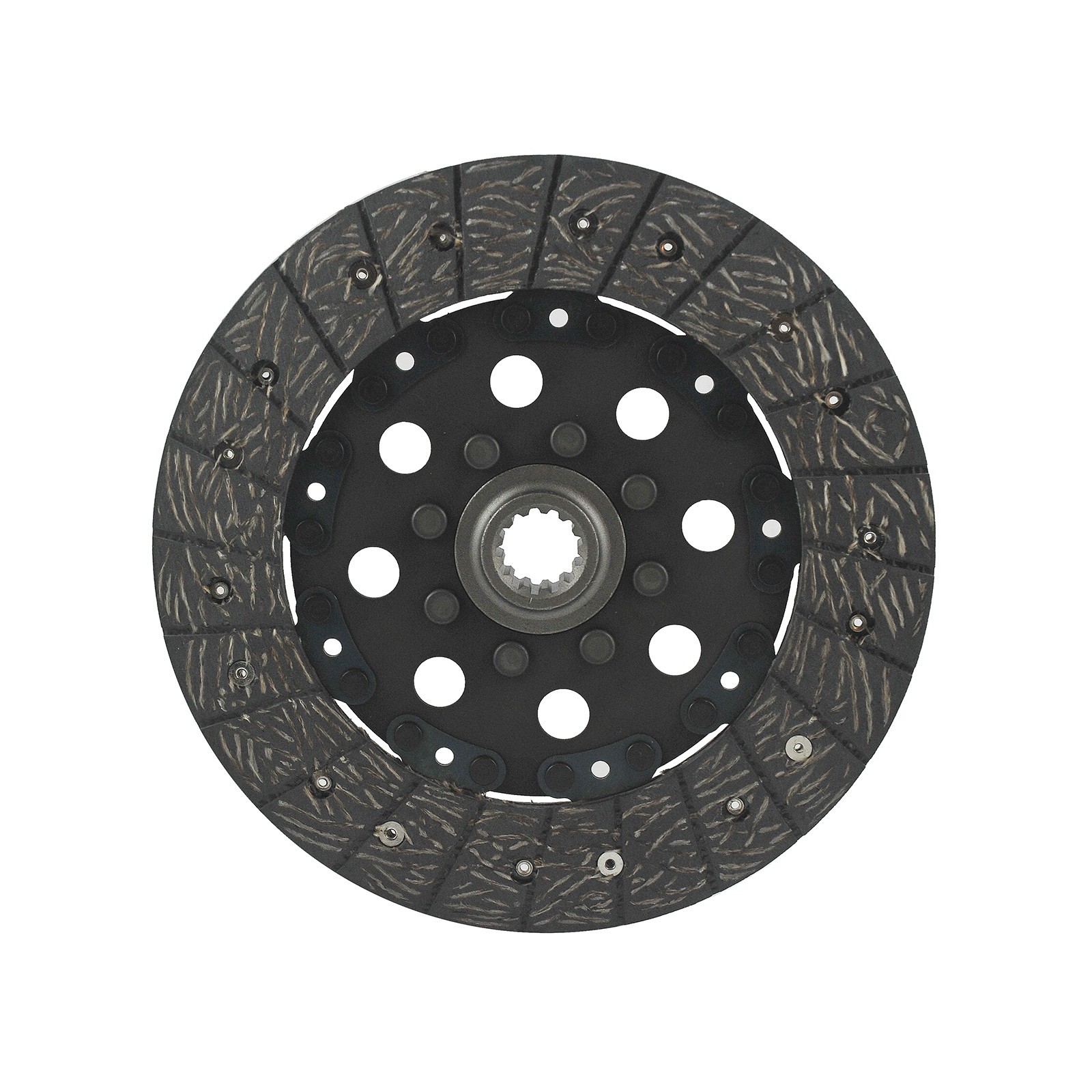

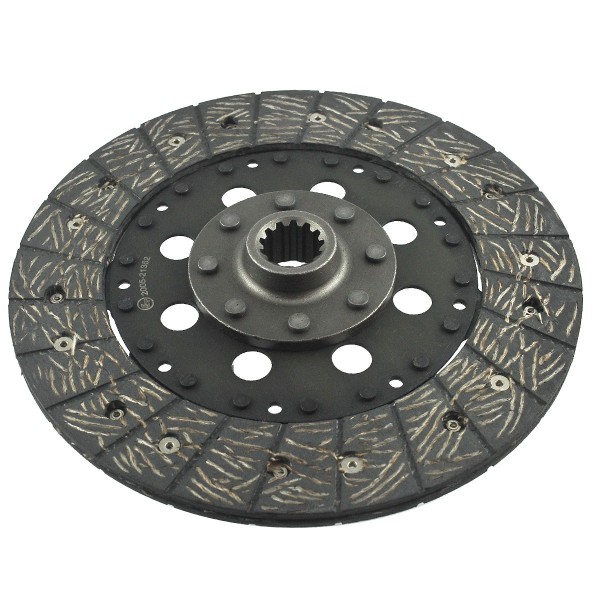

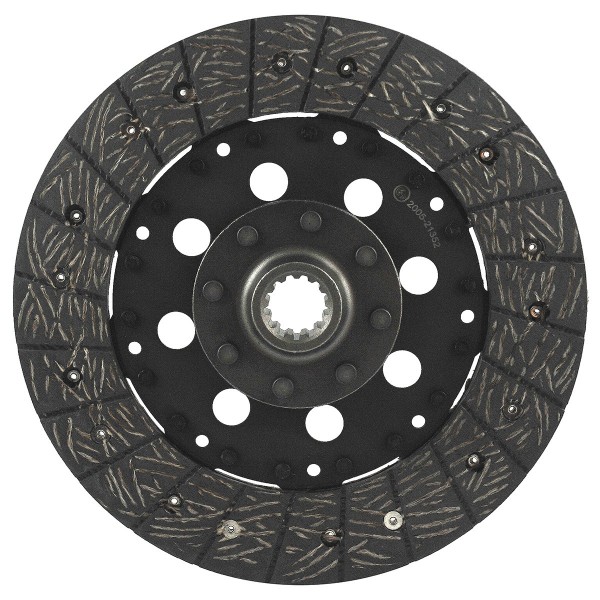

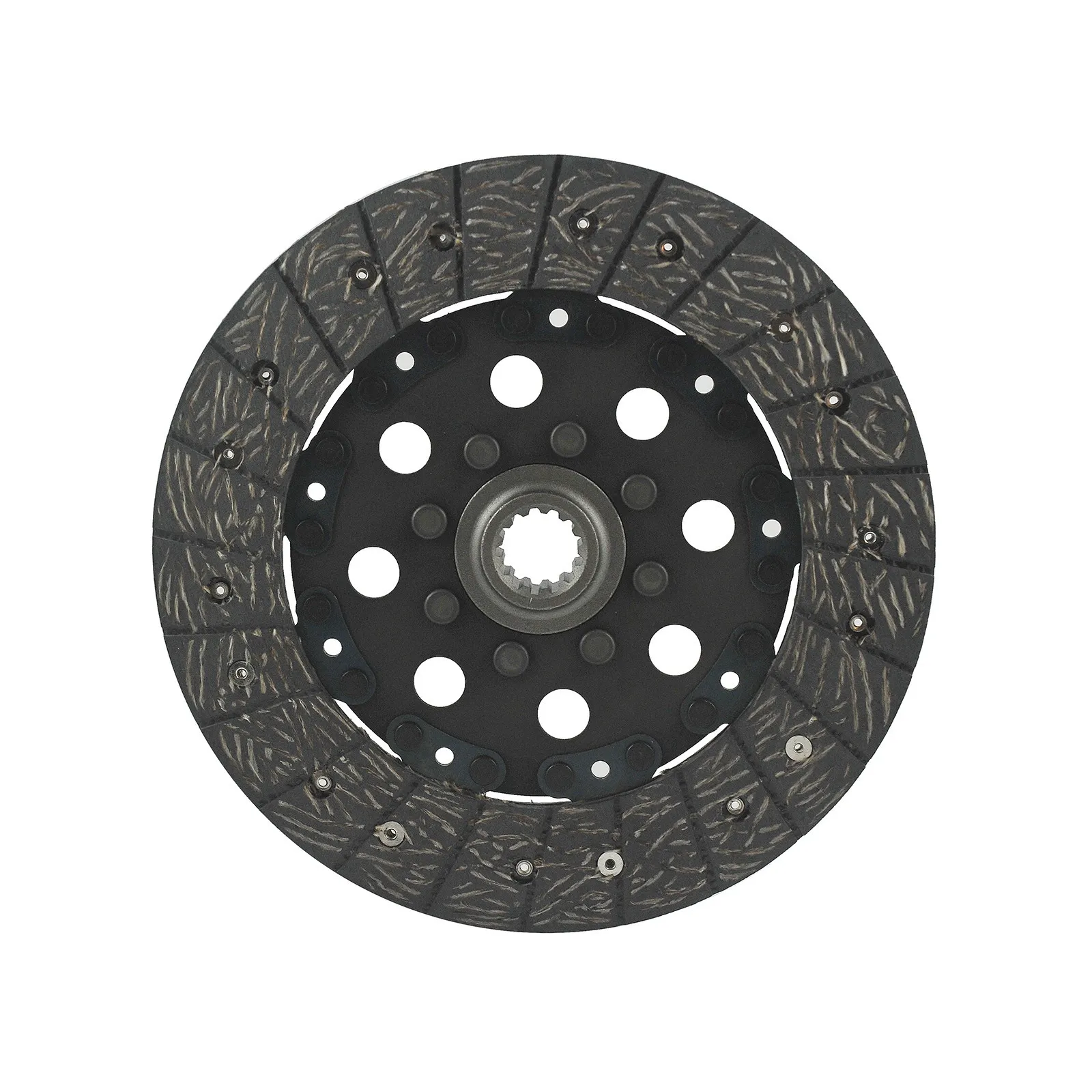

Clutch Disc / 13T / 9"/ 225 mm / Yanmar AF30 / EF352T / Cub Cadet EX3200 / Iseki TA207F / 6-05-100-05

Clutch disc (pressure %C5% 9Bci-do-yanmar/1488-clamp-on-disc %C4% 99g %C5% 82a-9-yanmar-ef352t-iseki-geas-27ta207ta225-mitsubishi-mt30-shibaura-d32-198287-21700-6-26-102-06.html">6-26-102-06 , 198287-21700, clamp-on-disc %C5% 9Bci-do-kubota/1352-clamp-on-disc %C4% 99g %C5% 82a-158-x-238-mm-9-12-kubota-l3300l4100l4240l3430l4508l5740-ta020-20600-6-26-102-04.html">6-26-102-04 , TA020-20600, bearing %C5% 9Bci-do-kubota/1448- %C5% 82o %C5% BClutch-thrust-coupling %C4% 99g %C5% 82a-kubota-l4508-m5000-82-x-5550-x-19-mm-rcts5582ru-3c001-26350.html">6-23-114-02 , 3C001-26350) with a diameter of 225 mm (9 inches), a hub height of 25 mm , an internal diameter measured between the teeth of 25 mm and 21.50 mm with spline teeth for tractors and mini tractors of the Yanmar brand Yanmar AF30 series, Yanmar EF352T, Cub Cadet brand Cub Cadet EX3200 series, Iseki brand Iseki TA20F series and others.

The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.

Dimensions :

• Outer diameter: 225 mm,
• Inner diameter: 25 mm (measured between cutter teeth), 21.50 mm (measured together with cutter),
• Hub height: 25 mm,
• Number of teeth: 13T.
• Thickness: 8 mm,
• Original part numbers: 198287-21510,
• Part numbers: 6-05-100-05.

Tractor models :

Yanmar :

• Yanmar AF30,
• Yanmar EF352T.

Cub Cadet :

• Cub Cadet EX3200.

Iseki :

• Iseki TA207F.

The first signs of a worn clutch include an unusual noise when pressing or releasing the clutch pedal, an unpleasant odor, or a grinding sound from the gearbox. When replacing a clutch, it's recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.

Magazine : K18:A30

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
