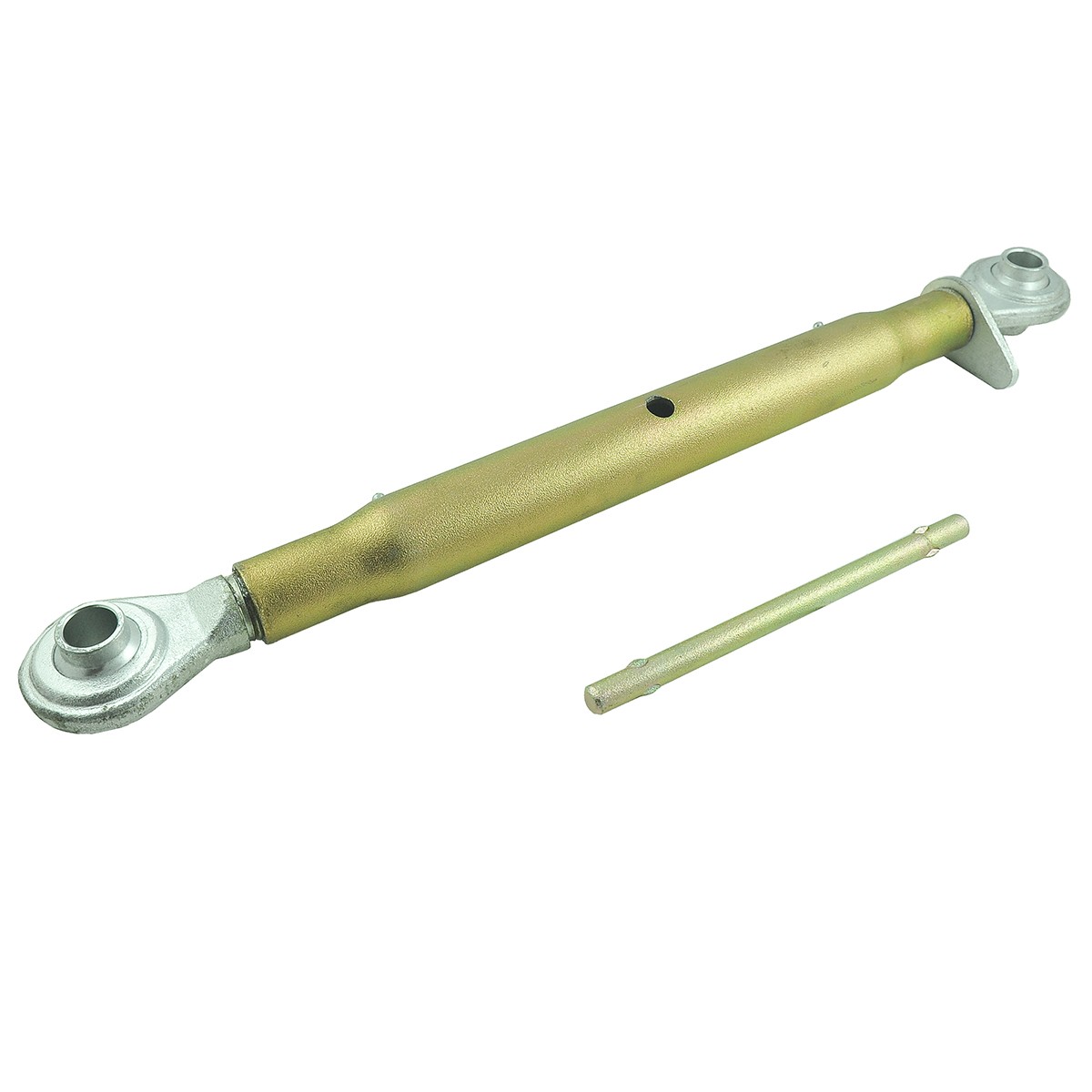

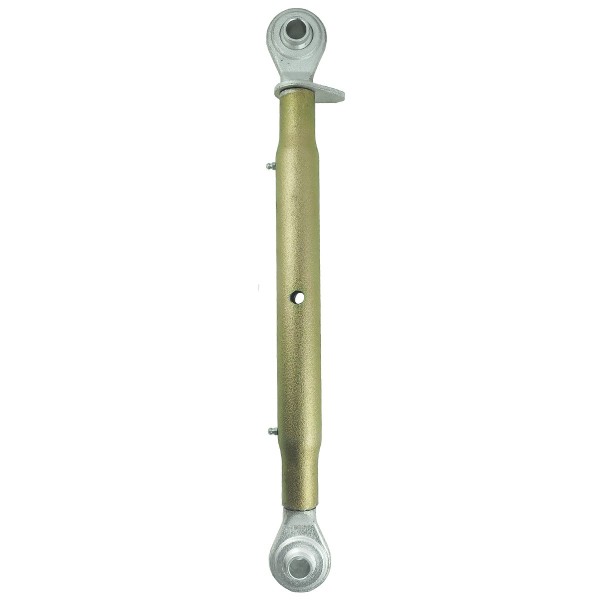

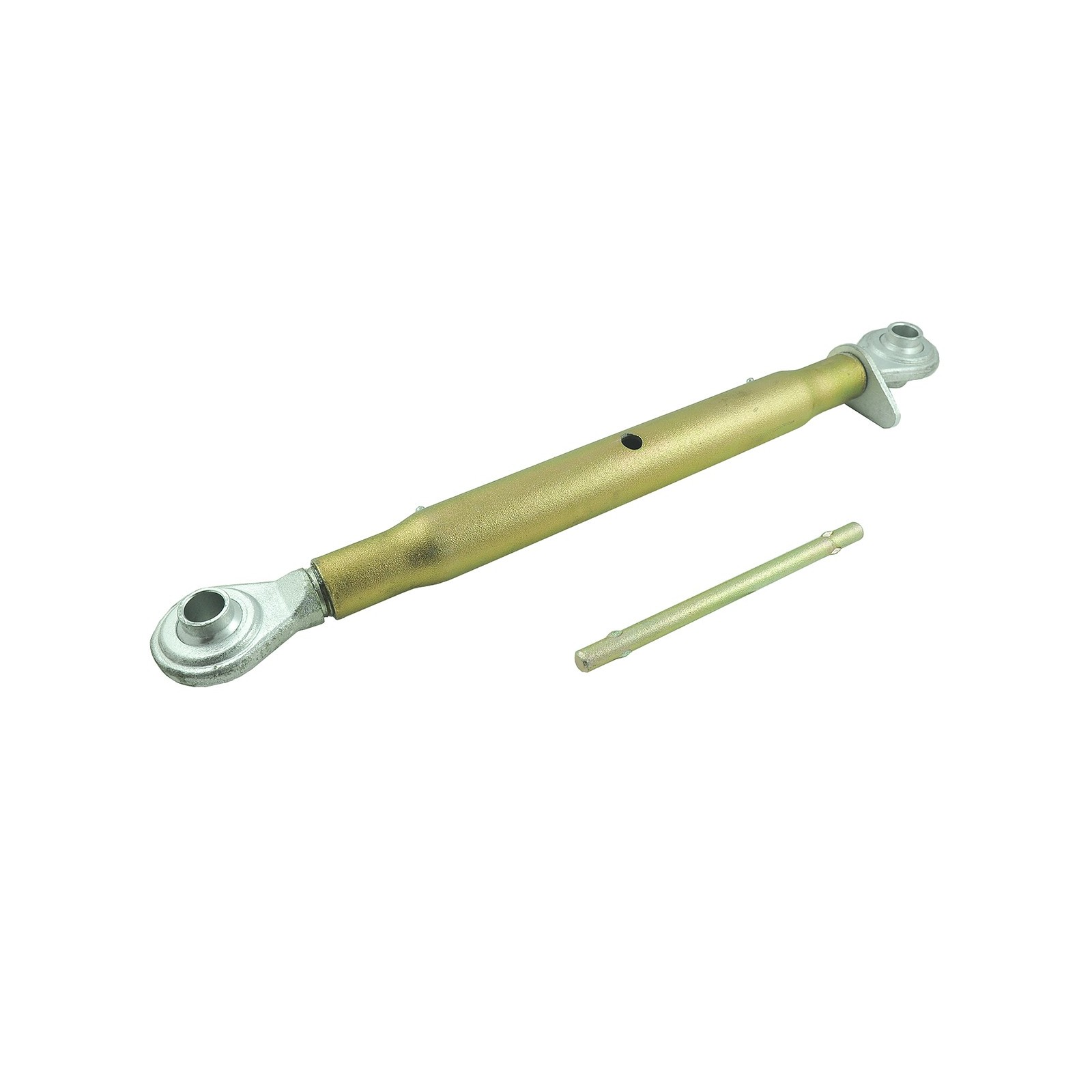

Turnbuckle / Cat I / 520-760 mm / 16" / M30 x 3

Turnbuckle Cat 1 and Cat 1 with a total length of 580 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 19 mm (TUZ KATI) for tractors and other machines.

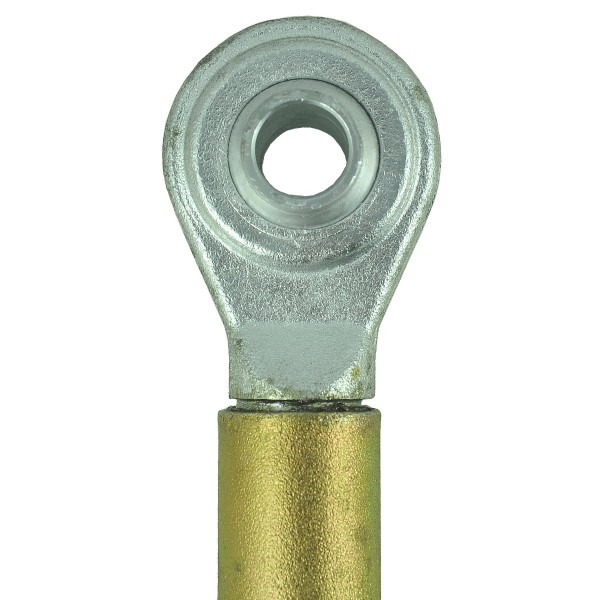

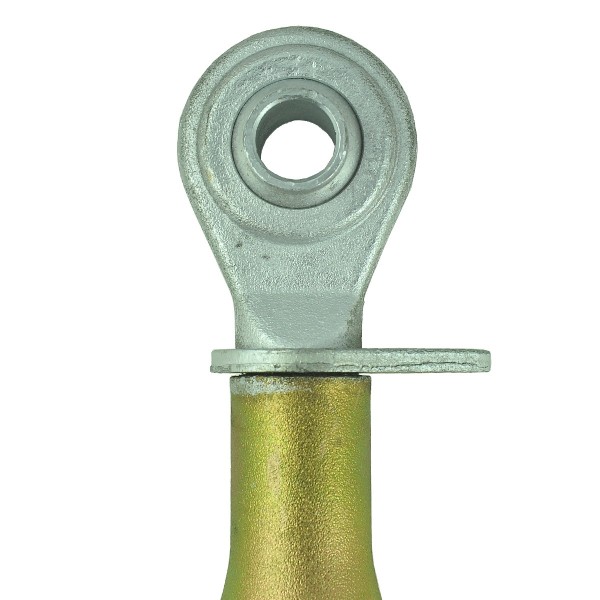

The three-point linkage turnbuckle used in agriculture is a tractor element, specifically an element of the rear three-point linkage (%C5% 82ad+zawieszenia+TUZ">Three-point rear linkage) and is used to connect the tractor to a machine or agricultural implement. The pipe tensioning screw, also known as a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. The turnbuckle and are terminated with spherical swinging holes, sleeves for locking pins .

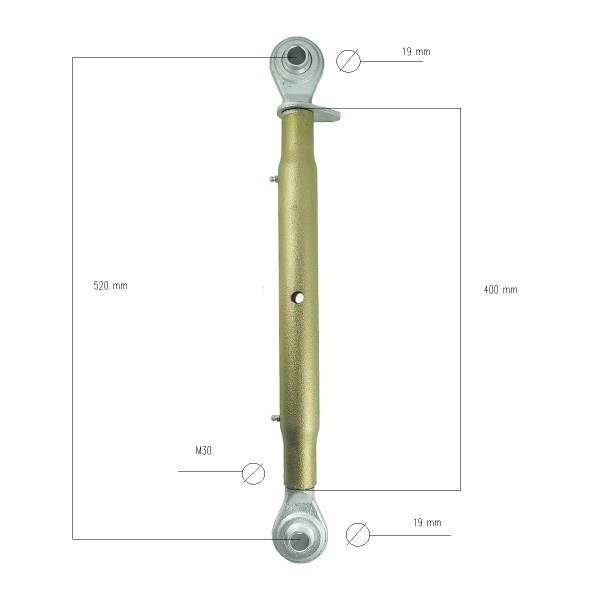

Dimensions :

• length: 400 mm (16 inch body),
• total length: 580 mm (minimum total length measured with fully tightened screws),
• working length: minimum 520 mm, maximum 760 mm,
• thread: M30 x 3,
• diameter of pin holes: 19 mm,
• pin mounting width: 34 mm,
• head diameter: 50 mm.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse:
M:LS

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
